Fiber Optic Cable Clamps

Fiber Optic Cable Clamps

In 2015, Jera line started to produce clamps and brackets for FTTX fiber optic cable deployment. We spend a lot of time and cost for new products development and test to produce various clamps and brackets for medium span cable line deployment.

Cable clamp and bracket are very important factor during telecommunication projects. Jera is devote itself to develop and produce durable, cost-effective and reliable products to satisfy different requirements from customers. The main materials for clamp and bracket are UV resistant thermoplastic, galvanized steel, aluminum alloy, stainless steel.

Relevant clamp and bracket includes:

1)Anchor clamps for ADSS cables
2)Suspension clamps for ADSS cables
3)Anchor clamps for figure-8 cables
4)Suspension clamps for figure-8 cables
5)Drop clamps for FTTH cables
6)Down lead clamps
7)Anchor and Suspension brackets
8)Fiber optic cable slack storage

We supply our clients with confident fiber optic products to satisfy various requirements with punctual delivery and competitive price.

All the cable assemblies passed the tensile tests, operation experience with temperatures ranging test, temperature cycling test, aging test, corrosion resistance test etc.

Each day we are improving our product range of fiber optic cable accessories to stand up to new challenges of global market. OEM is also available for us, please just send us samples or detailed configuration, we could calculate the cost in a short time for you.

Please feel free to contact us for further information.

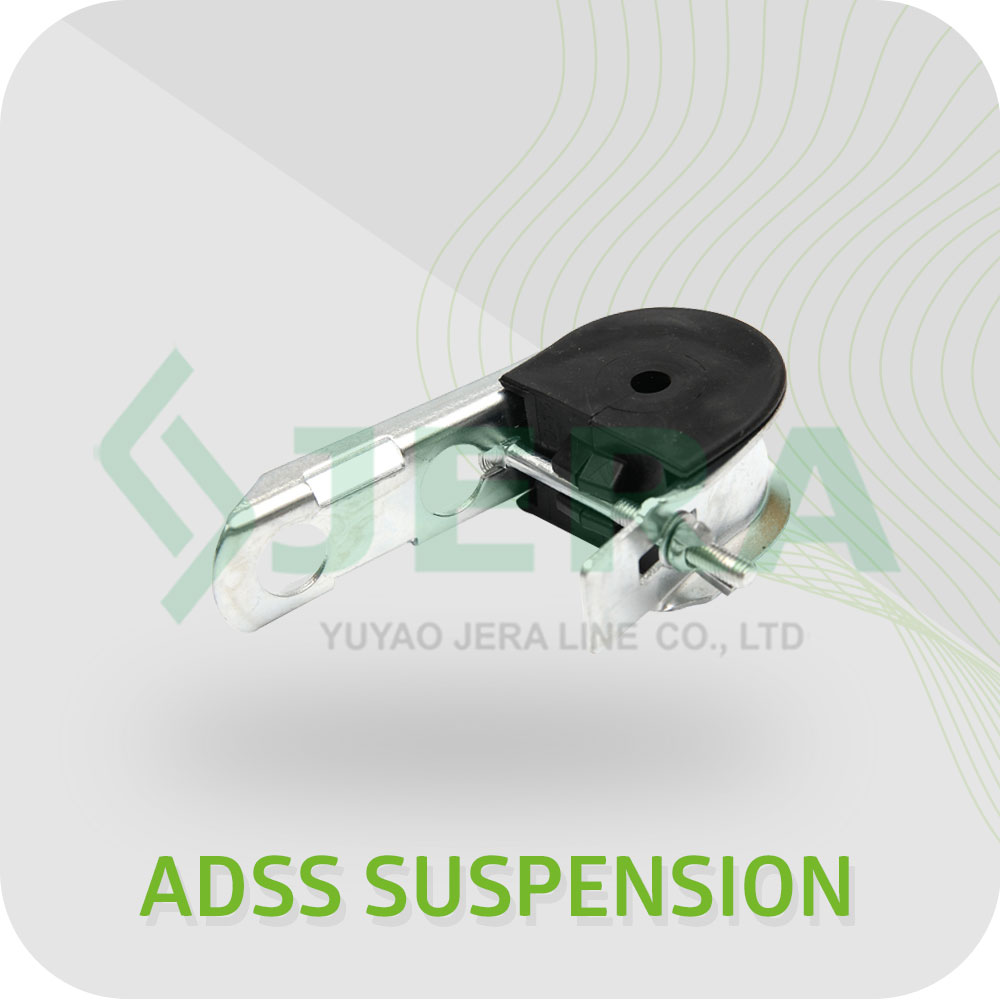

ADSS SUSPENSION

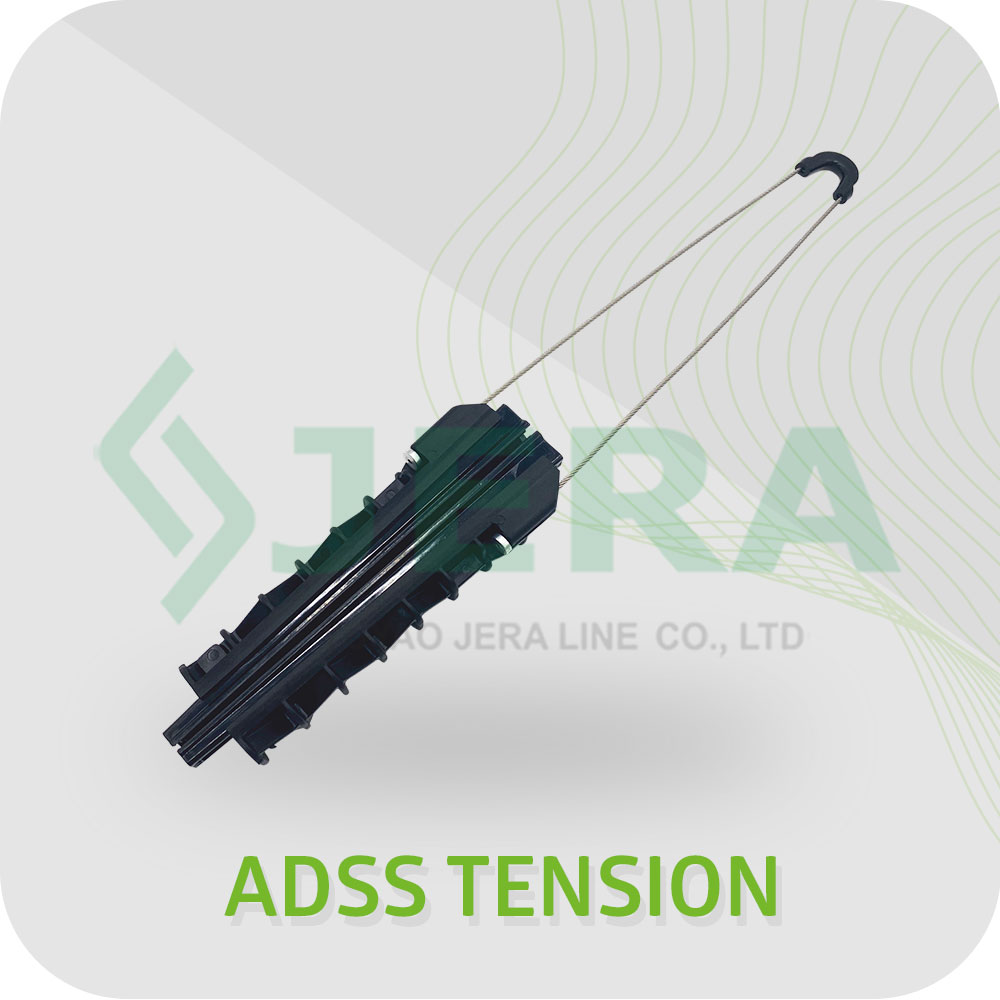

ADSS TENSION

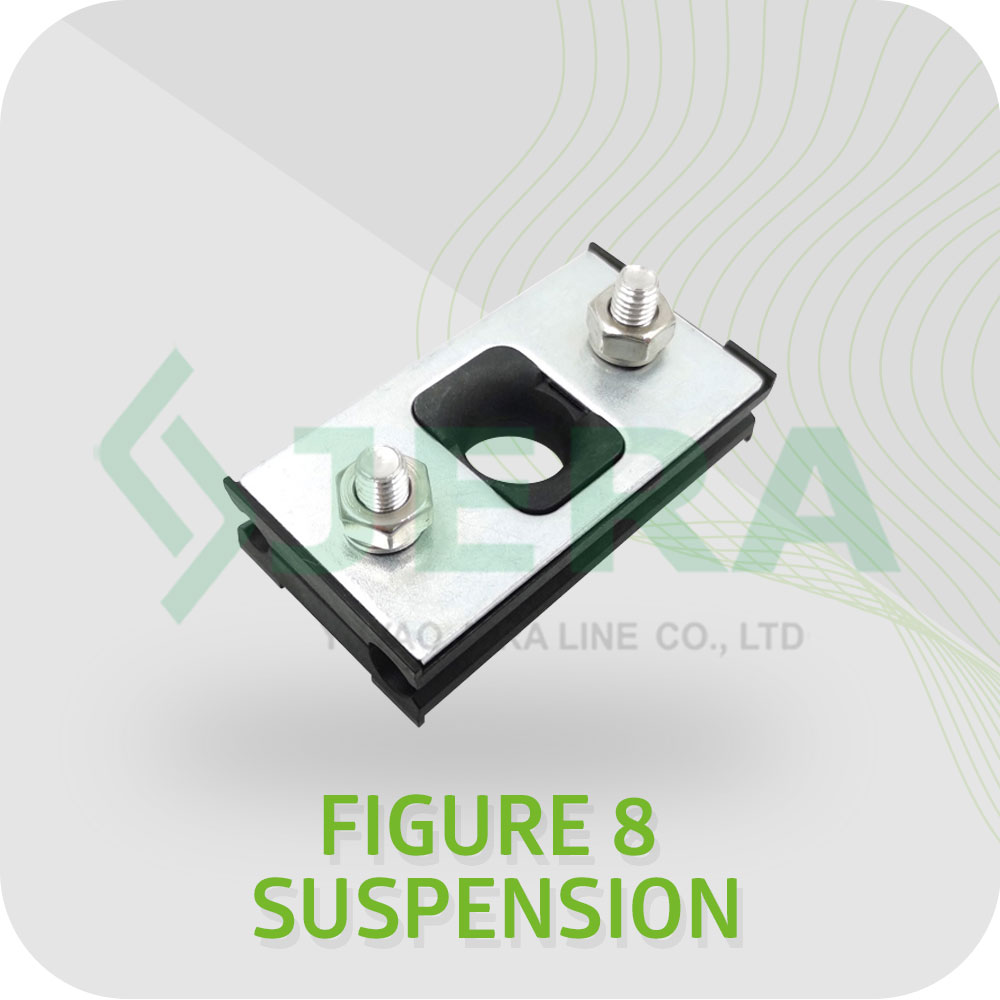

FIGURE 8 SUSPENSION

FIGURE 8 TENSION

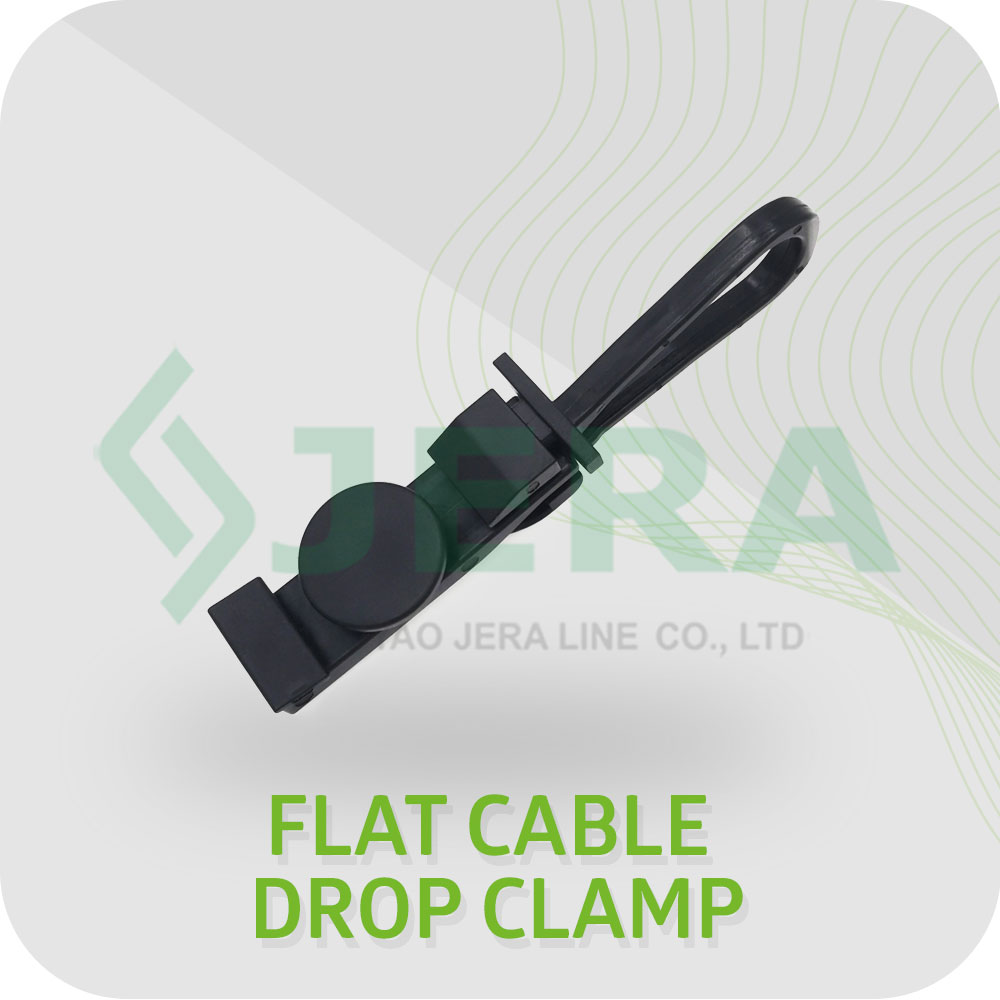

FLAT CABLE DROP CLAMP

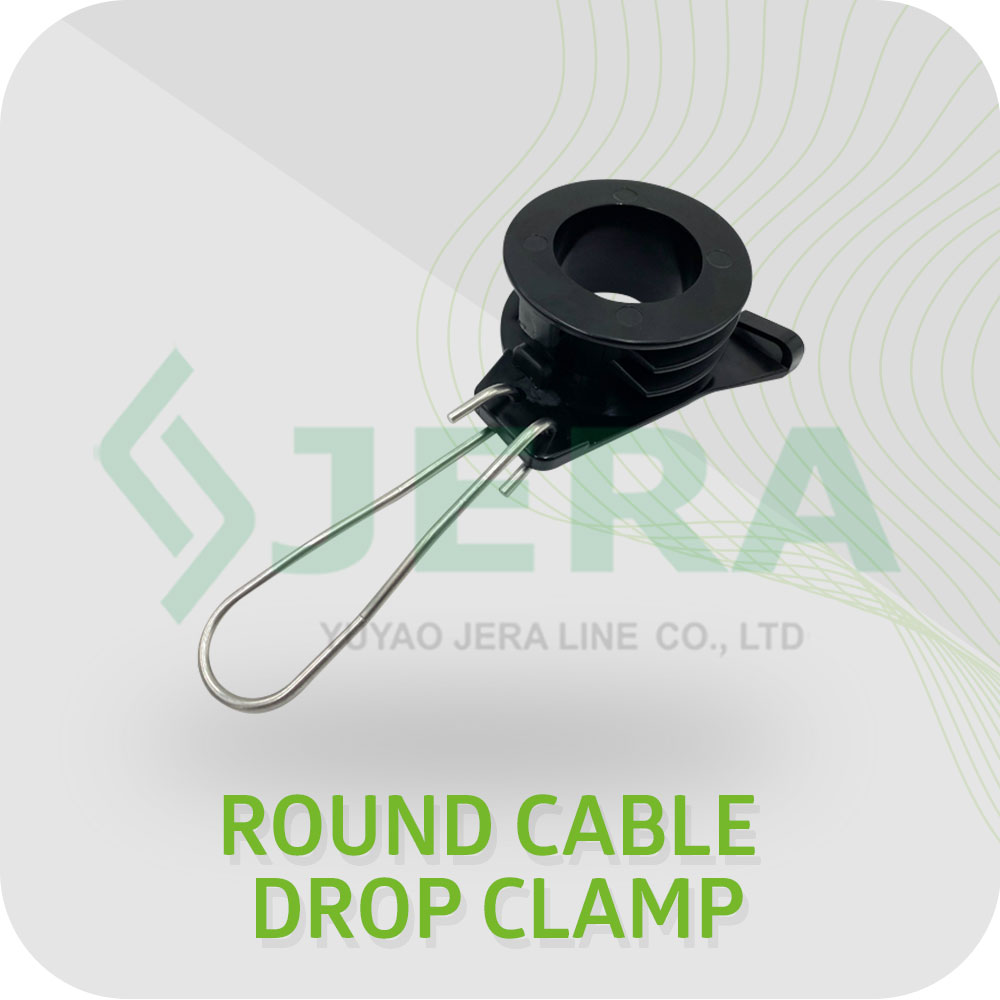

ROUND CABLE DROP CLAMP

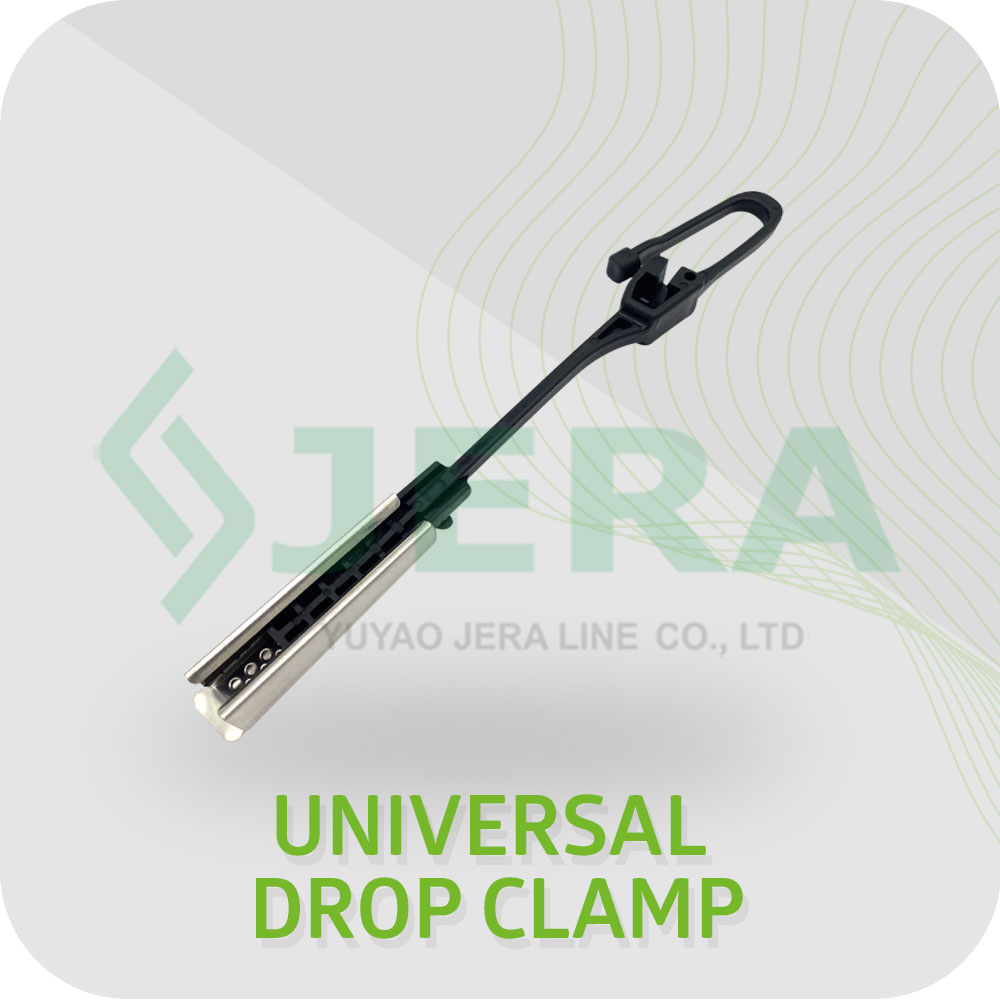

UNIVERSAL DROP CLAMP

ADSS Cable Anchor Clamp, PA-500 (4-8mm)

VIEW MORE

ADSS Cable Anchor Clamp, PA-500 (4-8mm)

  • Cable type: Round
  • Cable size:4-8 mm
  • Span:50-100 m
  • MBL: 2 KN

Figure 8 fiber cable clamp D1

VIEW MORE

Figure 8 fiber cable clamp D1

  • Cable type: Figure 8
  • Cable size:4-7 mm
  • Span:30-70 m
  • MBL: 0.5 KN

Fiber cable clamp PA-260 (3-8mm)

VIEW MORE

Fiber cable clamp PA-260 (3-8mm)

  • Cable type: Round
  • Cable size:3.0-8.0 mm
  • Span:30-70 m
  • MBL: 1.5 KN

ADSS J hook suspension clamp HCT-8-12

VIEW MORE

ADSS J hook suspension clamp HCT-8-12

  • Cable type: Round
  • Cable size:8-12 mm
  • Span:50-200 m
  • MBL: 6 KN

J hook suspension clamp

VIEW MORE

J hook suspension clamp

  • Cable type: Round
  • Cable size:8-15 mm
  • Span:50-100 m
  • MBL: 4 KN

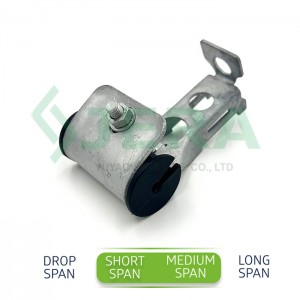

J-shape suspension clamp HCT-5-8

VIEW MORE

J-shape suspension clamp HCT-5-8

  • Cable type: Round
  • Cable size:5-8 mm
  • Span:50-200 m
  • MBL: 6 KN

Retenedor Fibra Optica D5

VIEW MORE

Retenedor Fibra Optica D5

  • Cable type: Flat
  • Cable size:4-6 mm
  • Span:30-50 m
  • MBL: 0.5KN

Cable Tension Clamp, PA-37 (3-7mm)

VIEW MORE

Cable Tension Clamp, PA-37 (3-7mm)

  • Cable type: Round/Fig-8 FRP messenger
  • Cable size:3-7 mm
  • Span:30-70 m
  • MBL: 2 KN

Figure 8 Cable Anchor Clamp, PA-69 (6-9mm)

VIEW MORE

Figure 8 Cable Anchor Clamp, PA-69 (6-9mm)

  • Cable type: Round/Fig-8 FRP messenger
  • Cable size:6-9 mm
  • Span:30-70 m
  • MBL: 2 KN

Aerial ADSS Anchor Clamp, PA-500.1 (4-8mm)

VIEW MORE

Aerial ADSS Anchor Clamp, PA-500.1 (4-8mm)

  • Cable type: Round
  • Cable size:4-8 mm
  • Span:50-100 m
  • MBL: 3 KN

Fiber Cable Anchor Clamp, PA-610 (6-10mm)

VIEW MORE

Fiber Cable Anchor Clamp, PA-610 (6-10mm)

  • Cable type: Round/Fig-8 FRP messenger
  • Cable size:6-10 mm
  • Span:30-70 m
  • MBL: 2 KN

ADSS Tension Clamp, PA-1000 (8-12mm)

VIEW MORE

ADSS Tension Clamp, PA-1000 (8-12mm)

  • Cable type: Round
  • Cable size:8-12/25-35 mm
  • Span:70-200 m
  • MBL: 10 KN

Aluminum anchor clamp, PA-800 (7-11mm)

VIEW MORE

Aluminum anchor clamp, PA-800 (7-11mm)

  • Cable type: Round
  • Cable size:7-11 mm
  • Span:70-200 m
  • MBL: 8 KN

Wedge type anchor Clamp, PA-3001(12-16mm)

VIEW MORE

Wedge type anchor Clamp, PA-3001(12-16mm)

  • Cable type: Round
  • Cable size:12-16 mm
  • Span:70-200 m
  • MBL: 7 KN

ADSS anchoring clamp, PA-3002 (14-18mm)

VIEW MORE

ADSS anchoring clamp, PA-3002 (14-18mm)

  • Cable type: Round
  • Cable size:14-18 mm
  • Span:70-200 m
  • MBL: 7 KN

123456 Next > >> Page 1 / 7
