ADSS Tension Clamp, PA-1000

ADSS Tension Clamp, PA-1000 (8-12mm)

ADSS Tension Clamp PA-1000 , other called aluminum anchor clamp, was designed to anchor ADSS cable during FTTx line constructions.

Features

Applied with LV-ABC line and FTTX line
Self adjusting wedge, clamp the neutral messenger without damage
Aluminum alloy cast body, stainless steel bail and UV resistant wedge,durable
High mechanical strength, up to 10KN
Excellent Environmental Stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

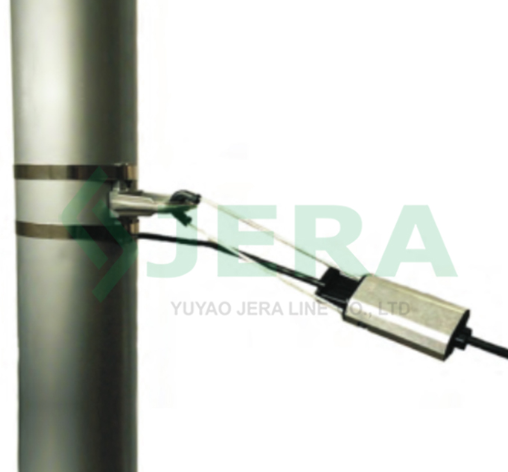

The ADSS Tension Clamp PA-1000 is widely used in outdoor aerial fiber optic network deployments to anchor and secure ADSS (All-Dielectric Self-Supporting) optical cables with diameters from 8 to 12 mm. It is designed for installation on utility poles, telecommunication supports, pole brackets, and hook fittings, providing reliable cable retention under mechanical loads.

This wedge-type anchoring clamp is suitable for intermediate and dead-end sections of overhead fiber optic routes, especially in FTTx, FTTH, GPON, CATV, and backbone telecommunication networks. It can be installed between buildings, across roads, within industrial facilities, residential communities, and rural broadband infrastructures where stable cable tension and long-term environmental resistance are required.

The PA-1000 effectively maintains the required tension of the optical cable without damaging the cable sheath, helping to prevent cable sagging caused by wind, ice loading, vibration, or temperature fluctuations. Manufactured from corrosion-resistant aluminum alloy, UV-resistant polymer wedges, and stainless steel components, the clamp ensures excellent performance in coastal, humid, high-temperature, and harsh outdoor environments.

Technical specification

Product code	Cable size,mm/mm ²	Material	MBL,KN	Weight,kg
PA-1000	8-12/25-35	Aluminum alloy，UV resistant plastic, stainless steel	10	0.4

TEST

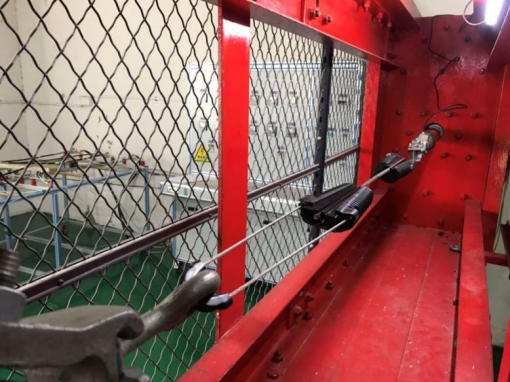

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
