J-shape suspension clamp HCT-5-8

J-shape suspension clamp HCT-5-8 either called ADSS Cable J Hook Suspension Clamp, is a suspension clamp used for communication or power lines. It is made of high-strength alloy material and has a J-shaped design, which can be used to fix and suspend the conductors of power lines.

Features

Cable type: Round
Cable size:5-8 mm
Span:50-200 m
MBL: 6 KN

DESCRIPTION Specification Test

REVIEW

Key Features

High strength, good stability, versatile and compact
Suitable for 5-8mm ADSS optical cable
The clamp’s shape enables to unroll cable directly in its Jhook body,after removing the protective sleeve
Captive screw system
Easy and fast installation, reducing costs
J-shape suspension clamp factory supplier direct sale

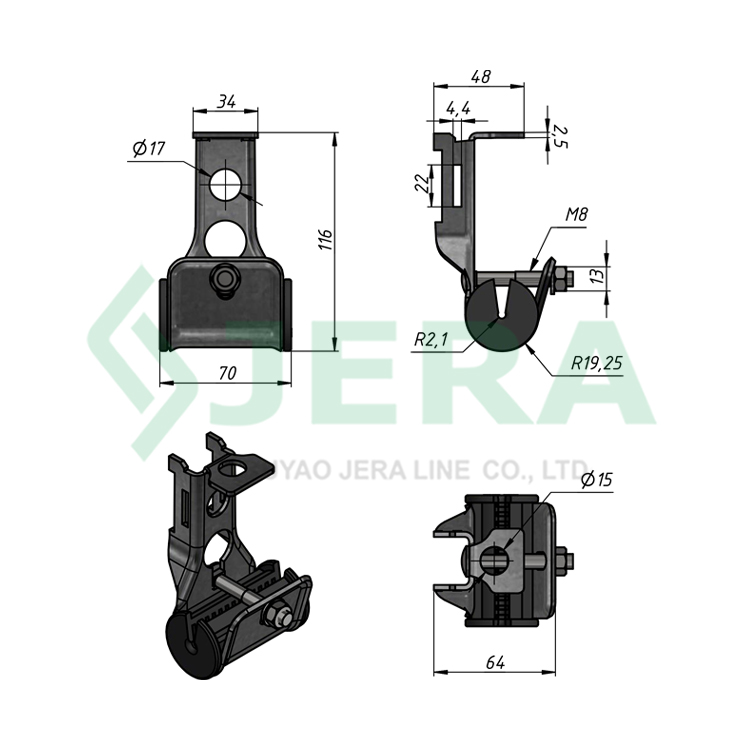

SPECIFICATION

The clamp applied in:

Cable diameter: 5-8 mm

MBL, kN: 6.0

The clamp Consist of:

Steel J-hook made of Hot Dip galvinuzed steel.

Rubber for ADSS cable of 5-8 mm – made of UV resistant TPE polymer

Hardware: nut, bolt, washer – made of darkomet steel

The cable clamp is used to connect and fix the optical cable wires. J Type Pole Suspension Hook Clamp can be deployed on power distribution networks with spans up to 50-100m.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

APPLICATION

Applied for suspension of 5-8 mm diameters ADSS fiber optic cables.

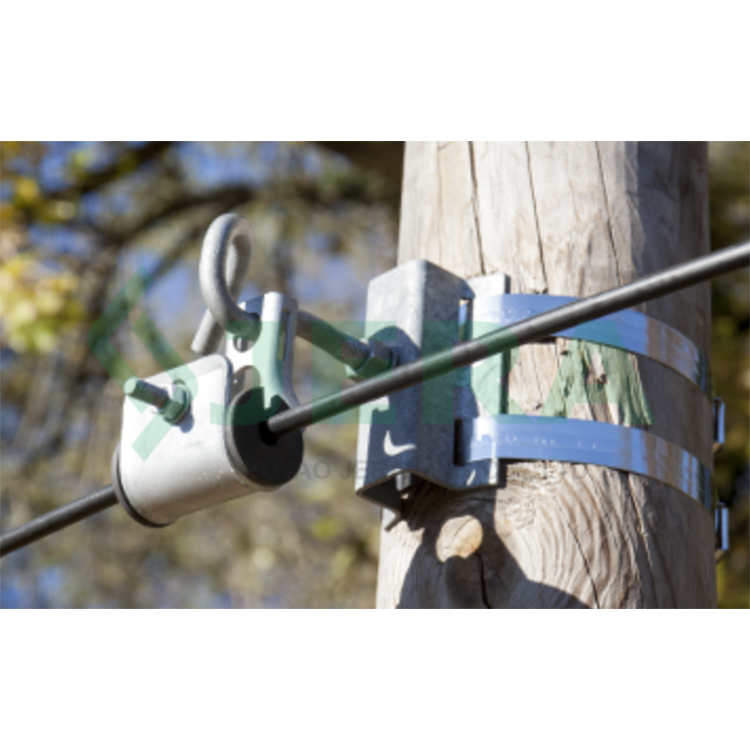

The J Shape Suspension Clamp HCT-5-8 is designed for suspending ADSS optical cables with diameters from 5 to 8 mm on intermediate poles in aerial fiber optic networks. It is widely used in FTTH, FTTx, GPON, CATV, and broadband access deployments, where reliable cable support and protection are required.

The J-hook design distributes mechanical loads evenly across the cable surface, minimizing sheath compression and preventing damage to optical fibers during long-term operation. It allows limited cable movement caused by thermal expansion, wind, and vibration, reducing stress on the network infrastructure. Suitable for installation on utility poles, wall brackets, and suspension hardware, the HCT-5-8 is an ideal solution for residential communities, industrial sites, campus networks, and rural broadband projects. Manufactured from UV-resistant and corrosion-resistant materials, it ensures long service life in demanding outdoor environments while offering quick and easy installation.
