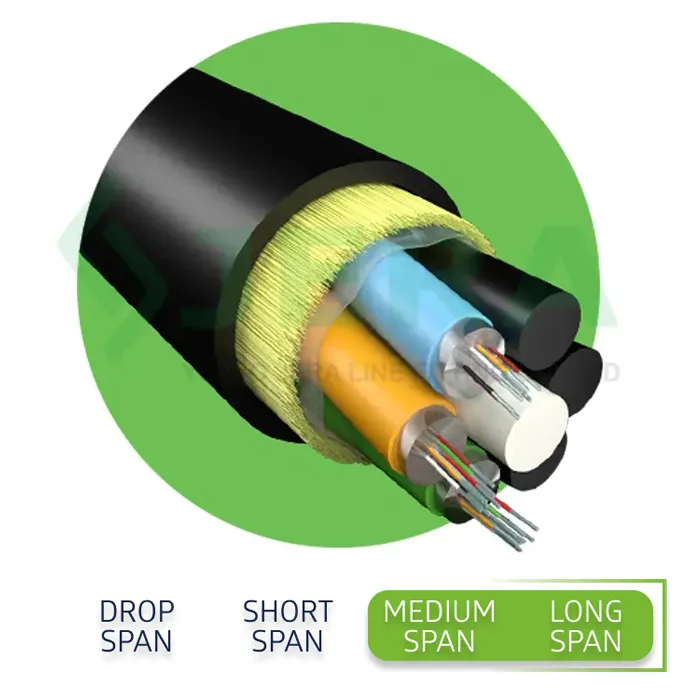

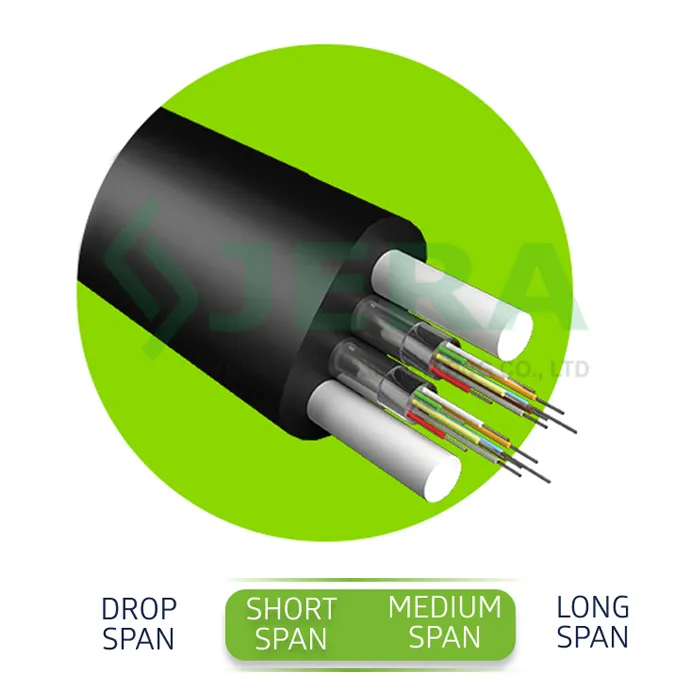

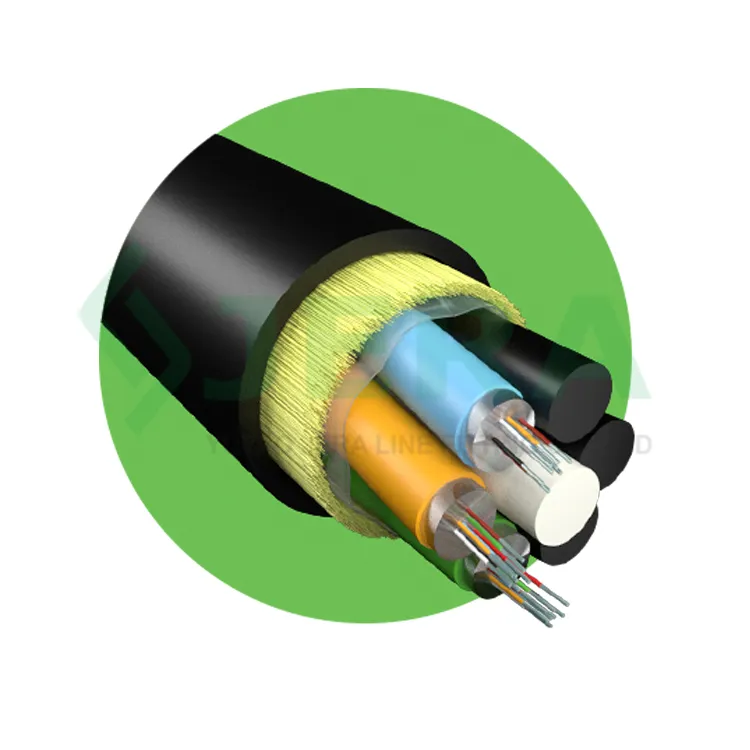

Multi tube ADSS cables

Multi tube ADSS cable is a type of fiber optic cable that is non-metallic and self-supporting, designed for outside plan aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations.

The structure of multi tube ADSS cable is a stranded design, the inner optical fibers and water-blocking grease are added into the fiber loose tube, and different loose tubes are wound around the central reinforcement (FRP). And After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with HDPE outer sheath.

ADSS cable provides an efficient and optimal solution in most of the cases for aerial cablings or outside plant FTTX deployments. All Jera’s fiber optic cable passed a series test according IEC 60794 standard, we have our inner laboratory to do inspection during daily production. Test including Temperature and humidity cycling test, Tensile strength test, mechanical impact test, Fiber optic core reflection test and etc.

Welcome to contact us for more details about jera Multi tube ADSS cable.
