Strand Wire Guy Grips

Strand Wire Guy Grips

Helical wire dead end guy-grips were developed to grip the strand wire during installation on single wood pole associated with distribution construction, or concrete tower, as analog of classical wedge dead end strand clamps.
Strand guy grips made of galvanized steel, ASTM A475 standard of wire.

Guy-grip dead-ends do not require any special tools for installation and can be mounted on wire strand rope, directly. Strand Guy wire’s size is rated to hold more than the rated breaking strength of the guy strand this reached by special wire form and configuration of deadend grip and sand and glue spraying.

Other called Big Grip or Guy wire strand dead end product is widely spread in the world and correspond all the needed requirements of tension load and durability of distribution network in both areas: telecommunication with fiber optic ADSS cables and electrical distribution with ABC, AAAC, ACSR, ACSS, bare and covered conductors
Jera preformed production line is capable to adjust formed wire tower guy deadend in accordance to specification of clients strand wire.

Jera helical has the complete range of test equipment to proceed the type test of heliformed dead ends from preformed guy grip for steel stranded wire range.

Jera line focus on the quality and complete range of steel formed grips, which includes: dead-end guy grips, suspension grips, strand wire guy grips, ftth pole brackets, pole hooks and etc.

Each day we are improving our products to achieve new challenges of global electrical and network distributing market. Welcome to contact for more information!

Guy grip dead end JS-90B

VIEW MORE

Guy grip dead end JS-90B

  • Cable type: Strand wire
  • Cable size: 12.7 mm-0.5″
  • Span: <50 m
  • MBL: 119.7 KN

Guy grip dead end JS-55B

VIEW MORE

Guy grip dead end JS-55B

  • Cable type: Strand wire
  • Cable size: 9.53 mm 3/8″
  • Span: <50 m
  • MBL: 68.5KN

Dead-end for EHS Strand JS-38B

VIEW MORE

Dead-end for EHS Strand JS-38B

  • Cable type: Strand wire
  • Cable size: 0.307 mm 1/64″
  • Span: <50 m
  • MBL: 49.8 KN

Dead-end for EHS Strand JS-22B

VIEW MORE

Dead-end for EHS Strand JS-22B

  • Cable type: Strand wire
  • Cable size: 6.35 mm- 0.25″
  • Span: <50 m
  • MBL: 29.6 KN

Strand Wire Guy Grip,38T

VIEW MORE

Strand Wire Guy Grip,38T

  • Cable type: Strand wire
  • Cable size: 7.8 mm
  • Span: not specified
  • MBL: 42 KN

Dead end grip, 30T arashi grip

VIEW MORE

Dead end grip, 30T arashi grip

  • Cable type: Strand wire
  • Cable size: 6.9 mm
  • Span: not specified
  • MBL: 32 KN

Strand wire dead end grip, JS-8

VIEW MORE

Strand wire dead end grip, JS-8

  • Cable type: Strand wire
  • Cable size: 3.6 mm
  • Span: not specified
  • MBL: 8.9 KN

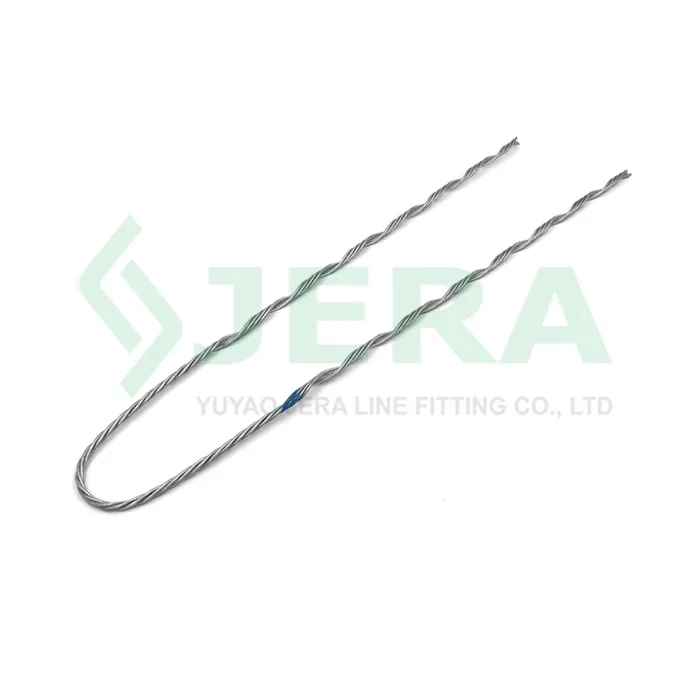

Dead end guy grip, JS-10

VIEW MORE

Dead end guy grip, JS-10

  • Cable type: Strand wire
  • Cable size: 4.2 mm
  • Span: not specified
  • MBL: 9 KN

Strand wire grip, JS-38T

VIEW MORE

Strand wire grip, JS-38T

  • Cable type: Strand wire
  • Cable size: 7.8 mm
  • Span: not specified
  • MBL: 42 KN

Strand wire preformed grip, JS-38SQ

VIEW MORE

Strand wire preformed grip, JS-38SQ

  • Cable type: Strand wire
  • Cable size: 7.8 mm
  • Span: not specified
  • MBL: 42 KN

Strand wire guy grip JS-22T

VIEW MORE

Strand wire guy grip JS-22T

  • Cable type: Strand wire
  • Cable size: 5.3mm
  • Span: not specified
  • MBL: 25 KN

Strand wire guy grip, 38I

VIEW MORE

Strand wire guy grip, 38I

  • Cable type: Strand wire
  • Cable size: 7.8mm
  • Span: not specified
  • MBL: 42 KN

Dead end grip for galvanized steel strand, 90T

VIEW MORE

Dead end grip for galvanized steel strand, 90T

  • Cable type: Round
  • Cable size: 12 mm- 1/2 ”
  • Span: not specified
  • MBL: 100 KN
