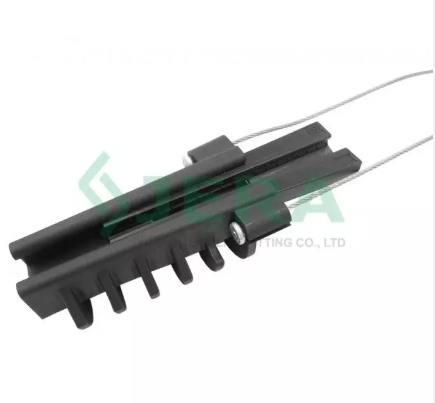

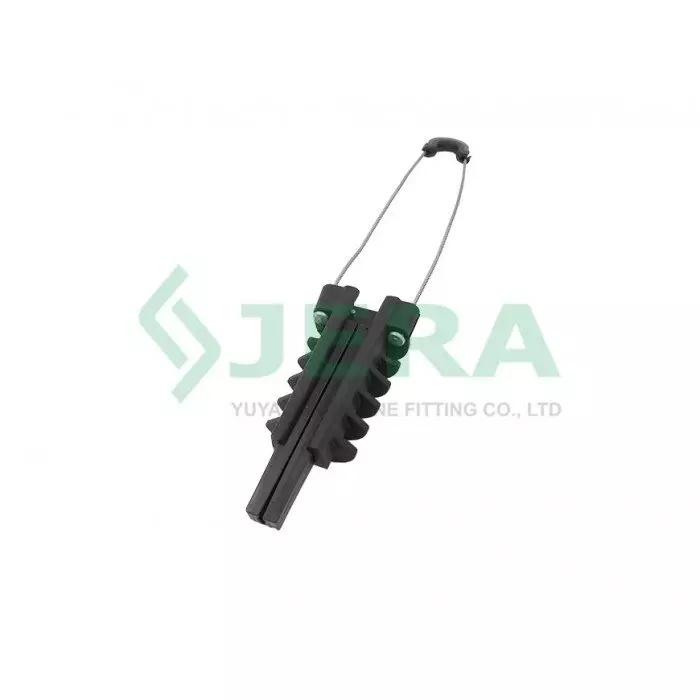

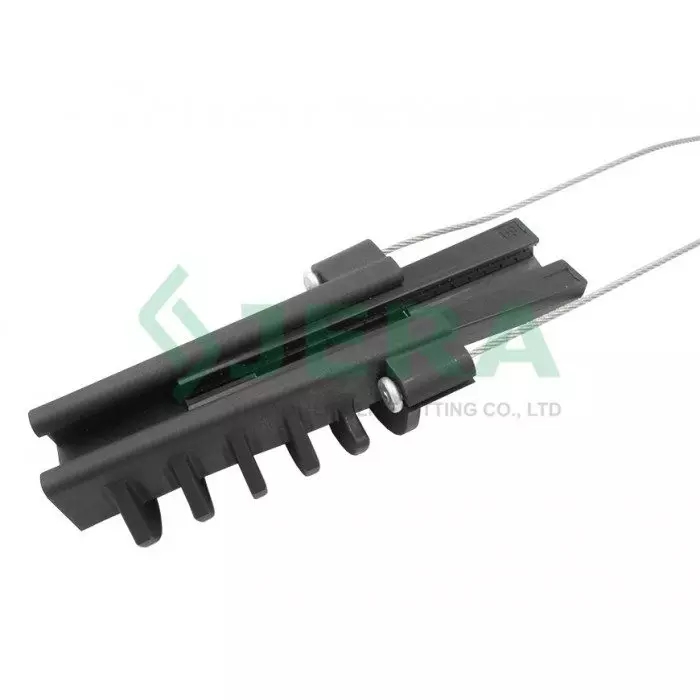

Fiber Cable Anchor Clamp, PA-610

Fiber Cable Anchor Clamp, PA-610 (6-10mm)

Fiber cable anchor clamp pa-610 other called figure 8 cable clamp or ADSS cable clamp, is designed to tension and anchor figure 8 fiber optic cable or round ADSS cable on outdoor FTTX solutions.

Features

Tools free installation
UV resistant thermoplastic and stainless steel bail, durable
Clamp with self-adjustable wedge apply with FRP or kevlar messenger
Applied with pole brackets or hooks
Anchor clamp does not cut cable jacket
Excellent Environmental Stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

The clamp can be installed on utility poles, wall-mounted hooks, and pole brackets to secure cables at dead-end and intermediate sections. Its self-adjusting wedge mechanism firmly grips the cable without damaging the outer sheath, ensuring stable signal transmission and extending cable service life. Manufactured from UV-resistant materials and corrosion-resistant stainless steel components, the PA-610 delivers reliable performance under harsh outdoor conditions. The tool-free installation design reduces deployment time and labor costs, making it an ideal solution for residential, commercial, and rural broadband applications

Technical specification

Product code	Messenger diameter size,mm	Material	MBL,KN	Bail length,mm
PA-610	6-10	UV resistant plastic, stainless steel	2.0	230

TEST

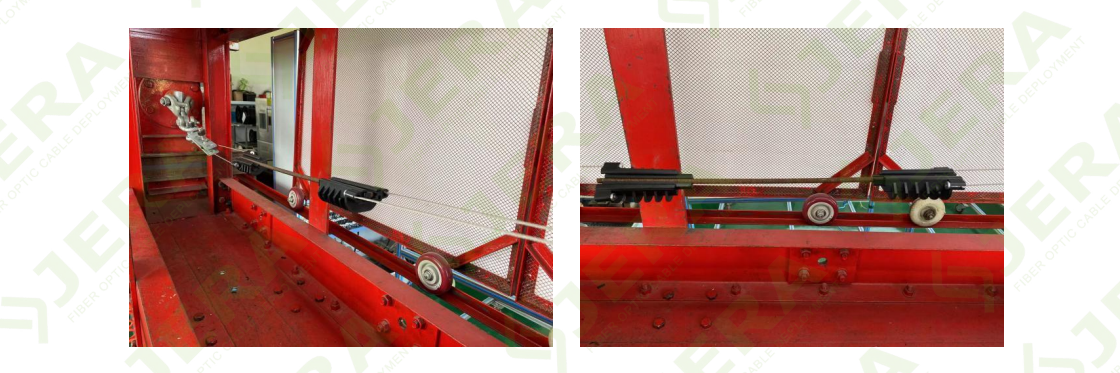

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
