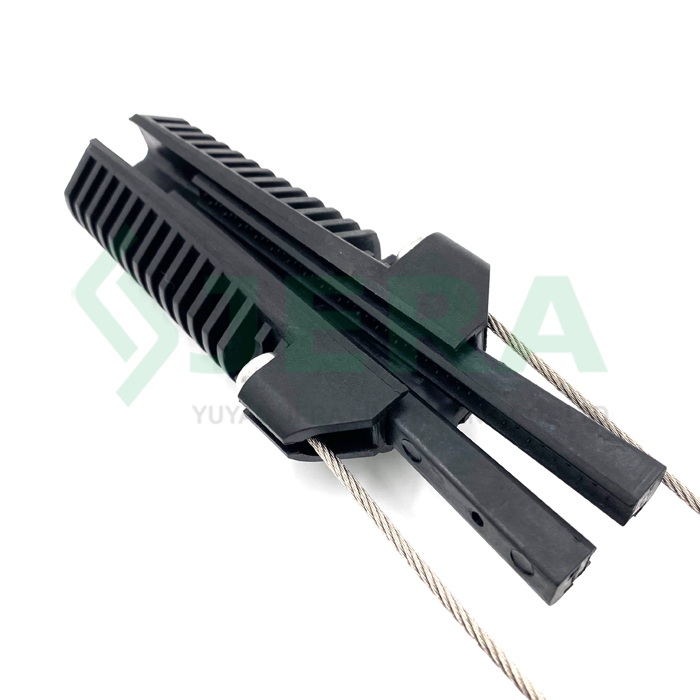

ADSS Cable Anchor Clamp, PA-500

ADSS Cable Anchor Clamp, PA-500 (4-8mm)

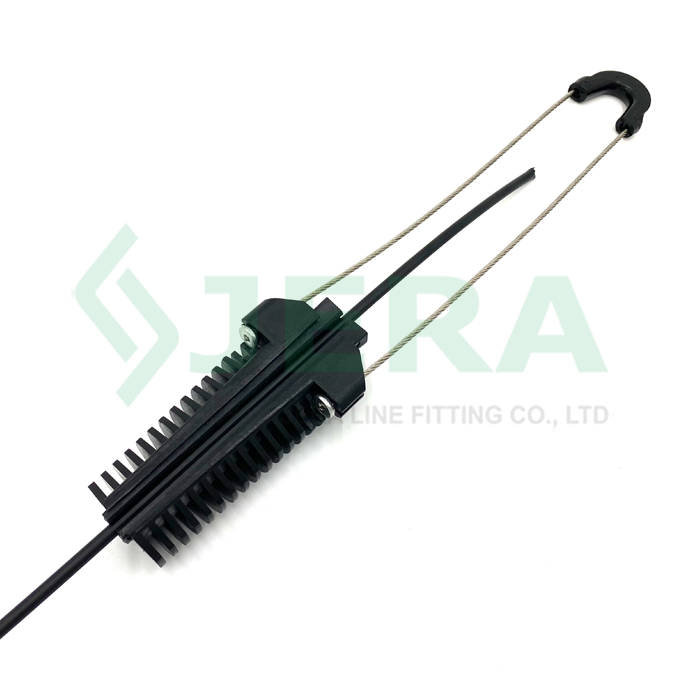

ADSS cable anchor clamp PA-500 either called overhead adss anchor clamp, is developed to anchor and tension mini adss cable in intermediate routes or dead end during aerial outdoor ftth line constructions.

Features

Easy installation, no need other tools
Self-adjusting wedge, no damage to cable sheath
UV resistant thermoplastic and stainless steel material, durable
Open wire bail allow easy installation with pole brackets and hooks
Superior environmental stability
Competitive mini adss tension clamp price

DESCRIPTION Specification Test

REVIEW

APPLICATION

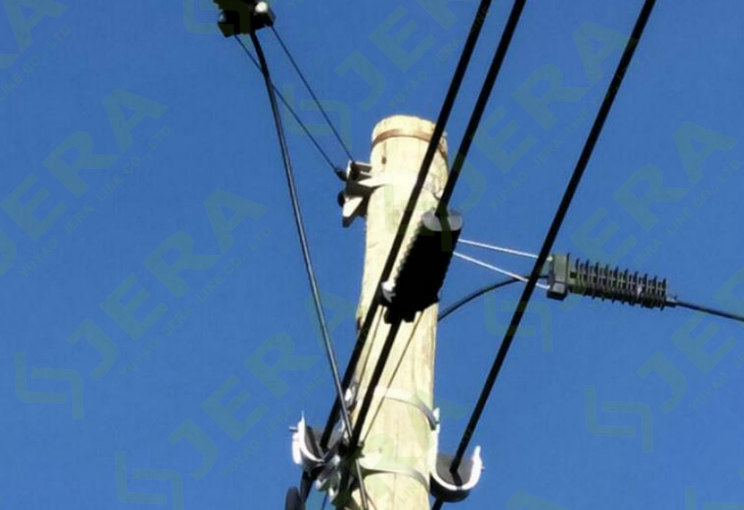

Designed for 3–8mm ADSS optical cables, the PA-500 anchor clamp is a core accessory for aerial fiber optic networks.

It is primarily applied to fix and terminate self-supporting ADSS cables in FTTH systems, telecom trunk and branch lines, as well as outdoor communication cabling for industrial and commercial areas.

It provides strong and stable clamping force to hold cables in place on poles and supporting hardware, preventing displacement and abrasion during long-term service.

The user-friendly structure allows easy manual installation without extra tools, perfectly suited for large-scale field construction.

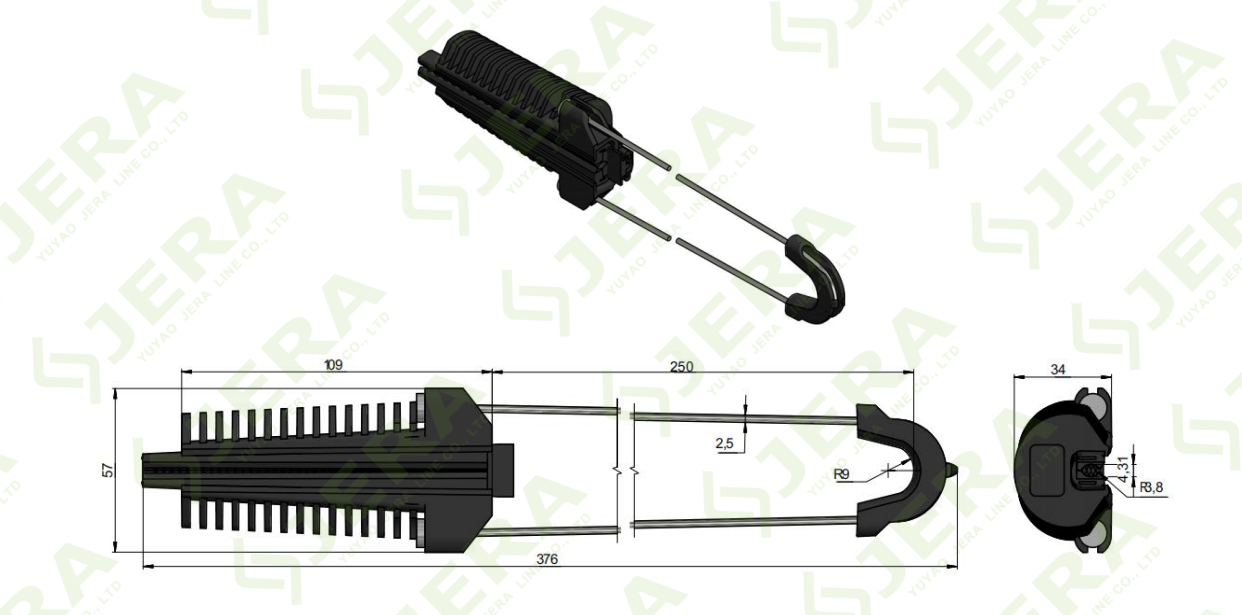

Technical specification

Product code	Messenger diameter size,mm	Material	MBL,KN	Bail length,mm
PA-500	4-8	UV resistant plastic, stainless steel	2.0	530

TEST

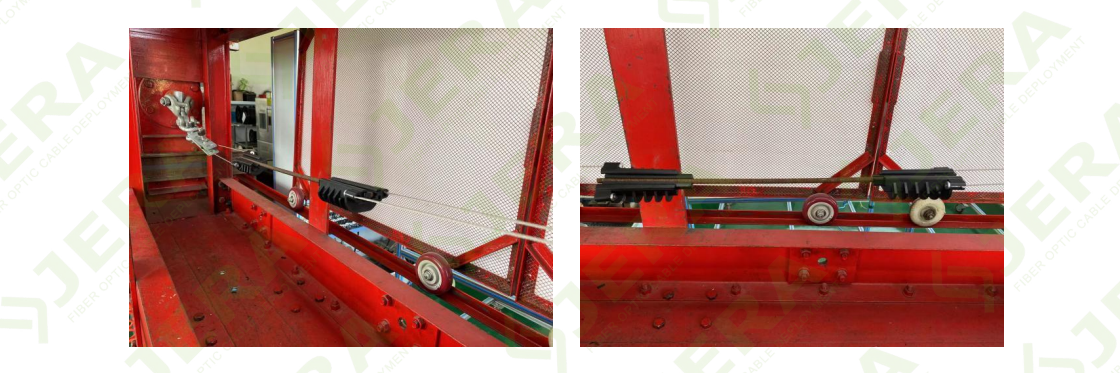

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
