Fiber cable clamp PA-200 (3-8 mm)

Fiber cable clamp PA-260 (3-8mm)

Fiber cable clamp PA-260 also called fiber anchor clamp, designed to tension round fiber optic cable on intermediate during outdoor FTTH network constructions.

Features

Full dielectric body
Easy installation, no require additional tools
Self-adjusting wedge, no damage to cable jacket
Material: UV resistant thermoplastic, durable
Open wire bail allow easy installation with pole brackets and hooks
Good environmental stability
Competitive price

DESCRIPTION Specification Test

REVIEW

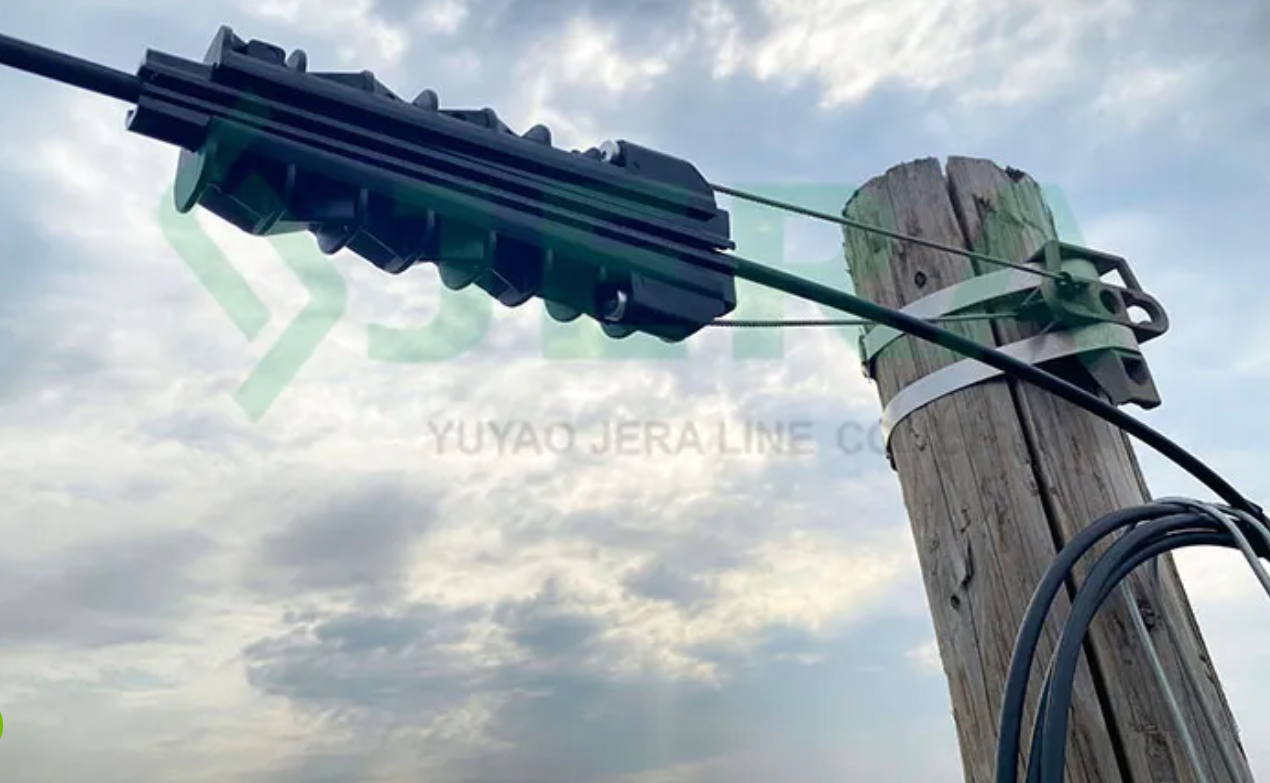

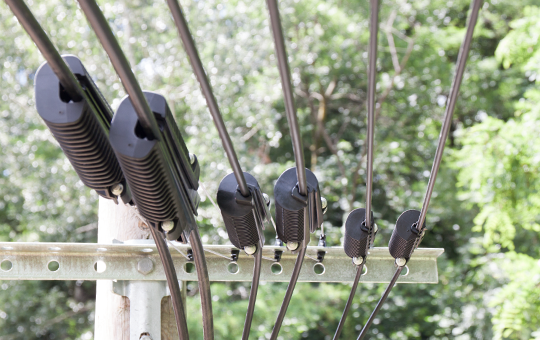

APPLICATION

The clamp is suitable for dead-end routes, subscriber access lines, and last-mile fiber optic connections in both urban and rural telecommunication infrastructures.

Thanks to its UV-resistant thermoplastic construction and self-adjusting wedge mechanism, the PA-200 fiber cable clamp provides stable gripping performance without damaging the cable sheath. It can be installed together with pole brackets, hooks, or other supporting hardware, allowing quick deployment and reducing installation time in the field.

The PA-200 is an ideal solution for internet service providers, telecom contractors, and network operators seeking a cost-effective and durable anchoring device for overhead fiber optic cable projects. Its excellent resistance to harsh environmental conditions ensures long-term reliability and helps maintain the integrity and performance of optical communication networks throughout their service life.

Technical specification

Product code	Cable diameter mm	Material	MBL,KN
PA-260	3.0-8.0	UV resistant plastic	Depend on cable

TEST

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
