Model No. :

HCT-8-12

Description:

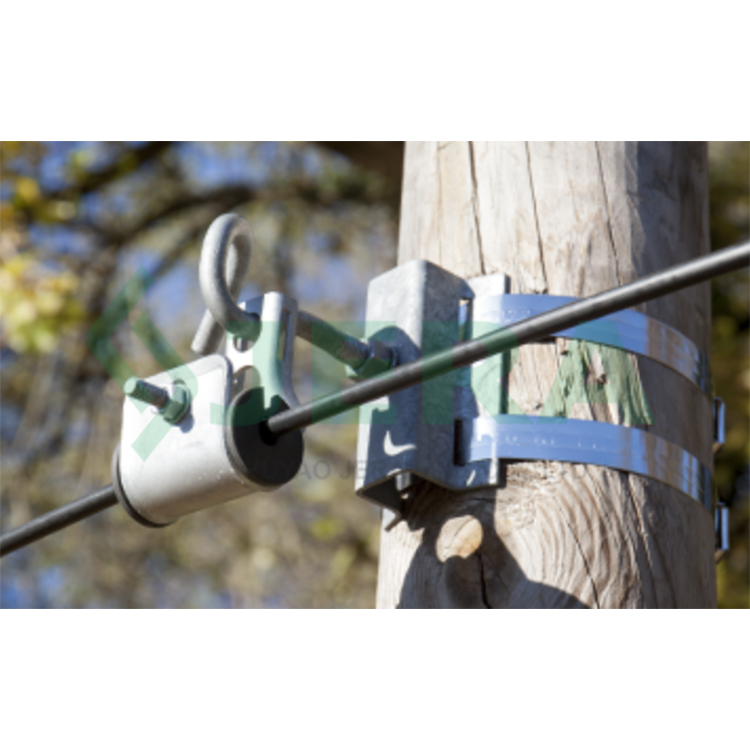

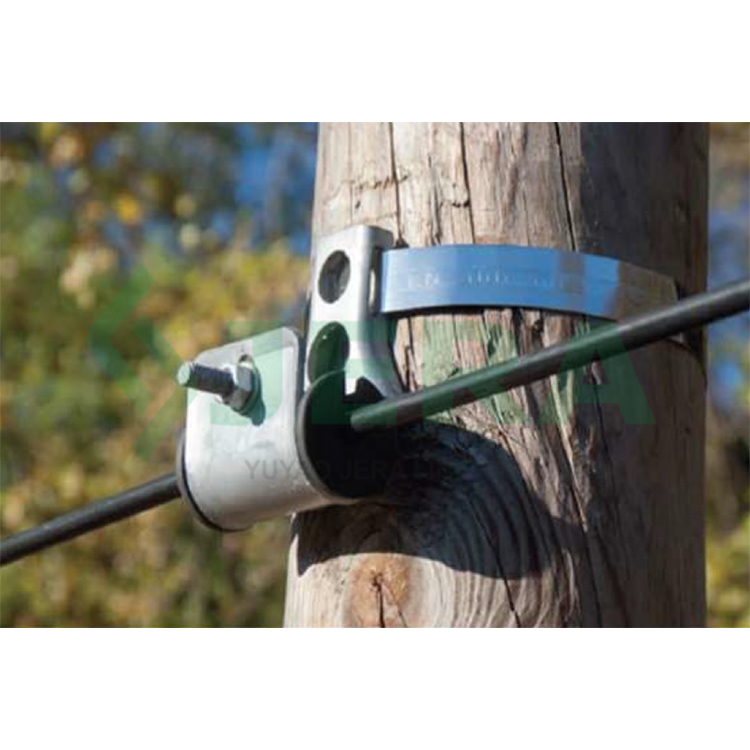

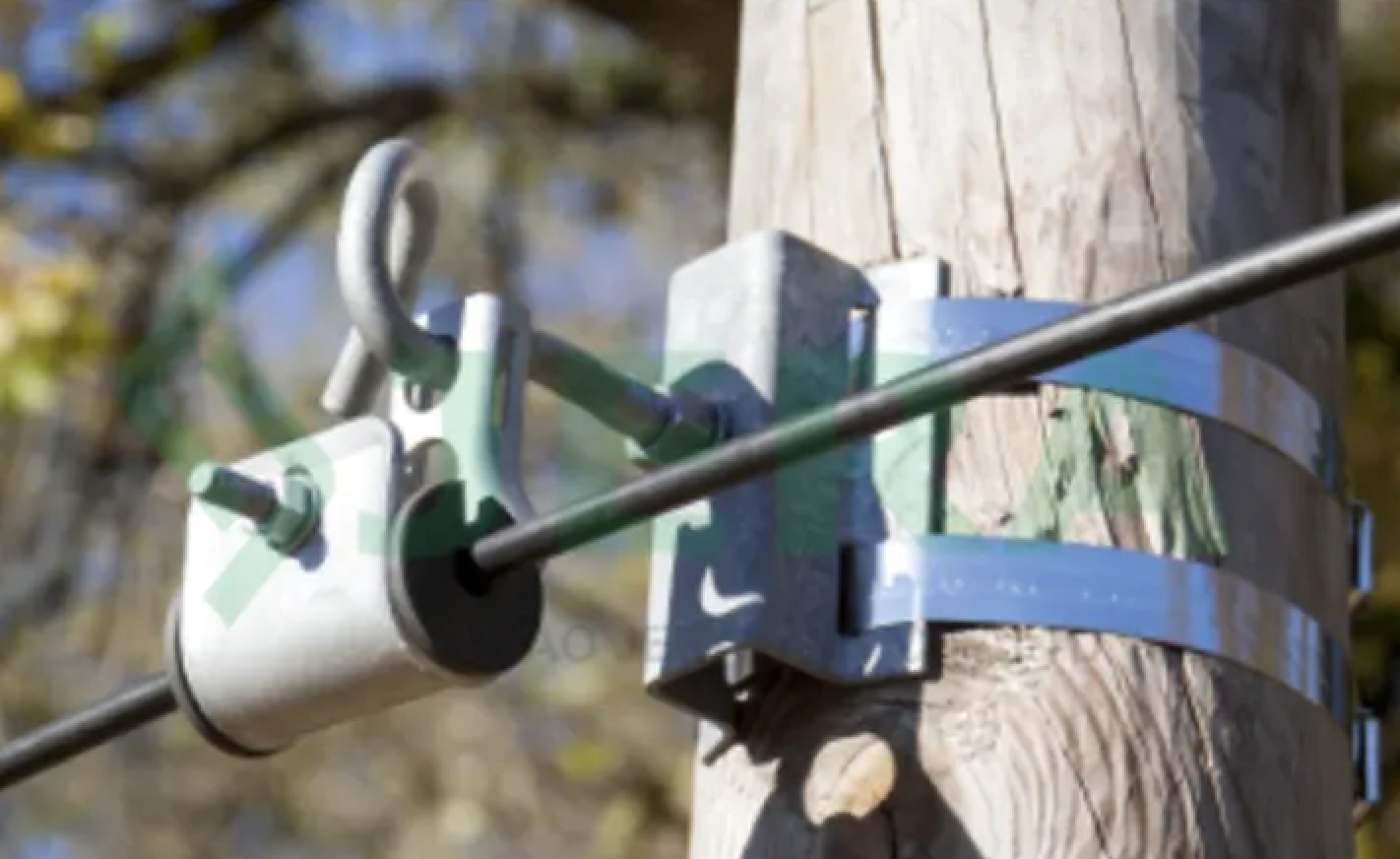

ADSS J hook suspension clamp HCT-8-12 either called J-shaped universal suspension clamp,is designed to provide a suspension for 8 to 12 mm aerial ADSS cables at intermediate poles on cable routes with angle < 20°on access networks (spans up to 100m). The unique shape design and hot dip galvanized steel material provide better windproof performance than other suspension clamps.

    • Cable type: Round
    • Cable size:8-12 mm
    • Span:50-200 m
    • MBL: 6 KN
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • Two installation methods, simple operation
  • Applied for 8-12mm ADSS optical cable
  • Hot dip galvanized steel, UV resistant plastic material
  • Strong corrosion resistance and good stability
  • Captive screw system
  • J-shape suspension clamp factory supplier direct sale
ADSS J hook suspension clamp HCT-8-12 ADSS J hook suspension clamp HCT-8-12

SPECIFICATION

The clamp applied in:

Cable diameter: 8-12 mm

MBL, kN: 4.0

The clamp Consist of:

Steel J-hook made of Hot Dip galvanized steel.

Rubber for ADSS cable of 8-12 mm – made of UV resistant TPE polymer

Hardware: nut, bolt, washer – made of darkomet steel

The cable clamp is used to connect and fix the optical cable wires. J Type Pole Suspension Hook Clamp can be deployed on power distribution networks with spans up to 50-100m.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

read more

APPLICATION

Applied for suspension of two 8-12 mm diameters ADSS fiber optic cables.



YUYAO JERA LINE CO., LTD is the factory who produces the ADSS J hook suspension clamp HCT-8-12. We manufacture the verity of suspension clamps for fiber optic cable of 3 to 20 mm in diameter. The suspension clamps are made of high durability materials, corrosion resistant, and with mechanical strength which are complied your fiber optic cable. Welcome to contact us for more details.

read more

Manufacturing

    clamp manufacture

Watch Our Factory Video

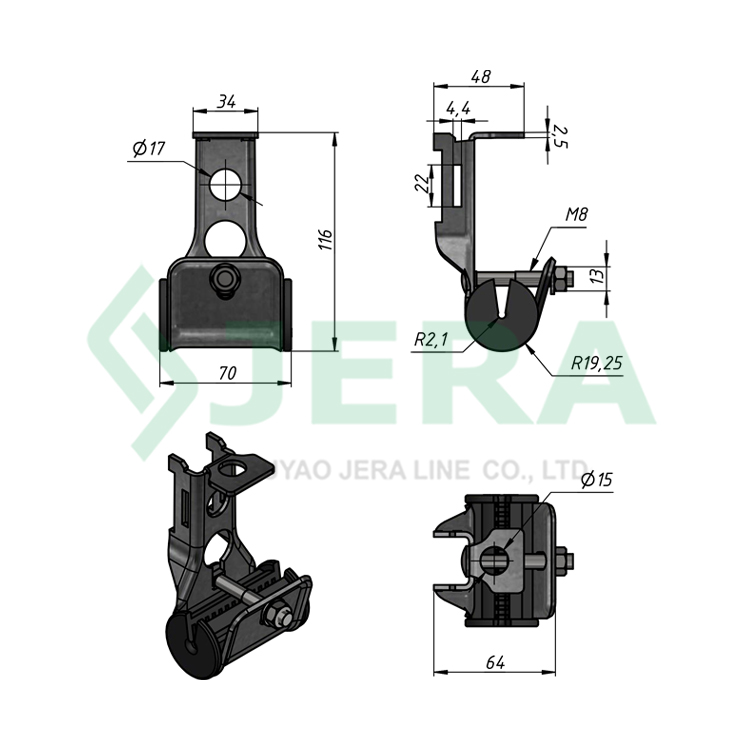

Technical specification

Model NO.

Cable (mm)

MBL,KN

Material

HCT-8-12

8-12

4

hot dip galvanized steel, UV resistant plastic

Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test
