Fiber Optical Splice Closure

Fiber Optical Splice Closure

Fiber optic splice closure (FOSC) other called fiber optic splicing closure, is a device used to provide space and protection for fiber optic cables spliced together during center loop fiber optic network constructions. It’s can be applied underground, aerial, wall-mounting, pole-mounting and duct-mounting routes.

According to different applications, there are two types of fiber optic closures in the market for users to choose: Horizontal type fiber optic closure and vertical type fiber optic closure.

Horizontal type fiber optic closure is like a flat or cylindrical box, this type of closure is most commonly used in wall-mounting, pole- mounting and buried underground. Vertical type fiber optic closure also called dome type fiber optic closure, it is like a dome and due to the dome shape makes it easy to be applied in many places.

Jera FOSC are made of 1st grade UV resistant plastic and intergrated with seal which ensure weather and rust proof, which provide confident performance whether in overhead or buried underground during FTTX network constructions.

Fiber optic splice closures can be installed by bolts or stainless steel straps easily, all relevant accessories are available in jera products range, please feel free to contact for future details.

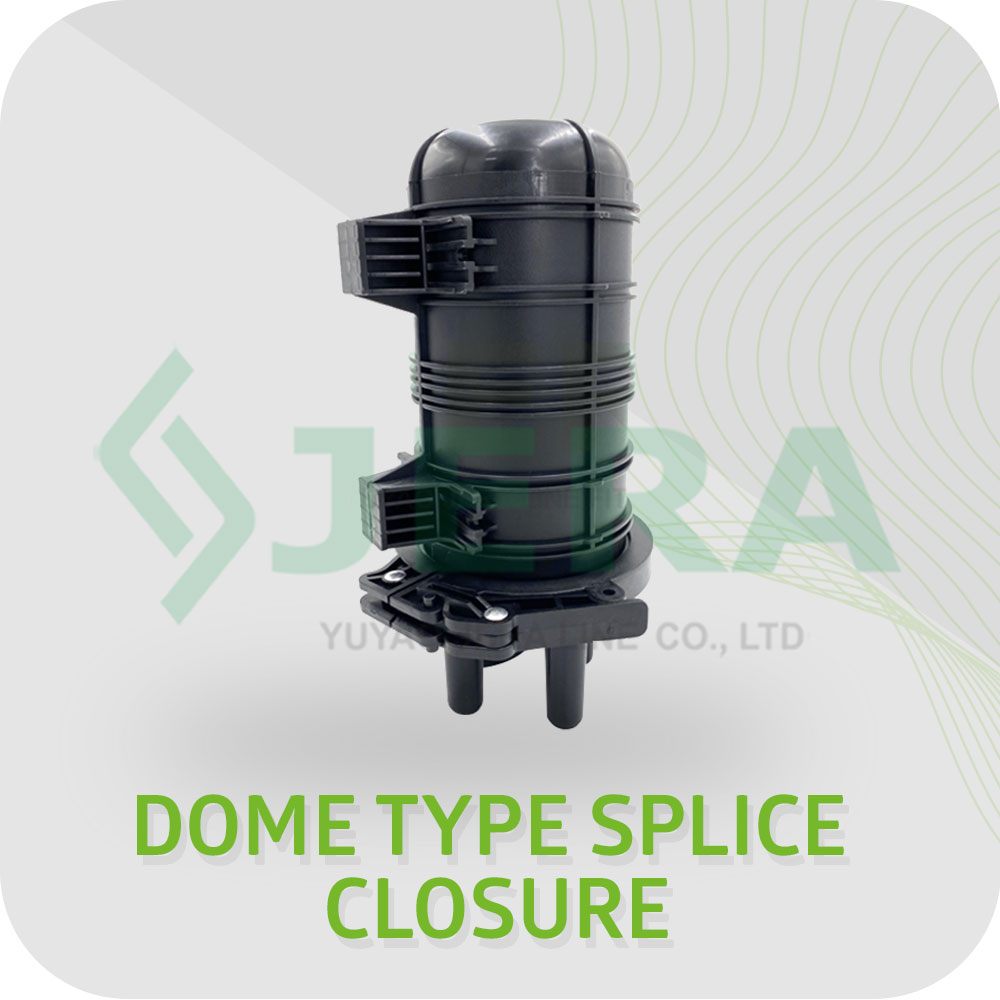

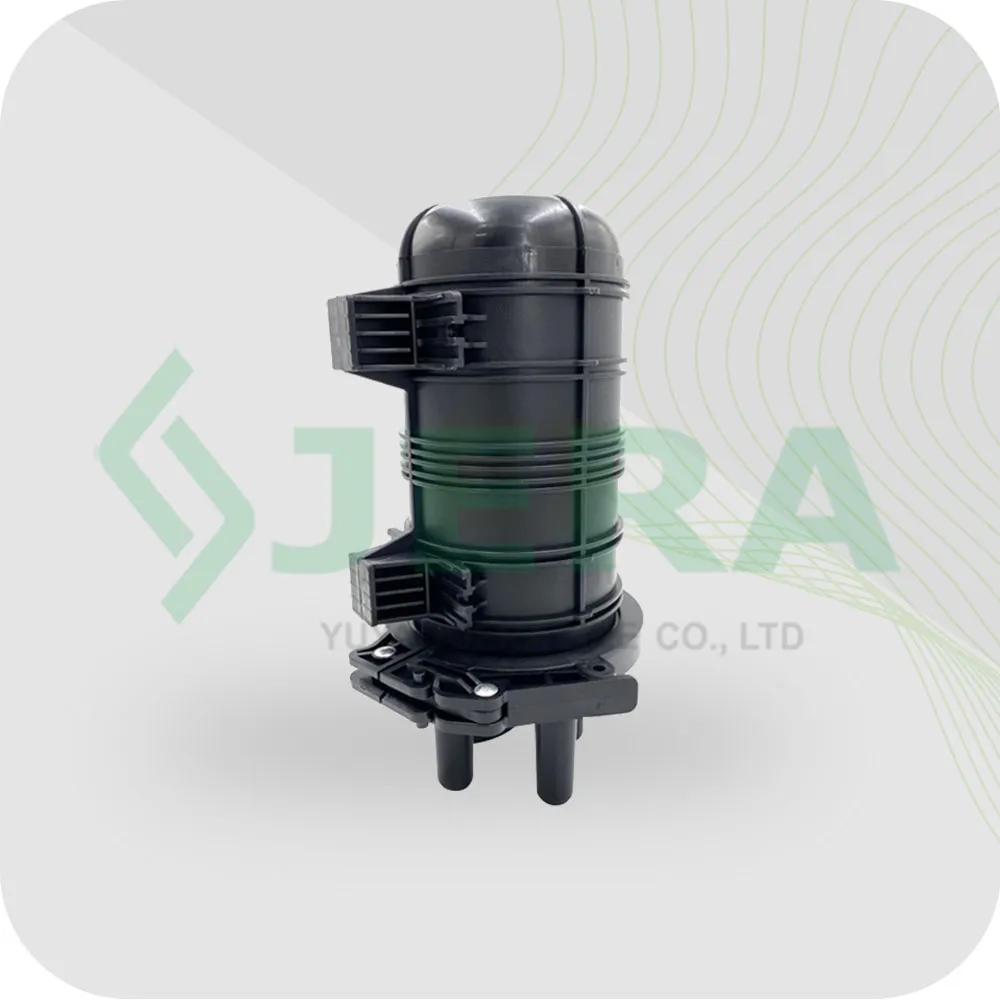

DOME TYPE SPLICE CLOSURE

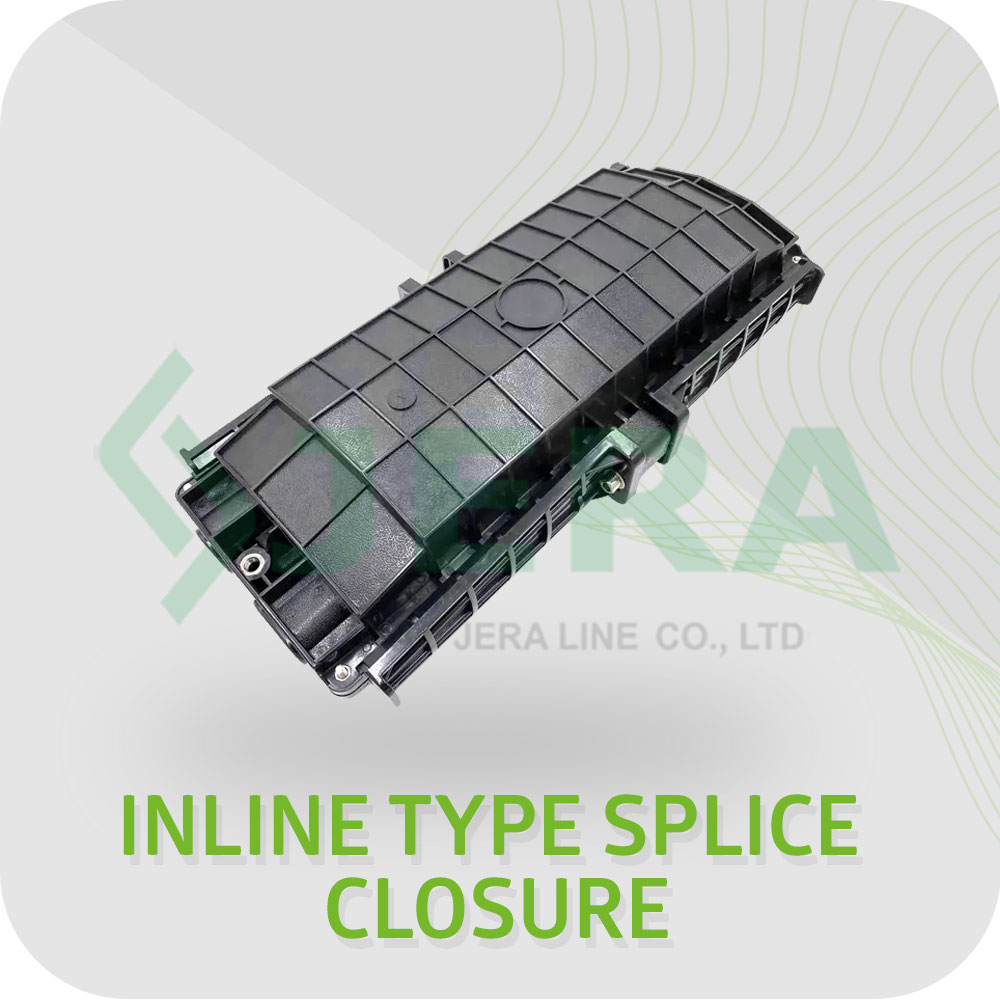

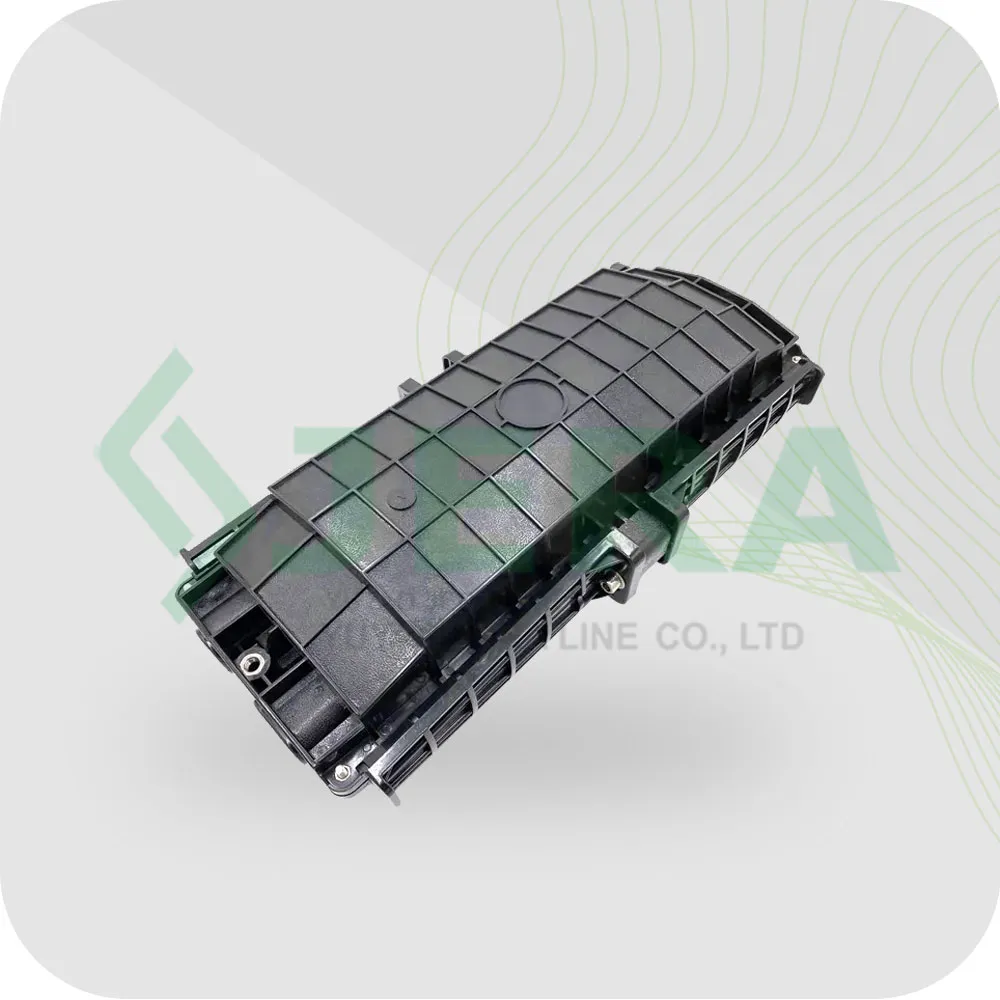

INL INE TYPE SPLICE CLOSURE

Fiber optic splice closure 4 joints, FOSC-9 (4)

VIEW MORE

Fiber optic splice closure 4 joints, FOSC-9 (4)

  •  Feeding cable:4*Φ5-8
  •  Application: Last mile connections
  •  Splicing capacity: 4
  •  Dimensions:180*72*26

Fiber optic splice closure, FOSC-3, 96 joints

VIEW MORE

Fiber optic splice closure, FOSC-3, 96 joints

  • Feeding cable: 3 of ∅8-16
  • Oval cable: 1 of 25*40
  • Max splicing capacity: 48 (96*)
  • Max splicing capacity per tray:12 (24*)

Fiber optic splice closure, FOSC-4(144)

VIEW MORE

Fiber optic splice closure, FOSC-4(144)

  • Feeding cable: 4 of ∅4-20
  • Oval cable: 1 of 25*44
  • Max splicing capacity: 72 (144*)
  • Max splicing capacity per tray:12 (24*)



Ftth Fiber optic splice closure, FOSC-5 (96)

VIEW MORE

Ftth Fiber optic splice closure, FOSC-5 (96)

  •  Feeding cable:2*Φ8-20
  •  Application: Central loop & last mile connections
  •  Splicing capacity: 4*12/24 or 4*6/12
  •  Dimensions:323*202*86

Fiber optic splice closure, FOSC-8 (12) 8 fiber joints

VIEW MORE

Fiber optic splice closure, FOSC-8 (12) 8 fiber joints

  •  Feeding cable:4*Φ4-12
  •  Application: Last mile connections
  •  Splicing capacity: 6/16
  •  Dimensions:300*100*40

Fiber optic splice closure, FOSC-7 (96)

VIEW MORE

Fiber optic splice closure, FOSC-7 (96)

  •  Feeding cable:2*Φ14
  •  Application: Central loop & last mile connections
  •  Splicing capacity: 4*12/24
  •  Dimensions:280*200*90

Fiber optic splice closure, FOSC-6(96)

VIEW MORE

Fiber optic splice closure, FOSC-6(96)

  •  Feeding cable: 4*Φ13
  •  cable diameters: 2*Φ16
  •  Max splicing capacity: 6*12/24
  • Dimensions:385*200*110

Horizontal type splice closure, FOSC-5A(48)

VIEW MORE

Horizontal type splice closure, FOSC-5A(48)

  •  Feeding cable:2*Φ8-20
  •  Adapter type: 8
  •  Max splicing capacity: 48
  • Dimensions:323*202*86

Optical fiber cable joint closure, FOSC-6J (144)

VIEW MORE

Optical fiber cable joint closure, FOSC-6J (144)

  •  Feeding cable:2 of Ø 16/20/23
  •  Application: Central loop & last mile connections
  •  Max splicing capacity: 6*24
  • Dimensions:385*200*110

FOSC Fiber optic splice closure, FOSC-2D(96)

VIEW MORE

FOSC Fiber optic splice closure, FOSC-2D(96)

  • Feeding cable: 3*Φ16
  • Drop cable: 1*Φ16-40
  • Max splicing capacity: 96
  • Dimensions:300×180×130

Fiber optic splice closure, FOSC-2D.5 (64)

VIEW MORE

Fiber optic splice closure, FOSC-2D.5 (64)

  • Feeding cable: 3 of ∅8-16
  • Oval cable: 1 of 30×48
  • Max splicing capacity: 8(16*)
  • Dimensions:300×180×130

Horizontal splice closure FOSC-15T(24)

VIEW MORE

Horizontal splice closure FOSC-15T(24)

  •  Feeding cable: 1 of Ø 14/23,1 size 33*23
  •  Drop cable: 16+1 of Mini SC hardened
  •  Max splicing capacity: 24/48/72
  • Dimensions:384*215*70

Drop cable closure FOSC-2A.5 (32)

VIEW MORE

Drop cable closure FOSC-2A.5 (32)

  • Feeding cable: 2 of ∅8-17, 2 of ∅8-12
  • Drop cable: 8 of ∅2-4
  • Max splicing capacity: 16 (32*)
  • Adapter SC type: 8+2
