Stainless Steel Strap

Stainless Steel Strap and Banding Strap for Industrial Cable Fixing

A stainless steel strap — also called a stainless steel band or banding strap — is the continuous metal tape that locks fittings to poles and structures. Jera uses it to fix cable clamps, pole brackets, hooks and anchor or suspension assemblies on dead-end and intermediate routes of aerial fiber and power lines.

Stainless steel is selected for durability, high breaking strength and resistance to outdoor exposure. The band is tensioned with a banding tool and locked with a buckle, so a single roll covers many fixing points and a range of pole diameters. Jera also lists the same strap for marine, railway, mining and oil & gas installations.

Stainless Steel Band Materials: SUS 201, 202, 304, 316 and 409

Jera lists five stainless steel grades for band straps: SUS 201, 202, 304, 316 and 409. The table reports only sizes published on current Jera product pages — no corrosion ranking, chemical composition or performance claim is added here.

Swipe the table horizontally to see all columns.

How to choose the grade. Start from the installation environment and the project standard, not from the grade name. Tell us whether the line is coastal, industrial, indoor or an exposed overhead pole route, plus the width and thickness your clamp or bracket requires; we confirm which published grade and size can be supplied. Jera lists SUS 202 and 409 as available grades but does not publish widths or thicknesses for them on the current strap pages, so no figures are added here.

Stainless Steel Metal Strap Sizes, Widths and Thicknesses

Every row below is taken from the technical specification table of its own Jera product page. Click the product name to see the drawing, packaging notes and test scope for that exact code before you order. Every stainless steel banding strap listed here has a matching product page, so the published China stainless steel strap range can be checked model by model instead of guessed from a catalogue.

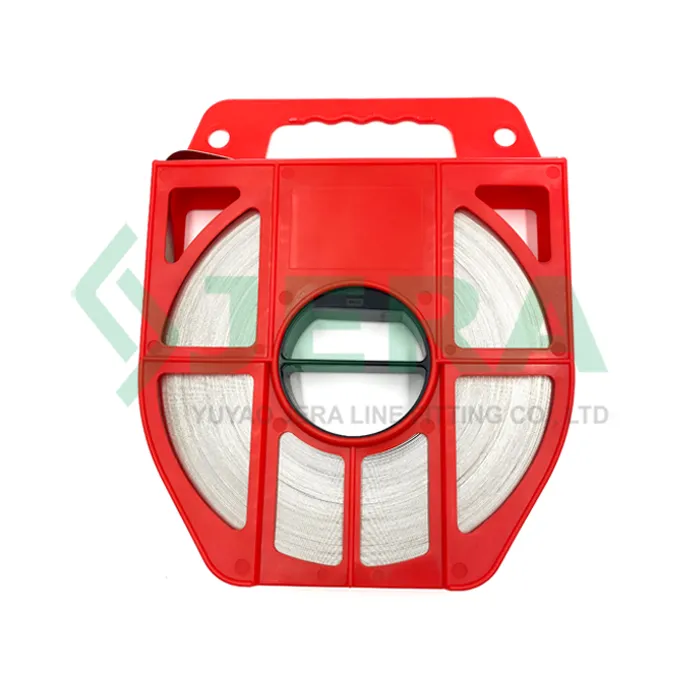

SUS 201 straps — standard 30 / 50 m rolls and separate 30.5 m codes

Swipe the table horizontally to see all columns.

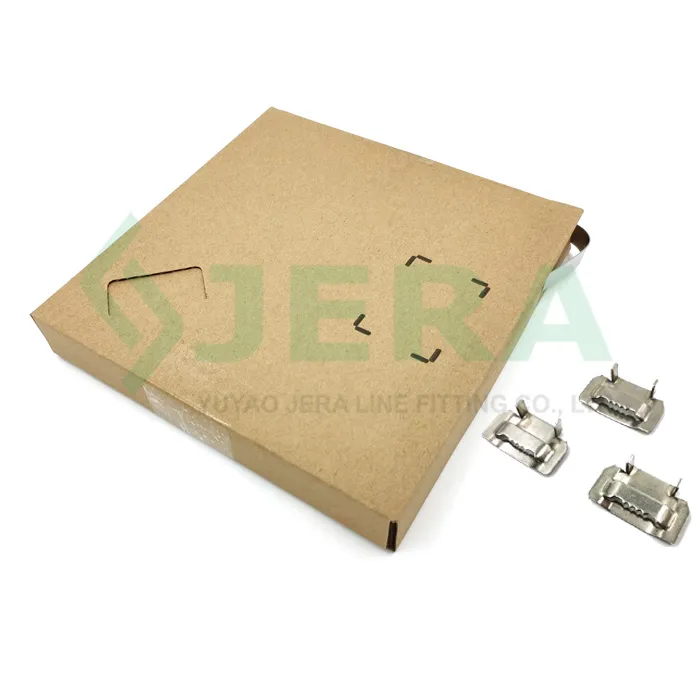

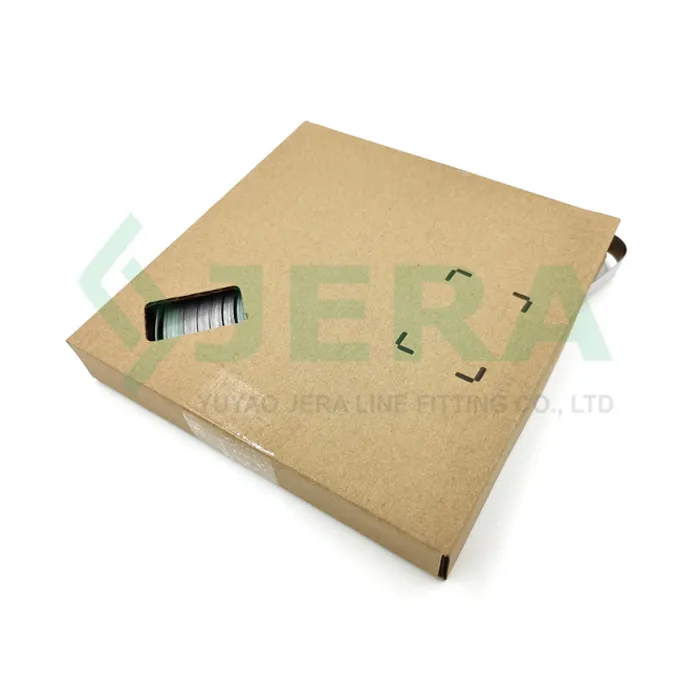

Two different 1/2″ codes — do not merge them. The standard 1/2″ SUS 201 strap is published at 12.7 mm × 0.64 mm in 30 or 50 m rolls. The 1/2″ × 30.5 m Band 201 is a separate product code published at 12.7 mm × 0.70 mm in a carton box. Each row reproduces its own product page; no value has been carried over from another model.

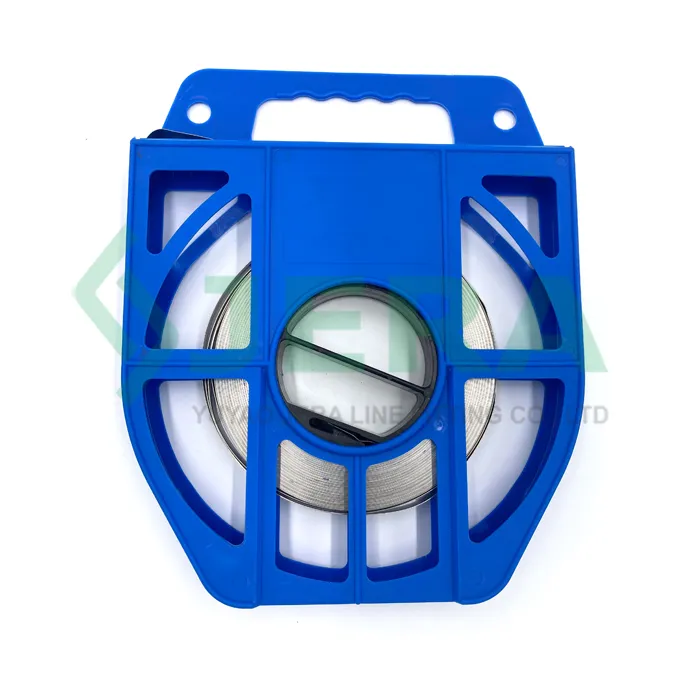

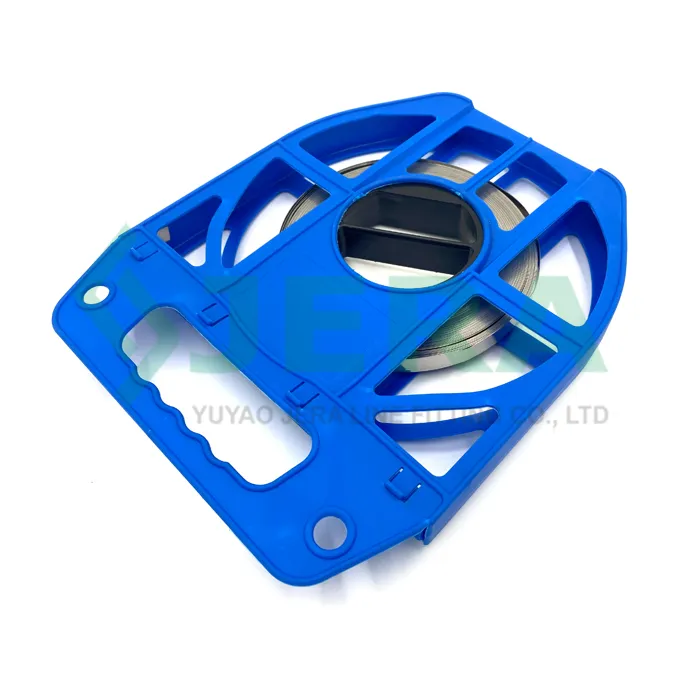

SUS 304 and SUS 316 straps

Swipe the table horizontally to see all columns.

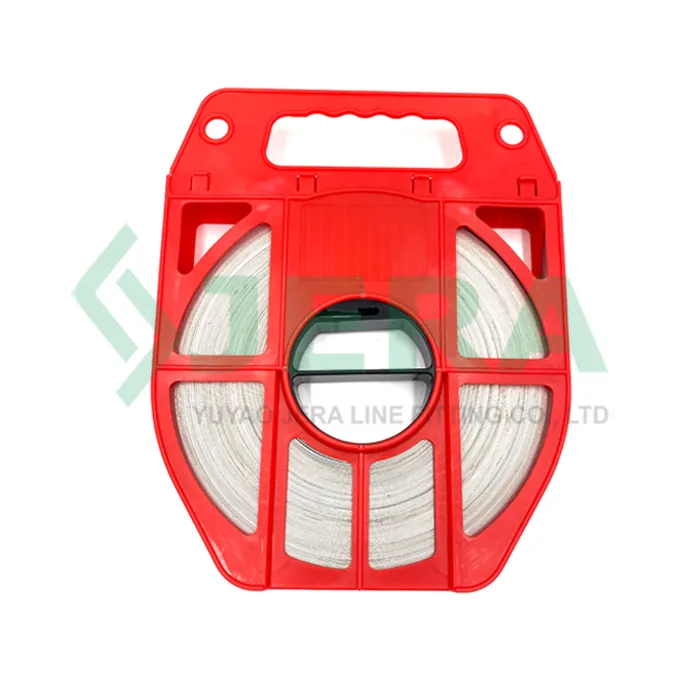

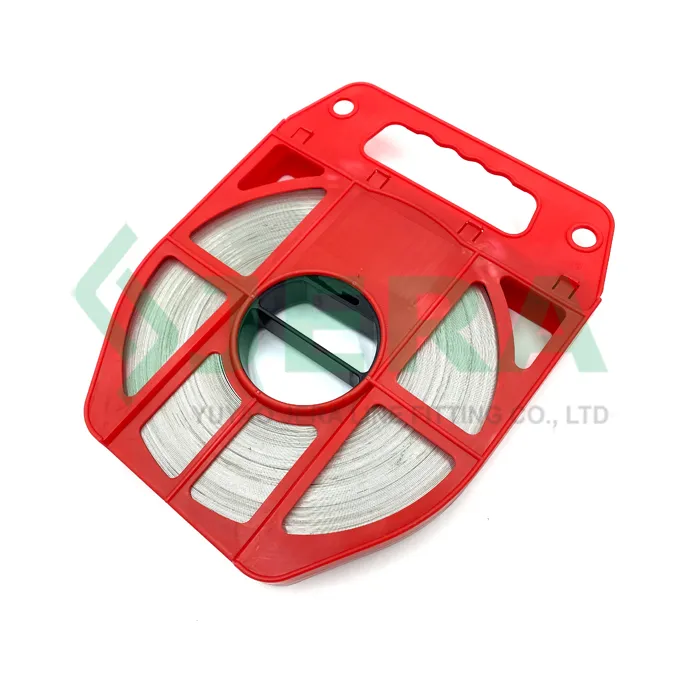

Packing is published on the two 30.5 m roll pages (Carton box) and on the 3/4″ SUS 201 stainless steel strap page (Carton box & Woven bag, with pallet packing available). That page and the C201 code linked in the table above publish the same 19.0 mm × 0.75 mm / 30 or 50 m dimensions; they are two separate product pages, not one combined specification. The other 30 / 50 m model pages do not list a packing field, so confirm it for those codes before ordering. Colour-coded plastic dispenser boxes identify the steel grade on site.

In outdoor networks the fixing point is usually the first place to fail. As a stainless steel mounting strap, the band fixes pole brackets and hooks; as a stainless steel cable strap, it secures the clamp that carries the cable. Jera's core business is fiber optic communication and aerial line hardware, so the uses below are split by priority rather than presented as one flat list.

Matching pole hardware is listed under pole brackets and hooks and fiber optic cable clamps. Select the strap width from the fitting's banding slot before ordering.

Stainless Steel Strap Buckles and Banding Accessories

A strap is one part of the fixing. Jera also supplies the buckle that locks the loop and the tool that tensions and cuts it, so a project can be sourced from one supplier instead of three.

Buckle and tool specifications belong to their own product pages; this page stays focused on the strap and the complete banding system. For the wider product range, see stainless steel bandings and individual stainless steel bands.

Why Choose Jera as Your China Stainless Steel Strap Manufacturer?

Buyers comparing a china stainless steel strap manufacturer need to know who makes the band, how the material is checked and how the roll is packed. Everything below is taken from Jera's own factory, workshop and product pages — as a stainless steel strap manufacturer and stainless steel band supplier, we do not add unverified capacity, certification or production-line claims.

• Factory & locationYUYAO JERA LINE CO., LTD, No.2-1 Wangongchi Road, Yuyao, Ningbo, China. Jera describes itself as the factory producing aerial FTTH solutions.
• Band production since 2013In 2013 Jera started producing pole bands and brackets for aerial cable network line installation, as stated on its stainless steel bandings page.
• Incoming material & grade controlRaw stainless steel and other metals are inspected to ISO 9001:2015 and Jera's internal requirements. An XRF analyser verifies the primary alloying elements, especially Nickel (Ni) content.
• Metal parts for the banding rangeThe metal processing workshop saws, cuts and drills metal to make spare parts for stainless steel bands, anchor clamps and pole brackets. The press forming workshop stamps stainless steel buckles from SUS 201 / 304 coil stock.
• Production scopeThese workshops make components and accessories for the banding range. Jera does not publish a strip rolling or slitting line for the strap itself; ask our sales team to confirm the production route for your specification.
• In-process & final inspectionIn-process quality control uses SPC to monitor key parameters such as size, materials and markings. Finished product quality control covers performance, accuracy, safety and appearance, with random samples sent to the laboratory before goods leave the factory.
• Identification & packingColour-coded plastic dispenser boxes identify the steel grade on site. Packing is published as carton box & woven bag with pallet packing available; the 30.5 m codes are listed in carton box.
• Export marketsProducts are sold to over 40 countries and regions, including CIS, Europe, South America, the Middle East, Africa and Asia.

More detail is on the factory page, and project-specific requirements can be discussed through our OEM & ODM capabilities.

Stainless Steel Strap Quality Testing and Corrosion Resistance

Visual inspection cannot confirm the mechanical behaviour of a steel band. Jera conducts tensile strength and elongation testing on stainless steel banding materials according to the applicable requirements of IEC 61284-1997. XRF analysis is also used to verify the primary alloying elements of stainless steel materials, especially the Nickel (Ni) content.

• Model tests · XRFJera's in-house laboratory uses an XRF machine to check the primary alloying elements of stainless steel, especially Nickel (Ni) content. This is listed on several strap product pages.
• Model tests · tensile & elongationTensile strength and elongation tests on banding materials follow the applicable requirements of IEC 61284-1997. They appear on most, but not all, strap product pages.
• Lab capability · corrosion resistanceThe corrosion aging (salt spray) test simulates humidity, aggressive corrosion and high temperature. Jera lists stainless steel band among the products this test is applied to.
• Lab capability · ultimate tensile strengthThe ultimate tensile strength test measures how a material behaves under a pulling force; stainless steel bands are among the products listed for this test.
• Lab capability · UV & agingThe UV and temperature aging chamber validates outdoor products. The product list on that page covers overhead cable products and clamps, not strap models.
• Quality control processRaw material control, in-process control with SPC monitoring of size, materials and markings, and finished product checks on performance, accuracy, safety and appearance.

Scope matters. The tests listed on each individual product page differ by model — not every strap code is subjected to every test described here. UV and temperature aging is a laboratory capability for overhead cable products and is not published as a strap model test. No numerical results are stated on this page; confirm the test scope and available reports for your exact product code before ordering.

See laboratory testing equipment and test reports & certificates for the documented scope.

China Stainless Steel Strap Price, Customization and Bulk Orders

Jera does not publish a fixed stainless steel strap price on this page, because the offer depends on the specification and the order. As a stainless steel band supplier, we quote against six inputs:

If you are unsure which grade or dimensions to choose, send us your application, installation environment and compatible buckle or clamp model. Our team can help identify a suitable stainless steel strap specification — you do not need to complete all six fields before making contact.

Jera lists different width and thickness options depending on client requirements, so a non-standard request starts with a drawing or a written specification rather than a catalogue code. MOQ, sample availability, lead time, payment terms and prices are not confirmed for this page; ask our sales team together with the specification above.

Project buyers can also request the product catalog or open the contact page directly.
