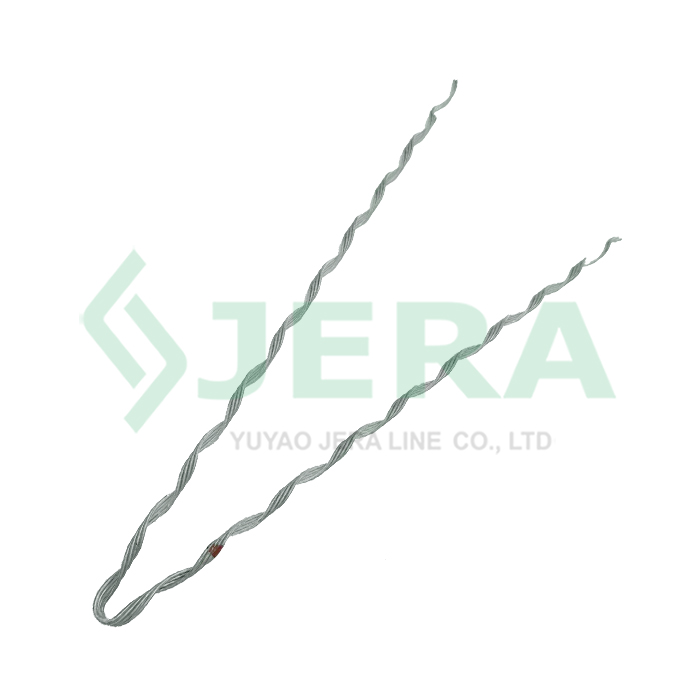

Guy grip dead end JS-55B
JS-55B
Description:
Guy grip dead end JS-55B is a common industrial product that is also widely used for home and personal use. It is made of many thin and flexible fibers or wires twisted together, which has good strength and durability. Galvanized Steel Preformed Tree Grip Dead End can be used to make various ropes, cables, wires, cables and other products, which are widely used in construction, navigation, agriculture, electric power and other fields. The skein making process generally involves selecting the appropriate fiber or wire material, twisting them together, drawing and processing. Preformed grip dead end is characterized by strong plasticity, and the ability to withstand greater tension and weight. It has a long service life, is not easy to break or deform, and can maintain stable performance in harsh environments.
- Cable type: Strand wire
- Cable size: 9.53 mm 3/8″
- Span: <50 m
- MBL: 68.5KN
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- ADSS Preformed Tension Clamp with aluminum coating
- Preformed grip provides greater tensile strength
- Simple operation and less installation time
- Increase the contact area of the fiber optic cable to distribute the force evenly
- With sand and glue to improve friction between cables
- Competitive price
SPECIFICATION
Guy wire dead grip is a product made of several single-strand helical wires pre-twisted.
The dead end grip consists of:
- Four of 3.2 mm diameter rods.
- Material: Galvanized steel
Preformed dead end for strand is made of the same basic material as the strand to which it is applied. Common materials are galvanized steel wire and aluminum-clad steel wire. Galvanized steel is a process in which steel is coated with a layer of zinc to improve its corrosion resistance.
APPLICATION

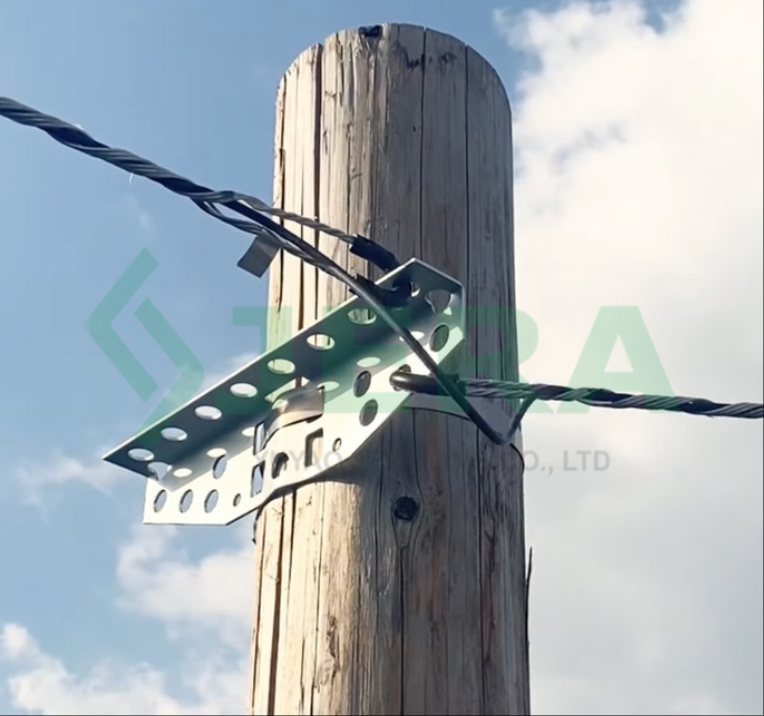

Applied outdoor, for construction of construction to tension or hang optical cables on utility poles.
Manufacturing
Watch Our Factory Video

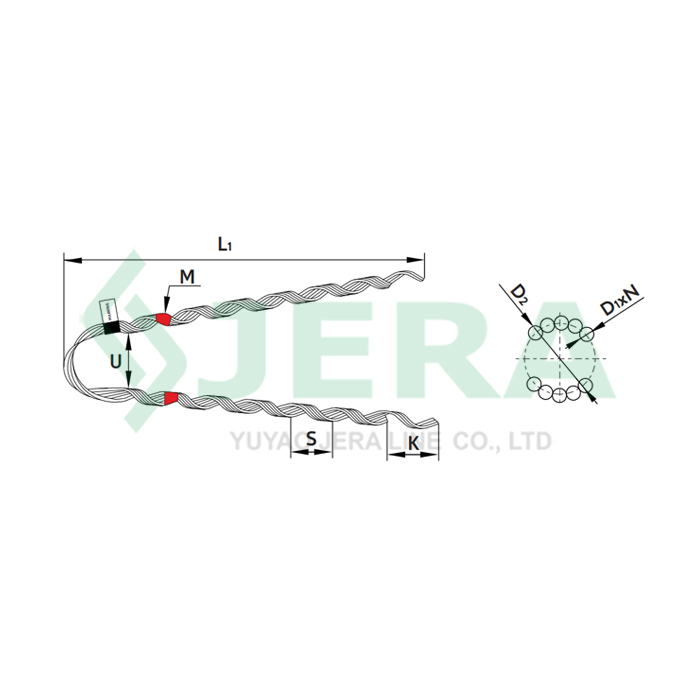

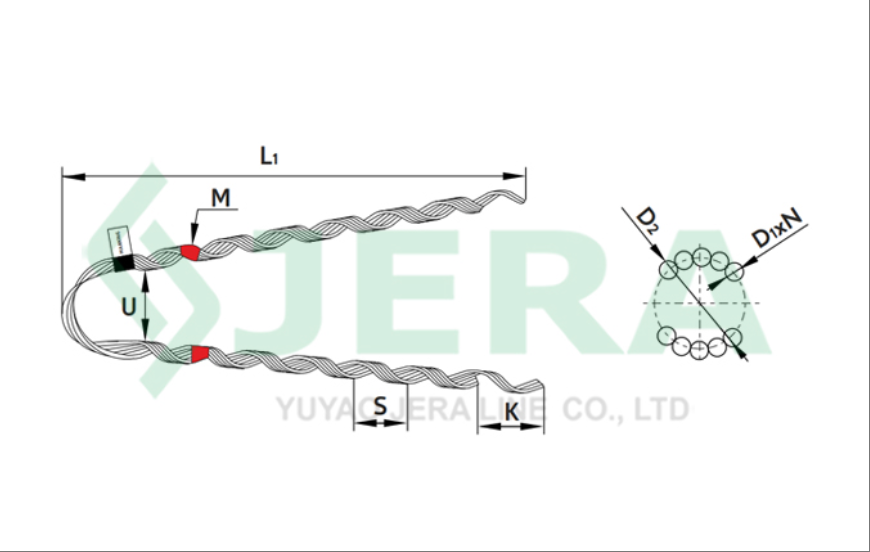

Technical specification
|
Product Code |
JS-55B |
|
MBL, kN |
68.5 |
|
Complete set |
1 pcs |
|
Conductor diameter, mm |
9.53 |
|
Rotation |
Left |
|
Material |
Extra High Strength (EHS) 1680N/mm² |
|
Diameter of rod (D1),mm |
3.2 |
|
Diameter of rod (D2),mm |
13.4 |
|
Length (A), mm |
760± 5mm |
|
Length (K), mm |
80 |
|
Number of rods (N), pcs |
4 |
|
Loop dia (U), mm |
17 ± 5mm |
|
Step Length (S), mm |
80 |
|
Color Code (M) |
Red |
|
Weight, kg |
0.43 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test

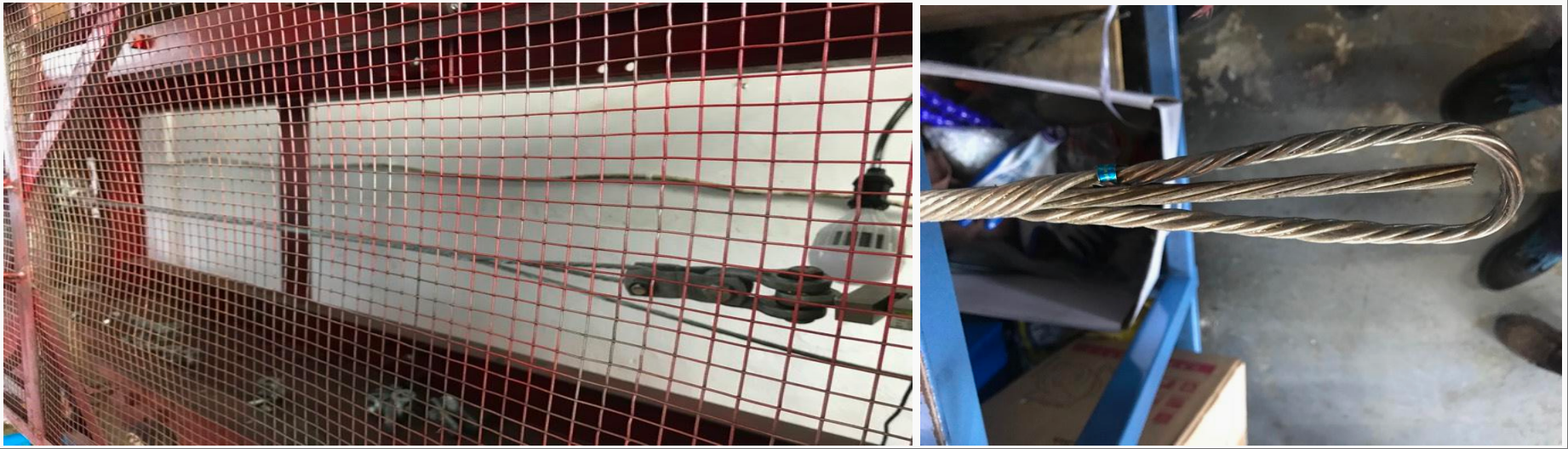

Tensile strength
