Model No. :

38I

Description:

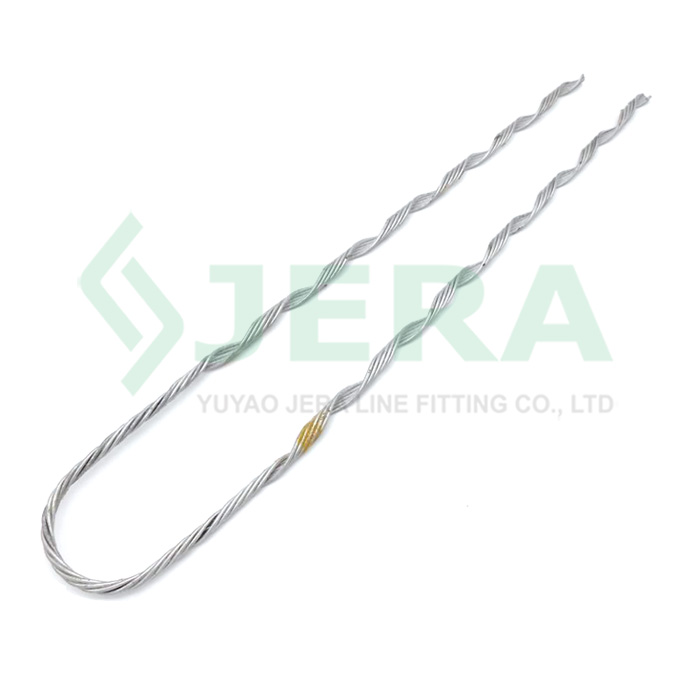

Formed wire dead end guy-grip 38I was developed to grip the strand wire during installation on single wood pole associated with distribution construction, or concrete tower, as analog of classical wedge dead end strand clamps.

    • Cable type: Strand wire
    • Cable size: 7.8mm
    • Span: not specified
    • MBL: 42 KN
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

SPECIFICATION

Formed wire dead end guy-grip 38I was developed to grip the strand wire during installation on single wood pole associated with distribution construction, or concrete tower, as analog of classical wedge dead end strand clamps.

Strand guy grips, 38I made of galvanized steel, ASTM A475 standard of wire.

Guy-grip dead-end 38I do not require any special tools for installation and can be mounted on wire strand rope, directly.

read more

APPLICATION

Jera preformed production line is capable to adjust formed wire deadend in accordance to specification of clients strand wire or cable.

All of our Performed dead-end grips have been tested and verified in order to satisfy the requirements of our customers.

Jera helical has the complete range of test equipment to proceed the type test of heliformed dead ends. We focus on the quality and complete range of steel formed grips, which includes: dead-end guy grips, Strand guy grips,  suspension grips, side ties, twin ties, insulator top ties, armor rods, full tension splices, thimbles, pole fittings (anchor shackles, ball eye), motion control damper etc.

Welcome to contact us for more details of strand wire dead end grip.

read more

Manufacturing

    JS manufacture

Watch Our Factory Video

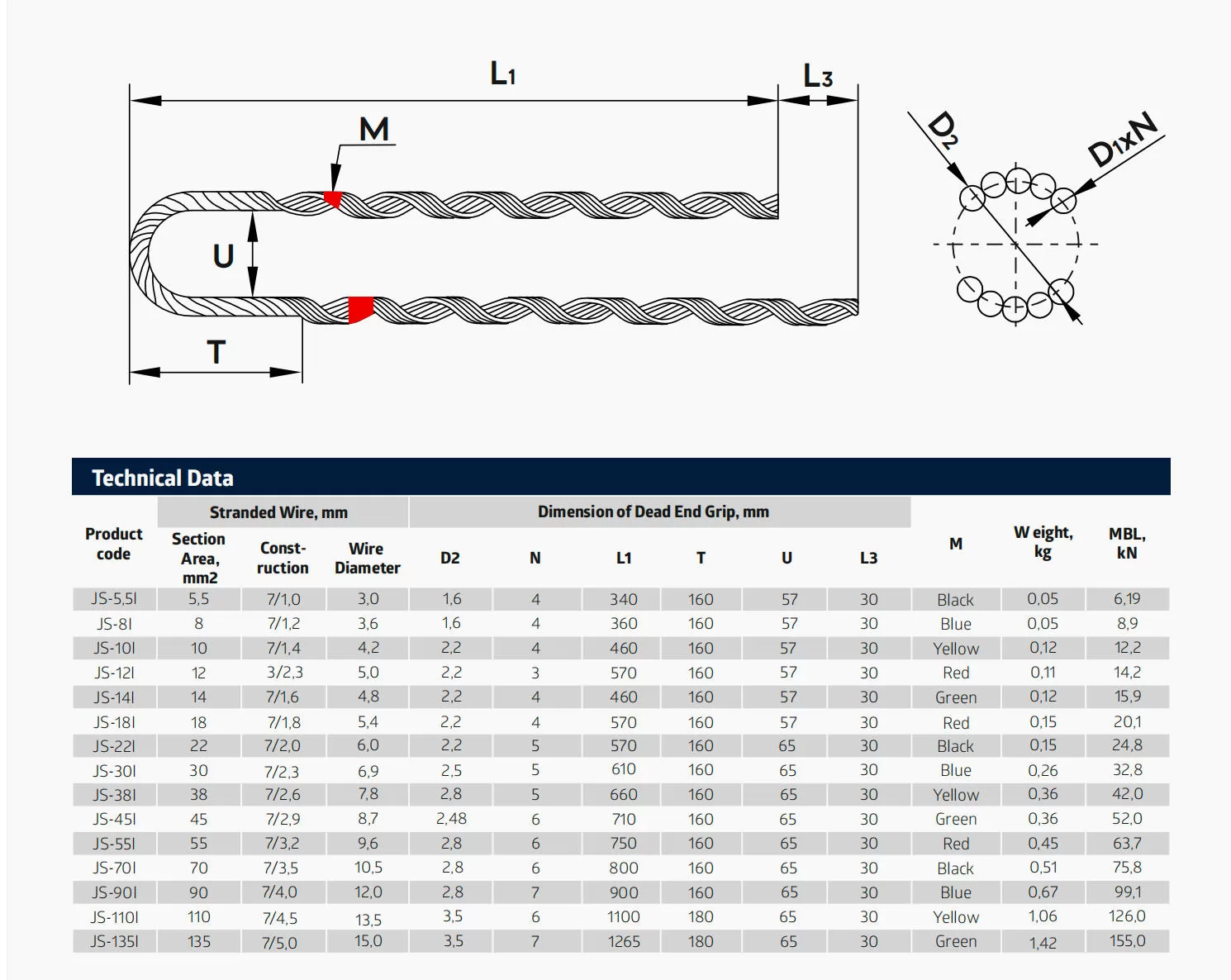

Technical specification

Type

Strand, mm2

Wire configuration

Length, mm

MBL, kN

Color code

Weight, kg

38I,

JS-42-(2.8*5)-7.8

38

2.8 * 5

660

(+-50)

42

Yellow

0.38

Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test

FAQ

  • 1. What area are you in?

    We are the factory, located in China busy in production of aerial FTTH solution consist of:

    • fiber cable,
    • pre-terminated patch cords,
    • cable clamps and brackets,
    • outdoor and indoor termination boxes, access terminals

    We produce a solution for optical distribution network ODN.



  • 2. Are you the direct manufacturer?

    Yes, we are direct factory with years of experience.

  • 3. Where is your factory located?

    Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.

  • 4. Why I should choose Jera Line?

    - We offer very competitive price.
    - We produce a solution, with suitable product recommendations.
    - We have the stable quality control system.
    - After sales product guarantee and support.
    - Our products were adjusted to work with each other to operate in a system.
    - You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
    - We are committed to long term refashions based on trust.

  • 5. Why you can offer competitive prices?

    Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/

  • 6. Why can you offer stable quality?

    Because we have quality system, find more details  https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/

  • 7. Do you offer a guarantee on your products?

    Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.

  • 8. How can I save logistics cost working with you?

    You can decrease up to 5% of your logistics cost working with us.
    Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com)

  • 9. What are the main products that you produce?

    We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.

  • 10. What's your trade term and payment terms?

    We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.

  • 11. Can you produce OEM orders?

    Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.

  • 12. Can you offer me product’s Customization and R & D?

    Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.

  • 13. What's your MOQ of new customers?

    Absence of MOQ criteria for first order.

  • 14. Can you provide free samples?

    Yes, we provide samples, which will same to the order.

  • 15. Will the quality of ordered products be the same to the sample what I have confirmed?

    Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.

  • 16. Where can I see yours’s products application?

    Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t

  • 17. How to get in touch with you?

  • 18. Where can I download your latest catalog

  • 19. Do you have global experience?

    Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
