Model No. :

38T

Description:

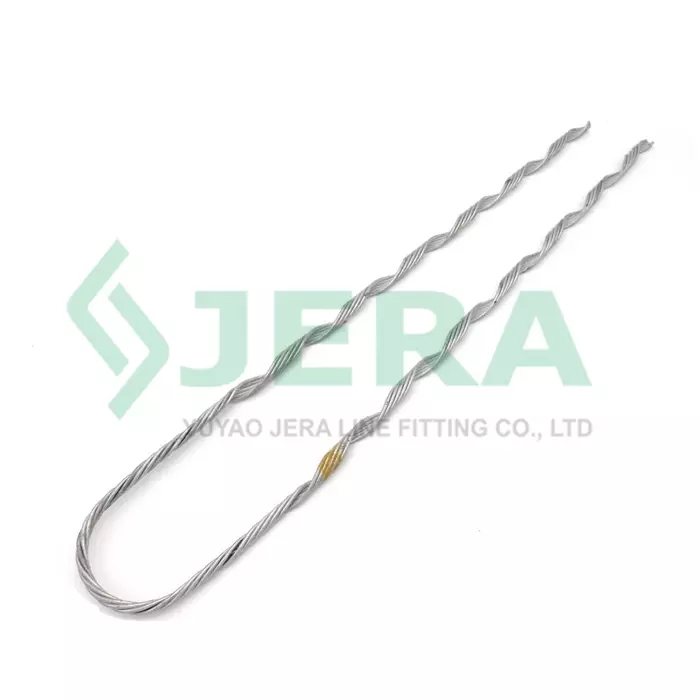

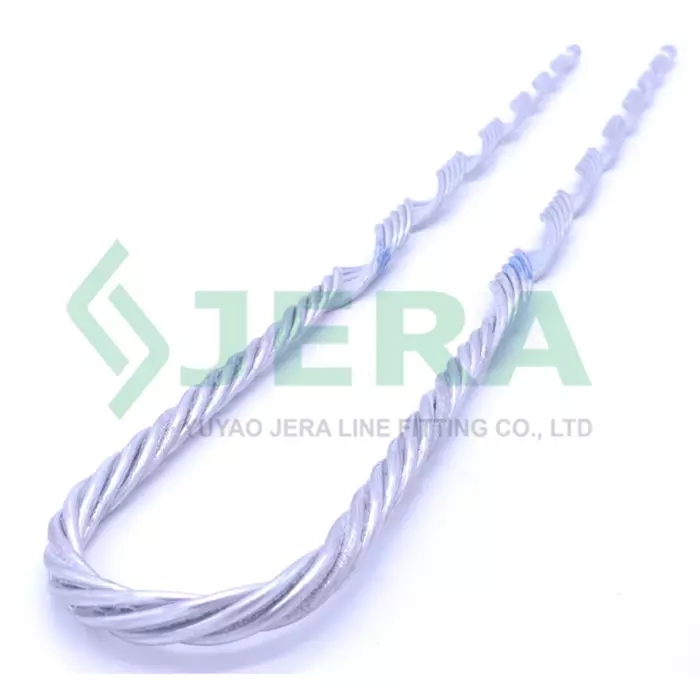

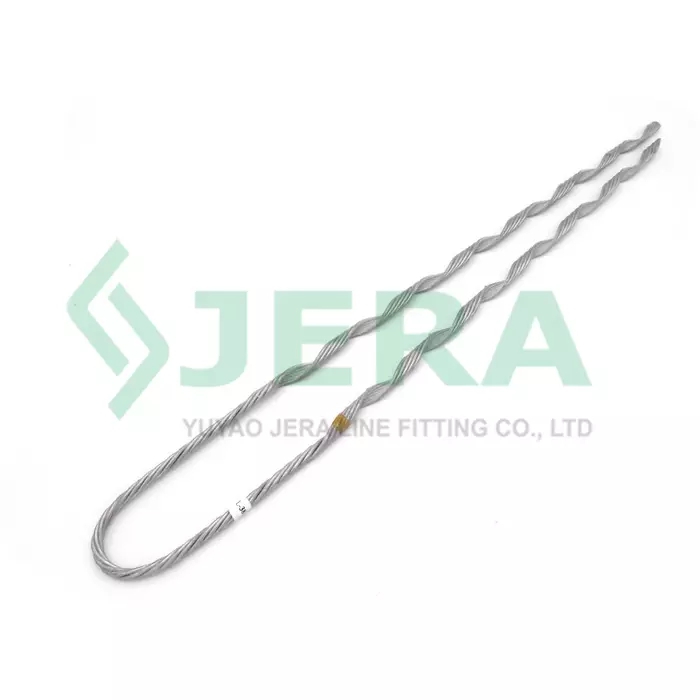

Preformed tension dead-end grip usually used in the installation of the exposed conductor, electric transmission & distribution and overheard insulated conductor. It can substitute for the tension clamps including bolt type widely used in present line. The set is simple in structure, two legs of the preformed armor rod intertwist a blank pipe, with a twisted ring as its backside.The blank pipe would produce a great holding strength when it enlace the conductor. Jera developed this strand wire guy grip to grip strand wire during installation on single wood pole associated with distribution construction or concrete tower.

    • Cable type: Strand wire
    • Cable size: 7.8 mm
    • Span: not specified
    • MBL: 42 KN
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • Easy installation,don’t require any tool
  • Different size for various demands
  • Made of galvanized steel, ASTM A475 Standard of wire
  • Excellent environmental protection
  • Competitive price
Strand Wire Guy Grip,38T Strand Wire Guy Grip,38T

SPECIFICATION

Preformed tension dead-end grip usually used in the installation of the exposed conductor, electric transmission & distribution and overheard insulated conductor. It can substitute for the tension clamps including bolt type widely used in present line. The set is simple in structure, two legs of the preformed armor rod intertwist a blank pipe, with a twisted ring as its backside.The blank pipe would produce a great holding strength when it enlace the conductor. Jera developed this strand wire guy grip to grip strand wire during installation on single wood pole associated with distribution construction or concrete tower.

Jera strand wire guy grip were made of hot dip galvanized steel and covered by special sand and glue to improve the friction between cables.

read more

APPLICATION

Installation of this grip don’t require and protective rods or side splices, it can be installed straight on the fiber cable jacket. However, when the tension strength is high, it should be applied helical ADSS grip with splice protector in order to protect fiber core from damaging during tensioning .When the tension is under 9KN, with thimble or without it. Jera is capable to develop performed wire suspension grips according to your cable specification and distance between poles.

The package of this strand wire guy grip is simple carton box. The pallet or wooden case packing method are available as well, check more details with our sales.

Jera line is operating according to ISO 9001:2015, this allow us to sell to over 40 countries and regions such as CIS, Europe, South America, Middle East, Africa, and Asia.

Jera line factory has a complete range test equipment to proceed tests for preformed dead end grips. All of our dead end grips have been tested with the collaboration of electricity and telecommunication utilities to ensure our product meet their requirements of our clients. Welcome to find more information about Strand Wire Guy Grip price.

read more

Manufacturing

    JS manufacture

Watch Our Factory Video

Technical specification

Product code

Strand rope mm²

Grip’s configuration

Length,mm

MBL,KN

Color

Weight,KG

38T

38

2.8*5

660

42

Yellow

0.36

Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test
