Aerial self-supporting optical fiber cable 24 fiber cores
FOC-R-MDPE-BC+20*1520+2,0-FRP+RC+1,8-PBT
Description:
Aerial self-supporting optical fiber cable either called Dielectrico autosoportado ADSS cable is a type of fiber optic cable which is self supporting, to be used during overhead aerial FTTX deployments.
All the materials used for fibra optica FTTH cable are nonmetallic, which will decrease the cable weight as well as cable diameter. It is an alternative to OPGW and OPAC solution, this kabel fiber optik cable can provide a cost-effective solution by saving money and resources, easier installation and wider range.
- Application: Outdoor
- Fiber quantity: 24 fiber
- Dimensions: 9.6 mm
- Reinforcement: Aramid yarn/FRP
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Perfect for outdoor or duct FTTX deployment
- Light weight and small diameter reducing the load caused by ice and wind
- Loose tube are filled with a water-resistant filling compound
- Reinforced with ariamid yarn and FRP, high tensile strength
- HDPE cable jacket ,fire redundant protect and UV radiation protection
- G652D or G657A type core are available upon request
- Can be applied near high-voltage power distribution line
- Fair price of adss cable
SPECIFICATION

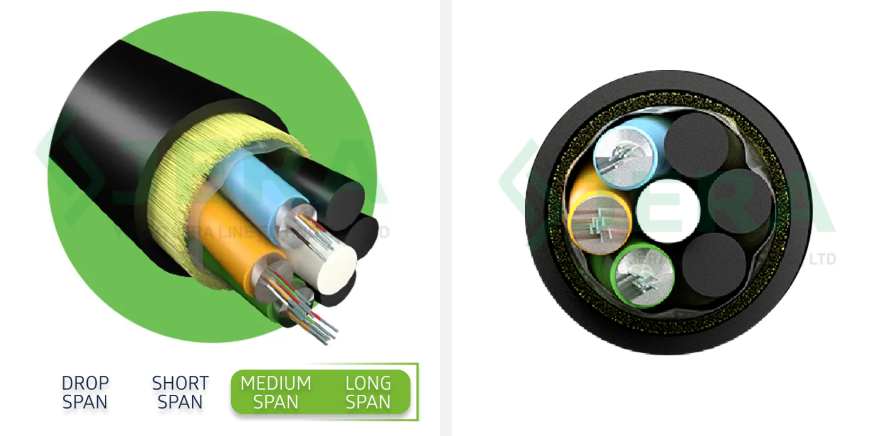

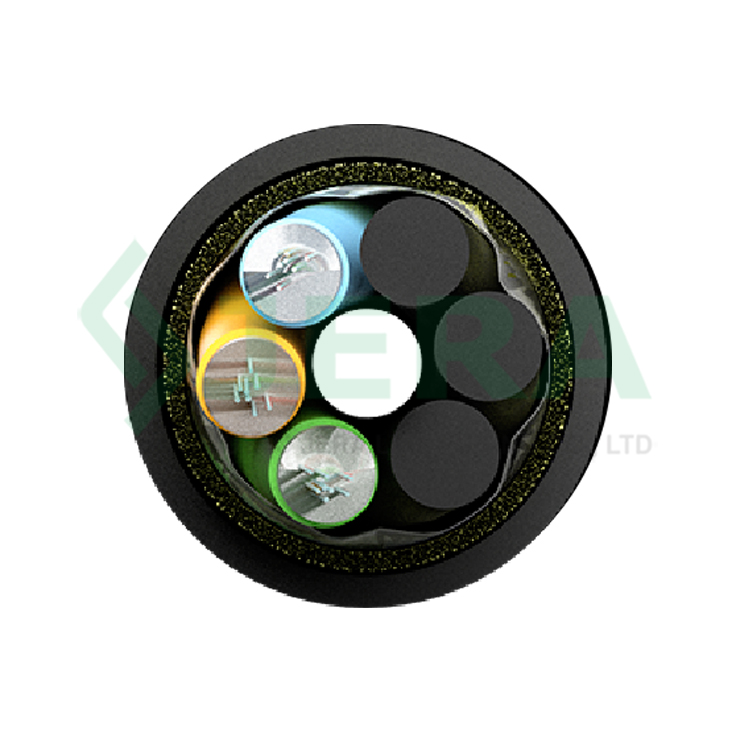

The cable consists of:
- The cable dimensions:
- Diameter: 9.6 ± 0.2mm
- Fiber quantity is 24 fiber.
- PBT Loose tube material
- Water-blocking Tape/Water-blocking Yarn
- Ariamid yarn Strength member
- HDPE jacket sheath, UV protected.
Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.
The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.
HDPE is a polymer material with high density, high strength and high chemical resistance.
APPLICATION

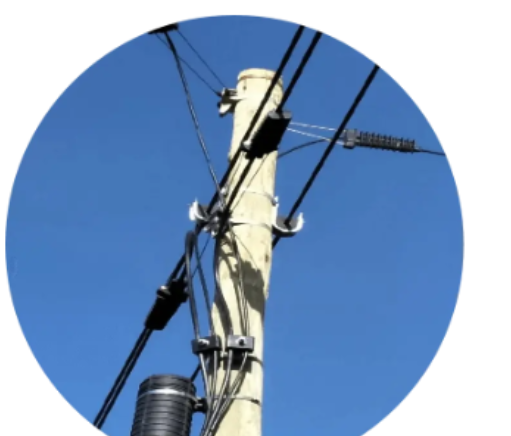

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.
Manufacturing
Watch Our Factory Video
Technical specification
|
Item |
Technology Parameters |
|
Applications |
Outdoor |
|
Product code |
FOC-R-MDPE-BC+20*1520+2,0-FRP+RC+1,8-PBT-Nx(fiber core type)-9.6 |
|
Loose tube material and diameter |
PBT, 1.8(±0.05)mm |
|
Fiber cores |
24 |
|
Max fiber count/tube |
6 |
|
No. Of Tubes / Fillers |
6/0 |
|
FRP/Coating(mm) |
2.0 |
|
W-Blocking Material |
Water-blocking Tape/Water-blocking Yarn |
|
Strength member |
Ariamid yarn |
|
Fiber core options |
G.652.D, G.657A1, G.657A2 |
|
Cable jacket color |
Black |
|
Sheath thickness |
Non. 1.65mm |
|
Sheath material |
HDPE |
|
Cable dimension,mm |
9.6 (±0.2） |
|
MAT (N) |
2000 |
|
N.weight (kg/km) |
70 |
|
RCD Initial Sag |
Up To 100m, Sag 1.0% |
|
Worst Load Condition |
Wind Velocity : 30m/s, Ice Thickness : 0mm |
|
Certification |
IEC-60794-1-2, ISO9001:2015 |
PRODUCT VIDEO
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY

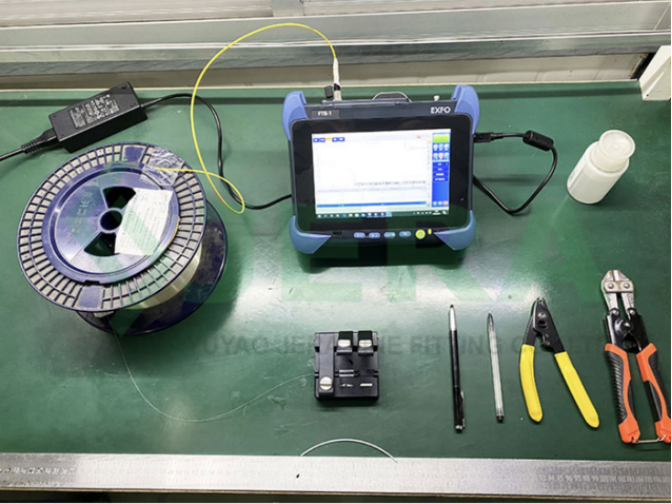

Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
