Fiber optic stripper CFS-2A
CFS-2A
Description:
Fiber stripping tool CFS-2A other called fiber optic stripper is a reliable and economical FTTH plier tools for peeling fiber jacket and fiber buffer during FTTH deployments. This fiberoptic stripper has two notches, large notch at the tip of the tool with a 1.0mm dia, can be used to strip many fiber jackets. And the smaller stripping notch close to the pivot point is designed to remove 250μm buffer from 125μm fiber.
- Code: CFS-2A
- Big notch diameter, mm: 1mm
- Peeling coating range,μm: 125-250
- Material: High carbon steel, plastic
- Product length: 165mm
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Exquisite workmanship, accurate fiber stripping
- Ergonomic design, comfortable to hold and reduce hand fatigue
- High carbon steel main material and anti-slip sheathing for handle
- All cut surfaces have precise mechanical tolerances ensure smooth operation
- Precision nipper blade, powerful spring and knife edge lock
- Competitive price
SPECIFICATION
Fiber stripping tool CFS-2A other called fiber optic stripper is a reliable and economical FTTH plier tools for peeling fiber jacket and fiber buffer during FTTH deployments.
This fiberoptic stripper has two notches, large notch at the tip of the tool with a 1.0mm dia, can be used to strip many fiber jackets. And the smaller stripping notch close to the pivot point is designed to remove 250μm buffer from 125μm fiber.

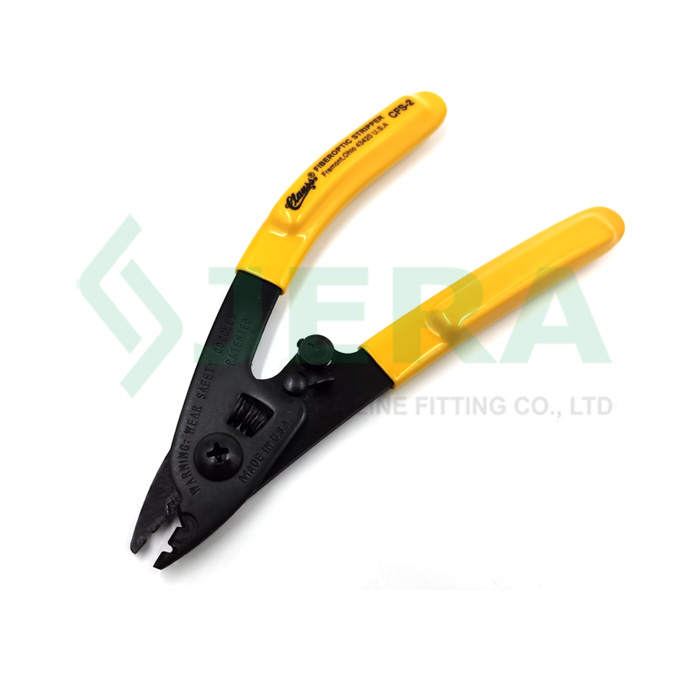

This FTTH fiber peeling tool is made of high carbon steel and handle is cover by yellow anti-slip sheath to prevent slipping during operation.
APPLICATION
This fiber stripping pliers has precision nipper blade, all cutting surfaces are present precise mechanical tolerances which make sure it’s clean and smooth operation. It has high quality reinforcement spring, high strength, resistance fatigue, pressure resistance guarantee long time usage. Also when this fiber peeling tool is not use, the knife edge can be with the lock in the closed state, reduce the volume and protect the knife-mouth.

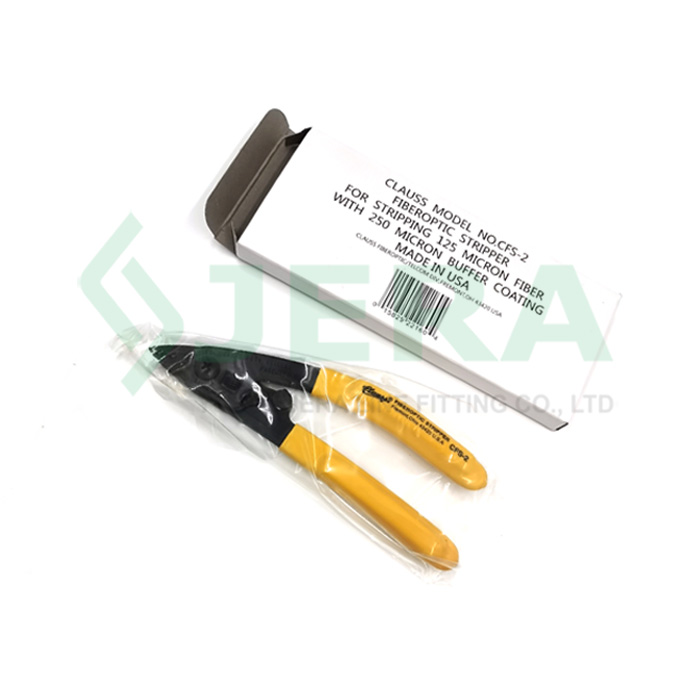

The design of this optical fiber stripper is ergonomic designed, comfortable to hole and reduce hand fatigue during operation. The package method of this tool is plastic bag plus paper box.
Jera is a direct factory who produces fiber optic cable and relevant accessories for aerial FTTH deployments. For other cable termination tools (Fiber cable jacket stripper, Kevlar cutting tool, fiber optic cleaning product etc) please feel free to contact our sales team.
Welcome to send inquiry for this fiber buffer stripping tool price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Code |
Big notch diameter, mm |
Peeling coating range,μm |
Material |
Product length |
|
CFS-2A |
1mm |
125-250 |
High carbon steel, plastic |
165mm |
