Cold Shrink Tube, CST-25×110 (8.3)
CST-25x110 (8.3)
Description:

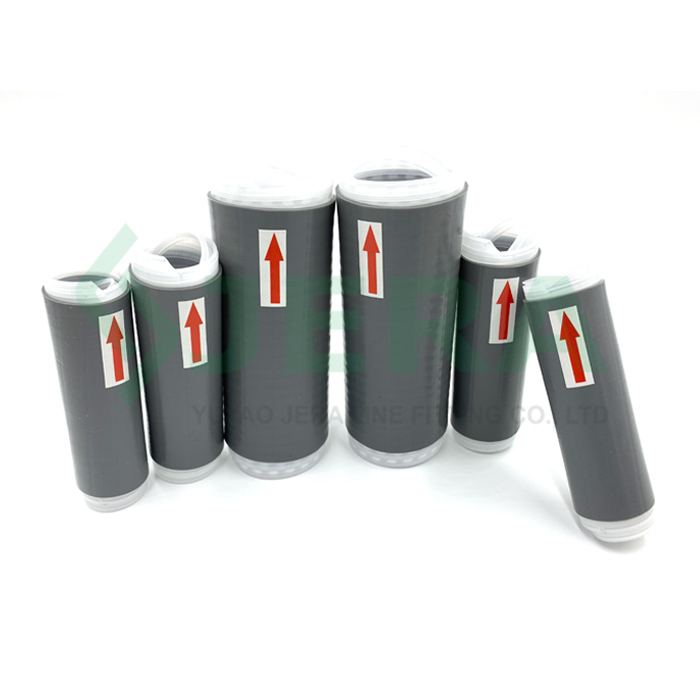

Cold shrink tube also called Cold shrink cable sleeves are a series of open-ended rubber sleeves, pre-expaned on a removable core for easy installation, widely used in FTTx or power line deployments.

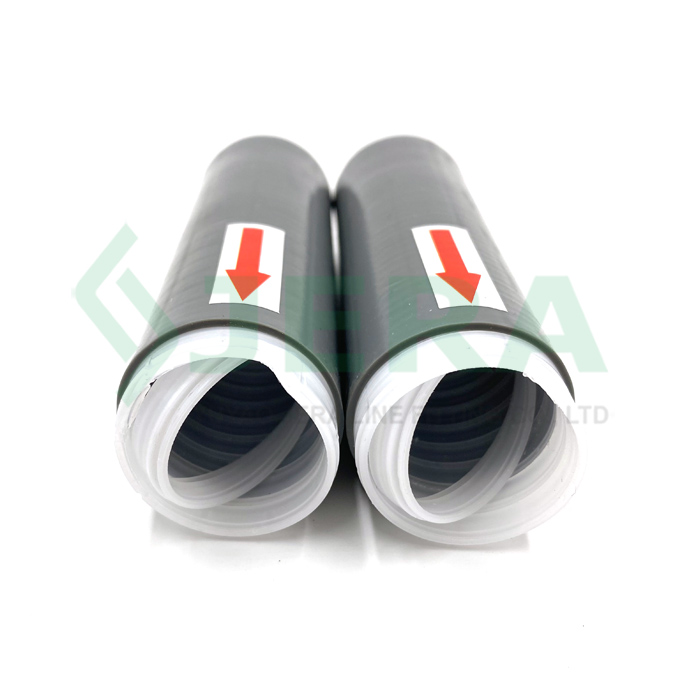

The silicone cold shrink tube provide a quick and easy method for protecting and sealing for cable jointing. It’s an ideal for protect the connection of fiber optic cable, or other communication cable with fiber optic splice closures, optical terminal boxes during FTTx line constructions.
- Product code: CST-25×110
- Application diameters, mm: 8-25
- Length, mm: 110
- No need to prepare any tool.
- Place cold shrink over the cable
- Connect the cable, and tighten the connection fitting, if required
- Move the cold shrink over the connection of cable
- Pull the ripcord towards the bottom of tube. Sealing starts from the side which is opposite to hands
- Ensure the cold shrink is tightened in the required place.
- Keep puling the rip cord until shrinking will be done, carefully removing it.
Application process is simple and quick:
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Simple installation, no other tools required
- Accommodates a wide range of cable size
- Weather, moisture waterproof
- IP-68 grade protection
- UV and corrosion resistance
- Dust, fungus resistance
- Resists acids and alkali; resists ozone
- Good thermal stability
- Shrink ration 3 to 1
- Easy removable
SPECIFICATION
Cold shrink tube also called Cold shrink cable sleeves are a series of open-ended rubber sleeves, pre-expaned on a removable core for easy installation, widely used in FTTx or power line deployments.
The silicone cold shrink tube provide a quick and easy me
thod for protecting and sealing for cable jointing. It’s an ideal for protect the connection of fiber optic cable, or other communication cable with fiber optic splice closures, optical terminal boxes during FTTx line constructions.

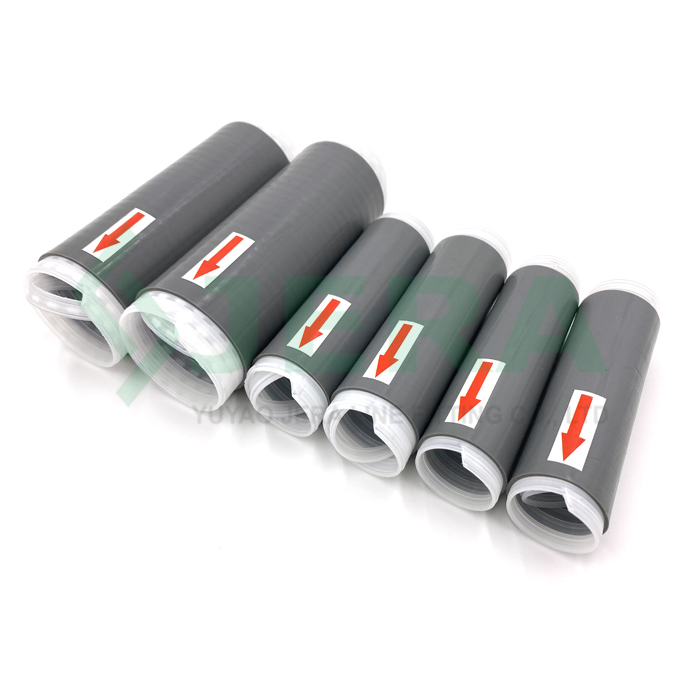

The cold shrink rubber tube is made of rubber silicone. The overall body is insulating which will not cause electric shock during filed application.
APPLICATION
Jera line is operating according to ISO9001:2015, Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards.
Jera is a direct factory who supply a whole line products for FTTx deployment. Such as fiber optic cables, optical termination boxes, fiber optic splice closures, drop clamps, suspension clamps, cable termination tool kits etc.
Feel free to contact us for more information about this cold shrink tube price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Application diameters, mm |
Length, mm |
|
CST-25×110 |
8-25 |
110 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
FAQ
-
1. What area are you in?
We are the factory, located in China busy in production of aerial FTTH solution consist of:
- fiber cable,
- pre-terminated patch cords,
- cable clamps and brackets,
- outdoor and indoor termination boxes, access terminals
We produce a solution for optical distribution network ODN.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We offer very competitive price.
- We produce a solution, with suitable product recommendations.
- We have the stable quality control system.
- After sales product guarantee and support.
- Our products were adjusted to work with each other to operate in a system.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust. -
5. Why you can offer competitive prices?
Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/
-
6. Why can you offer stable quality?
Because we have quality system, find more details https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.
-
8. How can I save logistics cost working with you?
You can decrease up to 5% of your logistics cost working with us.
Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com) -
9. What are the main products that you produce?
We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.
-
10. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
11. Can you produce OEM orders?
Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.
-
12. Can you offer me product’s Customization and R & D?
Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
13. What's your MOQ of new customers?
Absence of MOQ criteria for first order.
-
14. Can you provide free samples?
Yes, we provide samples, which will same to the order.
-
15. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
16. Where can I see yours’s products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
17. How to get in touch with you?
-
18. Where can I download your latest catalog
Here you can do it: https://www.jera-fiber.com/about-us/download-catalog-2/
-
19. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
