FTTH Drop Cable Suspension Clamp

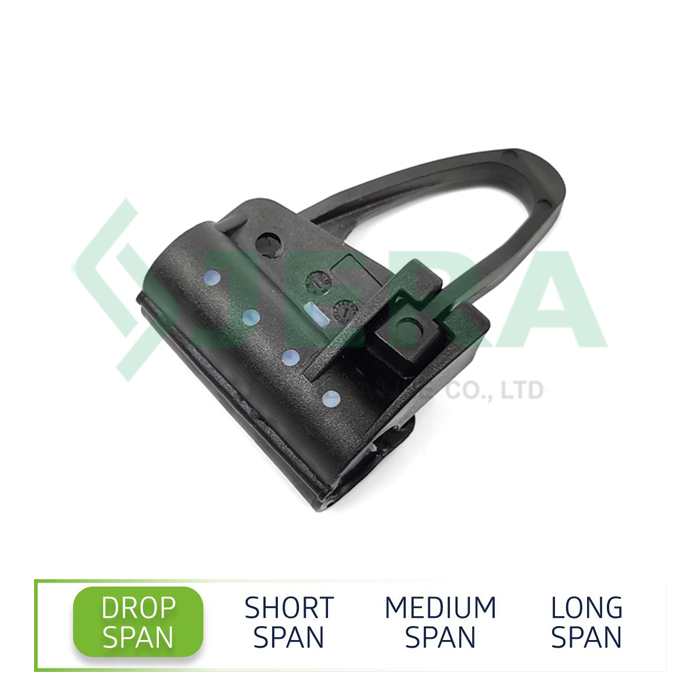

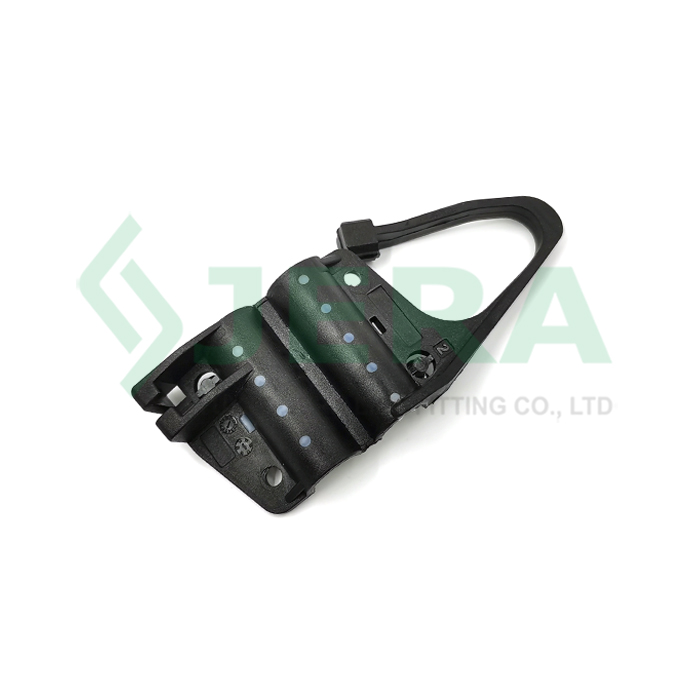

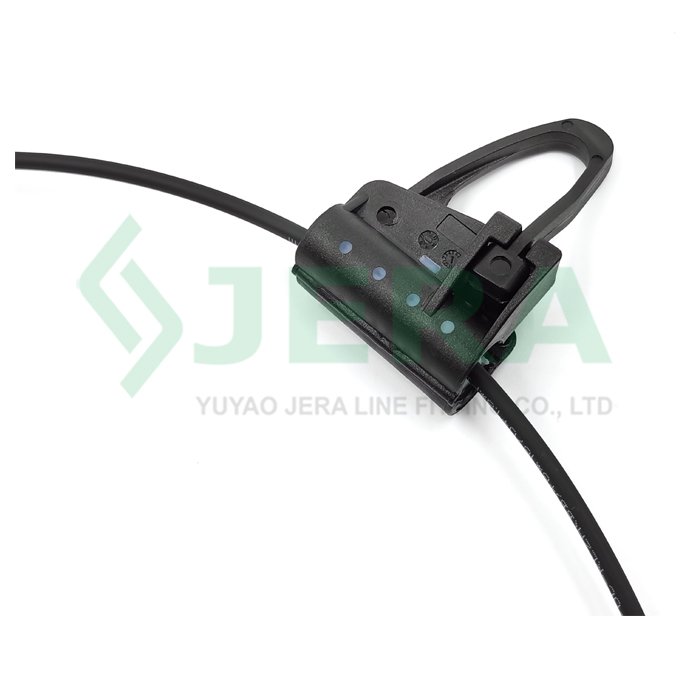

FTTH Drop Cable Suspension Clamp, PS-D6

FTTH Drop Cable Suspension Clamp D6, other called ADSS aerial drop clamp is designed to tension or support ADSS optical fiber cable or FTTH drop cable in FTTX network constructions.

Features

Tool free installation
Plastic loop, Anti-drop design
Both ADSS cable and FTTH cable applicable
No cable jacket damages
Excellent Environmental Stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

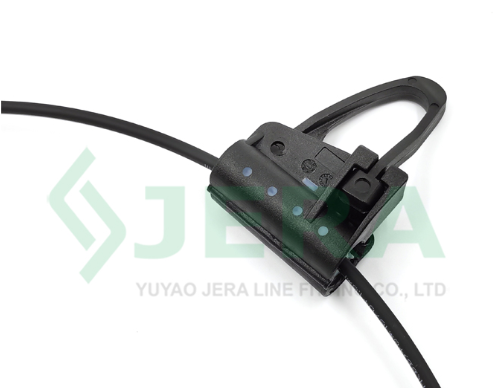

The FTTH Drop Cable Suspension Clamp PS-D6 is engineered to suspend 4–8 mm ADSS drop cables and FTTH round cables at intermediate points of aerial fiber optic routes. It is widely used in FTTH access networks, GPON deployments, and subscriber connection projects, ensuring reliable cable support throughout the distribution network.

The clamp can be installed on telecommunication poles, wall-mounted brackets, and hooks in residential, commercial, and industrial environments. Its anti-drop design and smooth cable support structure protect the cable sheath from abrasion and deformation while minimizing the effects of wind and vibration. Manufactured from UV-resistant materials, the PS-D6 provides long-term durability in harsh outdoor conditions and enables fast, tool-free installation.

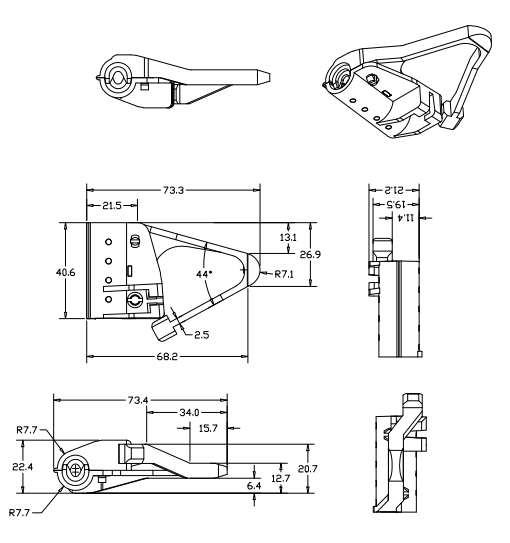

Technical specification

Product code	Round cable size mm	Material	MBL,KN	Weight,KG
PS-D6	Φ4-8	UV resistant plastic & PVC	0.5	0.09

TEST

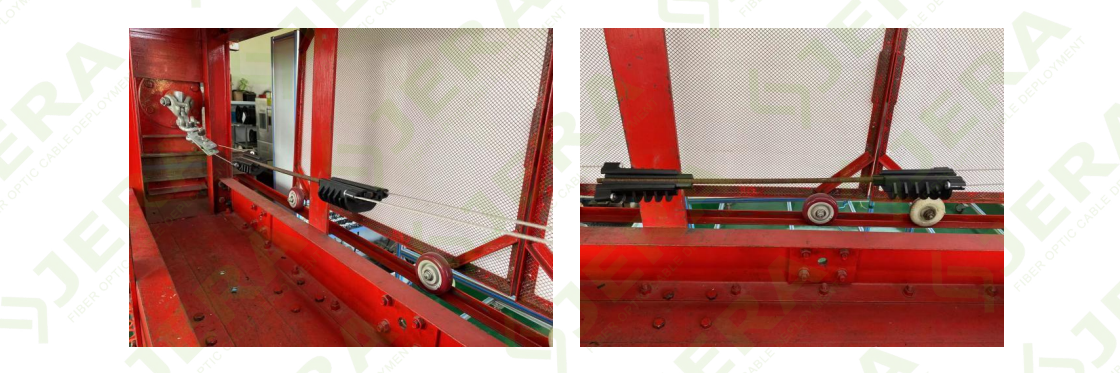

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
