ADSS Suspension clamp PS-D12(13-16mm)

ADSS suspension clamp D12 other called mobile suspension clamp used for the suspension of aerial round cable on intermediate poles used for cable distribution networks in FTTH ling constructions.

Features

Special grip pattern for figure 8 cable messengers
One piece shape.
Excellent corrosion resistant materials.
UV, Temperature and Humidity stable materials.
Outstanding environmental stability
No damage to cable jacket or insulated messenger

DESCRIPTION Specification Test

REVIEW

APPLICATION

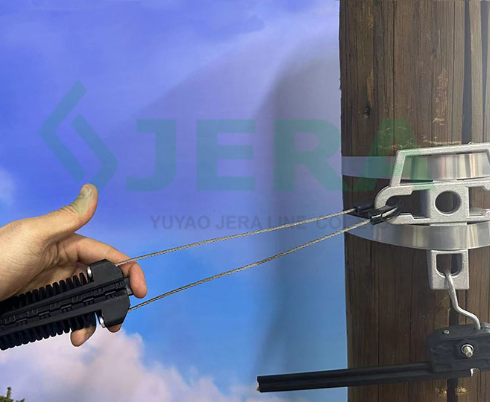

The ADSS Suspension Clamp D12 is specifically engineered for supporting ADSS cables on aerial distribution and transmission communication routes. The clamp provides effective cable retention while preventing excessive compression of the cable jacket.

The D12 suspension clamp is widely utilized in power utility communication systems, telecommunications infrastructure, and FTTX deployment projects.

Ideal for:

ADSS cable aerial suspension
Power line communication networks
FTTH feeder network construction
Telecommunication backbone systems
Utility fiber optic installations
Smart grid communication infrastructure

Technical specification

Product codes	Cable size, mm	MBL,KN	Weight,KG	Material
PS-D12	Φ13-16	1.5	0.12	Galvanized steel, UV resistant plastic

TEST

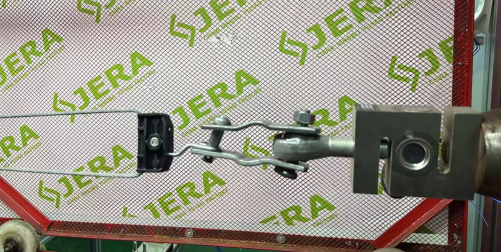

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
