Communication Standoff Bracket for ADSS Hardware Clamps, YK-450
YK-450
Description:
Standoff bracket YK-450 either called fiberglass communication standoff bracket is designed to used in aerial constructions to provide a set distance for cable from electrical poles, to prevent possible electrical shock.
- Bracket type: Tension
- Application: Pole
- Span:70-200 meters
- MBL: 2.2/15 KN
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Designed to be used on wooden, metal or concrete poles
- Both stainless steel band 3/4”(20mm) and bolts 5/8”(16mm) installation on pole
- Galvanized ring bolt, aluminum cap, dielectric rod and aluminum base, durable
- Reinforced epoxy fiberglass rod diameter is 1-1/2”(38mm), provide enough supporting
- Overall weather resistant materials guarantee long period usage
- With superior mechanical tension strength
- Good environmental stability
- Competitive price
SPECIFICATION
Standoff bracket YK-450 either called fiberglass communication standoff bracket is designed to used in aerial constructions to provide a set distance for cable from electrical poles, to prevent possible electrical shock.
Communication standoff bracket are used to support equipment such as suspension clamp in communication line. It is usually used when utility poles are busy or overused to maintain cable separation requirements and keep communication cables away from other lines.
Compare to universal pole mounting bracket, an aerial pole line hardware Standoff bracket enables the cable to be mounted at a distance from the pole, prevent ADSS cable from possible electrical shock, also it provide a easy way for cable maintaining for constructions.
APPLICATION

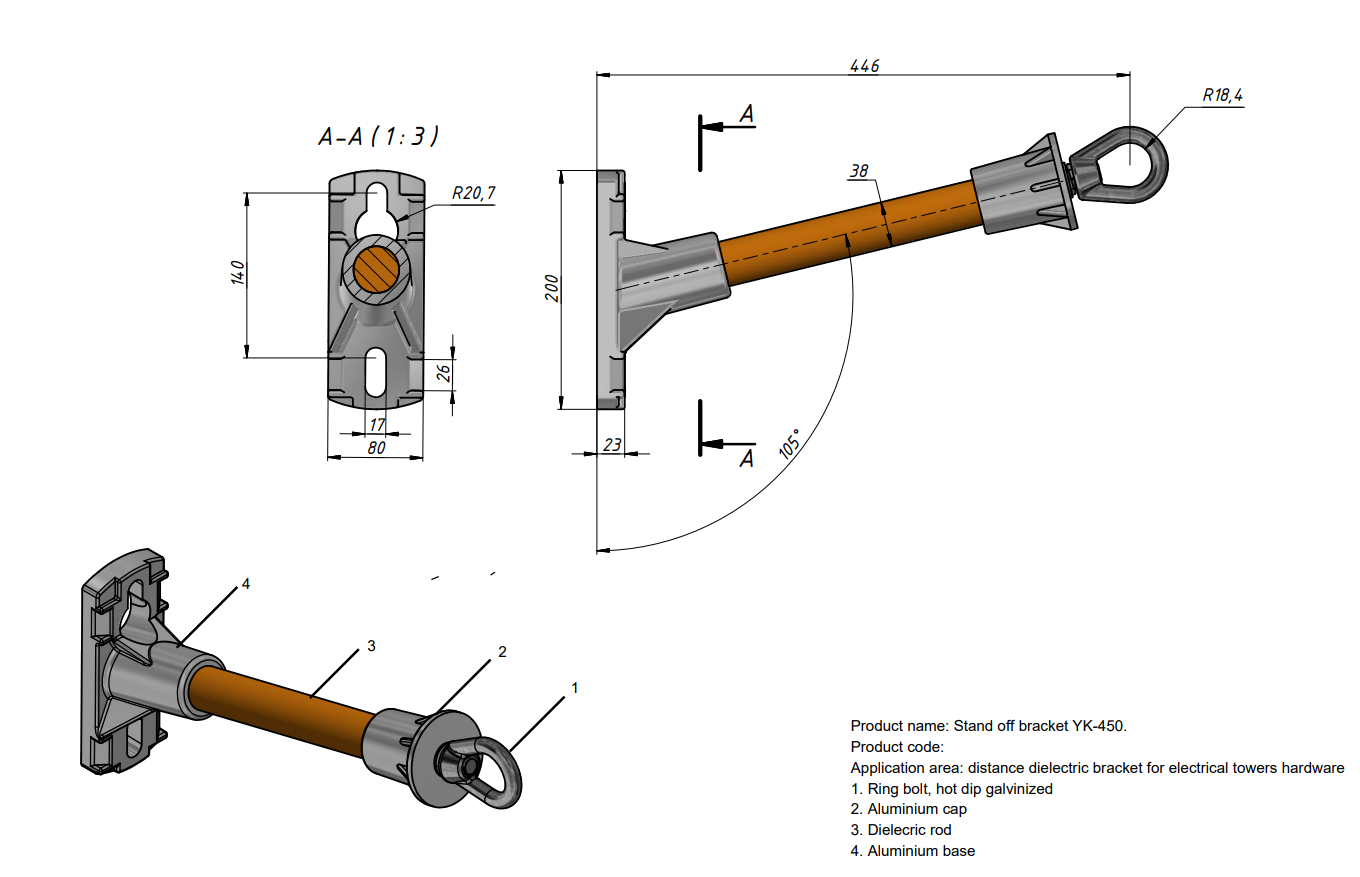

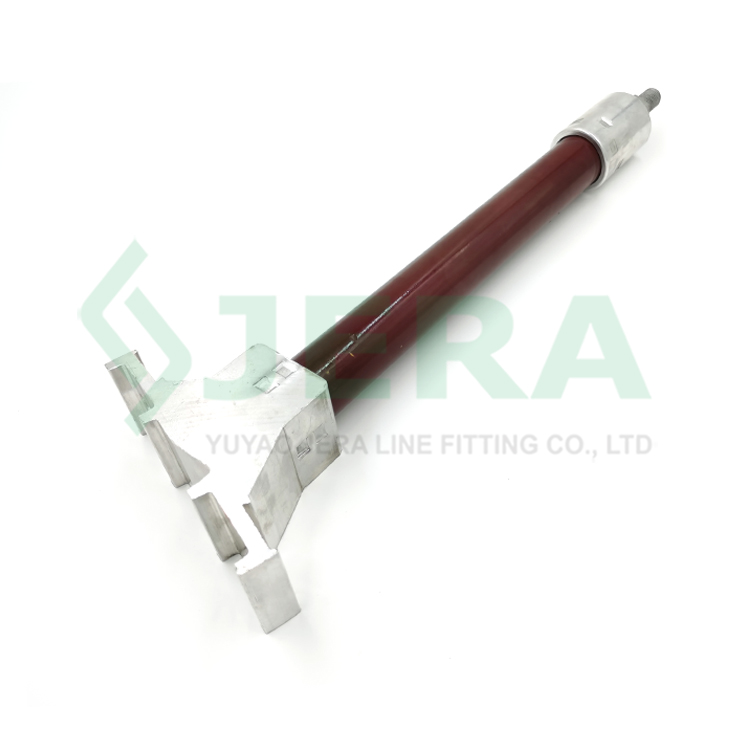

18 inches Standoff bracket consist of Galvanized ring bolt, aluminum cap, dielectric rod and aluminum base, all the material are UV resistant and rust proof which ensure a long time service life for various weather conditions.

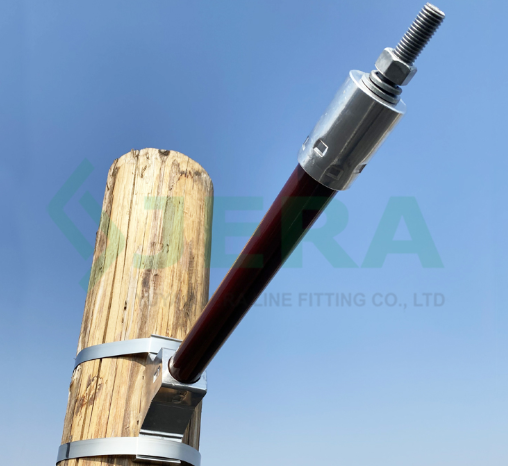

The design of this standoff bracket allow easy installation by two 3/4”(20mm) stainless steel straps, or two 5/8”(16mm) bolts. This bracket passed a series tests such as aging test, tensile strength test, temperature cycling test etc in our inner laboratory.
Jera line is direct manufacturer who produce fiber optic drop cable and related accessories for aerial ftth line constructions. Our product includes anchor clamps, suspension clamps, pole line hardware fitting, fiber optic boxes, dead end guy grips etc.
Each and every day, we are improving our products, to meet the new challenges of evolving global information and energy markets. Welcome to contact us for more information about this standoff bracket price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Code |
Minimum Ultimate Vertical Load |
Minimum Ultimate Longitudinal Load |
Weight, kg |
Material |
|
YK-450 |
2.2 KN (500 LBS) |
15.0 KN (3300 LBS) |
1.67 |
Aluminum, galvanized steel, fiberglass |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test

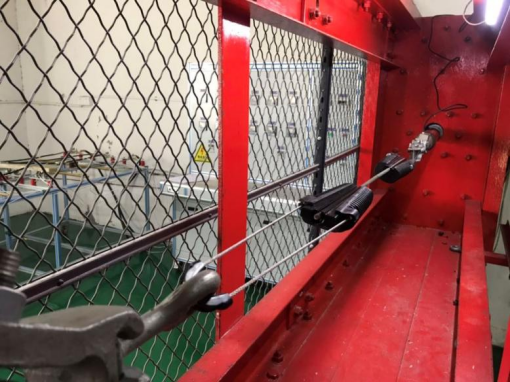

Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
