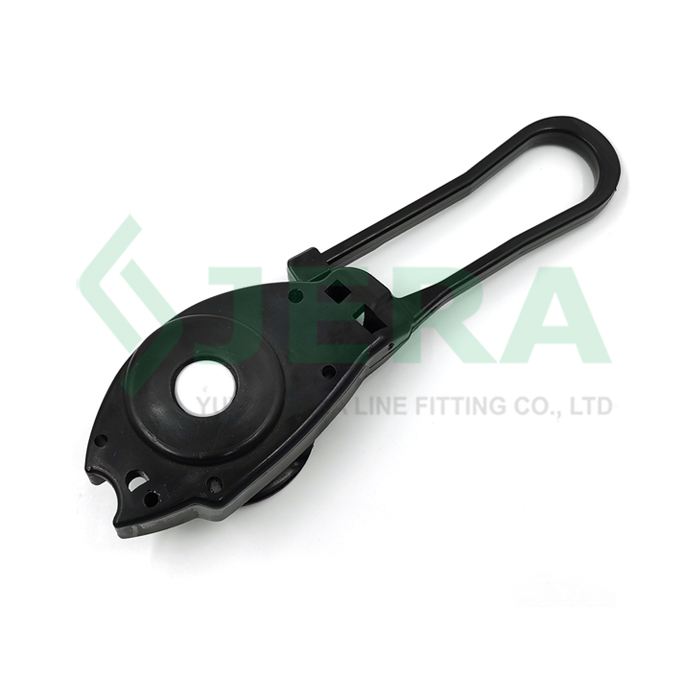

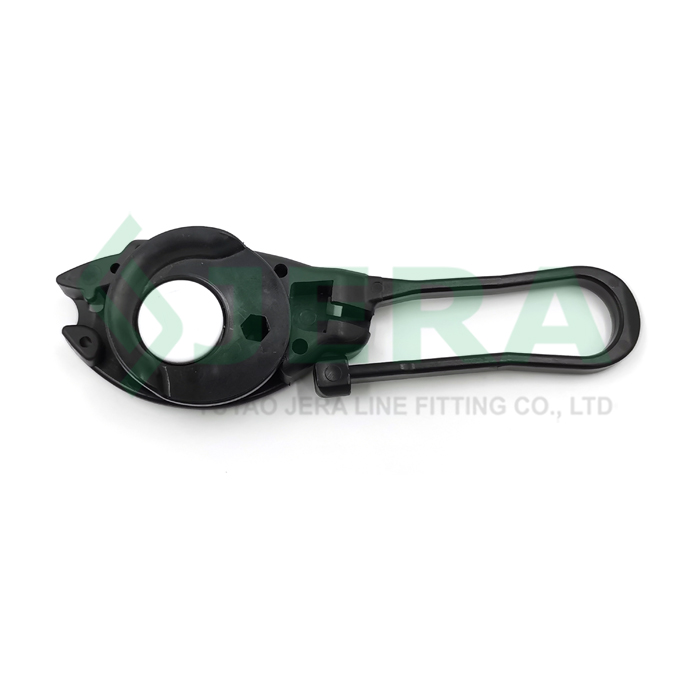

Ftth fish clamp, Fish-02

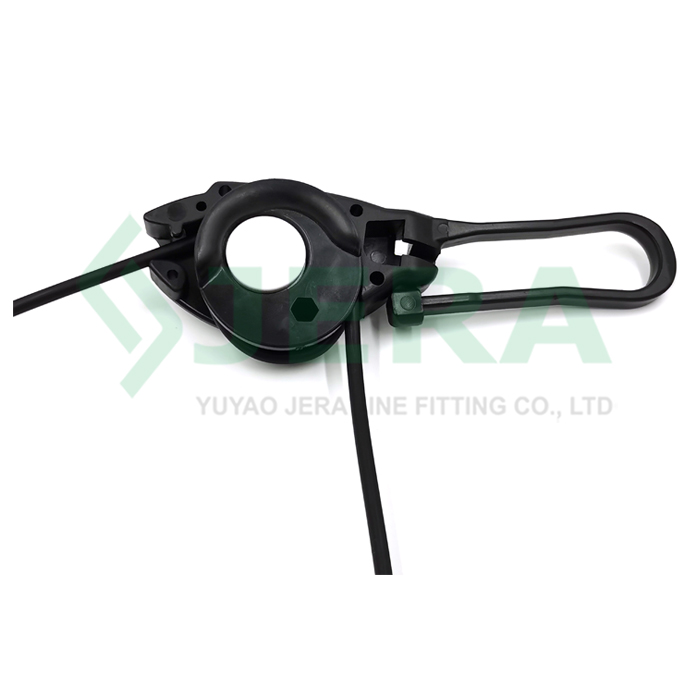

Ftth fish clamp Fish-02 other called fish type drop clamp is designed to anchor and support flat or round fiber optical cable on dead-end or intermediate routes during outdoor FTTH network solution.

Features

Cable type: Round
Cable size:2-5 mm
Span:30-50m
MBL: 1 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Anti-drop design
Wheel type self-adjusting wedge

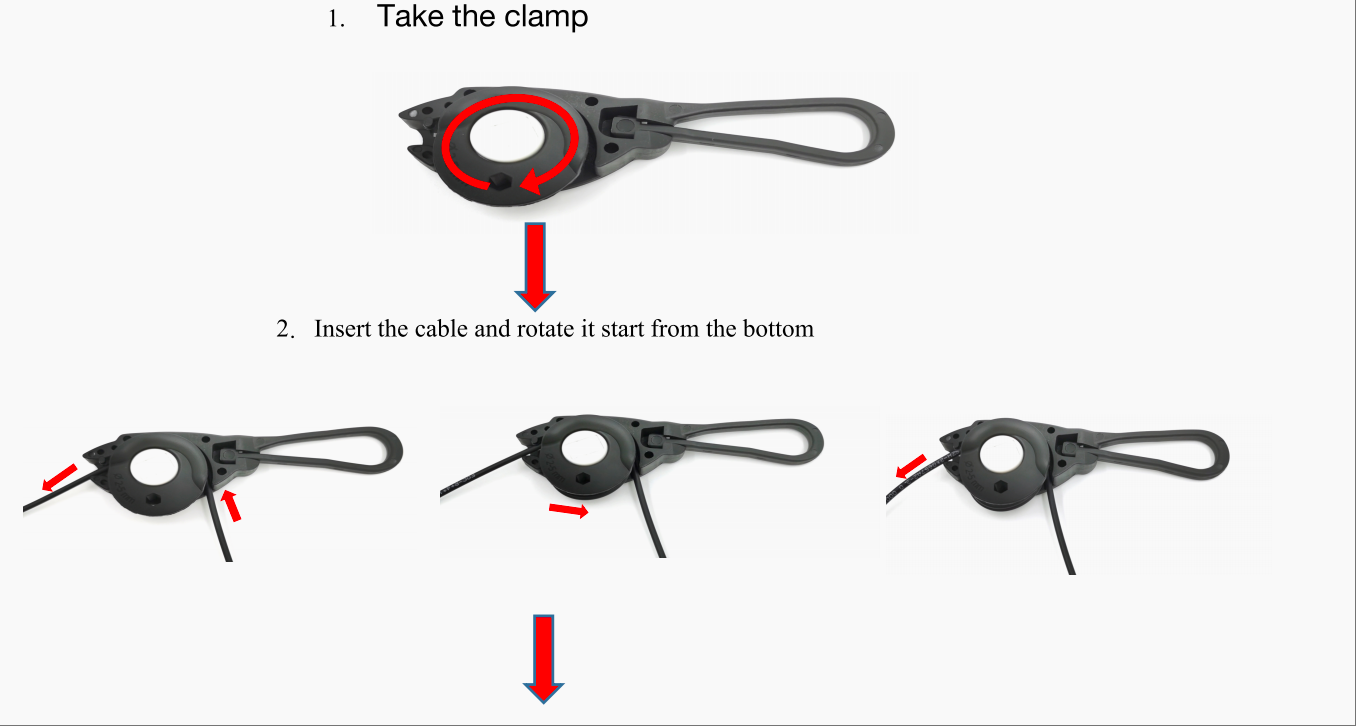

Easy installation without additional tools
UV resistant thermoplastic guarantee for long time usage
Excellent environmental stability
Competitive price

SPECIFICATION

The clamp applied in:

Cable diameter: 2-5 mm

MBL, kN: 1.0

The cable clamp is used to connect and fix the optical cable wires. Integrated design, more convenient to use.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

APPLICATION

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

The FISH-02 fiber optic fish clamp is used for supporting and anchoring FTTH drop cables in aerial telecommunication systems. It is typically installed along distribution lines to guide and fix drop cables from pole to subscriber premises.

This clamp is widely used in fiber access networks, residential broadband installations, and FTTX distribution systems.

It provides reliable cable retention while maintaining proper mechanical tension, helping to protect the fiber optic cable from damage caused by wind, vibration, and environmental stress. The FISH-02 is suitable for both urban and rural fiber deployment scenarios.
