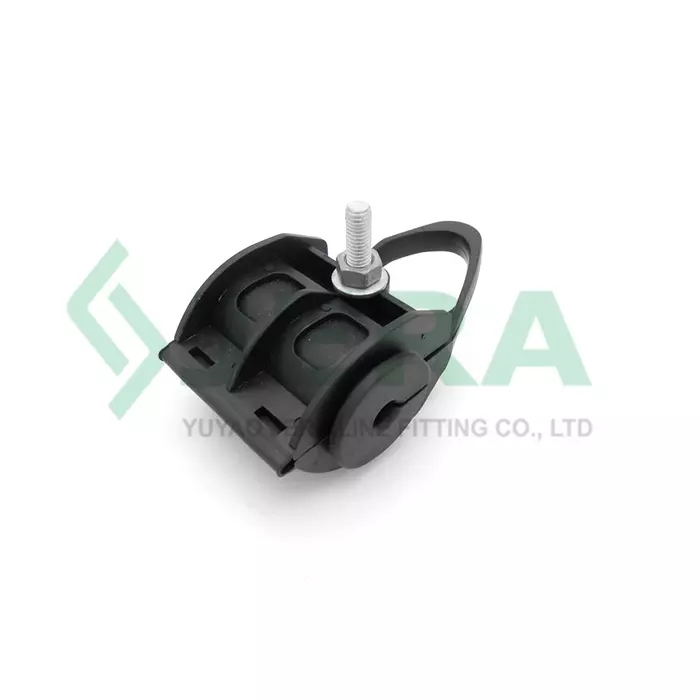

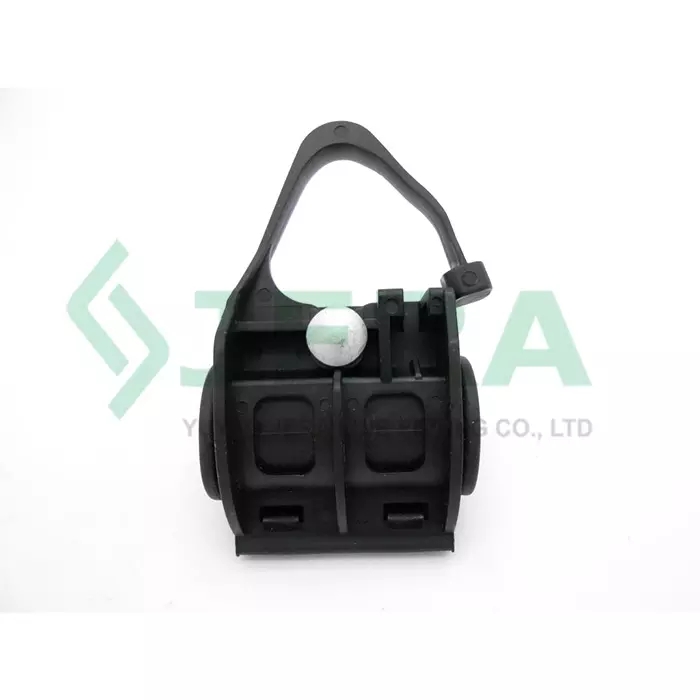

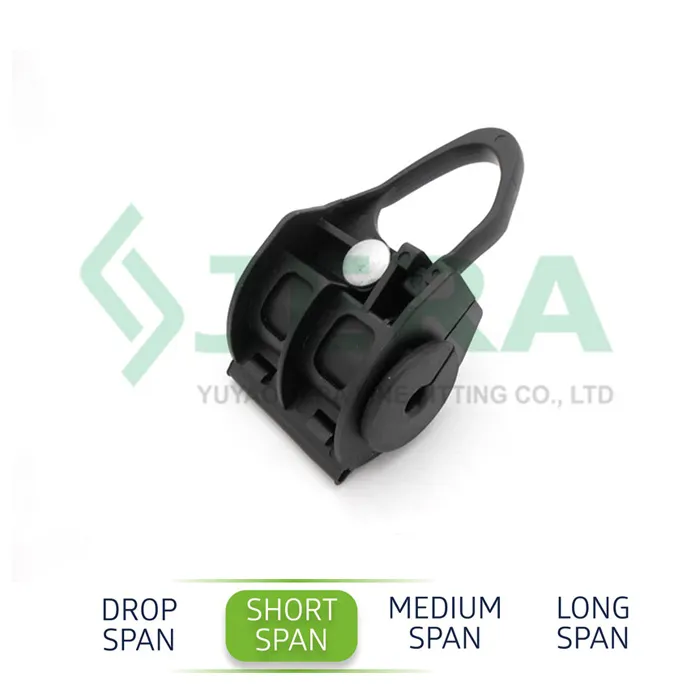

FO Cable Suspension Clamp, PS-D8 (8-12mm)

Key Features

• Dielectric and anti-drop design
• Easy installation, no request additional tools
• Applied outdoor on routes with angles
• UV resistant thermoplastic, galvanized steel material, durable
• Excellent environmental stability
• Competitive price

SPECIFICATION

The FO suspension cable clamp applied in:

fiber optic Cable diameter: 8-12 mm

MBL, kN: 1.5

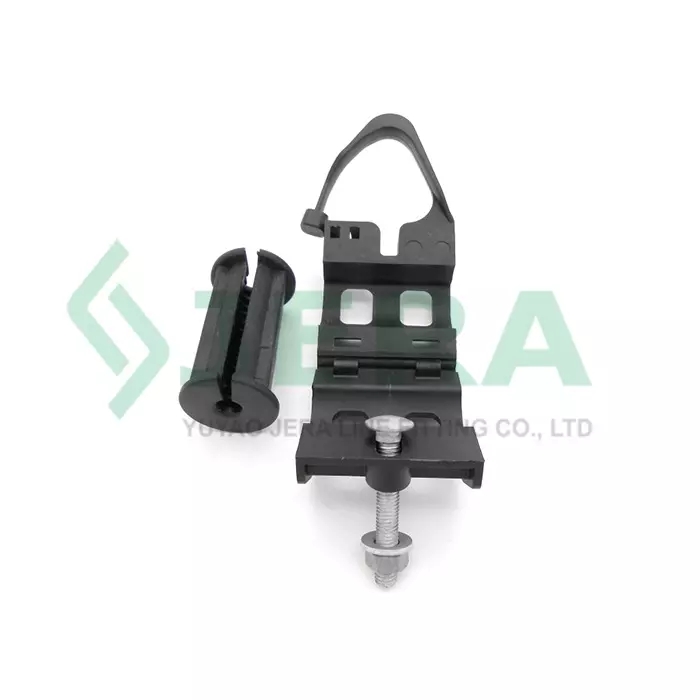

The suspension clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The length is determined by the customer’s needs.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

APPLICATION

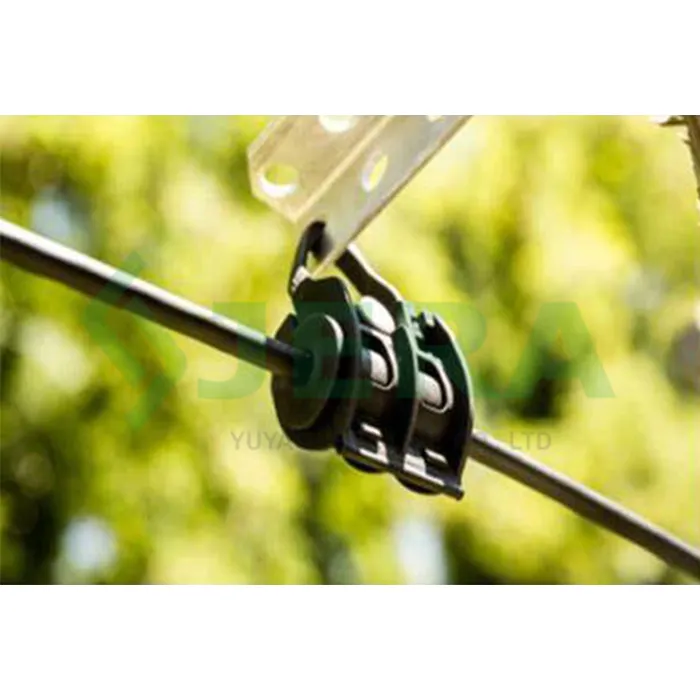

Applied on aerial fiber optic network deployments for suspension of round ADSS and fiber optic cables with diameters from 8 to 12 mm. Installed on utility poles and telecommunication supports along straight routes and moderate angle deviations. The clamp provides reliable cable retention, minimizes mechanical stress caused by wind and vibration, and ensures long-term protection of the cable sheath during outdoor operation in FTTX, CATV, and telecommunications projects.
