Draw hook for aerial drops, DH
DH
Description:

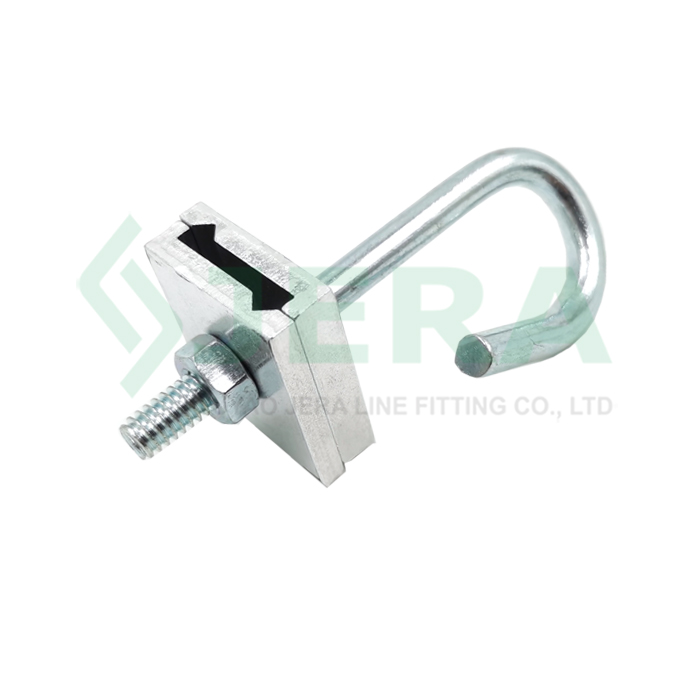

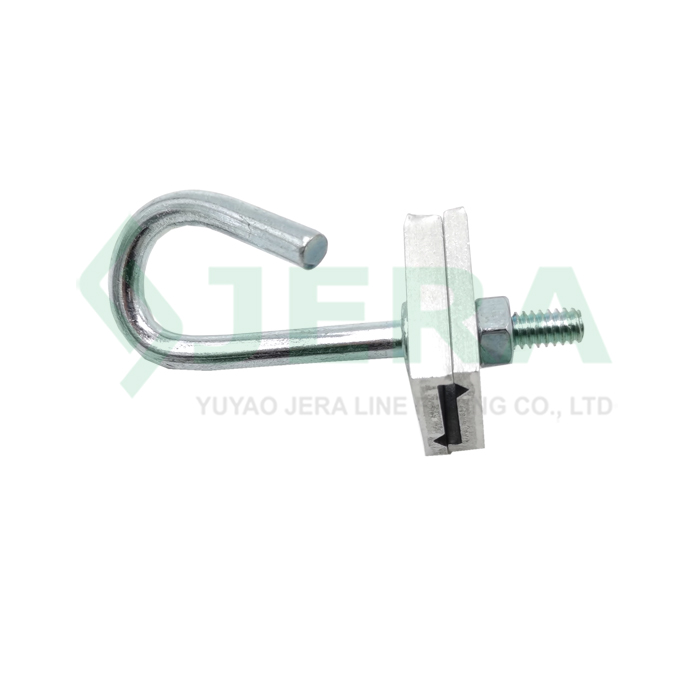

Draw hook for aerial drops DH-02 also called Q span clamp, designed to suspend the fiber optic cable on the wires of existing cable lines. Draw hook clamps a wider range of messenger diameters of cable from 4-10mm.
- Bracket type: Tension
- Application: Strand
- Span: 30-70 meters
- MBL: 0.8 KN
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Light weight
- Tightening is realized by screw by hex key
- Wide application cable size
- Open hook clamps installation
- Galvanized steel material, weather resistance
- Proper mechanical strength
- Fair price of ftth draw hook
SPECIFICATION
Draw hook for aerial drops DH-02 also called Q span clamp, designed to suspend the fiber optic cable on the wires of existing cable lines. Draw hook clamps a wider range of messenger diameters of cable from 4-10mm.
This aerial drops hardware is consist of pigtail screw, made of steel and proceed with electrogalvanized finish; Aluminum bracket made of 6063 aluminum; Nut for 11mm hex key application.

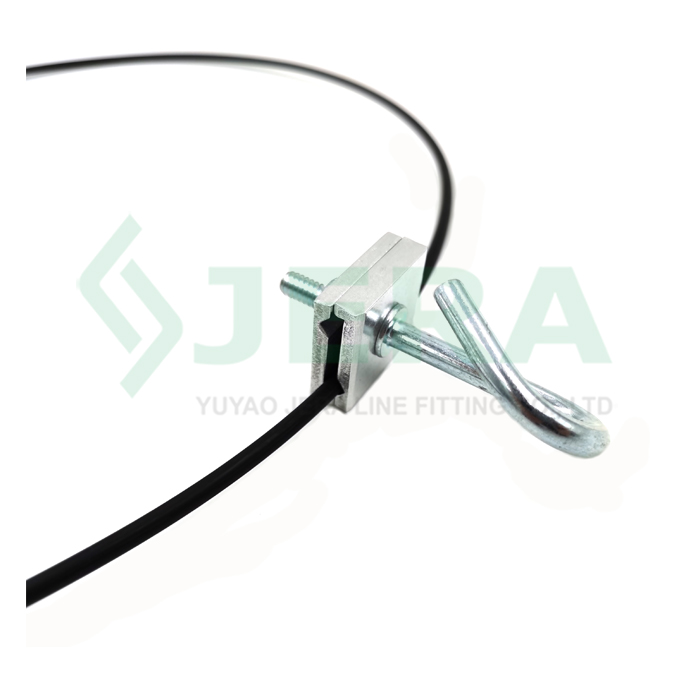

The operation of this ftth draw hook is very easy and does not require other tools. Just insert a appropriate diameter cable in the groove of two plate and tightening the nut, at last attach the assemblies on pole bracket or hook. The fiber drop cable does not slips from when mechanical strength was reached and metal hook part of draw hook allows easily handily installation.
APPLICATION
This drop wire clamp passed a series of test in our interior laboratory, all jera produced clamps meet the standards which request for overhead ftth line deployments. Tests including max tensile strength test, aging test, corrosion test and etc. The packing method of this span hook is carton box, pallet is acceptable, please contact our sales team for more information.
Jere line is a q span clamp manufacturer and also provide fiber optic cable and relevant accessories for aerial ftth deployment. We provide a whole set solution for our client with reliable quality and competitive price.
Welcome to contact us for this draw hook price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Application diameter, mm |
Material |
Tensile strength ,KN |
|
DH-02 |
4-10 |
Galvanized steel, aluminum 6063 |
0.8 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
FAQ
-
1. What area are you in?
We are the factory, located in China busy in production of aerial FTTH solution consist of:
- fiber cable,
- pre-terminated patch cords,
- cable clamps and brackets,
- outdoor and indoor termination boxes, access terminals
We produce a solution for optical distribution network ODN.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We offer very competitive price.
- We produce a solution, with suitable product recommendations.
- We have the stable quality control system.
- After sales product guarantee and support.
- Our products were adjusted to work with each other to operate in a system.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust. -
5. Why you can offer competitive prices?
Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/
-
6. Why can you offer stable quality?
Because we have quality system, find more details https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.
-
8. How can I save logistics cost working with you?
You can decrease up to 5% of your logistics cost working with us.
Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com) -
9. What are the main products that you produce?
We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.
-
10. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
11. Can you produce OEM orders?
Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.
-
12. Can you offer me product’s Customization and R & D?
Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
13. What's your MOQ of new customers?
Absence of MOQ criteria for first order.
-
14. Can you provide free samples?
Yes, we provide samples, which will same to the order.
-
15. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
16. Where can I see yours’s products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
17. How to get in touch with you?
-
18. Where can I download your latest catalog
Here you can do it: https://www.jera-fiber.com/about-us/download-catalog-2/
-
19. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
