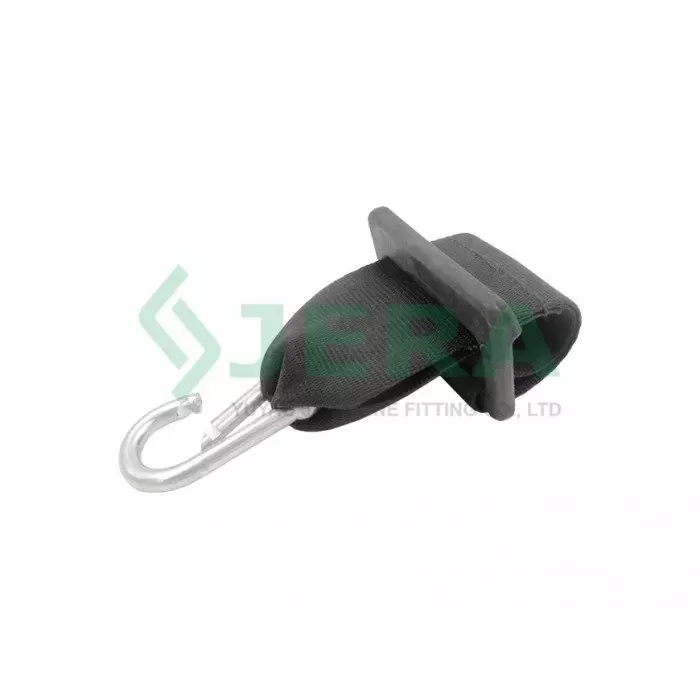

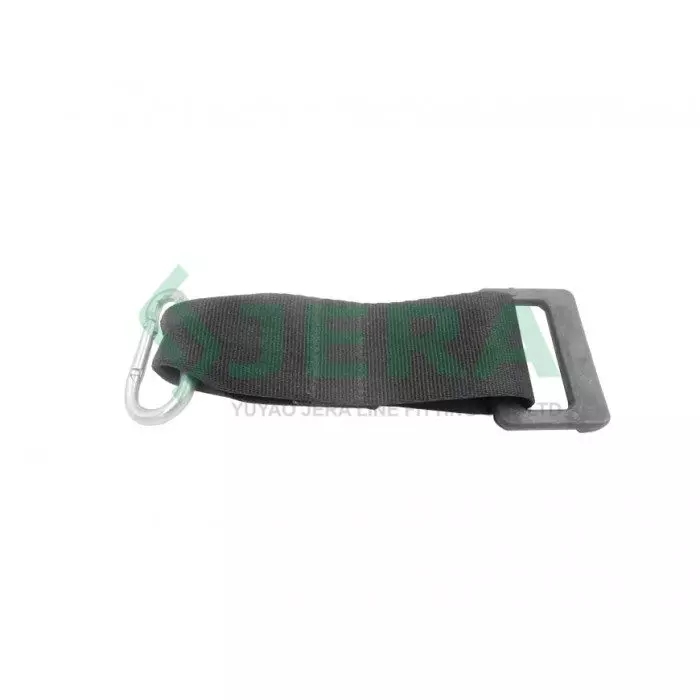

Adss Suspension Clamp, PS-619 (6-19mm)

Key Features

• Anti-drop hook design
• Easy installation, tools free
• Applied with wide range cable diameter
• Clamp cable without cable jacket damage
• Galvanized steel carbine, nylon buckle and strap
• Excellent environmental stability
• Competitive price

SPECIFICATION

The clamp applied in:

Cable diameter: 6-19 mm

MBL, kN: 3.0

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The wire rope of the wire clamp is made of stainless steel 304. The length is determined by the customer’s needs.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

APPLICATION

The ADSS Suspension Clamp PS-619 is designed to support and suspend ADSS optical cables on intermediate sections of aerial fiber optic routes. It is widely applied in FTTH, FTTx, GPON, CATV, and telecommunication backbone networks, ensuring proper cable alignment and stable operation under various environmental conditions.

The clamp provides reliable cable support while allowing controlled movement caused by thermal expansion and external loads, helping to reduce cable fatigue and prolong service life. Its smooth cable contact surface prevents damage to the cable sheath and minimizes signal degradation risks associated with excessive mechanical stress. Suitable for installation on utility poles, suspension brackets, and other telecommunication hardware, the PS-619 is ideal for residential, commercial, industrial, and rural broadband infrastructures. Manufactured from UV-resistant and corrosion-resistant materials, it offers long-term durability and dependable performance in harsh outdoor environments while enabling quick and efficient installation.
