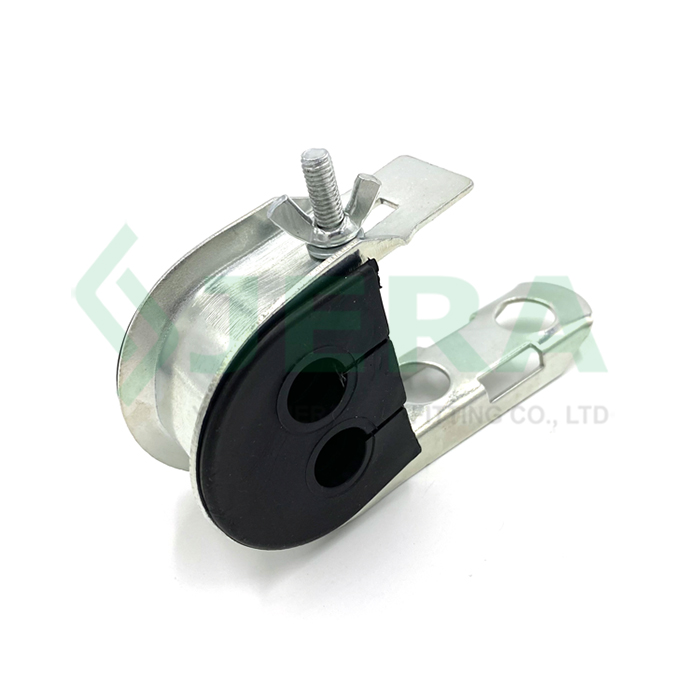

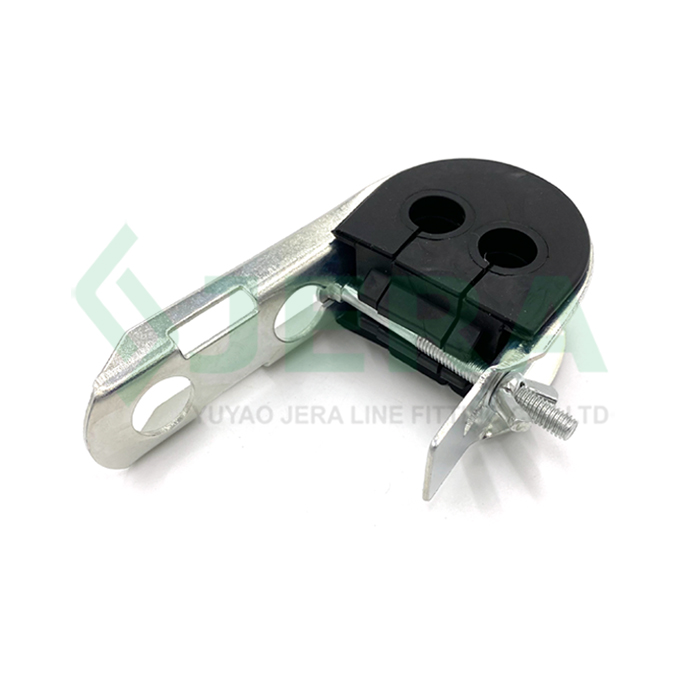

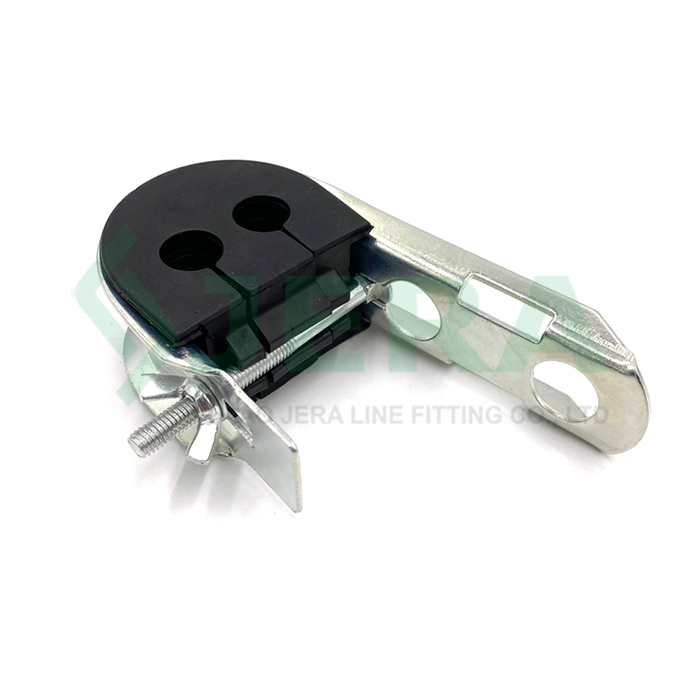

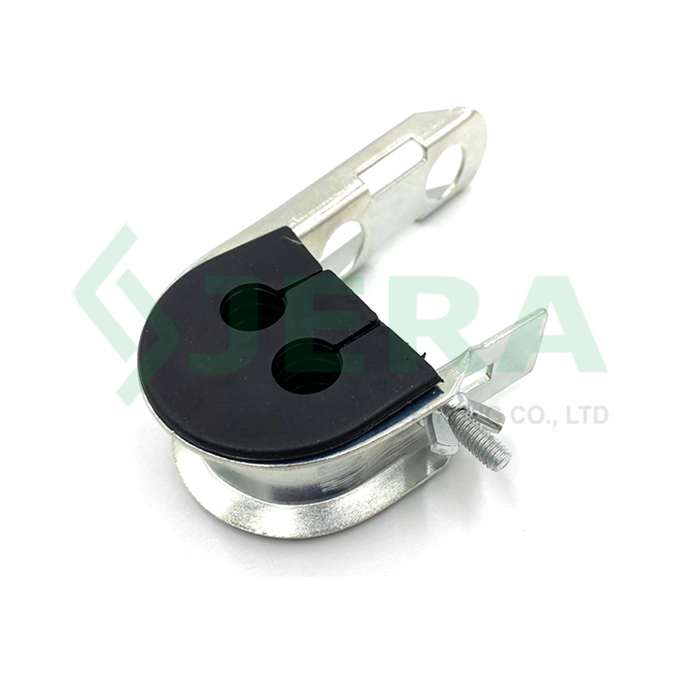

Aerial ADSS cable suspension clamp HC-2×15-20

Key Features

• Hand installation, no need other tools
• UV resistant thermoplastic, galvanized steel material, durable
• Can be installed on poles with stainless steel strap or pole bolt
• Can applied with 2 ADSS cables during application
• Excellent environmental stability
• Competitive price

SPECIFICATION

The 2 holes suspension clamp applied in:

Cable diameter: 2*15-20 mm

MBL, kN: 4.0

The adss suspension clamp is used to connect and fix the aerial optical cable wires.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The shell is made of plastic with strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

The suspension part is made of stainless steel 304, which ensures tensile strength while being more adaptable to harsh environments.

APPLICATION

The HC-2×15-20 suspension clamp is designed for supporting large-diameter ADSS cables and double-cable configurations in aerial telecommunication installations. The clamp offers increased load capacity and enhanced cable stability for demanding network environments.

It is particularly suitable for backbone fiber routes, utility communication systems, and areas exposed to severe weather conditions. The robust construction ensures reliable cable retention and minimizes maintenance requirements throughout the network lifespan.

Recommended applications:

• High-capacity ADSS cable deployment
• Backbone fiber optic routes
• Utility and power communication systems
• Long-distance telecommunication projects
• Metropolitan fiber infrastructure
• Industrial communication networks
