Model No. :

HC 10-15

Description:

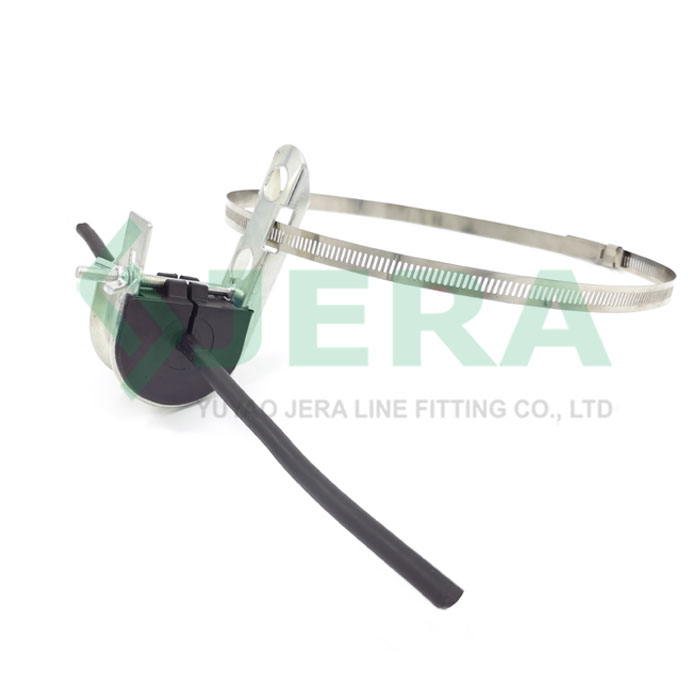

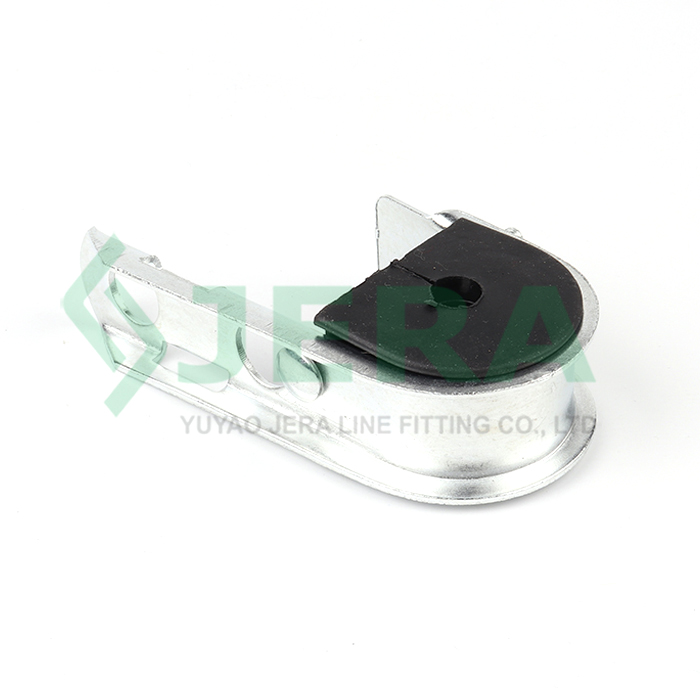

ADSS suspension clamp HC 10-15 other called J type suspension clamp is designed to suspension or support round all dielectric self-supporting cable(ADSS) during outdoor overhead FTTx solutions.

    • Cable type: Round
    • Cable size:10-15 mm
    • Span:50-100 m
    • MBL: 4KN
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • Easy installation, tools free
  • Applied with wide range cable diameter
  • Can be installed with stainless steel bands, pole bolt and hooks.
  • UV resistant thermoplastic, galvanized steel material, durable
  • Excellent environmental stability
  • Competitive price
ADSS Suspension Clamp, HC 10-15 ADSS Suspension Clamp, HC 10-15

SPECIFICATION

The clamp applied in:

Cable diameter: 10-15 mm

MBL, kN: 4.0

The cable clamp is used to connect and fix the optical cable wires.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The shell is made of plastic with strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

The suspension part is made of stainless steel 304, which ensures tensile strength while being more adaptable to harsh environments.

read more

APPLICATION

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

read more

Manufacturing

    clamp manufacture

Watch Our Factory Video

Technical specification

Product codes

Cable size, mm

MBL,KN

Weight,KG

Material

HC 10-15

10-15

4

0.19

Galvanized steel, UV resistant plastic
