ADSS anchor clamp, PA-1500 (11-14mm)

ADSS anchor clamp PA-1500, other called adss tension clamp, was designed to anchor ADSS cable during the construction of telecommunication line.
ADSS anchor clamp, PA-1500 (11-14mm)
Features
    • Cable type: Round
    • Cable size:11-14 mm
    • Span:70-200 m
    • MBL: 15 KN
Contact Us
DESCRIPTION Specification Test
REVIEW

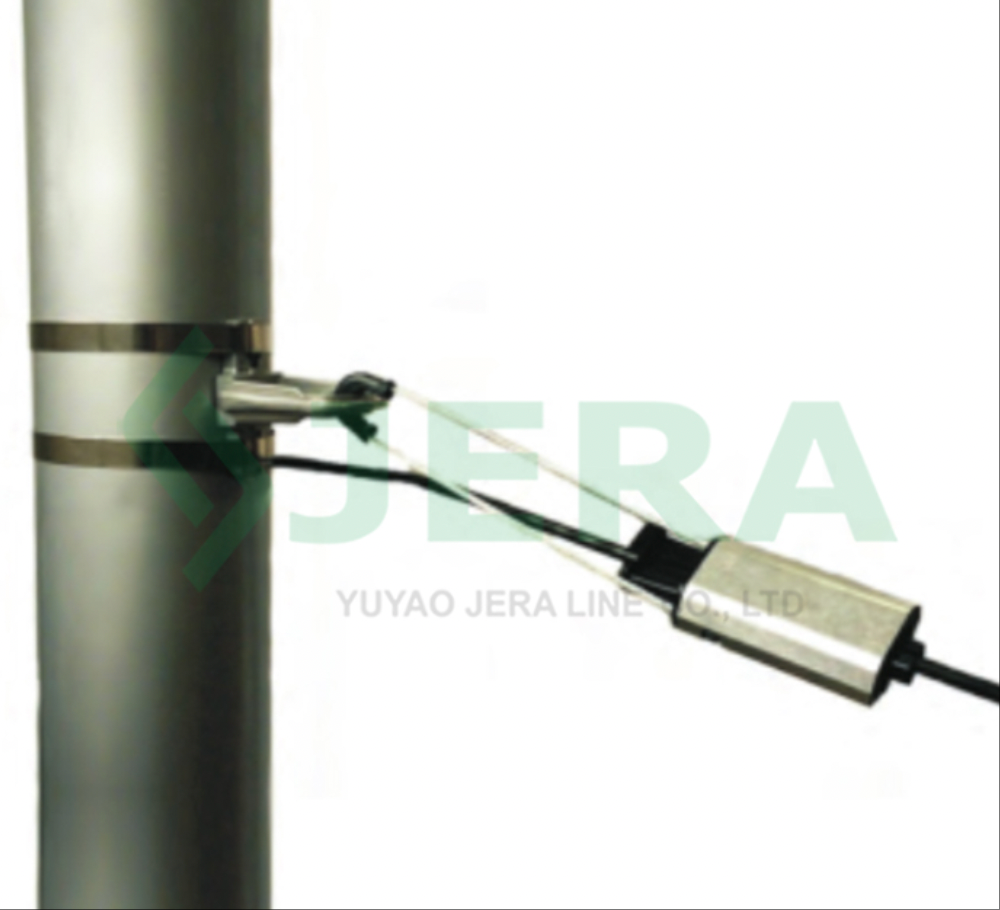

Application

Designed for installation on telecommunication poles and brackets, the clamp maintains proper cable tension while protecting the cable jacket from mechanical damage. Its robust aluminum alloy body, UV-resistant wedges, and stainless steel bail provide outstanding resistance to corrosion, wind, temperature fluctuations, and ice loading. Easy, tool-free installation helps contractors improve efficiency while ensuring long-term reliability in residential, industrial, and rural broadband infrastructures.

Technical specification

Product code

Cable size,mm

Material

MBL,KN

Weight,kg

PA-1500

Φ11-14

Aluminum alloy，UV resistant plastic, stainless steel

15

0.4

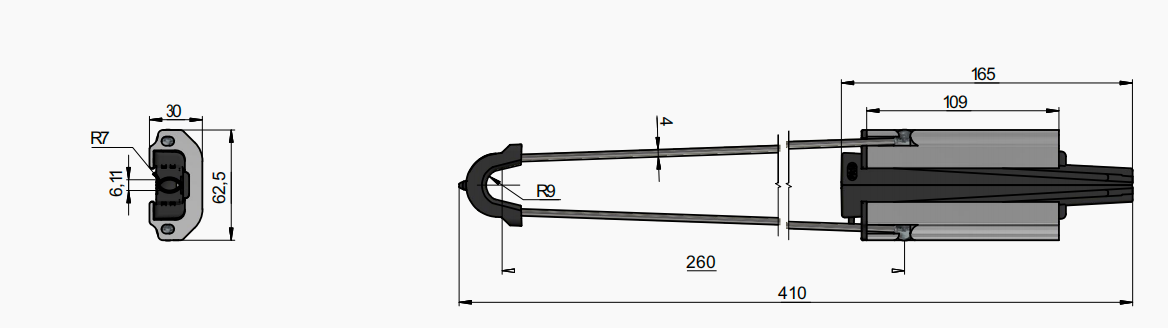

Drawing

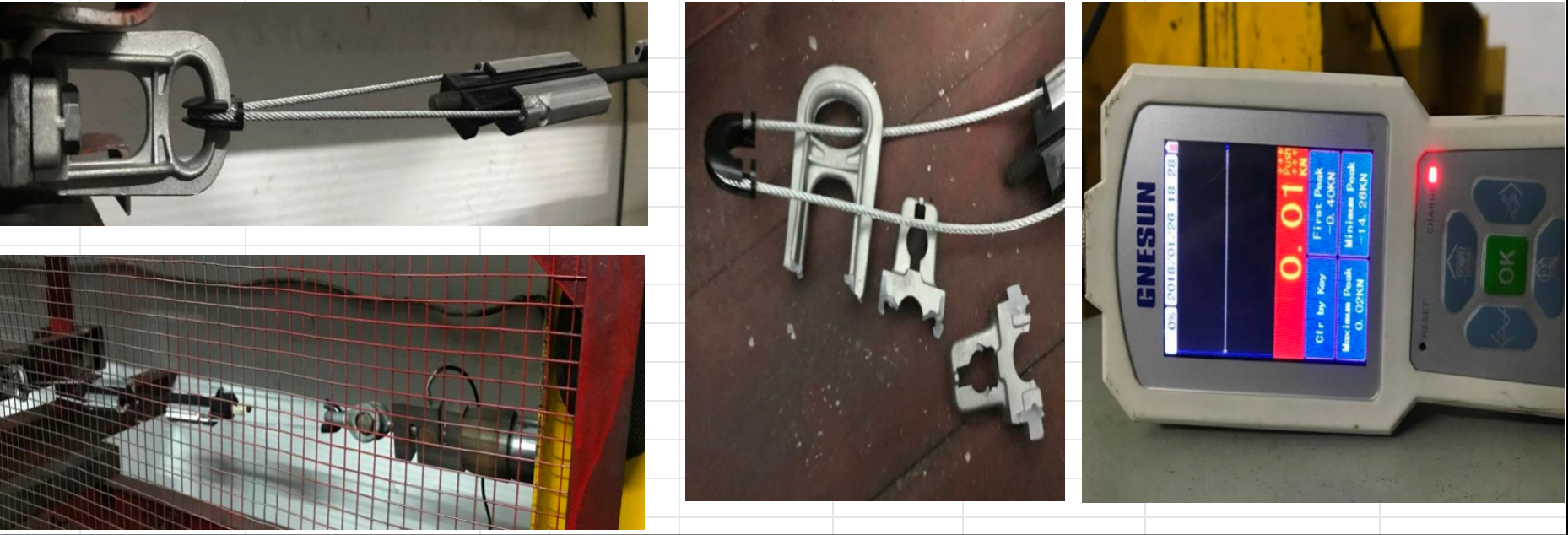

Test



Product Video
