ADSS SELF SUPPORTING CABLE & CLAMP SYSTEM

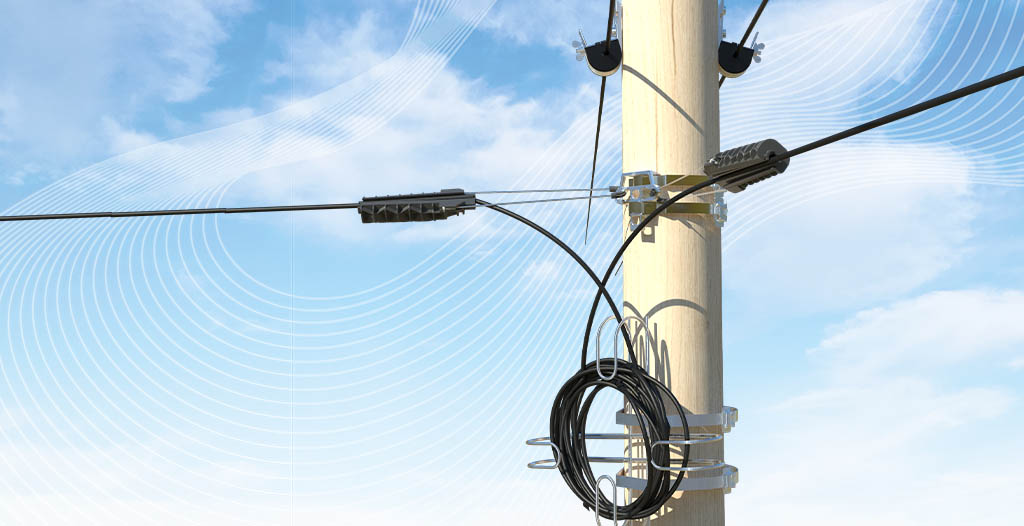

Jera Line specializes in providing ADSS (All-Dielectric Self-Supporting) self-supporting cable and clamp systems, designed for reliable overhead optical fiber communication networks. These ADSS cables are constructed with all-dielectric materials, ensuring excellent insulation and protection against electromagnetic interference, making them ideal for installation in high-voltage power line corridors or areas with strict electrical safety requirements. The self-supporting design eliminates the need for additional supporting structures, reducing installation complexity and costs.
_1754451019_WNo_1024d526.jpg)
Components of the ADSS SELF SUPPORTING CABLE & CLAMP SYSTEM
1. ADSS SELF SUPPORTING CABLE
-
OUTDOOR MINI ADSS CABLE FLAT,ROUND TYPE
-

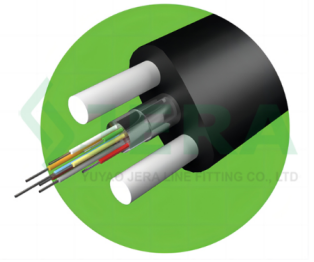

OUTDOOR MULTI TUBE ADSS CABLE ROUND TYPE

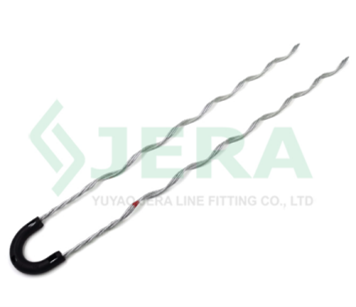

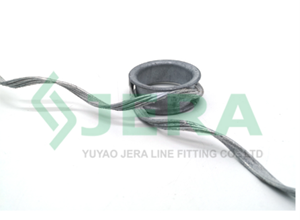

2. ADSS SELF SUPPORTING CLAMP
-

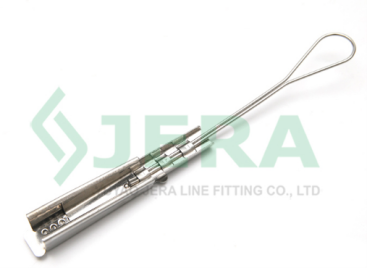

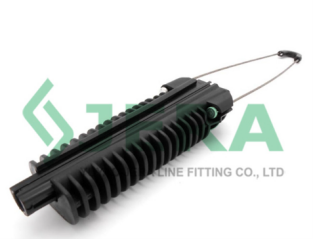

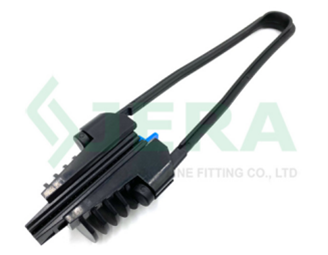

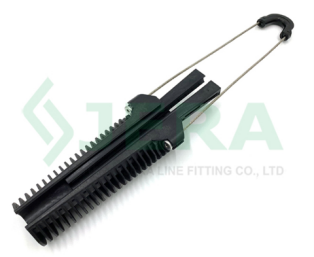

PA-TYPE CLAMPS
-

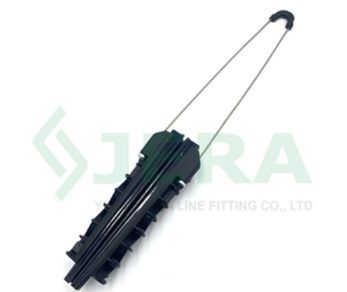

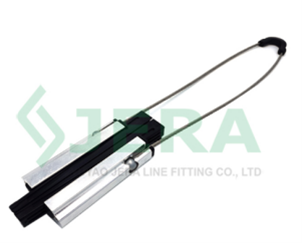

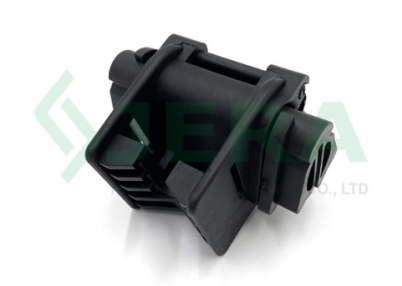

PS-TYPE CLAMPS
-

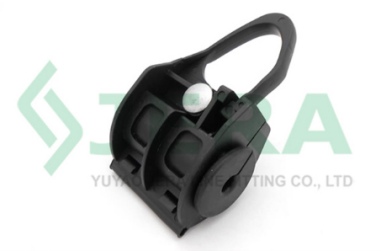

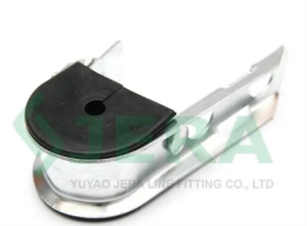

JS-TYPE CLAMPS

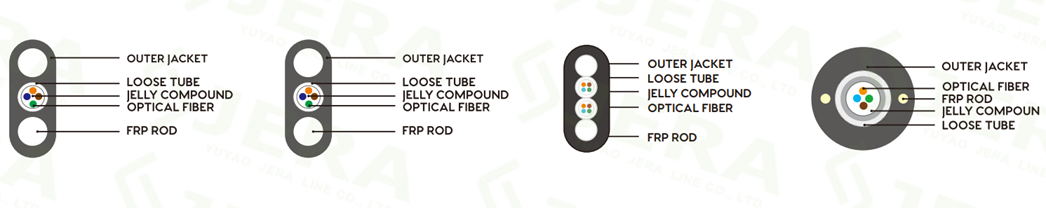

OUTDOOR MINI ADSS CABLE FLAT,ROUND TYPE
Jera Line offers Outdoor Mini ADSS Cables in flat and round types, tailored for compact overhead optical fiber installations. These mini cables feature all-dielectric construction, ensuring immunity to electromagnetic interference and suitability for high-voltage environments. The flat design optimizes space for duct or wall mounting, while the round type provides balanced tension for span applications. Both variants offer lightweight flexibility, reducing installation complexity, and are engineered to withstand outdoor elements like UV radiation, moisture, and temperature changes. Ideal for short-distance networks, campus connections, or urban micro-grids, these mini ADSS cables combine durability with efficient signal transmission in a compact form factor.
Cable Description
Technical Specification
|
Type |
FOC-Fr |
FOC-Fr |
FOC-Fr |
FOC-R |
|
Size,mm |
2.0x4.0(±0.1) |
4.2x8.0(±0.1) |
4.5x10.0(±0.1) |
3.6/4.7(±0.1) |
|
Fiber type |
G.657.A1/A2 |
G.657.A1/A2 |
G.657.A1/A2 |
G.657.A1/A2 |
|
Max fiber capacity |
1-4 fiber |
1-12 fiber |
14-24 fiber |
1-4/1-12 fiber |
|
Jacket material |
PE |
PE |
PE |
PE |
|
Reinforcement material,size (mm) |
GFRP 2x0.8 |
GFRP 2x.0 |
GFRP 2x2.0 |
GFRP 2x0.5/2x0.8 |
|
Inner tube material, size (mm) |
Loose PBT 1.2 |
Loose PBT 1.8 |
Loose PBT 2X1.8 |
Loose PBT 1.2/1.8 |
|
Full dielectric |
YES |
YES |
YES |
YES |
|
Tensile strength (n) |
>800 |
>2000 |
>2000 |
>300/>700 |
Recommendation clamps

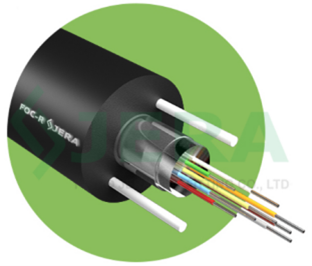

OUTDOOR MULTI TUBE ADSS CABLE ROUND TYPE
The outdoor multi-tube ADSS (All-Dielectric Self-Supporting) cable in round type is specially designed for overhead optical fiber communication systems. It features multiple tubes to accommodate more optical fibers, ensuring high-capacity data transmission. The round structure enhances mechanical strength and wind resistance, while the all-dielectric material makes it suitable for high-voltage power line environments, avoiding electromagnetic interference. With excellent self-supporting performance, it simplifies installation and maintenance, ideal for long-distance and complex terrain applications, providing reliable optical communication solutions for outdoor scenarios.
PRODUCT

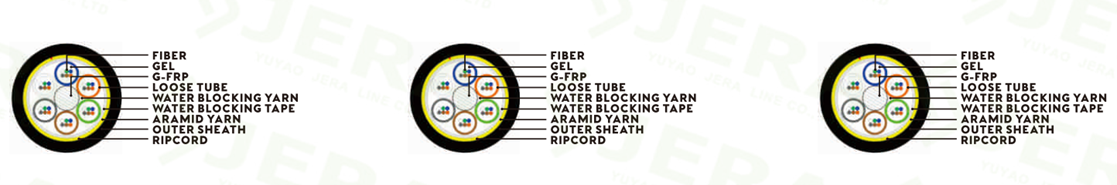

Cable Description
Technical Specification
|
Type |
FOC-R |
FOC-R |
FOC-R |
|
Size,mm |
Ø10.7(±0.3) |
Ø11.6(±0.3) |
Ø13.6(±0.3) |
|
Fiber type |
G65.2D / G657.A1 |
G65.2D / G657.A1 |
G65.2D / G657.A1 |
|
Max fiber capacity |
12/24/48/72 fiber |
96 fiber |
144 fiber |
|
Jacket material |
PE |
PE |
PE |
|
Reinforcement material,size (mm) |
Aramid yarns + GFRP 2.0 |
Aramid yarns + GFRP 2.0 |
Aramid yarns + GFRP 2.0 |
|
Inner tube material, size (mm) |
Loose PBT Nx1.8 |
Loose PBT Nx1.8 |
Loose PBT Nx1.8 |
|
Full dielectric |
YES |
YES |
YES |
|
Tensile strength (n) |
>4000 |
>4000 |
>4000 |
Recommendation clamps
ADSS SELF SUPPORTING CLAMP
ADSS Self-Supporting Clamp is a specialized device for overhead optical cable installation. It securely grips ADSS (All-Dielectric Self-Supporting) cables, bearing their weight and tension to ensure stable placement on utility poles or towers. Made of durable materials like aluminum alloy, it features anti-corrosion and weather-resistant designs. The clamp's structure includes a clamping body, suspension components, and protective padding to prevent cable damage. Easy to install, it ensures reliable mechanical support and electrical insulation, widely used in power communication networks for its high stability and safety.
1. PA-TYPE CLAMPS
2. PS-TYPE CLAMPS
3. JS-TYPE CLAMPS

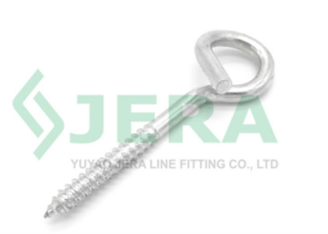

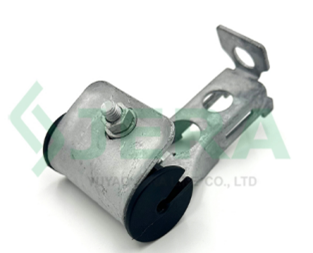

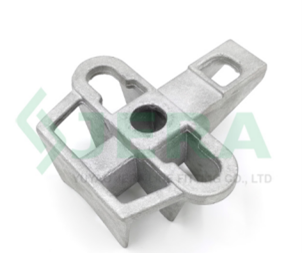

4. POLE BRACKET AND HOOKS

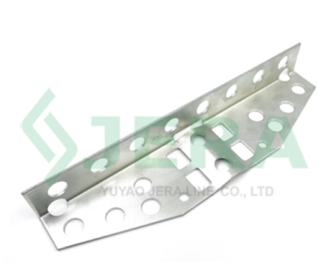

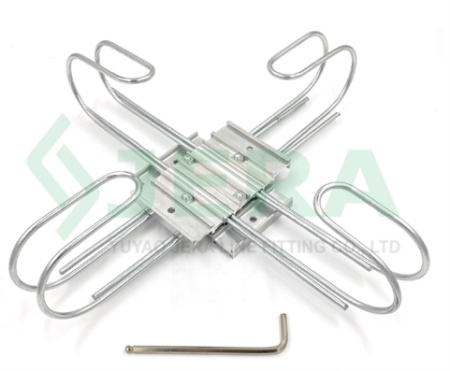

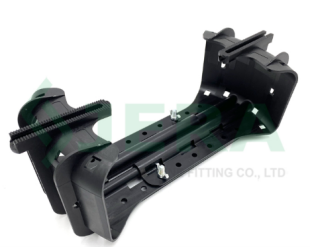

5. YK-S-TYPE CABLE STORAGE BRACKETS

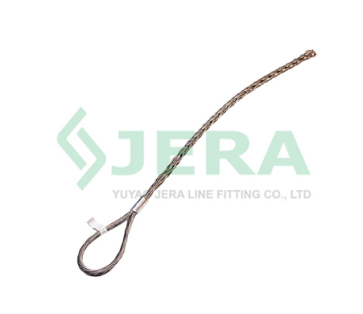

6. CABLE PULLING SOCKS
7. STRINGING BLOCK (PULLEY)
ADVANTAGE OF ADSS SELF SUPPORTING CABLE & CLAMP SYSTEM
-
Self-supporting design: Eliminates reliance on external structures, reducing installation complexity and costs, ideal for spanning long distances or challenging terrains.
-
High durability: Resistant to UV, moisture, and corrosion, ensuring stable performance in harsh outdoor environments, withstanding temperature fluctuations and mechanical stress.
-
Efficient installation: enable secure, quick mounting, minimizing setup time and labor.
CONCLUSION
Jera Line delivers a comprehensive ADSS Self-Supporting Cable & Clamp System, tailored for reliable fiber-to-the-home (FTTH) deployments. Its self-supporting design eliminates external structural needs, simplifying installation across diverse terrains. Paired with precision clamps, it ensures secure, stable mounting, boosting durability. Resistant to harsh elements, the system maintains consistent signal transmission, meeting FTTH's high-performance demands. Compliant with industry standards, it's a robust choice for efficient, long-lasting fiber network infrastructure.
