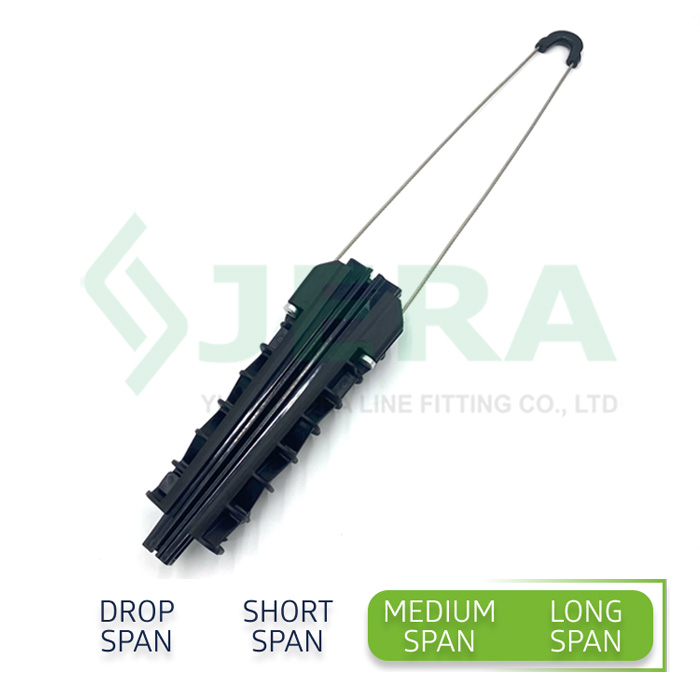

ADSS cable tension clamp PA-3603

ADSS cable tension clamp PA-3603 (8-15mm)

ADSS cable tension clamp PA-3603 either called ADSS anchor clamp, was developed to tension ADSS cable during aerial telecommunication lines. This anchoring clamp is suitable for medium and long span FTTx line deployment.

Features

Hand installation
Self-adjusting wedges, easy operation
Stainless steel bail, UV resistant plastic
No cable jacket damages during installation or application

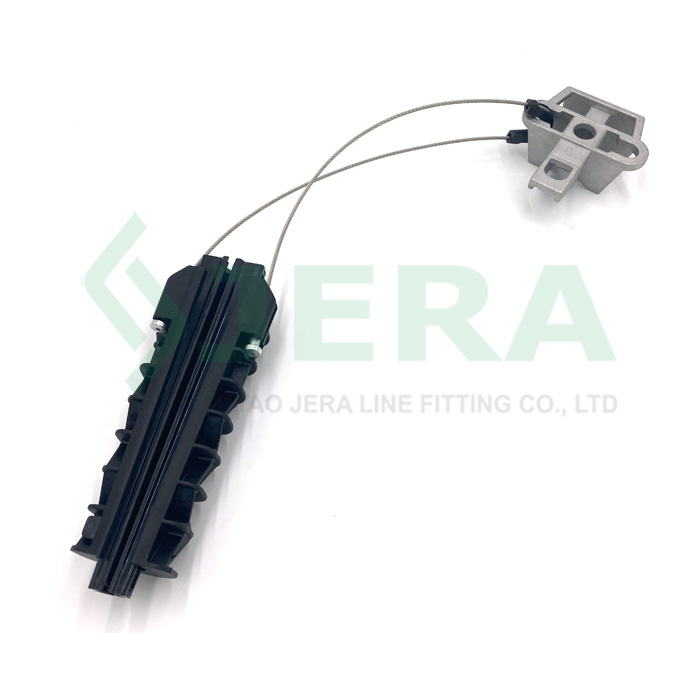

Open bail for rapid installation on closed pole bracket
Excellent Environmental Stability
Competitive price

DESCRIPTION Specification Test

REVIEW

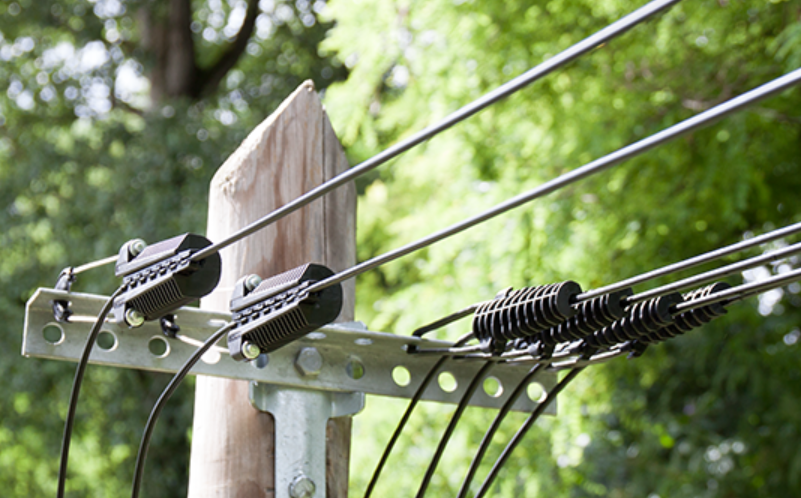

APPLICATION

The ADSS Cable Tension Clamp PA-3603 is engineered for anchoring 8–15 mm ADSS cables in aerial telecommunication networks. The wide cable range makes it suitable for access, distribution, and backbone fiber deployments.

Installed at dead-end and intermediate sections, the clamp maintains cable stability under mechanical stress and environmental impacts. The wedge system prevents damage to the cable jacket while ensuring secure retention. Manufactured from durable, weather-resistant materials, the PA-3603 offers dependable performance and reduced maintenance throughout its service life. It is an ideal solution for utility companies and telecommunication contractors requiring a versatile ADSS anchoring system

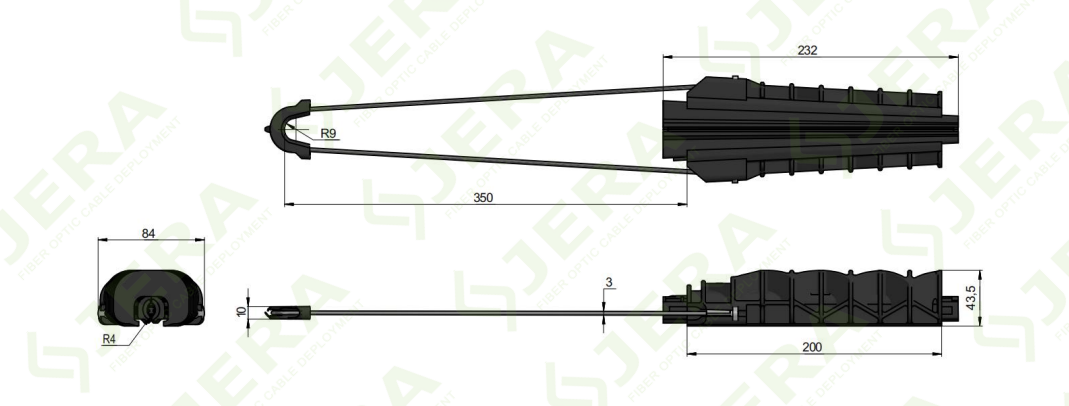

Technical specification

Product code	ADSS Cable diameter, mm	MBL, kN
PA-3603	8-15	5-6 depend on cable

TEST

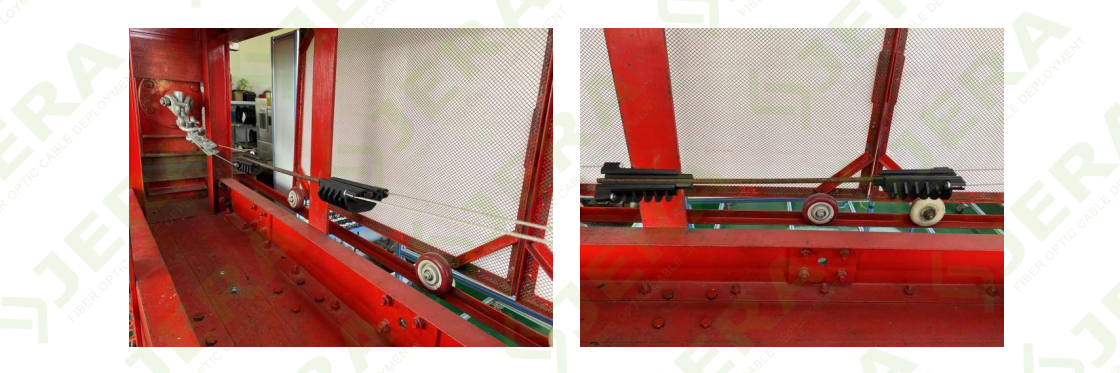

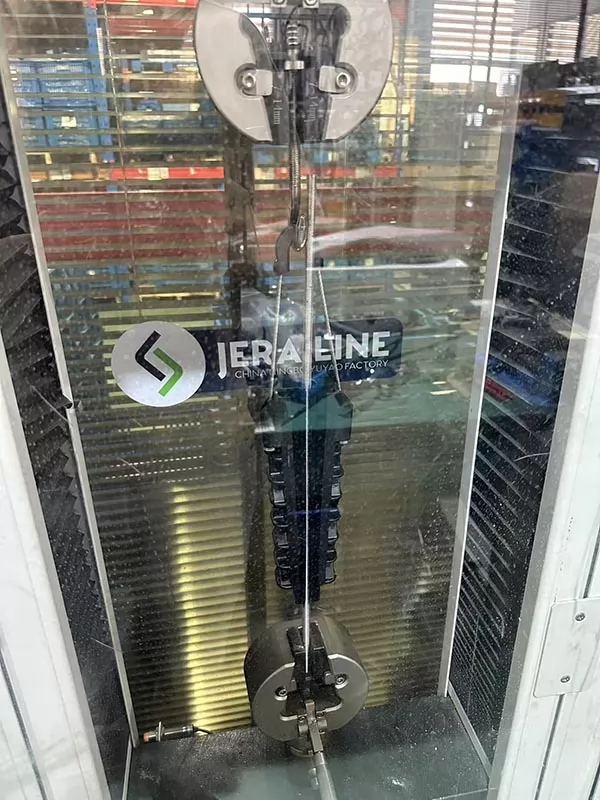

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

Pole line suspension clamps
Preformed guy grips
ADSS strain dead ends
Stainless steel bands
FTTH drop clamps
Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
