Aerial anchor clamp PA-560 (3-8 mm)

Aerial anchor clamp PA-560 (3-8mm)

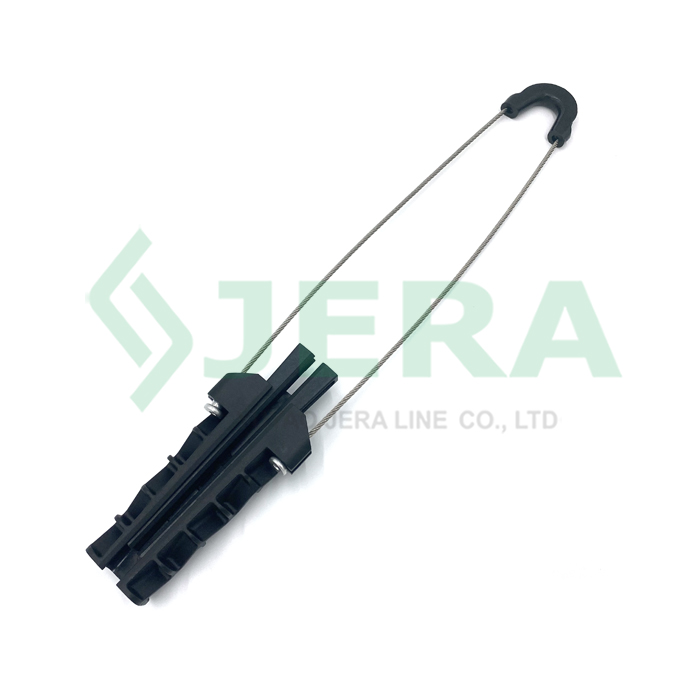

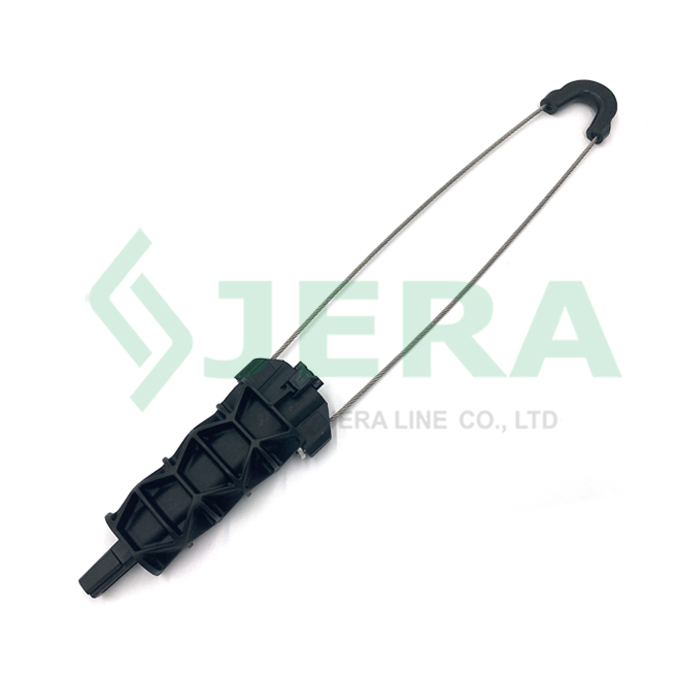

Aerial anchor clamp PA-560 also called ADSS tension clamp is an anchoring device used to tension round ADSS cable in dead-end or double dead-ending routs during outdoor aerial telecommunication line constructions.

Features

Self-adjustable wedge
Easy installation, request no additional tools
UV resistant thermoplastic and stainless steel bail, durable

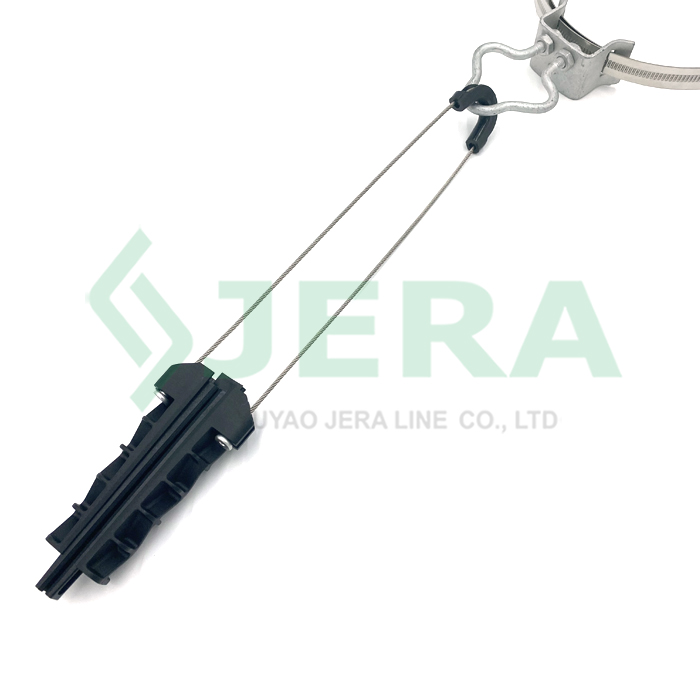

Stainless steel bail allow installation on pole brackets or hooks
Excellent environmental stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

Developed for anchoring 3–8 mm mini ADSS and round fiber optic cables in outdoor aerial applications. It is particularly suitable for FTTH last-mile connections, subscriber drops, and short-span access networ

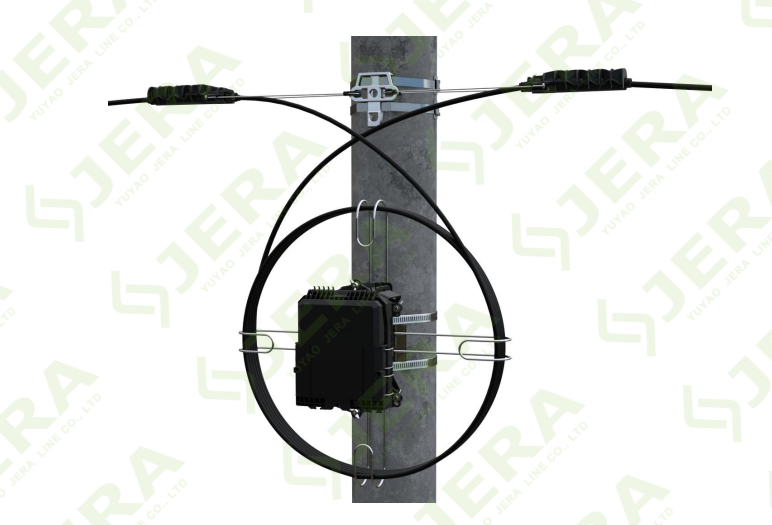

The clamp can be installed on poles, brackets, and wall hooks to secure cables between distribution points and end users. Its compact wedge design firmly grips the cable without causing sheath damage, ensuring stable optical performance. Manufactured from UV-resistant engineering polymers and stainless steel components, the PA-560 offers excellent durability in outdoor environments. The lightweight, tool-free installation design reduces labor costs and enables fast deployment, making it an efficient solution for rapid broadband expansion projects.

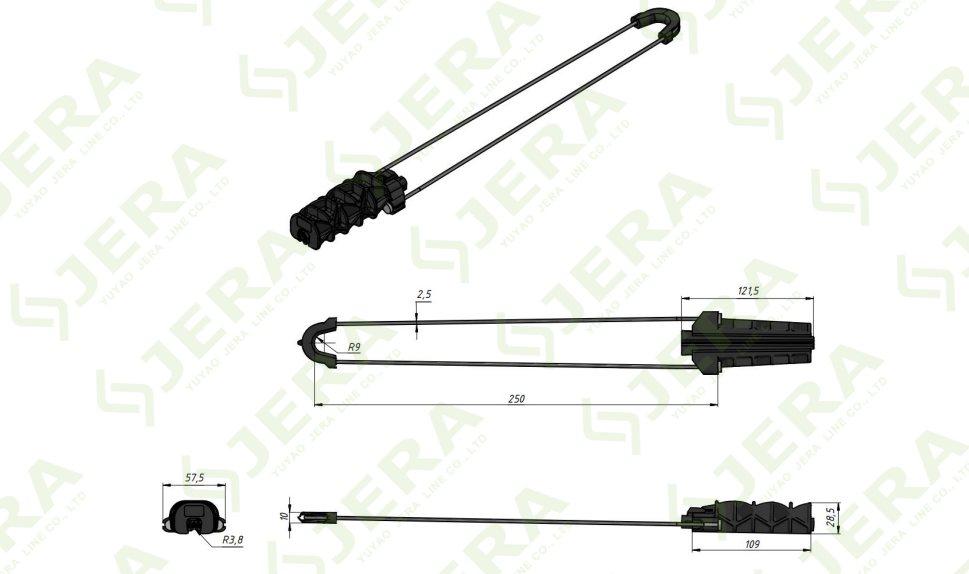

Technical specification

Product code	Messenger diameter size,mm	Material	MBL,KN	Wire bail
PA-560	3-8	UV resistant plastic, stainless steel	1.5	Standard Φ 2.5mm, 250mm length

TEST

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
