Outdoor aerial FTTH optical cable 12 cores
FOC-F-HDPE-BC+2x2.0-FRP+1.8-PBT
Description:
Outdoor aerial FTTH optical cable 12 cores, either called Non-metallic FTTH optical cable is developed to used in last mile internet connection in FTTx network construction.
The optical fiber unit positioned in the loose tube which are filled with water proof filling compound and the two parallel strength member(FRP) are placed at the two sides to provide high tensile strength.
- Application: Outdoor
- Fiber quantity: 12 fiber
- Dimensions: 8.0*4.2 mm
- Reinforcement: FRP
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Self-supporting no messenger needed
- High connecting usability, easy access to the fiber core
- Reinforced with 2 FRP rods, high tensile strength
- Full dielectric and high flexibility design
- HDPE cable jacket, UV radiation protection
- Big capacity data transmission
- gel-filled construction for superior fiber protection
- Conform to IEC 60794-1-2 standard
- Competitive price
SPECIFICATION
The cable consists of:
- The cable dimensions:
- Diameter : 8.0×4.2 （oval）
- Fiber quantity is 12 fiber.
- Two of 2.0 mm diameter FRP rod.
- HDPE jacket sheath, UV protected.
Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.
The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.
The Steel rods maybe produced of 2.2 mm diameter up to customer request. Strength members maybe extra protected by galvanization treatment.
HDPE is a polymer material with high density, high strength and high chemical resistance.
APPLICATION

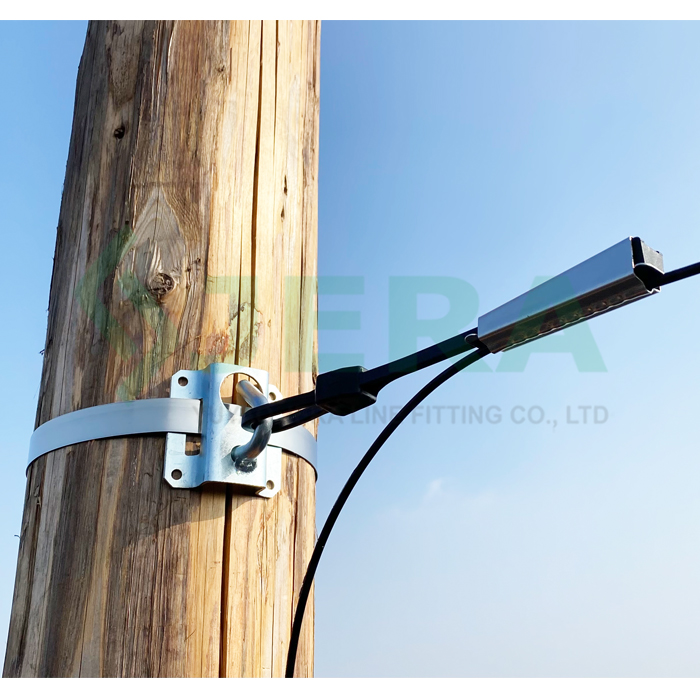

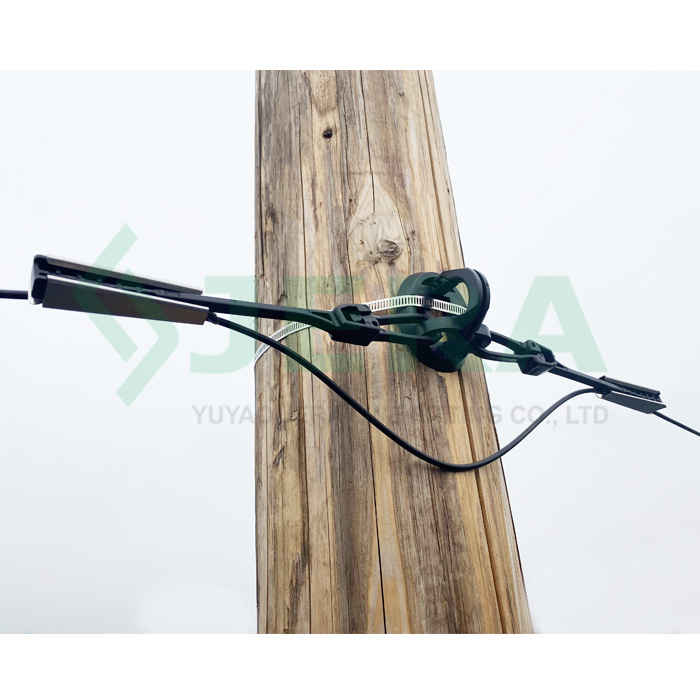

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.
Manufacturing
Watch Our Factory Video
Technical specification
|
Item |
Technology Parameters |
|
Applications |
Outdoor, indoor |
|
Product code |
FOC-F-HDPE-BC+2×2.0-FRP+1.8-PBT-12xG657A1-8.0*4.2 |
|
Loose tube material and diameter |
PBT, 1.8(±0.2)mm |
|
Strength member material and size |
FRP rods, 2.0 mm |
|
Fiber cores |
12 |
|
Fiber core options |
G.652.D, G.657A1, G.657A2 |
|
Cable jacket color |
Black |
|
Sheath material |
HDPE |
|
Cable dimension,mm |
8.0*4.2 (oval） |
|
Tensile strength, N |
2000 |
|
Certification |
IEC-60794-1-2, ISO9001:2015 |
|
Length |
1000 m per drum |
PRODUCT VIDEO
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
