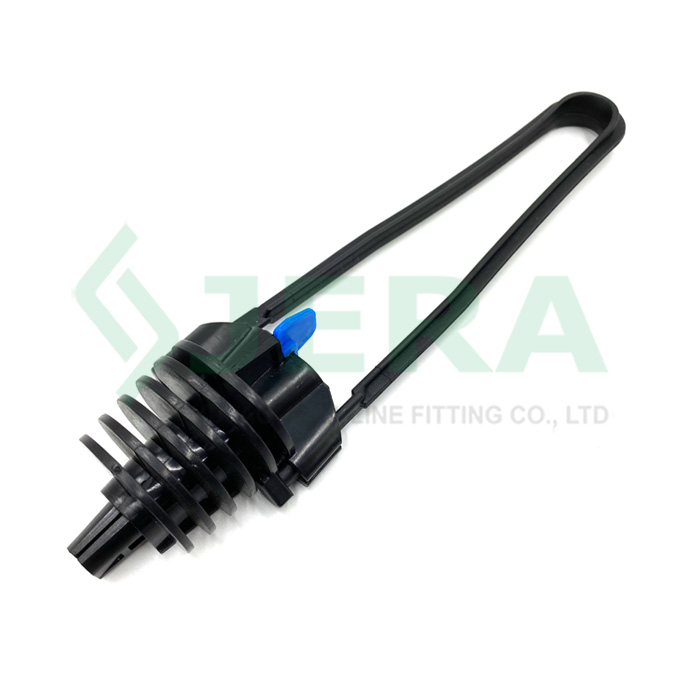

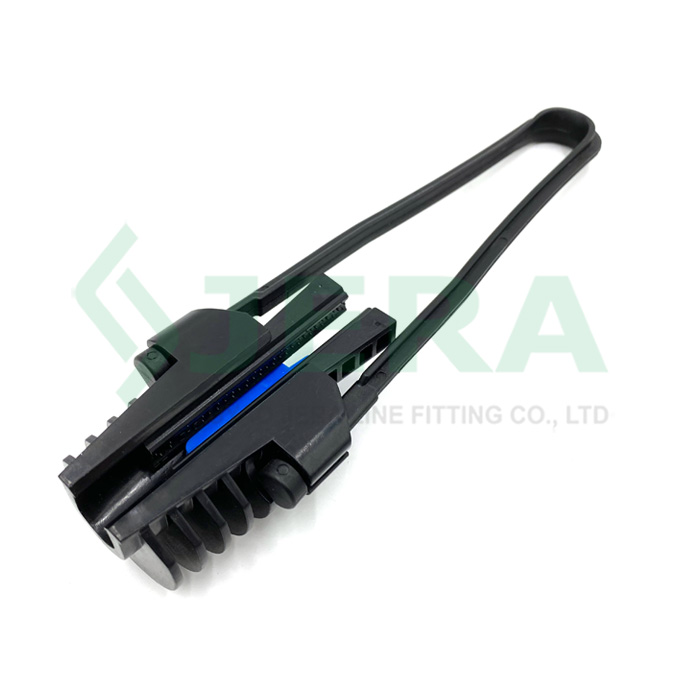

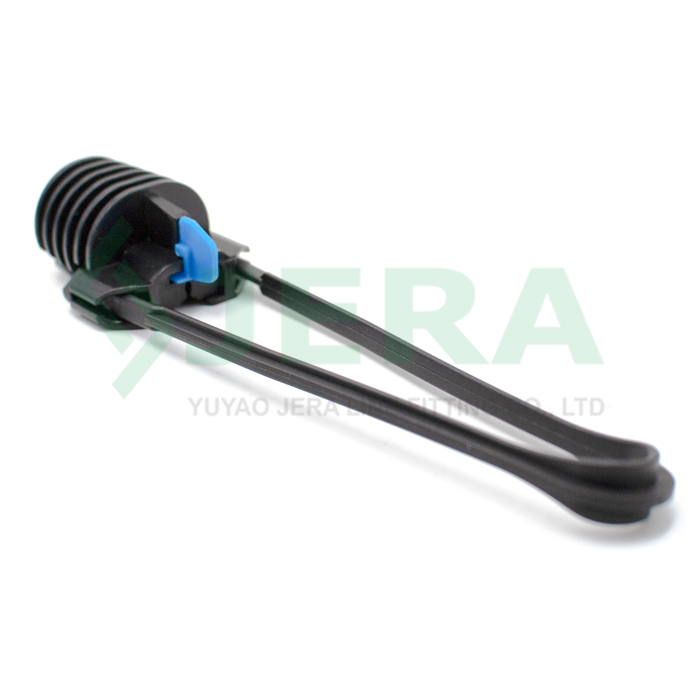

Mini ADSS tension clamp, PA-100 (3-5mm)

Mini adss tension clamp pa-100 also called aerial drop clamp is developed to tension and support round fiber optical cable on the intermediate or down lead routes during outdoor FTTH network constructions.

Features

Full insulative body

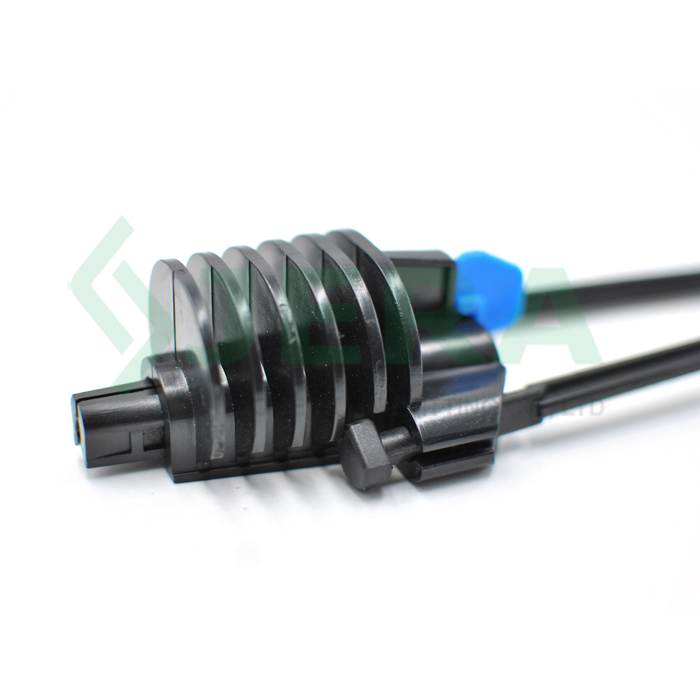

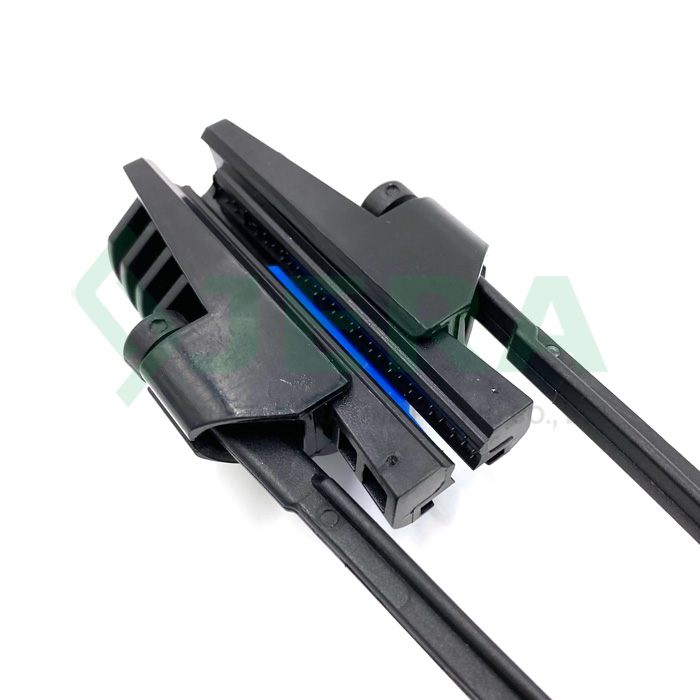

Self-adjustable wedge
UV resistant plastic, reinforced with nylon
Very easy to install and operate, save labor cost
Can be applied with close and open hook and bracket
Perfect environment stability
Competitive price

DESCRIPTION Specification Test

REVIEW

APPLICATION

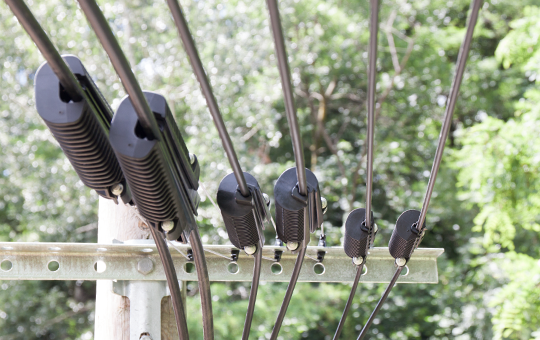

The clamp can be mounted on pole brackets, hooks, and wall fixtures in residential areas, commercial buildings, industrial sites, and campus environments. Its self-adjusting wedge mechanism firmly retains the cable without damaging the jacket, helping maintain signal integrity while preventing cable slipping and sagging caused by wind or temperature changes.

Manufactured from UV-resistant thermoplastic and stainless steel components, the PA-100 ensures long-term durability in humid, coastal, and high-UV environments. The lightweight, tool-free design enables fast installation and reduced labor costs, making it an efficient and economical solution for FTTH drop network construction and broadband expansion projects.

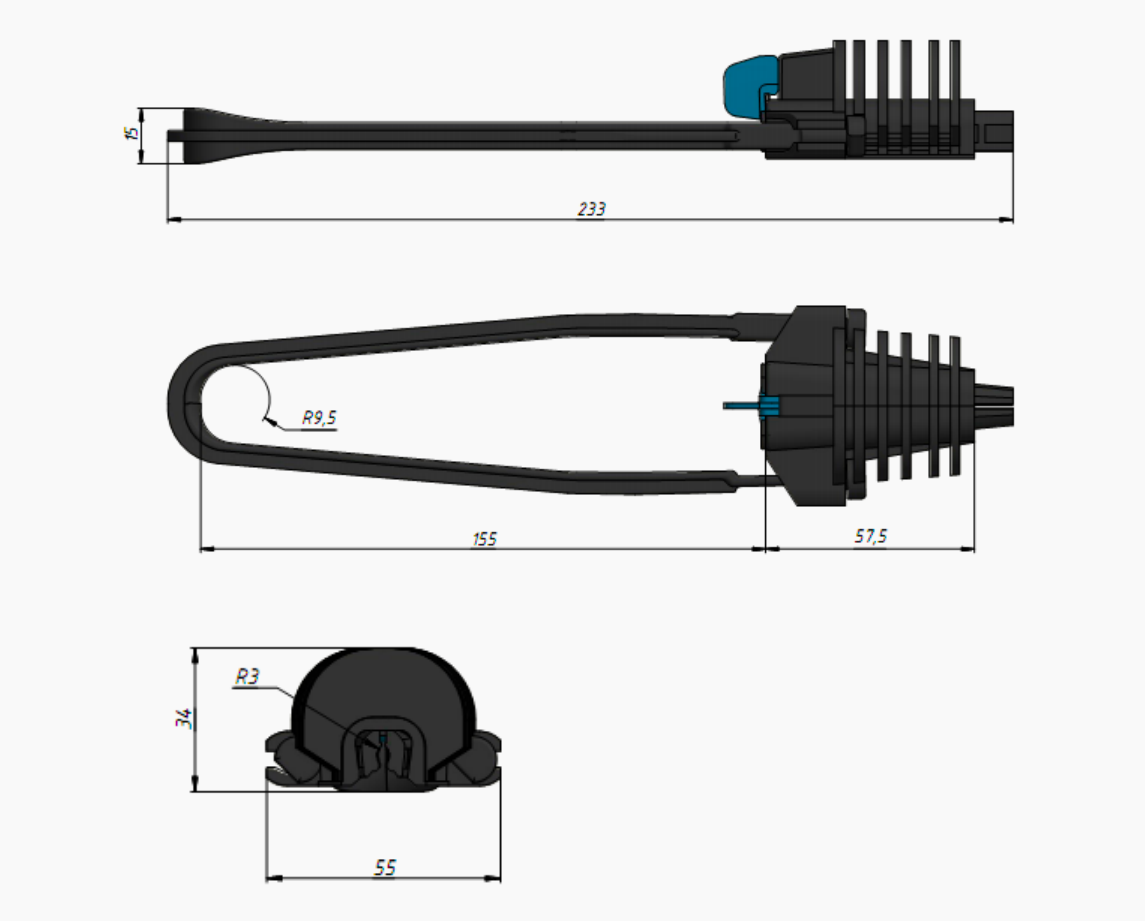

Technical specification

Product number	Cable diameter mm	Material	MBL,KN	Bail length,mm
PA-100	3.0-5.0	UV resistant plastic	1.5	160

TEST

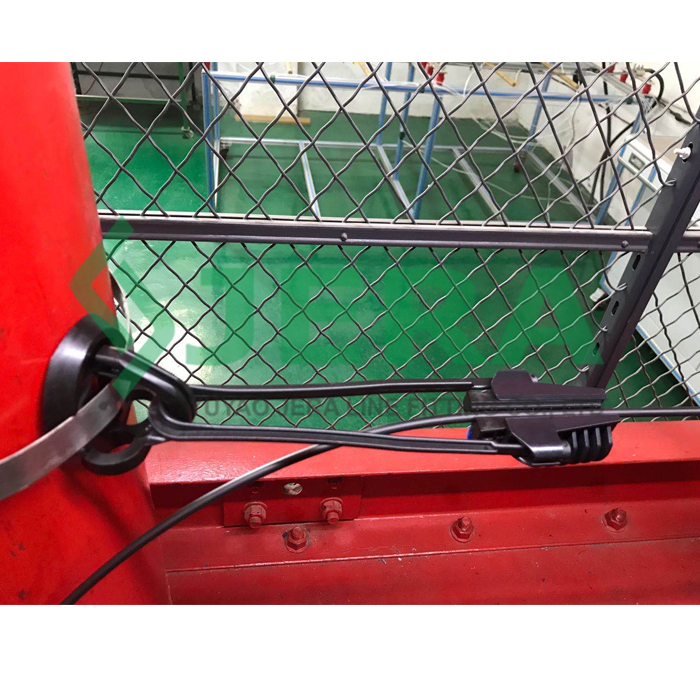

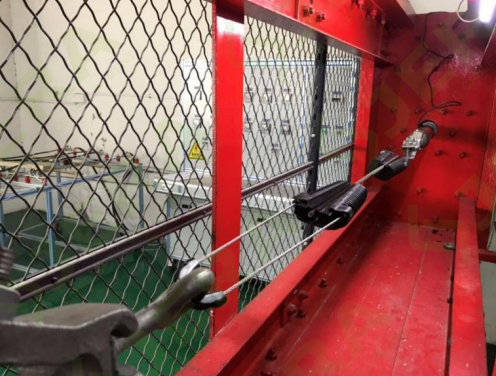

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
