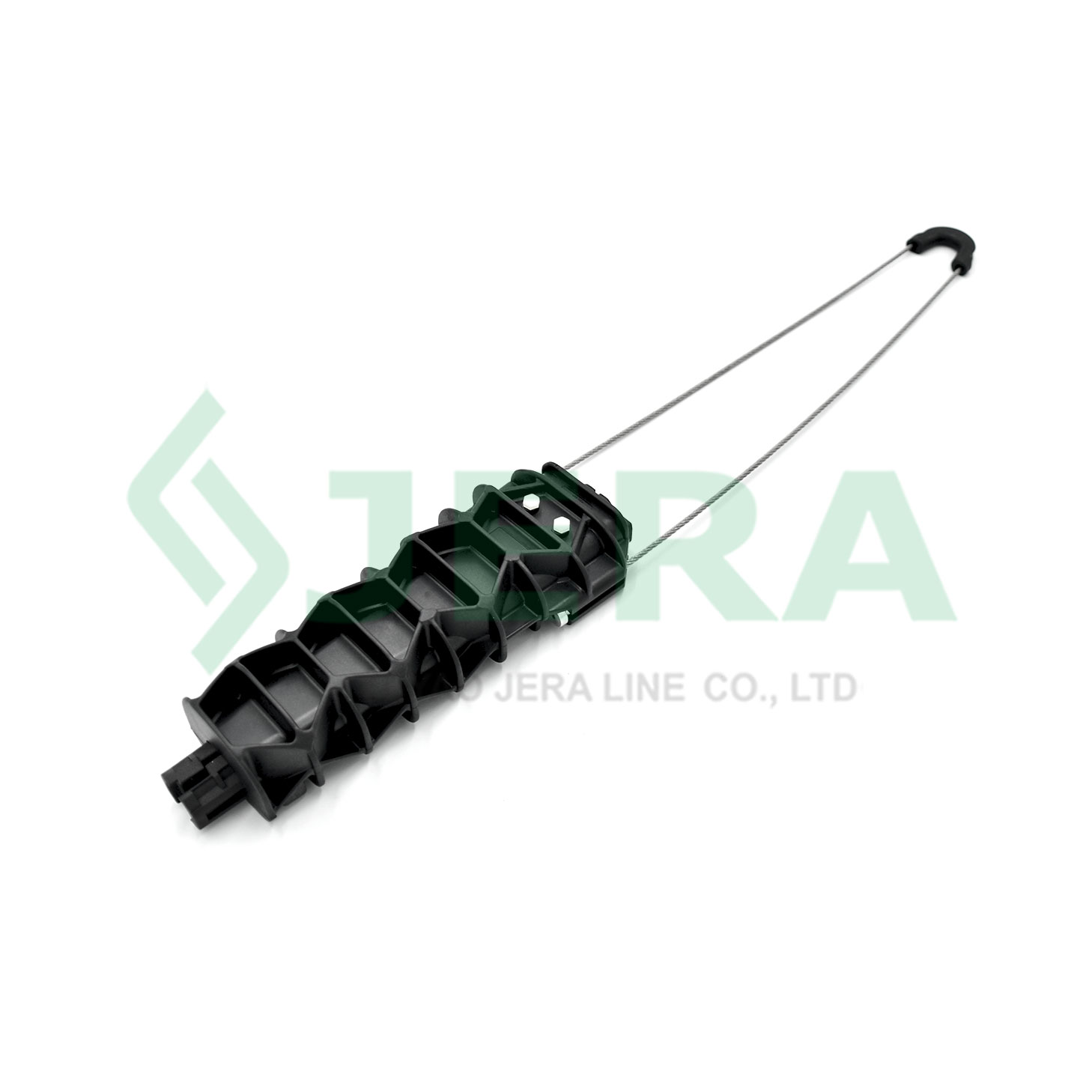

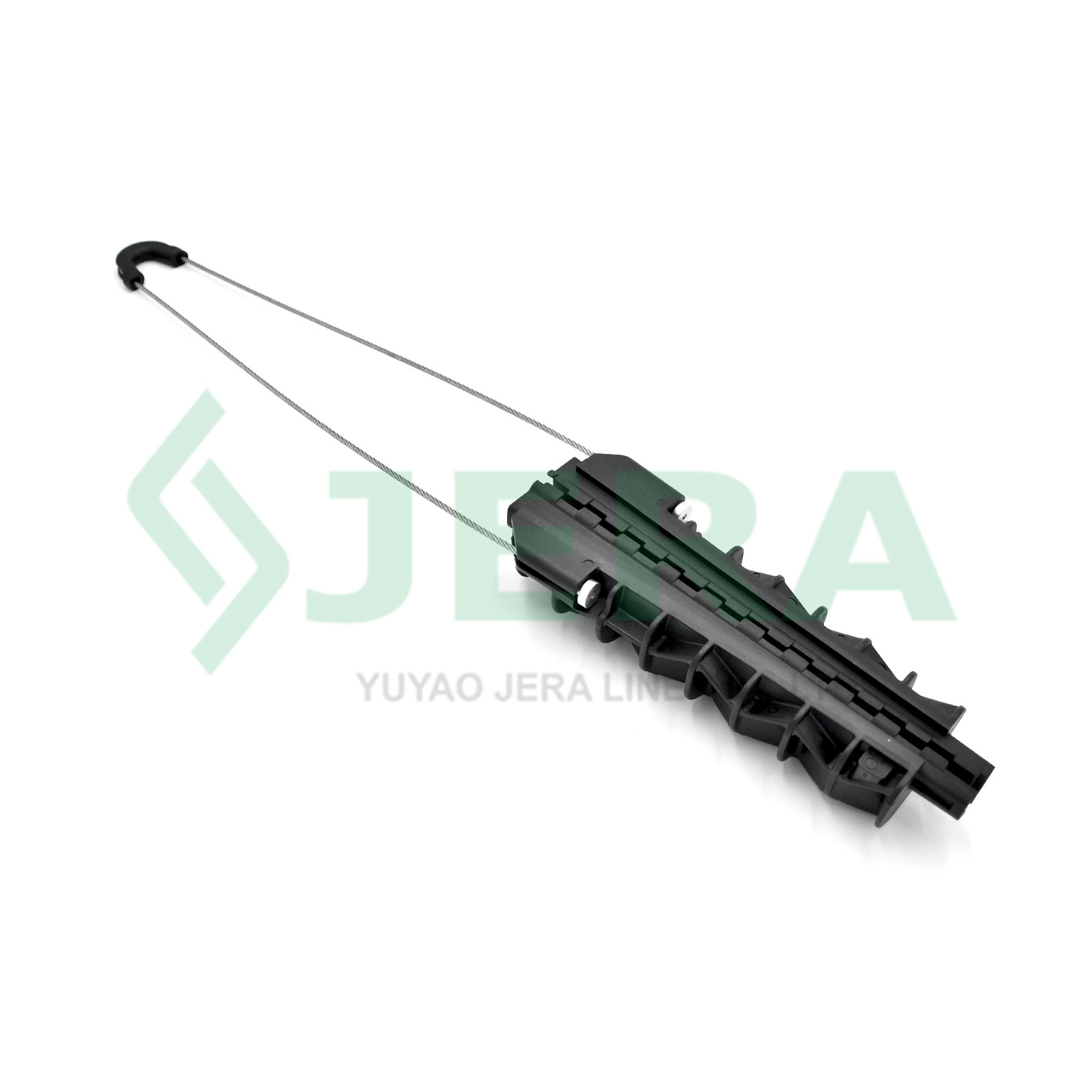

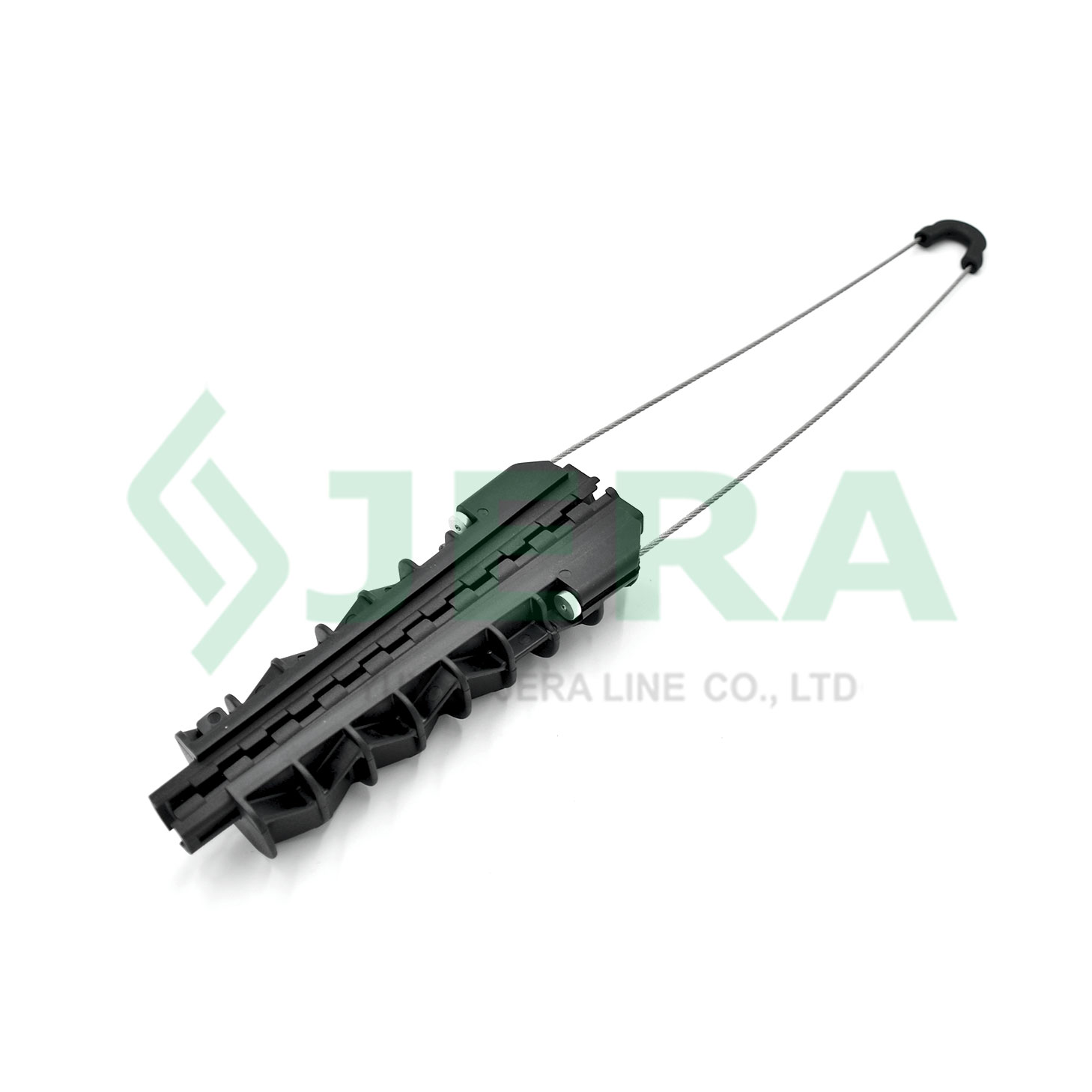

Wedge type tension Clamp, PA-3606

Wedge type tension Clamp, PA-3606 also called overhead tension clamp , is designed to anchor and tension adss cable in intermediate routes or dead end during outdoor overhead ftth line constructions.

Features

Hand installation
Self-adjusting wedges, easy operation
Stainless steel bail, UV resistant plastic
No cable jacket damages during installation or application
Open bail for rapid installation on closed pole bracket
Excellent Environmental Stability
Competitive price

DESCRIPTION Specification Test

REVIEW

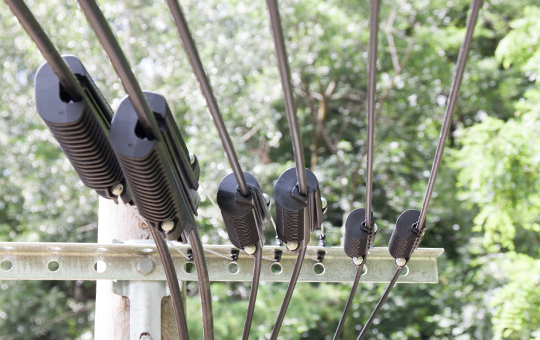

APPLICATION

Wedge tension clamp PA-3603 is mainly applied for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.

This PA clamp is essential hardware which is widely applied in outdoor aerial fiber optic networks. They are primarily designed for anchoring and tensioning ADSS, self-supporting aerial cables and fiber drop cables in telecommunication projects. These clamps are commonly installed on utility poles, cross-arms and building brackets to secure cables at terminal points, angle sections and mid-span anchor positions. Featuring a self-adjusting wedge structure, they grip cables firmly without damaging the cable sheath or internal optical fibers. Made of UV-resistant and corrosion-proof materials, the clamps withstand harsh weather for long-term outdoor operation. They suit FTTH, metropolitan fiber links and industrial communication lines. Easy to install without special tools, they effectively maintain proper cable tension, prevent sagging and guarantee stable performance of the entire fiber optic transmission system.

Technical specification

Product code	Cable diameter, mm	MBL. KN	Material
PA-3606	8-15	7	UV resistant plastic

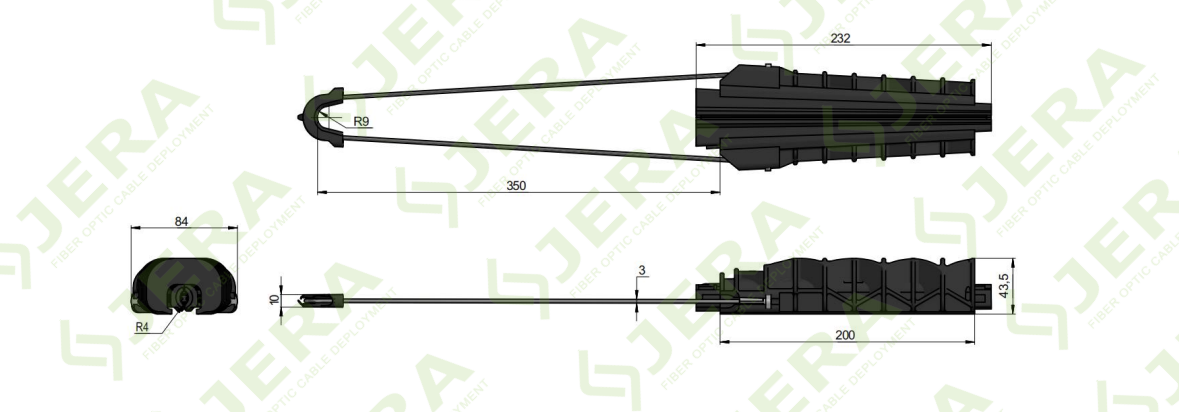

Drawing

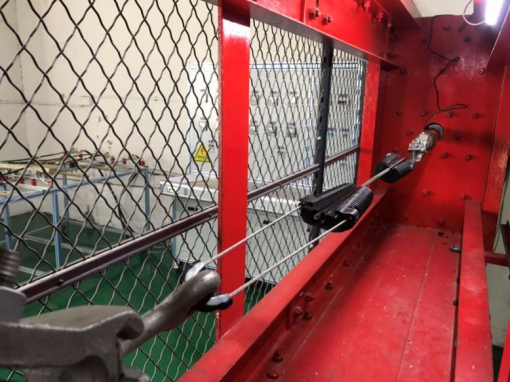

TEST

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
