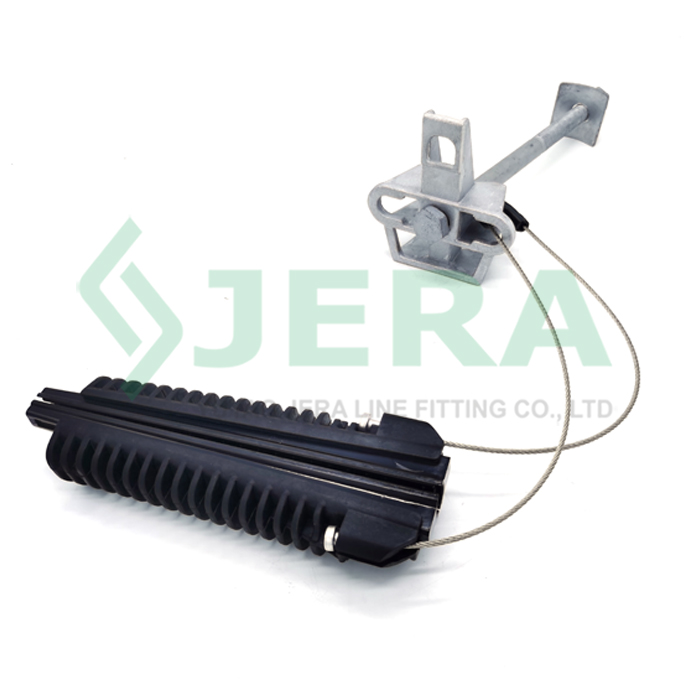

PA-54-1500 anchor clamp
PA-54-1500 anchor clamp
Description:
Hebilla de acero inoxidable 3/4″, other called stainless steel clips, match used with stainless steel strapping bands . Wildly used in optical networks, marine and railway transportation , mining, oil and gas industries to fix pipes, tubes, cables related fitting and accessories, especially in the harsh environments where high resistance of oxidation is required.
- Cable type: Round
- Cable size:8-12 mm
- Span:70-200 m
- MBL: 8 KN
- Product detail
- Specification
- video
- Our Advantages
- Inquiry
Key Features
- No need other tools for installation
- Self-adjusting wedges
- Anti-drop off design
- UV resistant thermoplastic and Stainless steel bail
- Open bail for rapid installation
- Excellent Environmental Stability
- Suits to all field configurations
- Competitive price
SPECIFICATION

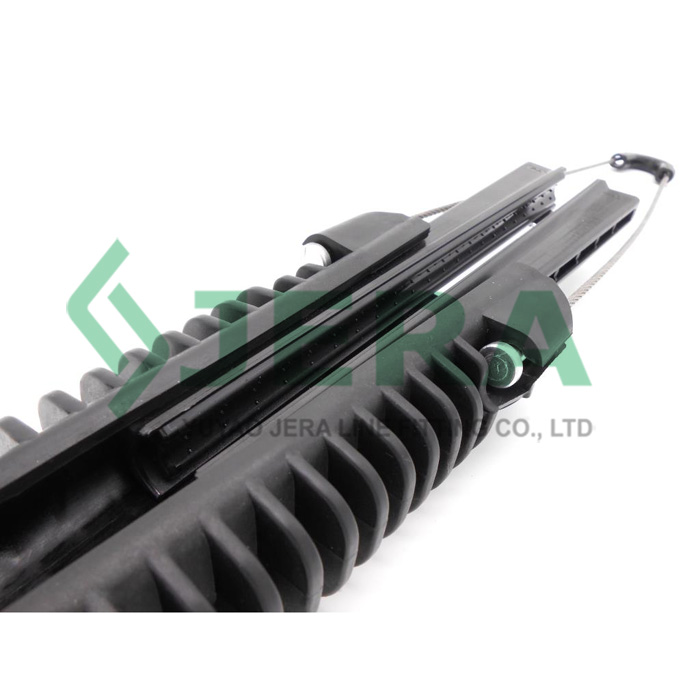

The ADSS wedge clamp body and wedges are made of high strength, UV resistant thermoplastic, reinforced by fiberglass. The manufacturing process is plastic injection technology, which is available in Jera line factory. Stainless steel wire bail provide excellent environmental protection and long life time duration.
The tension clamp has self-adjusting wedges, which provide the tool free installation, and easy attaching of fiber optic cable by hands only. The additional clips on the bottom of clamp prevents the drop off the wedges during installation process.

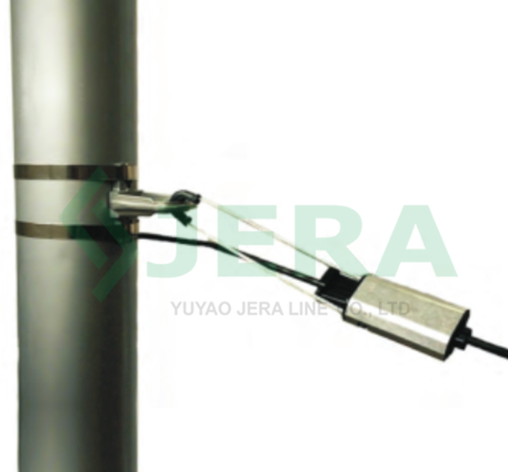

The overhead anchor clamp has high mechanical strengths for different ADSS fiber optic cables configuration. It’s universal and appropriate for attaching either on open hook brackets or on closed ring pole fittings, by opening of stainless steel wire bail. The length of stainless steel wire bail, may be adjusted according to your project requirement.
APPLICATION
Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards. Such as maximum tensile strength test, UV and temperature cycling test, aging test, etc.
Jera line is operating according to ISO9001:2015, we are direct factory produce fiber optic cables and related accessories. Like fiber optic drop cables, drop wire clamps, drop cable patch-cords, fiber optic termination box, dead end guy grips, stainless steel bands, pole bracket and hooks.
Welcome to contact us for more details about this PA-54-1500 anchor clamp price.
Watch Our Factory Video

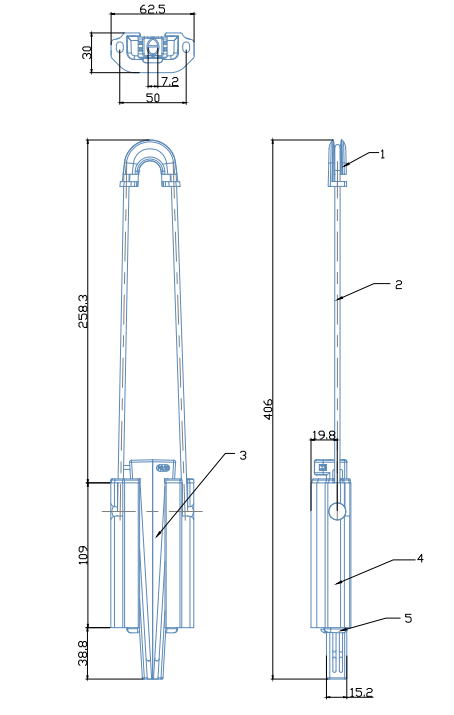

Technical specification
|
Product code |
Cable diameter, mm |
MBL, kN |
|
PA-54-1500 |
8-12 |
8.0 |
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test

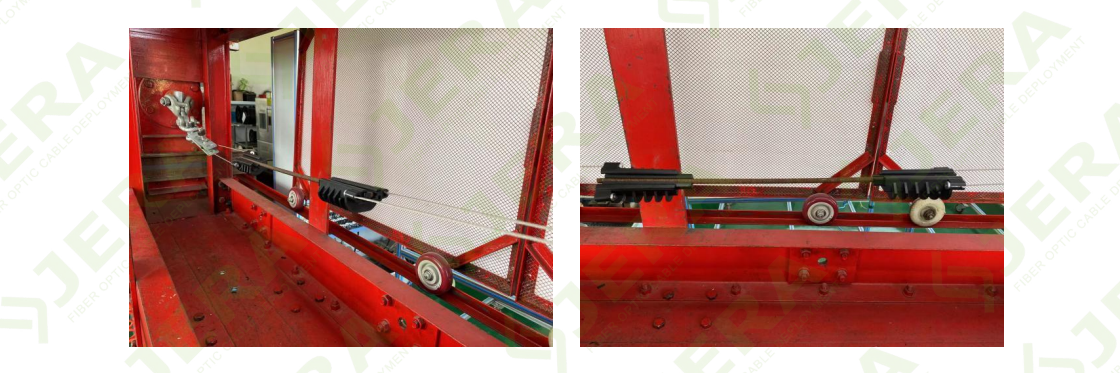

Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
FAQ
-
1. What area are you in?
We are the factory, located in China busy in production of aerial FTTH solution consist of:
- fiber cable,
- pre-terminated patch cords,
- cable clamps and brackets,
- outdoor and indoor termination boxes, access terminals
We produce a solution for optical distribution network ODN.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We offer very competitive price.
- We produce a solution, with suitable product recommendations.
- We have the stable quality control system.
- After sales product guarantee and support.
- Our products were adjusted to work with each other to operate in a system.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust. -
5. Why you can offer competitive prices?
Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/
-
6. Why can you offer stable quality?
Because we have quality system, find more details https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.
-
8. How can I save logistics cost working with you?
You can decrease up to 5% of your logistics cost working with us.
Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com) -
9. What are the main products that you produce?
We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.
-
10. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
11. Can you produce OEM orders?
Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.
-
12. Can you offer me product’s Customization and R & D?
Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
13. What's your MOQ of new customers?
Absence of MOQ criteria for first order.
-
14. Can you provide free samples?
Yes, we provide samples, which will same to the order.
-
15. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
16. Where can I see yours’s products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
17. How to get in touch with you?
-
18. Where can I download your latest catalog
Here you can do it: https://www.jera-fiber.com/about-us/download-catalog-2/
-
19. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
