Model No. :

FOC-R-HDPE-BC+2x0.8-FRP+1.2-PBT

Description:

Round ftth fiber drop cable either called micro adss drop wire is a cable designed to transmit light single during middle spans or last mile of aerial ftth line deployments. This fiber optic drop wire usually compose of one or more fibers, and reinforced by special material to have good physical performance to used in various weather conditions.

    • Application: Outdoor
    • Fiber quantity: 1 fiber
    • Dimensions: 4.0 mm
    • Reinforcement: FRP
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • UV proof HDPE jacket
  • Fiber reinforced with FRP rods, loose tube
  • G652D, or G657 A1/A2 fiber core options for different demands
  • Both indoor and outdoor application
  • High tensile strength and flexibility
  • Fire resistant protection
  • Competitive price of optic cable
Round ftth drop cable 1 fiber Round ftth drop cable 1 fiber

SPECIFICATION

The cable consists of:

  • The cable dimensions:

- Diameter: 4.0 ± 0.2mm

  • Fiber quantity is 1 fiber.
  • Two of 0.8 mm diameter FRP rod.
  • HDPE jacket sheath, UV protected.

Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.

The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.

HDPE is a polymer material with high density, high strength and high chemical resistance.

read more

APPLICATION

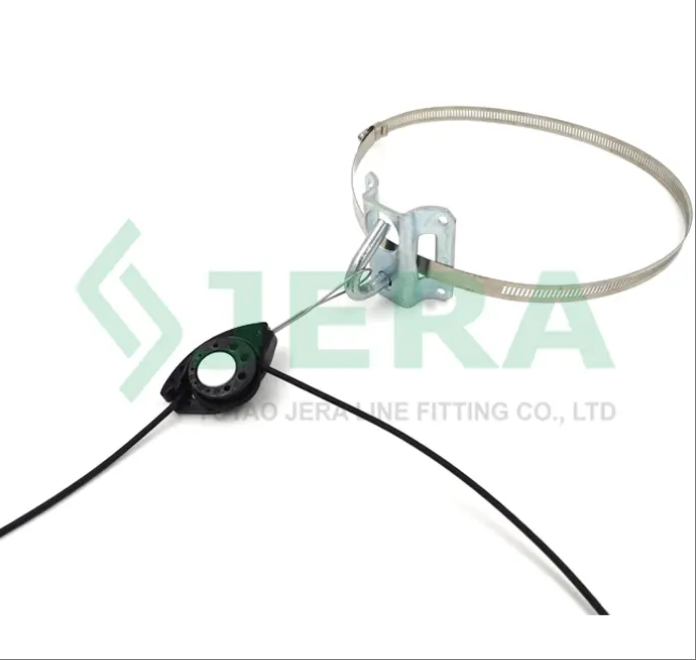

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.

Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

Applied in drain system distribution networks of fiber optics. Blow in a cable into protective plastic pipes.

read more

Manufacturing

    fiber web manufacturer

Watch Our Factory Video

Technical specification

Items Parameters
Product code FOC-R-HDPE-BC+2×0.8-FRP+1.2-PBT-1xG657A1-4.0
Product name round ftth cable, reinforced by frp rods, 1 fiber
Loose tube material and diameter PBT, 1.2(±0.2)mm
Strength member material and size FRP rods, 0.8 mm
Fiber core options G.652.D, G.657A1, G.657A2
Cable jacket color Black
Jacket material HDPE
Cable dimension,mm 4.0 (±0.2)
Short/long term tensile strength, N 1400/800
Crush resistance short/long term, N/100mm 5000/2500
Application temperature, ℃ -50~+70
Certification IEC-60794-1-2, ISO9001:2015
Length 1000/2000 m per drum

PRODUCT VIDEO

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test

FAQ

  • 1. What area are you in?

    We are the factory, located in China busy in production of aerial FTTH solution consist of:

    • fiber cable,
    • pre-terminated patch cords,
    • cable clamps and brackets,
    • outdoor and indoor termination boxes, access terminals

    We produce a solution for optical distribution network ODN.



  • 2. Are you the direct manufacturer?

    Yes, we are direct factory with years of experience.

  • 3. Where is your factory located?

    Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.

  • 4. Why I should choose Jera Line?

    - We offer very competitive price.
    - We produce a solution, with suitable product recommendations.
    - We have the stable quality control system.
    - After sales product guarantee and support.
    - Our products were adjusted to work with each other to operate in a system.
    - You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
    - We are committed to long term refashions based on trust.

  • 5. Why you can offer competitive prices?

    Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/

  • 6. Why can you offer stable quality?

    Because we have quality system, find more details  https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/

  • 7. Do you offer a guarantee on your products?

    Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.

  • 8. How can I save logistics cost working with you?

    You can decrease up to 5% of your logistics cost working with us.
    Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com)

  • 9. What are the main products that you produce?

    We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.

  • 10. What's your trade term and payment terms?

    We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.

  • 11. Can you produce OEM orders?

    Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.

  • 12. Can you offer me product’s Customization and R & D?

    Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.

  • 13. What's your MOQ of new customers?

    Absence of MOQ criteria for first order.

  • 14. Can you provide free samples?

    Yes, we provide samples, which will same to the order.

  • 15. Will the quality of ordered products be the same to the sample what I have confirmed?

    Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.

  • 16. Where can I see yours’s products application?

    Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t

  • 17. How to get in touch with you?

  • 18. Where can I download your latest catalog

  • 19. Do you have global experience?

    Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
