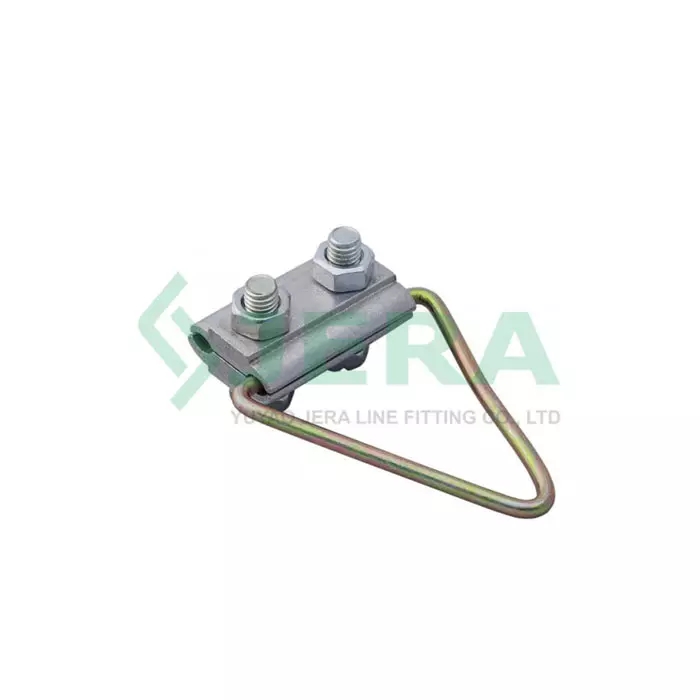

Figure 8 cable suspension Clamp, ZP 8-2

Figure 8 cable suspension Clamp ZP 8-2, is design to suspend or support figure-8 fiber optic cable on intermediate routs during outdoor FTTX transmission constructions.

Features

Cable type: Round
Cable size:4-8 mm
Span:30-70 m
MBL: 2 KN

DESCRIPTION Specification Test

REVIEW

Application

The cable clamp is used to connect and fix the optical cable wires, the groove body, the wire frame and the rod, and constitutes a cable clip as a whole.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The length is determined by the customer’s needs.

The shell is made of 304 stainless with strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions to fix and protect optical cables.
