Figure 8 drop with FRP 4 fibers
Figure 8 drop with FRP 4 fibers
Description:

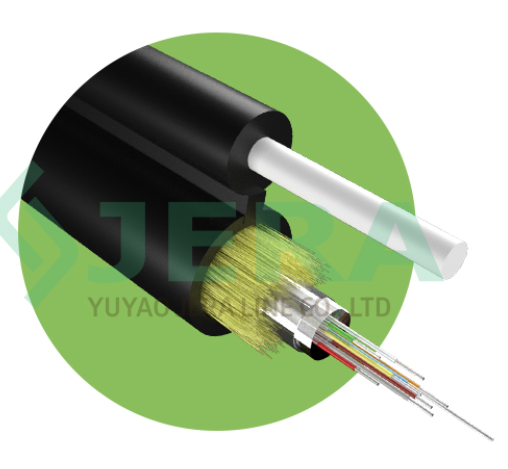

Figure 8 drop with FRP 4 fibers also called Figure 8 FTTH drop cable with FRP, is a common wiring method in fiber optic cabling systems. It consists primarily of an elastic sheath material called Figure 8, which has a cross-sectional shape in the shape of a figure “8.” In addition, this wiring method uses FRP (Fiber Reinforced Plastic) material to provide strength and support.
- Application: Outdoor
- Fiber quantity: 4 fiber
- Dimensions: 3.5*6.6 mm
- Reinforcement: FRP
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- self-supporting overhead laying and reduces installation costs
- With good mechanical properties and temperature characteristics
- Material of loose tube has good hydrolysis resistance and high strength.
- The loose tube is filled with special gel, which protect the optical fiber
- Take the following measures to ensure the waterproof performance of the optical cable
- Single FRP center reinforced core
- Filled with special Water-blocking material in loose tube
SPECIFICATION
FTTH fiber optic cable - GJXH (non-metallic reinforced) is a non-metallic reinforced, LSZH flame retardant polyolefin sheathed, butterfly-shaped drop cable. In FTTH Fiber Drop Cable applications, it has both low cost and good adaptability. The finished fiber optic cable has excellent bending resistance, supports dense wiring, low bending additive loss at small bending radii, and high mechanical reliability. Convenient for construction and distribution of optical cables, easy splicing or connection. Suitable for indoor wiring in fiber-to-the-home projects. Both sides of the cable are low-smoke halogen-free outer sheaths and FRP reinforcements. The center of the cable is 2 core G.657.A1/A2 or G.652.D fiber.
APPLICATION
Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.

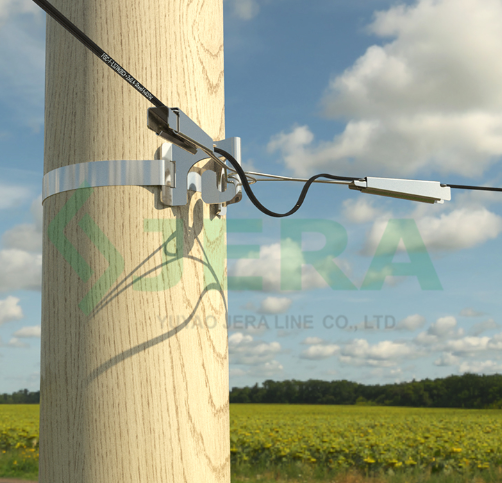

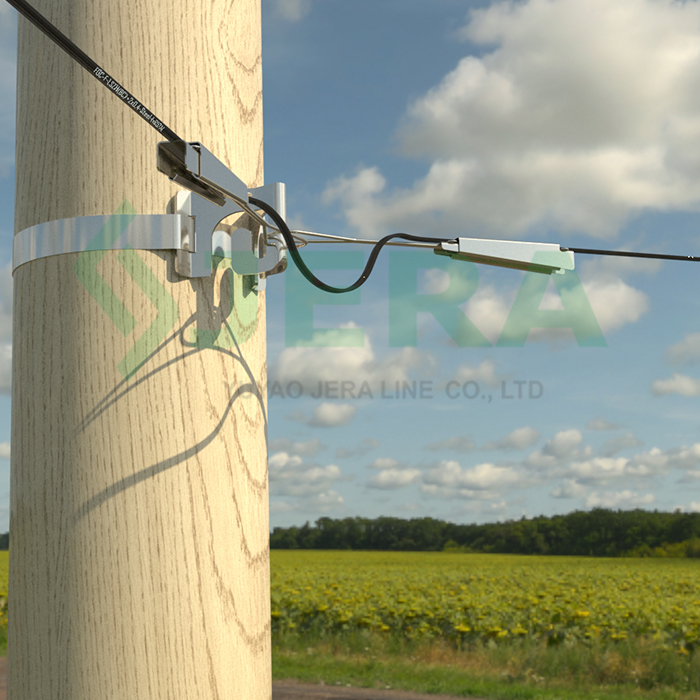

The characteristic of FTTH figure 8 drop cable 4 fibers is that it has a built-in support material FRP with high strength, making the cable self-supporting. This design allows the optical cable to be hung directly on the support pole, eliminating the need for additional support facilities and improving installation convenience and cost-effectiveness.
Manufacturing
Watch Our Factory Video
Technical specification
|
Messenger type |
FRP |
|
Messenger diameter(mm) |
1.2/0.33*7 |
|
Jacket’s material |
LSZH/TPU |
|
Reinforcement material |
Aramid yarn |
|
Loose tube material |
PBT |
|
Loose tube diameter(mm) |
1.2(±0.02)mm |
|
Fiber type |
G.657.A1/A2 or G.652.D |
|
Cable dimension(mm) |
3.5*6.6(±0.1) |
|
Tensile strength(N) |
1000 |
PRODUCT VIDEO
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY

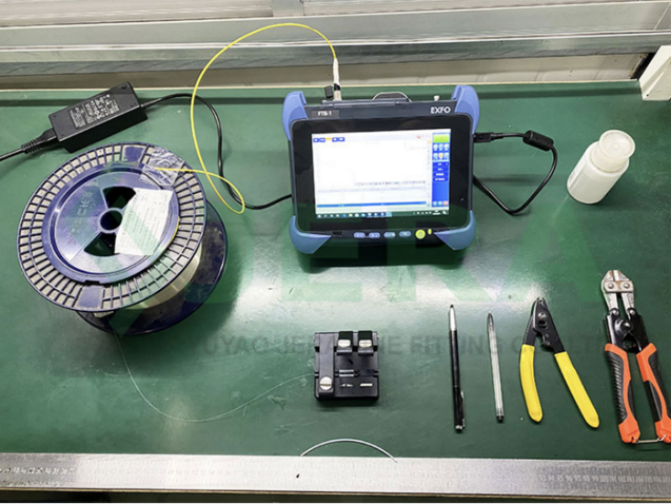

Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
