Wedge type anchor Clamp, PA-3001

Wedge type anchor Clamp, PA-3001(12-16mm)

Wedge type anchor Clamp PA-3001, other called adss anchoring clamp, was designed to tension the ADSS optical fiber cable on aerial poles. PA-3001 ADSS clamp applied together with fiber optical cable on straight routes of maximum distance up to 100 meters.

Features

Tool free installation
Self-adjusting wedges
Stainless steel bail
No cable jacket damages
Open bail for rapid installation
Anti-drop off design
Excellent Environmental Stability
Extended body length for better attenuation of fiber cable

DESCRIPTION Specification Test

REVIEW

APPLICATION

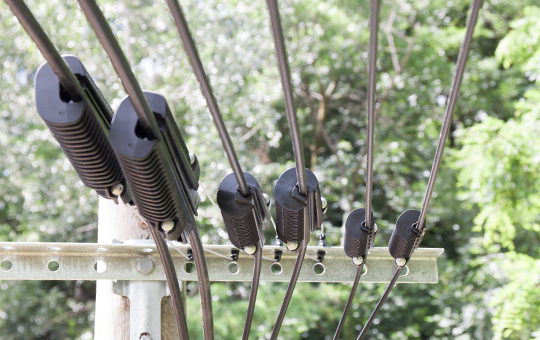

The Wedge Type Anchor Clamp PA-3001 is designed for anchoring and tensioning ADSS optical cables with diameters from 12 to 16 mm in outdoor aerial fiber optic networks. It is widely used at dead-end and intermediate sections of overhead cable routes to maintain the required cable tension and ensure stable network operation. Suitable for spans up to 100 meters, the clamp can be installed on utility poles, pole brackets, and hook fittings in FTTH, FTTx, GPON, CATV, and backbone telecommunication projects.

Its self-adjusting wedge design securely grips the cable without damaging the outer sheath, protecting fiber transmission performance and extending cable service life. Manufactured from UV-resistant polymer components and a stainless steel bail, the PA-3001 provides excellent resistance to corrosion, temperature variations, and harsh environmental conditions. The tool-free installation reduces deployment time and labor costs, making it an ideal solution for residential developments, industrial facilities, campus networks, and rural broadband infrastructure requiring reliable aerial ADSS cable anchoring.

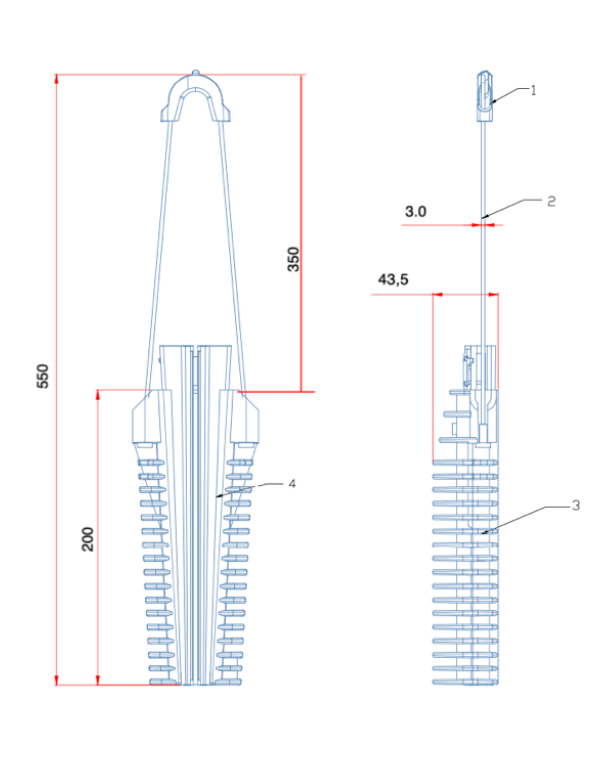

Technical specification

Product code	Cable diameter, mm	MBL, kN
PA-3001	12-16	7.0

TEST

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
