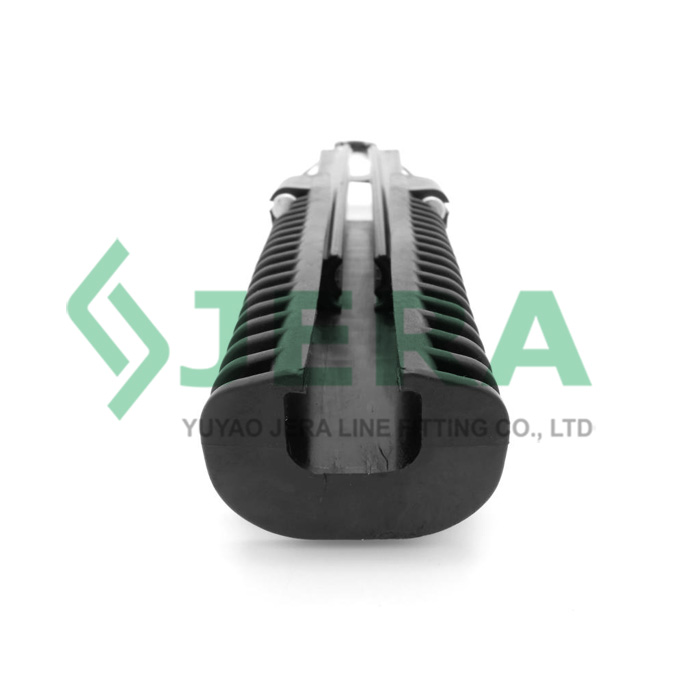

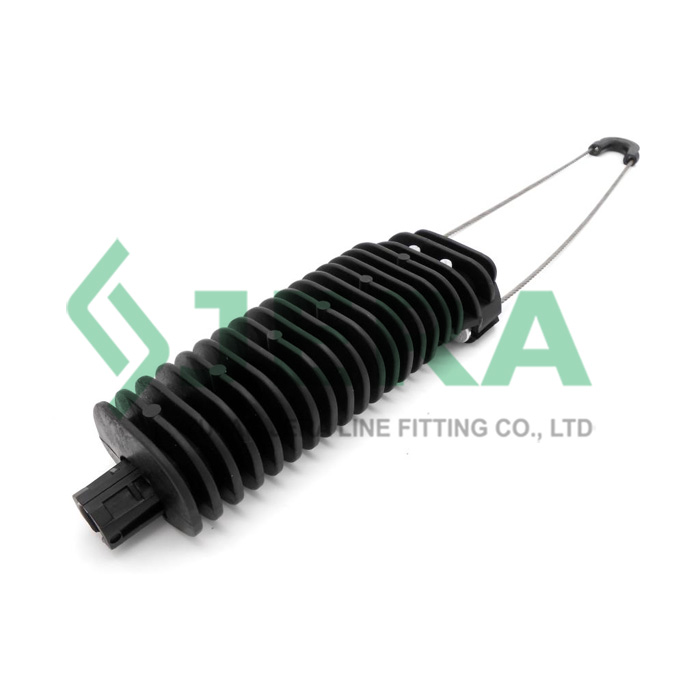

Adss Clamp PA2000

ADSS clamp PA2000 also known as fiber optic cable plastic anchor clamp, can ensure that the cable can be firmly fixed in a specific position during installation and use to prevent the cable from loosening or shaking, thereby ensuring the stability.

Features

Made of high-strength plastic material
Resistant to harsh weather and chemical corrosion
Lightweight design, easy and quick to install
Self-adjusting wedges
Excellent electrical insulation properties
Good anti-vibration performance

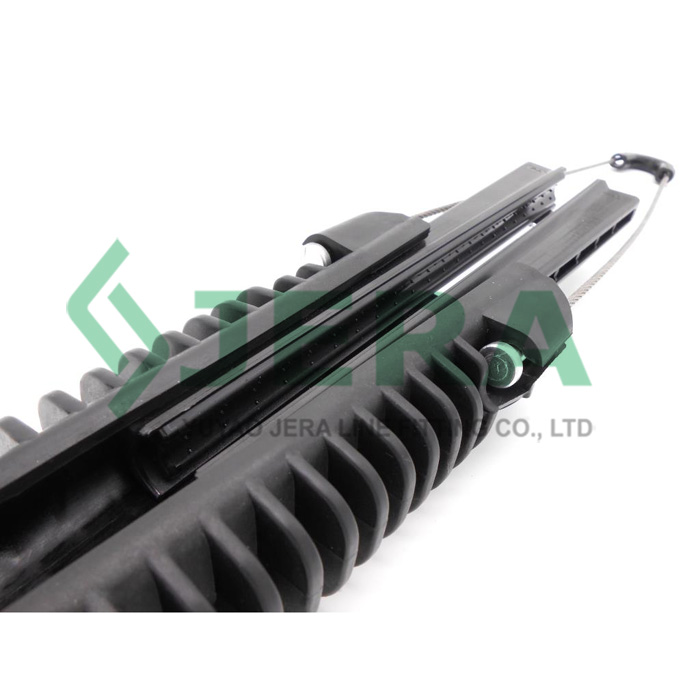

China factory tension clamp direct sales

DESCRIPTION Specification Test

REVIEW

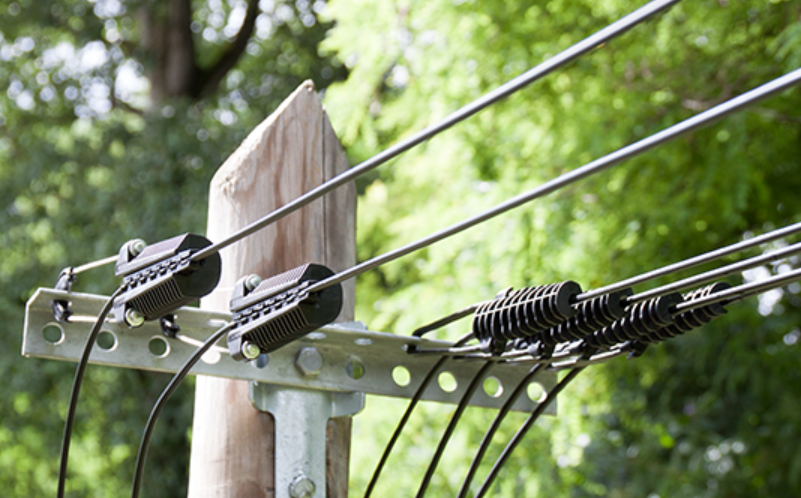

APPLICATION

The clamp maintains proper cable tension and helps prevent sagging caused by wind, ice loading, and temperature fluctuations. Its wedge mechanism securely grips the cable without damaging the sheath, preserving the cable's mechanical and optical characteristics. Constructed from corrosion-resistant materials for long-term outdoor use, the PA2000 offers excellent durability and reliable performance. The simple installation process reduces labor costs and makes it an ideal solution for residential, industrial, and rural broadband infrastructure projects.

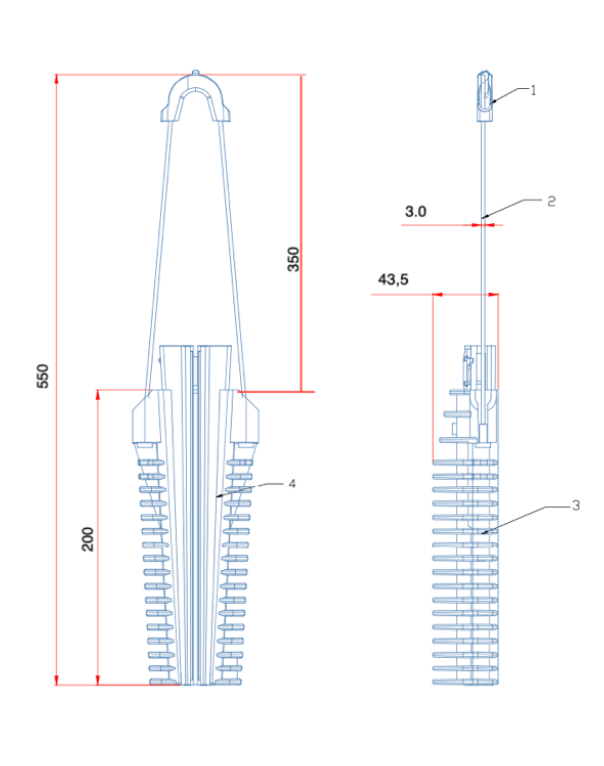

Technical specification

Product code	Cable diameter, mm	MBL, kN
PA2000	12-16	7.0

TEST

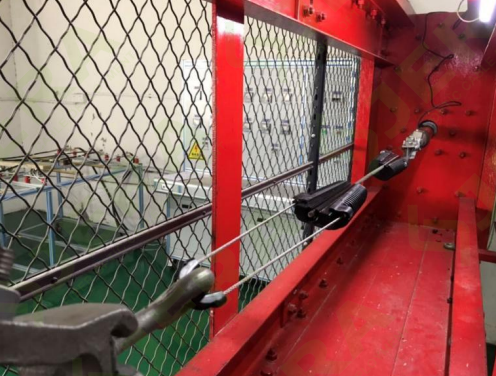

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
