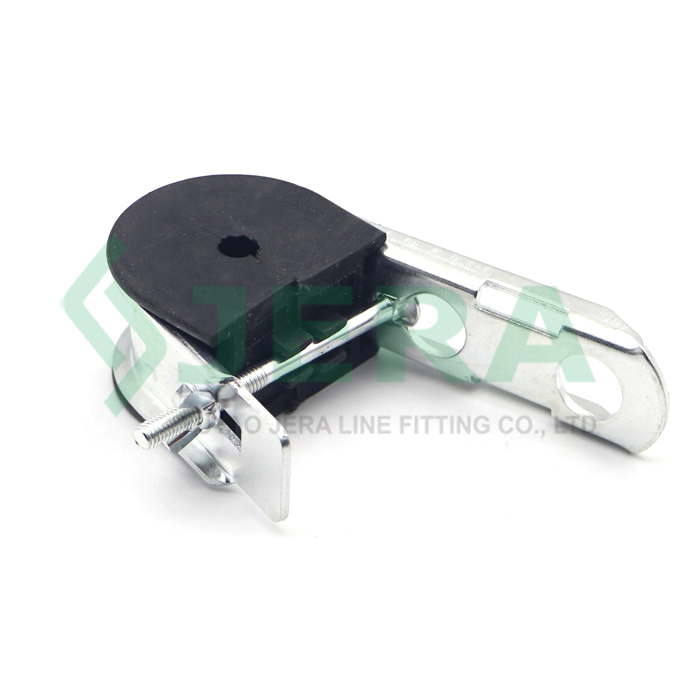

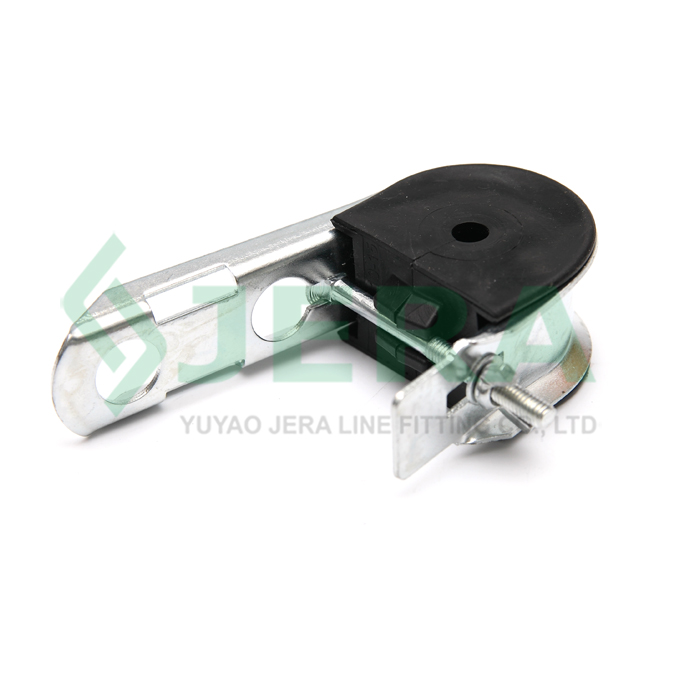

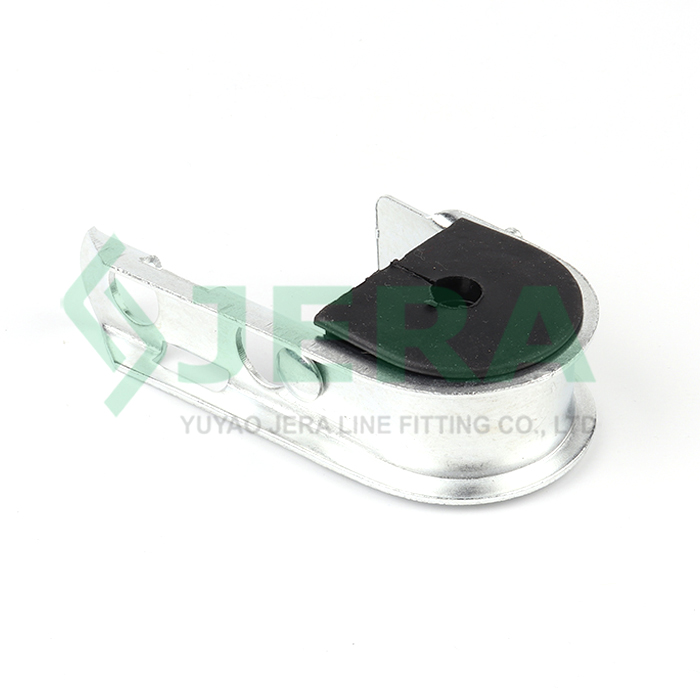

J hook Suspension clamp, HC 8-12

J hook Suspension clamp HC 8-12, other calls ftth suspension clamp designed to suspend and support adss cable in outdoor overhead ftth solutions.

Features

Cable type: Round
Cable size:8-12 mm
Span:50-100 m
MBL: 4 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Compact size and easy installation
UV proof plastic and galvanized steel
Applied with stainless steel bands and pole bolts
High mechanical tensile strength
Perfect environment stability for long time usage
Competitive price with reliable quality

SPECIFICATION

The clamp applied in:

Cable diameter: 8-12 mm

MBL, kN: 4.0

The cable clamp is used to connect and fix the optical cable wires.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The shell is made of plastic with strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

The suspension part is made of stainless steel 304, which ensures tensile strength while being more adaptable to harsh environments.

APPLICATION

Used for supporting ADSS and round fiber optic cables with diameters ranging from 8 to 12 mm on aerial telecommunications routes.

Suitable for straight-line installations and angle deviations on wooden, concrete, or steel poles. The J-hook design allows quick cable installation while maintaining proper cable bending radius and reducing installation time.
