Gpon outdoor splitter terminal box FODB-8.6

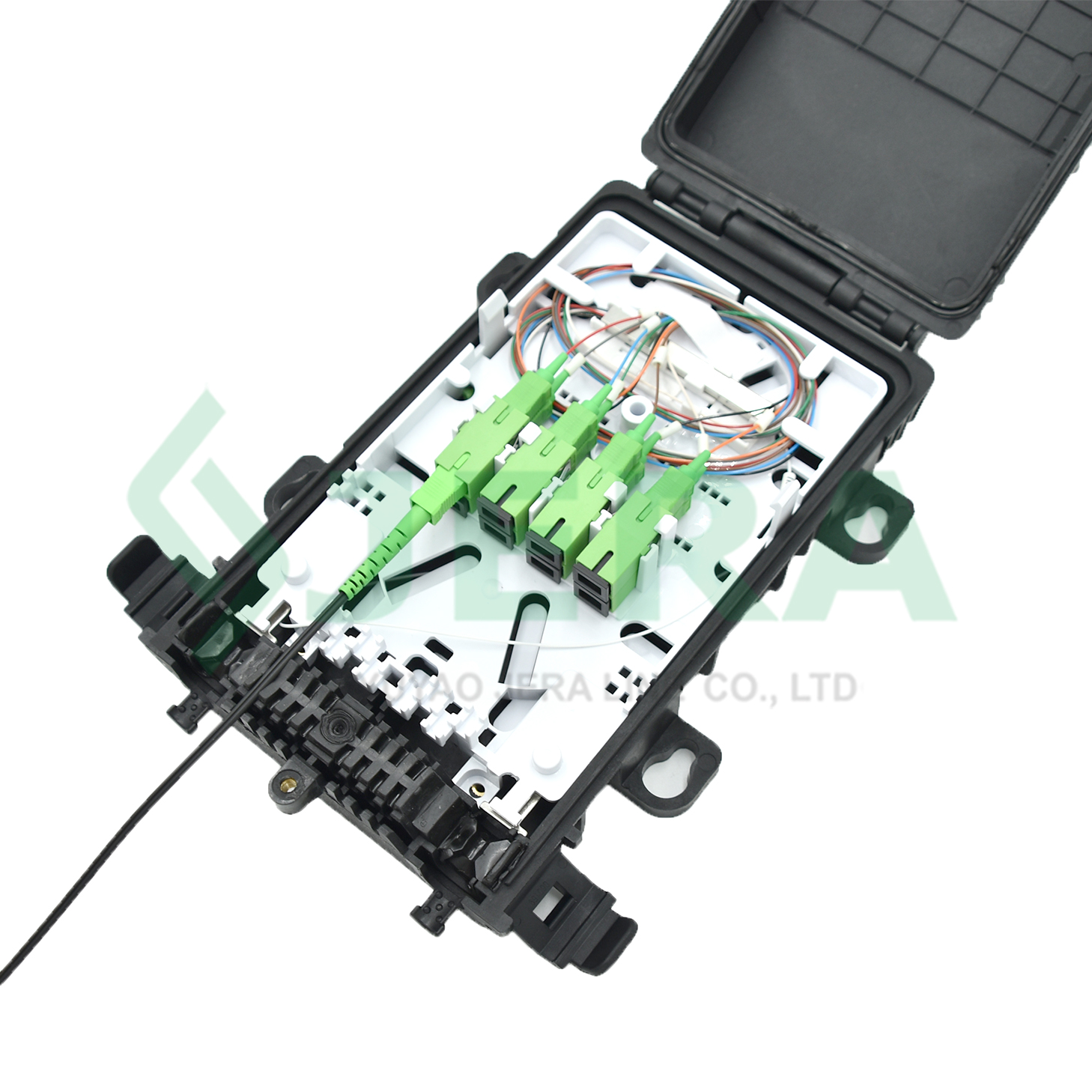

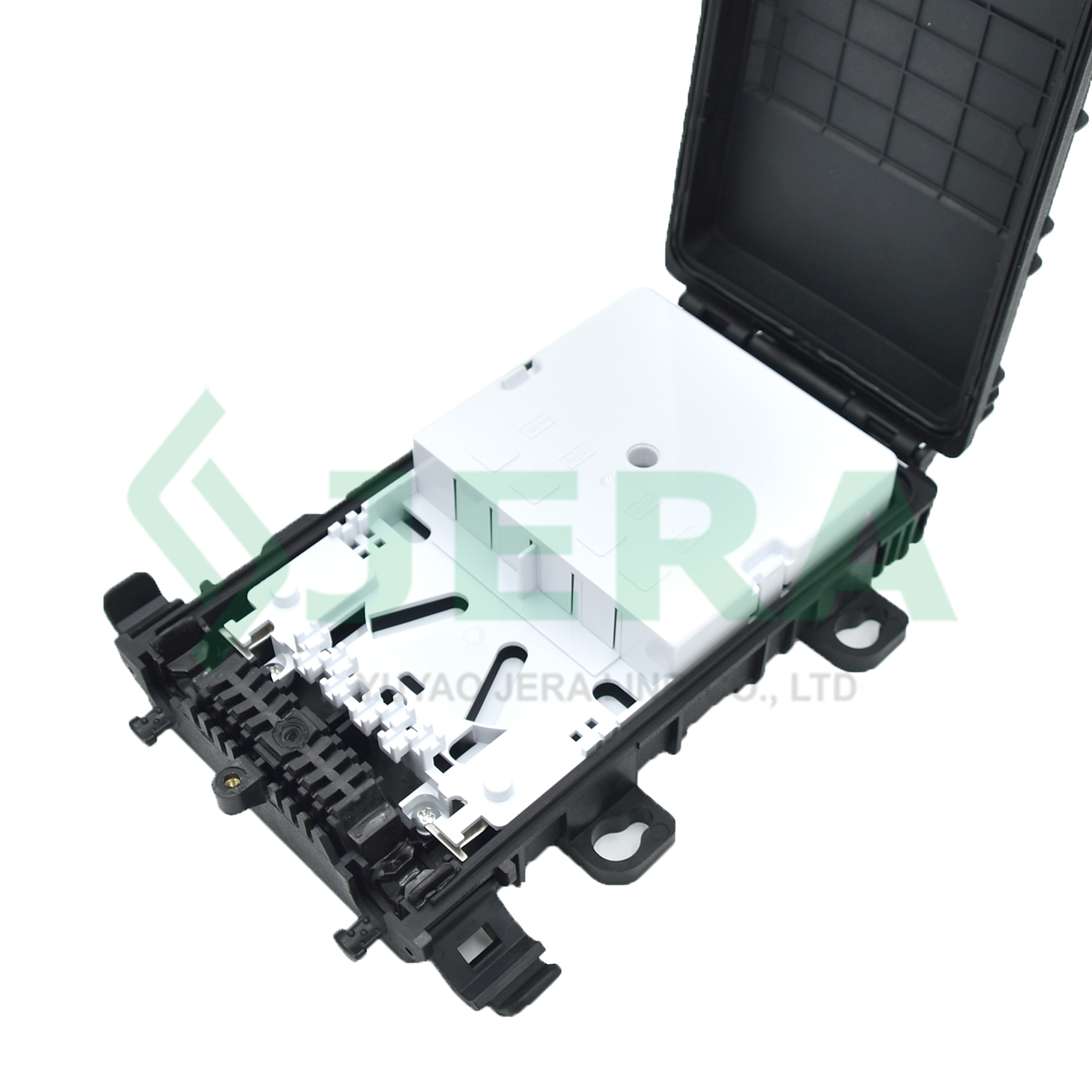

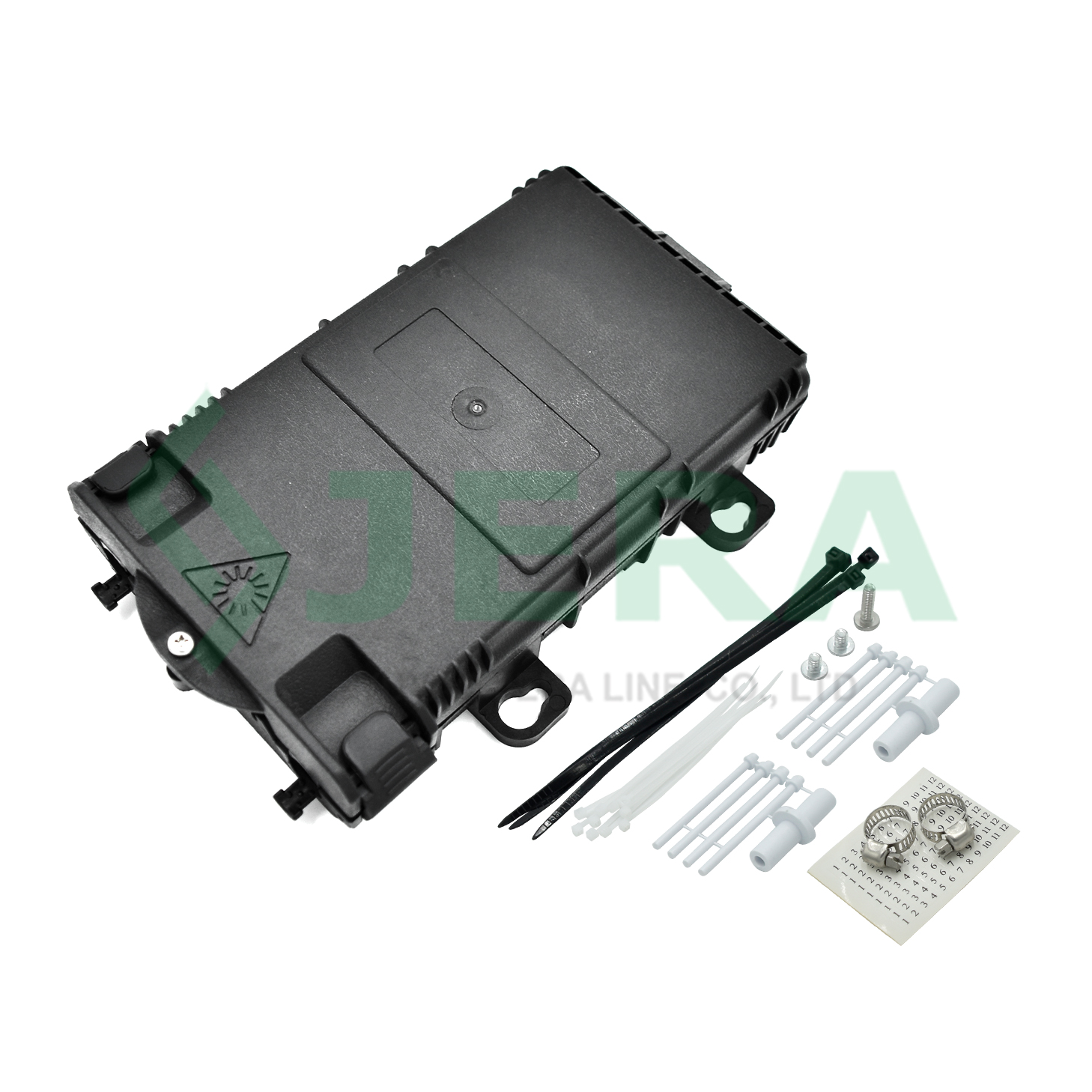

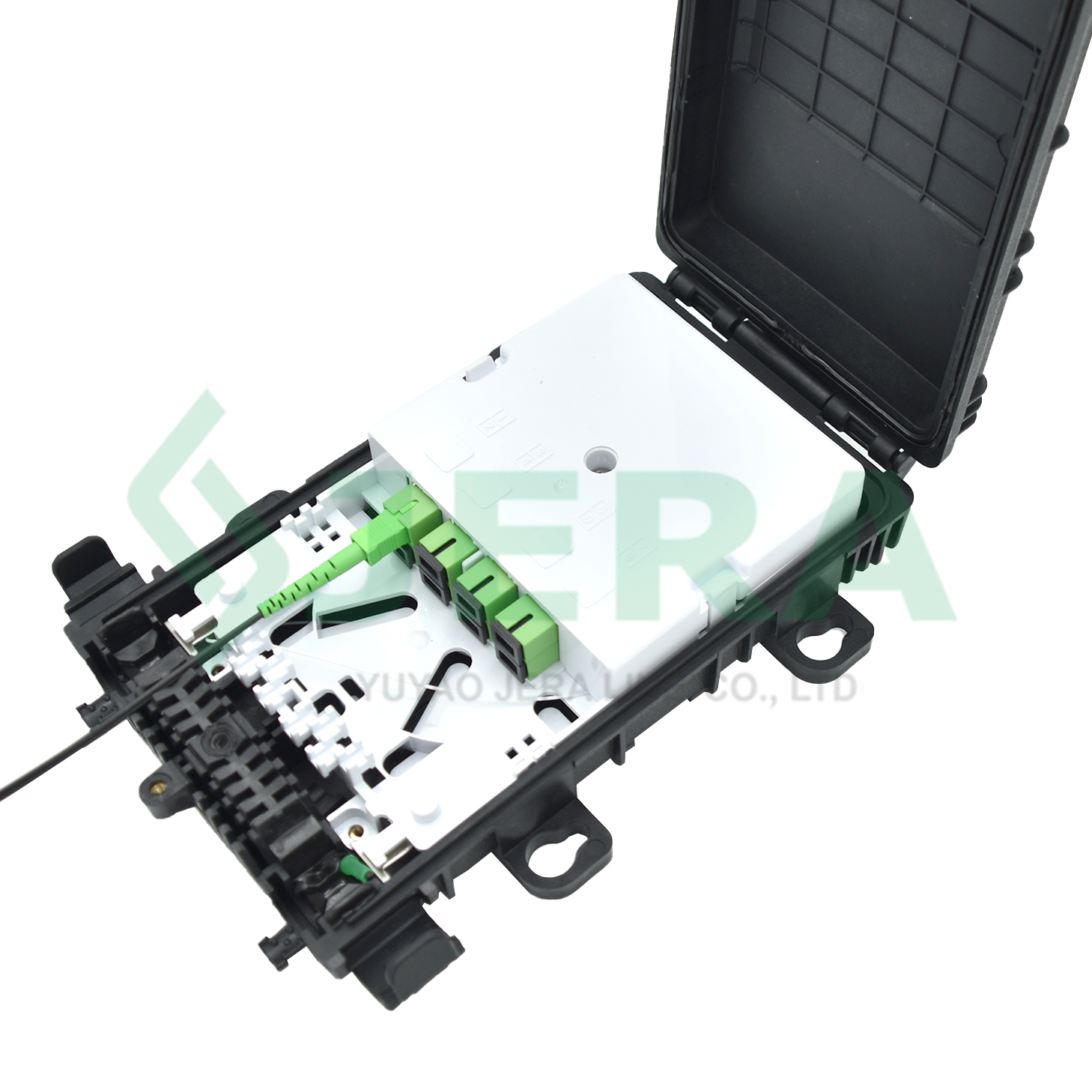

Gpon outdoor splitter terminal box FODB-8.6 called fiber optic distribution box FODB-8.6, is equipped with an optical splitter module internally, which can distribute optical signals to multiple output ports. FTTH splitter terminal box FODB-8.6 also has an optical fiber connection module that can be used to connect optical fiber cables to ensure signal transmission quality.

Features

Durable outdoor UV resistant.
Best choice for FTTH Gpon networks.
Safe inside access for end user further connection.

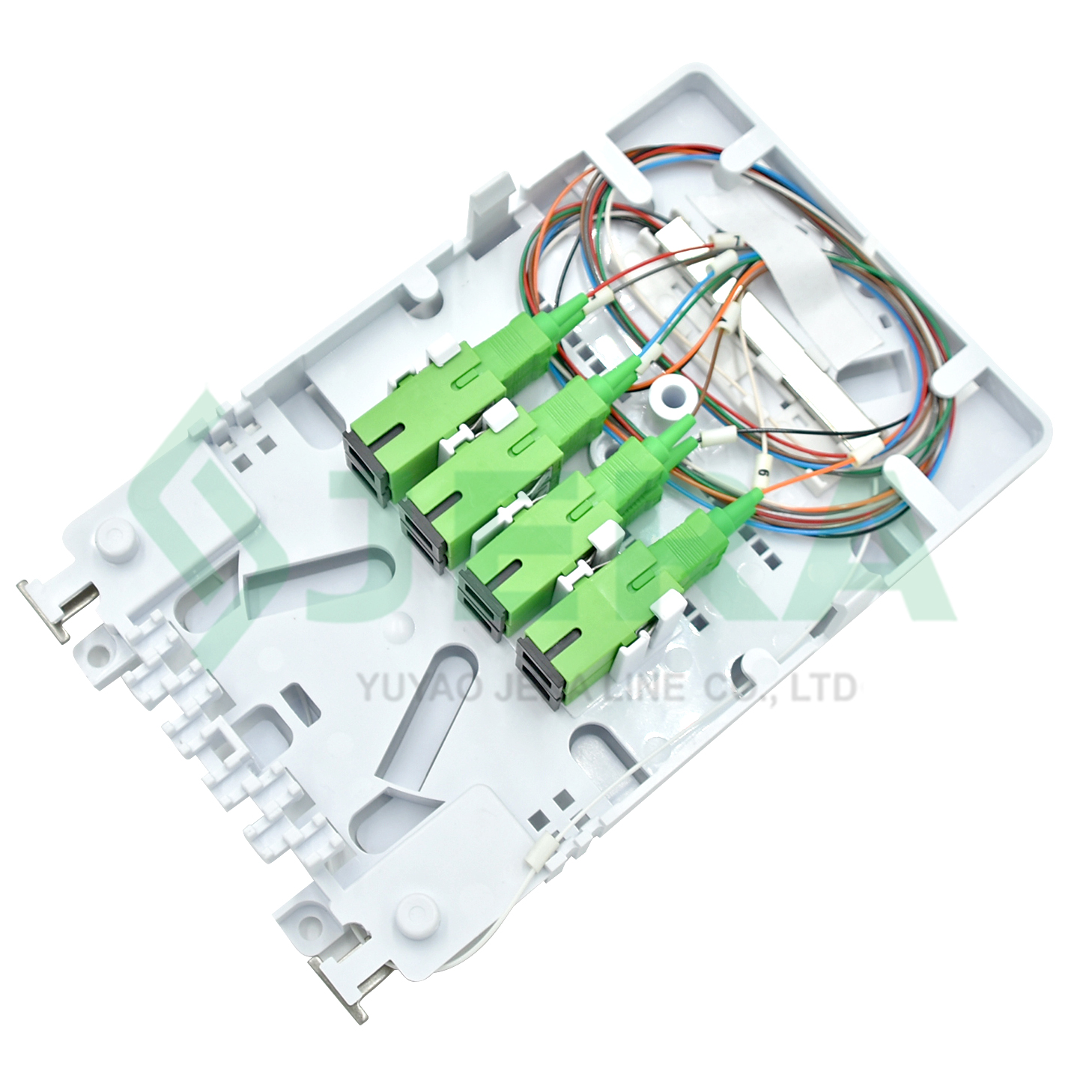

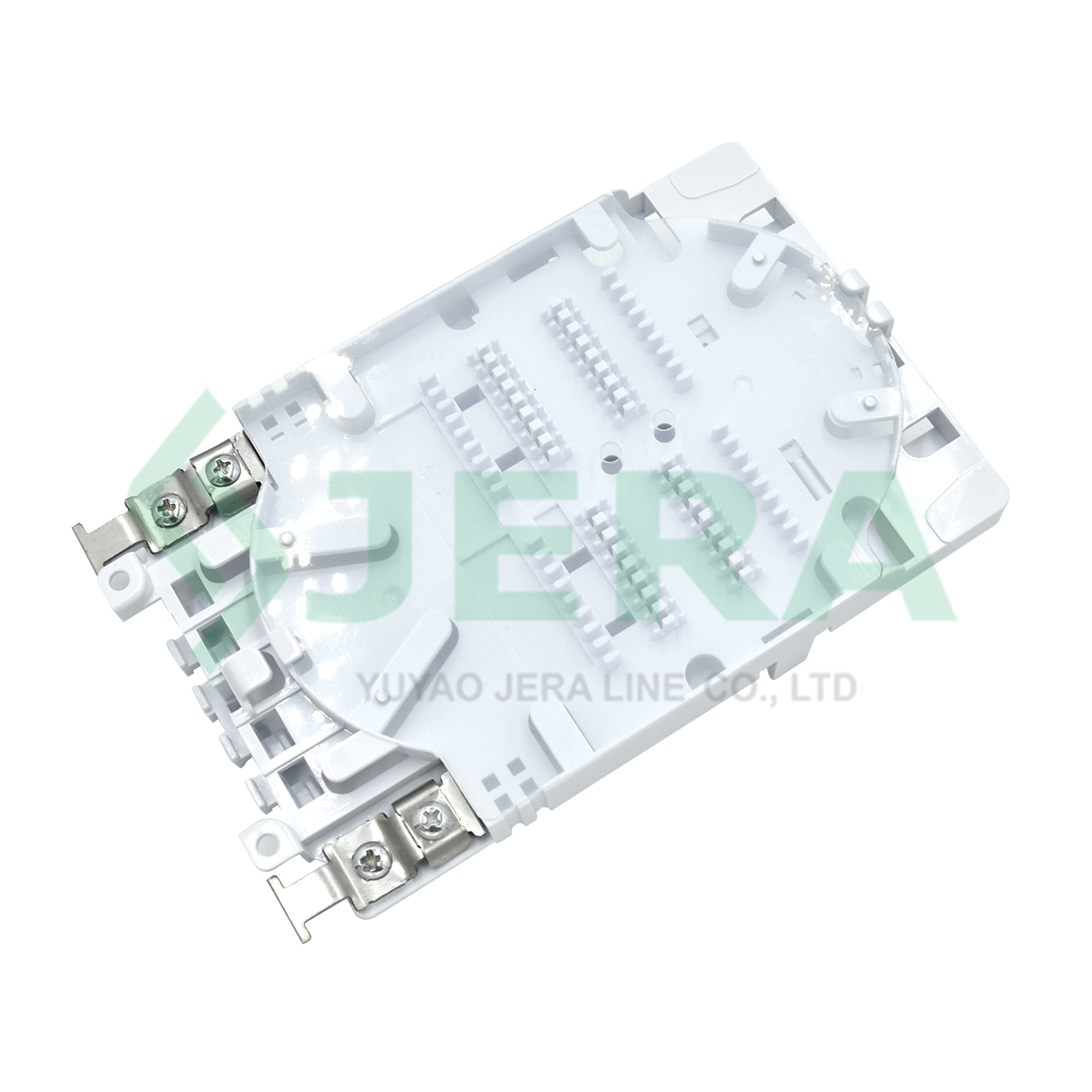

Extended splice tray for 1*8 or 1*4 splitters.
Extended space for cable splicing.
Splice tray maybe taken apart of mounted box for your convenience.
A Lid secures the PLC, adapters from any impact.

DESCRIPTION Specification Test

REVIEW

Ftth fiber optics application, outdoor pole or wall.

Used to connect the drop cables with the terminated ADSS fiber optic cable, in optical distribution networks.

Technical specification

Product code	FODB-8.6
Drop cables	8
Inputs cable diameters, mm	2 x Ø5-1 4
Output drop cables, mm	8×2.0*3.0 or 8× Ø3.0-2.0
Dimensions, mm	23015850
Max splicing capacity	16 (32 two layers)
SC Adapters	8
Splitters	2×14 or 1×18

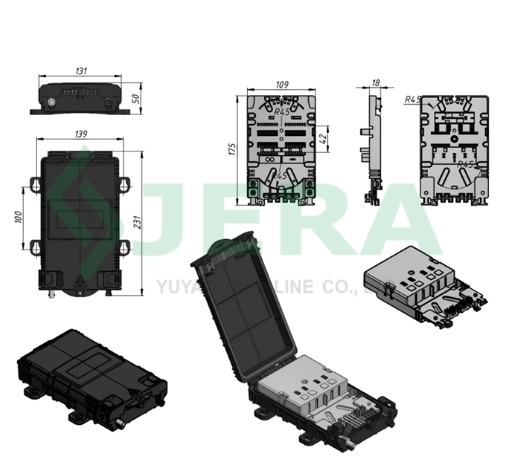

Drawing

Test

UV and temperature aging test other called climate aging test to examine the quality of materials or products if they meet expected functionality and lifetime. This test simulates different weather conditions, such as high humidity, high UV-radiation and high temperature.

We proceed test on almost all the overhead cable products

-Anchor clamps

-Fiber optic cable

-Fiber optic splice closures

-Fiber optic distribution boxes

-FTTH drop cable clamp

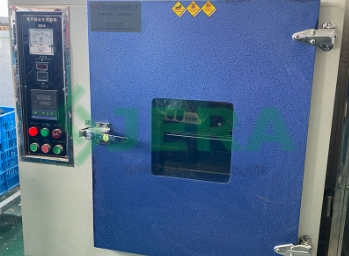

Test chamber was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment. Climatic aging test procedure involves put products into chamber with presetting humidity, UV radiation, temperature.

Test preformed by dozen of cycles of rising and falling mentioned criteria. Each cycle includes some hours of aggressive climatic conditions. All controlled by radiometer, thermometer etc. The radiation, temperature, humidity ratio and time have different values base on standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
