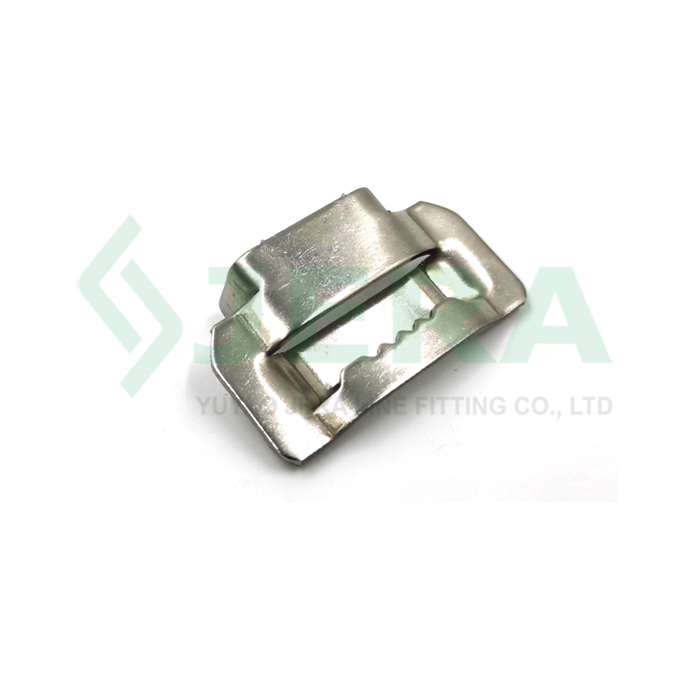

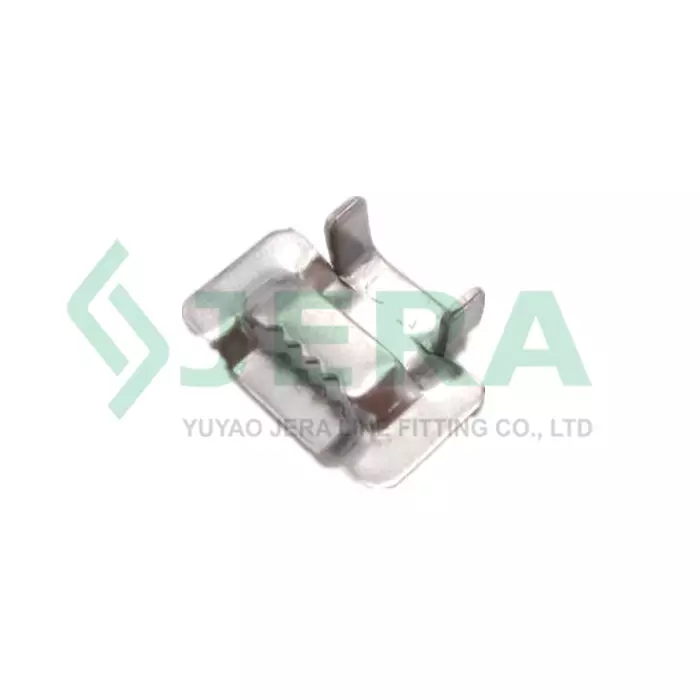

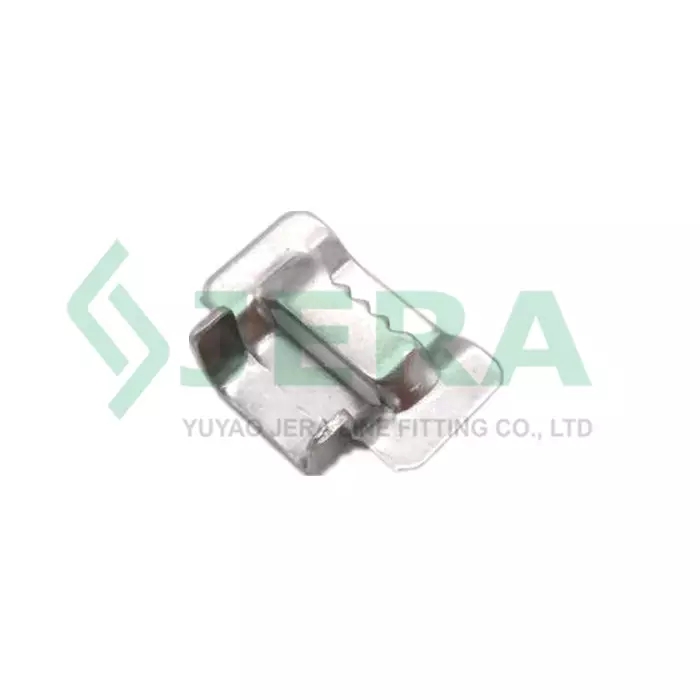

Stainless steel banding buckle, KL-16-T

Stainless steel banding buckle, KL-16-T
Stainless steel banding buckle, KL-16-T
Stainless steel banding buckle, KL-16-T
Stainless steel banding buckle, KL-16-T
Stainless steel banding buckle, KL-16-T
Stainless steel banding buckle, KL-16-T
Stainless steel banding buckle, KL-16-T
Stainless steel banding buckle, KL-16-T
Model No. :

KL-16-T

Description:

Steel banding buckles KL-16-T either called ear lokt banding buckle developed to attach pole fitting, anchor clamps, suspension fittings and other fittings or accessories together with stainless steel bands and banding tools.

    • Material grade: 304
    • Max band width:16mm-5/8”
    • Thickness:16
    • Type: Reinforced
    CONTACT NOW download data sheet
  • Product detail
  • Specification
  • Video
  • Our Advantages
  • Inquiry

Key Features

  • Compact size but with high mechanical strength
  • Weather proof, long time service life
  • Appropriate for 5/8”(16mm)
  • Different stainless steel grades option
  • Stable quality
  • Fair price
Stainless steel banding buckle, KL-16-T Stainless steel banding buckle, KL-16-T

SPECIFICATION

Jera stainless steel banding clips can be made of different stainless steel grades upon request, just like SUS 201, SUS 202, SUS 304 and SUS 316. The proceed method is based on punching technology which is available in our workshop.

Jera 5/8″ stainless steel buckle has better material strength compare to other suppliers. Relevant stainless steel straps and banding tools are available in our product range.

Stainless steel banding solution is used in many other industries, such as FTTH line constructions, power line deployments, transportation, marine, oil, mining and etc.

read more

APPLICATION

Jera line is operating refer to ISO9001:2015, we care about product quality and cost effective. We proceed a series test in our interior laboratory to inspect and test during daily production or new products development. Test includes tensile mechanical strength test, UV resistant test, corrosion test , aging test, temperature cycling test etc. For electrical power cable related products, they are mentioned in EN 50483-4, NFC 33020, and IEC 61238-1.

Jera is a direct manufacturer who supply a wide range product for low voltage line construction for cable terminating and branching. Our products includes anchor clamps, pole brackets, insulation piecing connectors, dead end guy grips, shear off mechanical lugs, cable connectors etc.

Welcome to contact us for more details for this stainless steel banding buckle.

read more

Manufacturing

Watch Our Factory Video

Product information:

stainless steel band buckle, either called tooth type buckle, used together will stainless steel strap and banding tools to fix pole fitting or accessories during ftth line constructions. Also due to its environmental stability and cost effective, it widely used in many industries such as electrical network line, marine, railway transportation, gas etc.

Key Features:

Aging and corrosion resistance
High mechanical strength
Overall stainless steel material, durable
Light weight, easy operation
Competitive price

Technical specification:

Product code

Max band width

Grades

Weight,kg

KL-16-T

5/8” – 16mm

201, 202, 304, 316

0.008

Related products: KL-20-T,MBT-003, MBT-004,

Jera steel strapping buckle can be made of different stainless steel trades, just like 201, 202, 304 and 316 depend on requirements from clients. The production is based on punching technology which is available in jera workshop. Stainless steel bands and banding tool are also available in our product range.

Compare to other suppliers, jera stainless steel strap buckle have better mechanical strength and weather resistance. And for different width and thickness stainless steel band, we could develop new product for it.

Stainless steel buckle has ultimate locking system which reinforced by two additional lines, which prevent the buckle from flexion, after installation. It can guarantee extra extended service life, and attaching under significant mechanical loads.

Installation of s/s buckles:

1.Cut the stainless steel strap with needed length by strap banding tool
2.Put on it the stainless steel buckle
3.Fix the strap by moving the strap banding tool wheel, then cut the band.

Jera line is a direct factory who produces components for outdoor and indoor FTTH deployments. Product includes fiber drop cable, drop clamps, tension clamps, fiber optical box, stainless steel straps,pole bracket and hooks etc.

 Welcome to send inquiry for this stainless steel buckle price.

Technical specification

Product code

Max band width

Grades

Weight,kg

KL-16-T

5/8” – 16mm

201,202,304,316

0.008

Product Video

FACTORY VIDEO

Factory picture

TESTING FACILITY

TESTING FACILITY

Cable OTDR
test

Tensile strength
test

Temp & Humi cycling
test

UV & temperature
test

Corrozion aging
test

Fire resistance
test

FAQ

  • 1. What area are you in?

    We are the factory, located in China busy in production of aerial FTTH solution consist of:

    • fiber cable,
    • pre-terminated patch cords,
    • cable clamps and brackets,
    • outdoor and indoor termination boxes, access terminals

    We produce a solution for optical distribution network ODN.



  • 2. Are you the direct manufacturer?

    Yes, we are direct factory with years of experience.

  • 3. Where is your factory located?

    Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.

  • 4. Why I should choose Jera Line?

    - We offer very competitive price.
    - We produce a solution, with suitable product recommendations.
    - We have the stable quality control system.
    - After sales product guarantee and support.
    - Our products were adjusted to work with each other to operate in a system.
    - You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
    - We are committed to long term refashions based on trust.

  • 5. Why you can offer competitive prices?

    Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/

  • 6. Why can you offer stable quality?

    Because we have quality system, find more details  https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/

  • 7. Do you offer a guarantee on your products?

    Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.

  • 8. How can I save logistics cost working with you?

    You can decrease up to 5% of your logistics cost working with us.
    Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com)

  • 9. What are the main products that you produce?

    We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.

  • 10. What's your trade term and payment terms?

    We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.

  • 11. Can you produce OEM orders?

    Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.

  • 12. Can you offer me product’s Customization and R & D?

    Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.

  • 13. What's your MOQ of new customers?

    Absence of MOQ criteria for first order.

  • 14. Can you provide free samples?

    Yes, we provide samples, which will same to the order.

  • 15. Will the quality of ordered products be the same to the sample what I have confirmed?

    Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.

  • 16. Where can I see yours’s products application?

    Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t

  • 17. How to get in touch with you?

  • 18. Where can I download your latest catalog

  • 19. Do you have global experience?

    Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
