GJYXFCH FTTH drop cable 4 Core

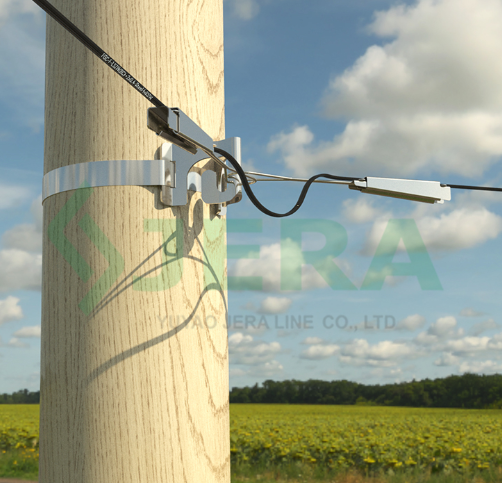

GJYXFCH FTTH drop cable 4 Core either called self-support fiber drop cable is a figure-8 fiber cable used to transmit light signal on last mile installation routes to connect final users to FTTH line.

Features

Reinfored with steel wire and FRP rod
Perfect for indoor and outdoor distribution networks
High connecting usability, easy access to the fiber core
High flexibility design, LSZH cable sheath
High mechanical tensile strength
Fair price of fig-8 drop cable

DESCRIPTION Specification Test

REVIEW

Jera line is operating according to ISO9001, we care about product quality and cost-effective, to provide the most suitable products for our customers which allow us to sell products to over 30 countries.

Jera is a direct fiber optic cable manufacturer, and we also produce related accessories for indoor and outdoor FTTx deployment. Products including drop wire clamps , adss clamps, fiber optic termination boxes, fiber optic splice closures, drop cable patchcords, pole hooks and bracekt, dead end guy grips and etc.

Welcome to contact us for more information about this GJYXFCH 4 Core fiber cable price.

Technical specification

Item	Technology Parameters
Applications	Outdoor
Product code	FOC-F8-1,0-Steel-LSZH(BC)+2×0,5-FRP-4x657A1-2,0×5,0
Cable specification	5.0*2.0
Fiber color	Natural
Fiber type	SM, 9/125 (G.652.D, G.657A1, G.657A2)
Sheath color	Black(white color upon request)
Sheath material	LSZH
Cable dimension,mm	5.0(±0.2)*2.0 (±0.2）
Messenger wire	Steel wire, d=1.0mm
Strength member	FRP rod, d=0.5mm
Crush resistance, N/100mm	2000
Operation temperature, ℃	-60~+70

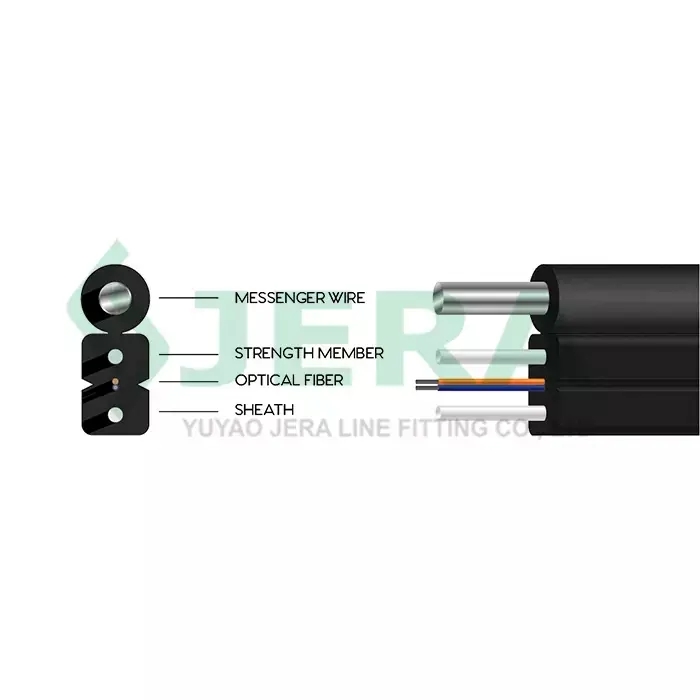

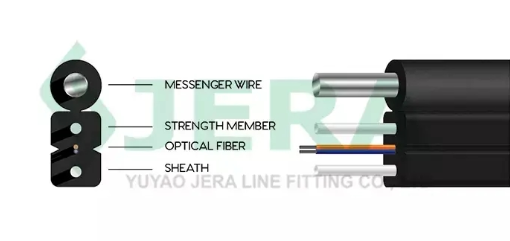

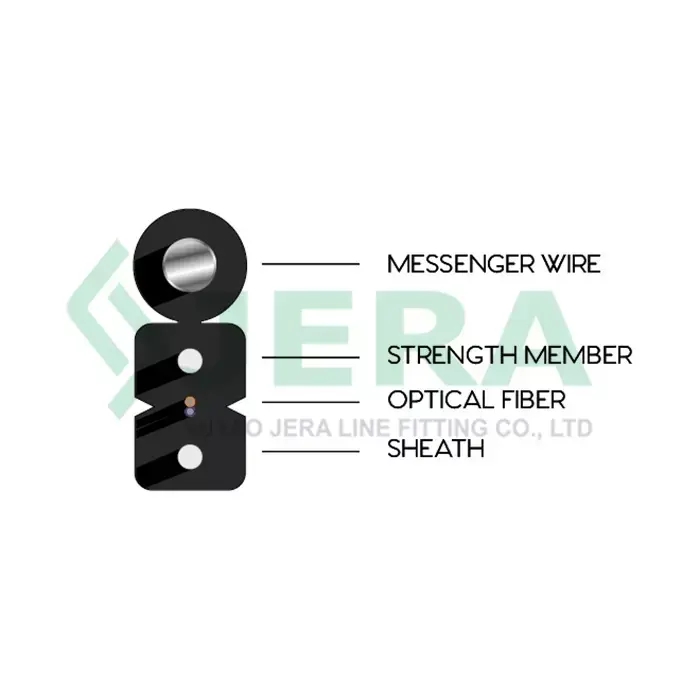

Drawing

TEST

Fiber optic core reflection test is proceed by Optical Time Domain Reflectometer (OTDR). Which is a device used to precisely detect faults in an optical fiber link of a communication networks. An OTDR generates a pulse inside a fiber to be tested for faults or defects. Different events within the fiber create a Rayleigh back scatter. Pulses are returned to the OTDR and their strengths are then measured and calculated as a function of time and plotted as a function of fiber stretch. The strength and returned signal tell about the location and intensity of the fault present. Not only maintenance, but also optical line installation services utilize OTDRs.

OTDR is useful for testing the integrity of fiber optic cables. It can verify splice loss, measure length and find faults. The OTDR is also commonly used to create a "picture" of fiber optic cable when it is newly installed. Later, comparisons can be made between the original trace and a second trace taken if problems arise. Analyzing the OTDR trace is always made easier by having documentation from the original trace that was created when the cable was installed. OTDR show you where the cables are terminated and confirm the quality of the fibers, connections and splices. OTDR traces are also used for troubleshooting, since they can show where breaks are in fiber when traces are compared to installation documentation.

Jera proceed test of FTTH drop cables on wavelengths (1310,1550 and 1625 nm). We use EXFO FTB-1 in this quality tests. Examining the quality of our cables to ensure ours customer could receive products which meet quality requirements.
