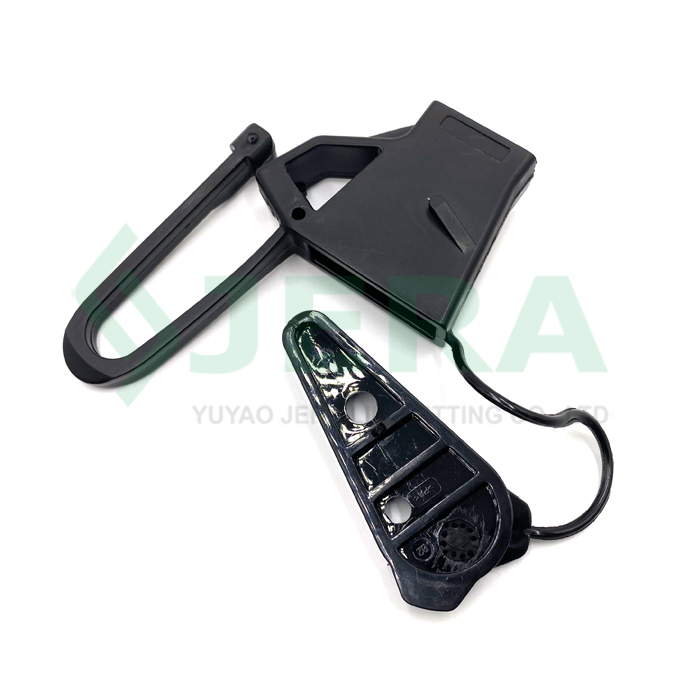

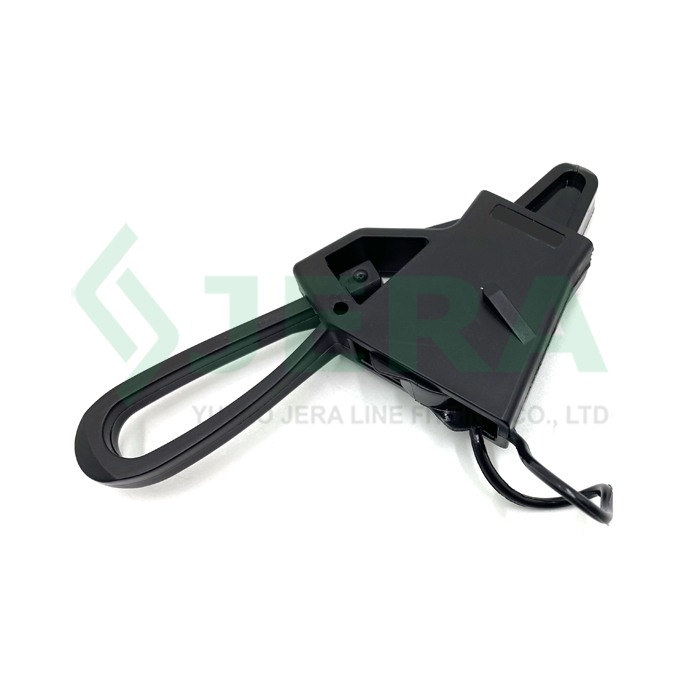

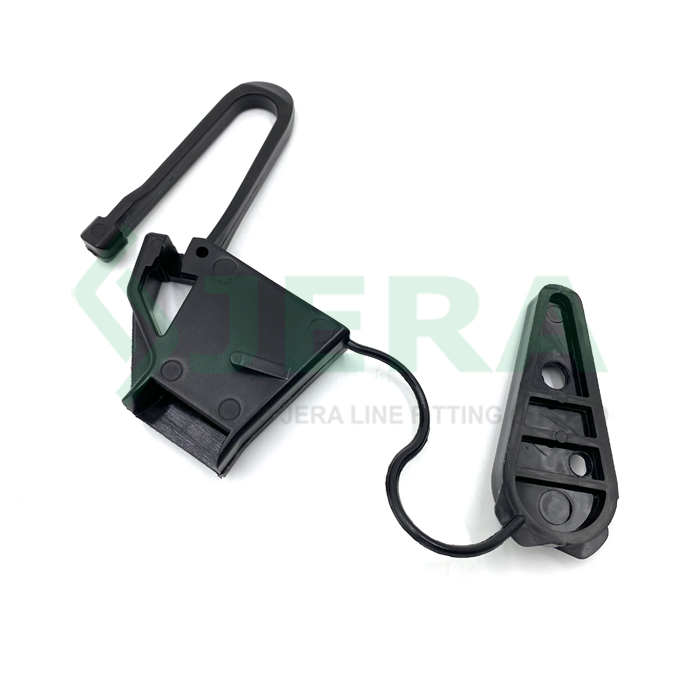

FTTH Drop wedge clamp D4

FTTH drop wedge clamp D4 also called drop cable clamp used tension flat & round fiber optical cable on dead-end or intermediate routes during FTTH network constructions.

Features

Cable type: Flat
Cable size:<4*<8 mm
Span:30-50 m
MBL: 0.5KN

DESCRIPTION Specification Test

REVIEW

Key Features

Cost-effective, all part single-piece design
Simple and quick hand installation, no need other tools
Anti-drop wire bail design
Full dielectric UV resistant thermoplastic, durable
Suitable fiber bending radius for ITU G.652D
Suitable for open or closed eye pole line hardware
Excellent environmental stability
Competitive price

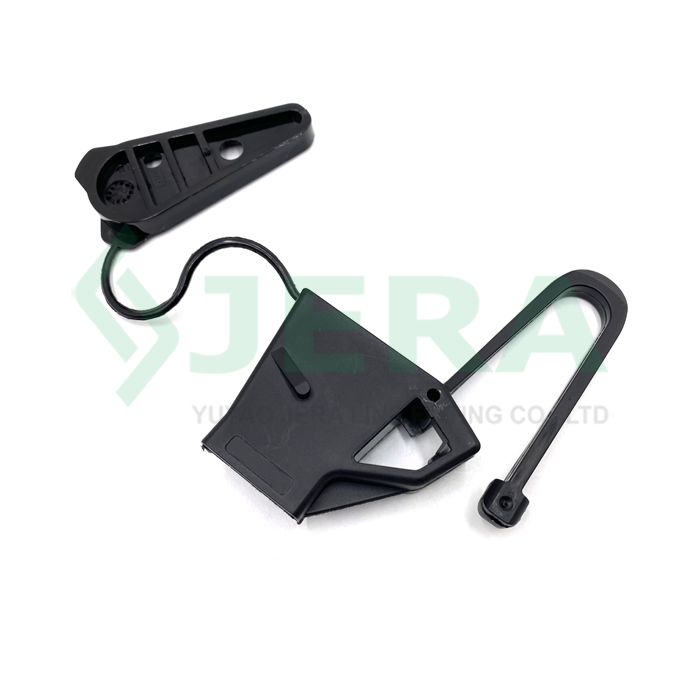

FTTH Drop wedge clamp D4

SPECIFICATION

The clamp applied in:

Cable diameter: <4×<8 mm

MBL, kN: 0.5

The cable clamp is used to connect and fix the optical cable wires.Integrated design, more convenient to use.

The interior is designed with grooves or patterns to increase the friction between the clamp and the wire to prevent loosening or falling off.

The shell is made of plastic with good insulation and strong UV resistance, which can not only protect the optical cable from the impact of the external environment, but also prevent the short circuit or electrical leakage of the wire and optical cable in contact with other components.

APPLICATION

The FTTH drop wedge clamp D4 is designed for dead-ending flat fiber optic drop cables in overhead distribution systems. It is suitable for installations on poles, walls, and facade brackets, providing secure cable anchoring without damaging the cable jacket. The clamp is widely applied in FTTH, FTTB, and FTTx access networks, supporting high-speed broadband deployment for residential and commercial users.
