Pre-connected drop cable 4 fibers
FOC-F-8(SW)+LSZH(B)+2SR
Description:
Pre-connected drop cable other called fiber optic drop cable with connector, was designed to applied in indoor or outdoor, on last mile installation routes to connect final users to FTTH or GPON line.
Compare to ordinary drop cables, this fiber optic drop cable equipped SC/APC connectors at one end which provide convenience for lineman or end users to connect last mile cable to fiber optic terminal box or other device.
- Application: Outdoor
- Connectors: 4 SC/APC
- Dimensions: 5.0*2.0 mm
- Reinforcement: Steel/FRP
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- One head of cable equipped with 4 SC/APC connectors
- Perfect for indoor and outdoor distribution networks
- High connecting usability, easy access to the fiber core
- Steel messenger wire and strength member guarantee high tensile strength
- UV radiation cable sheath for long time usage
- Manufacturing and tested according to IEC-60794 standard
- Fire redundant protection
- Fair price
SPECIFICATION
Pre-connected drop cable other called fiber optic drop cable with connector, was designed to applied in indoor or outdoor, on last mile installation routes to connect final users to FTTH or GPON line.
Compare to ordinary drop cables, this fiber optic drop cable equipped SC/APC connectors at one end which provide convenience for lineman or end users to connect last mile cable to fiber optic terminal box or other device.

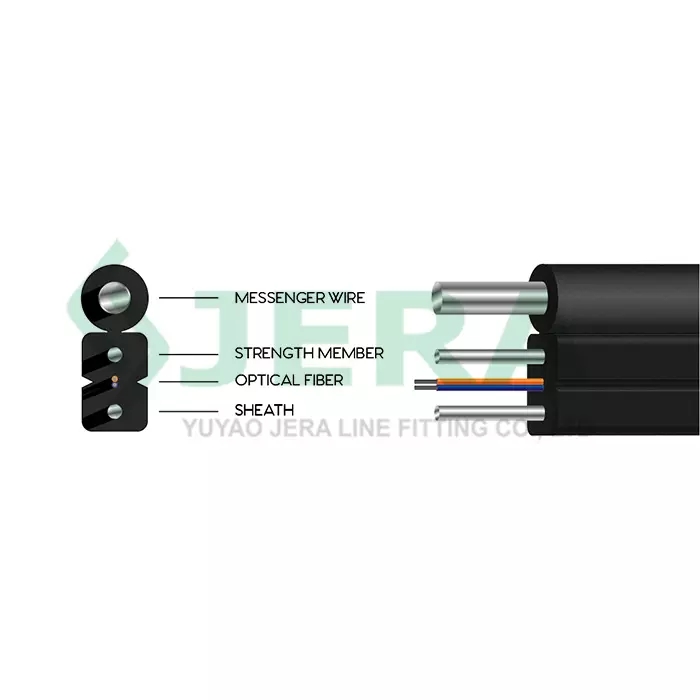

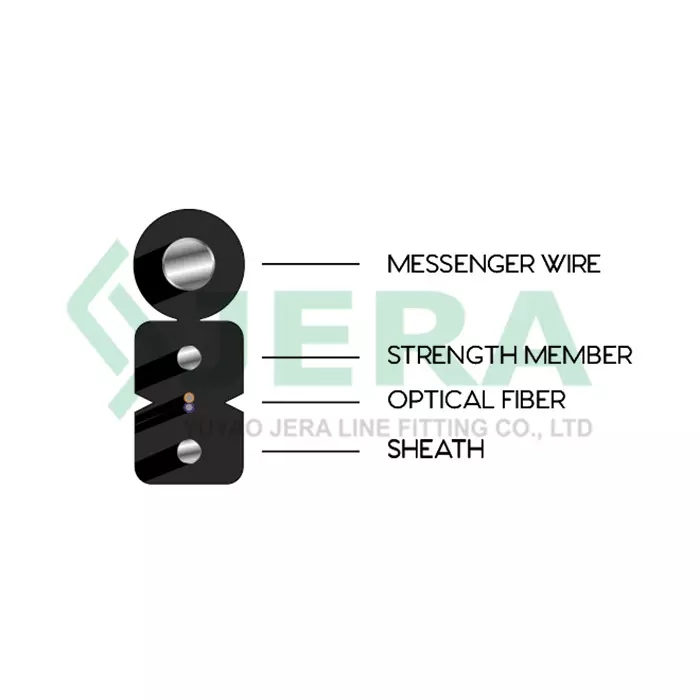

This drop cable with SC/APC connector consist of 4 fiber cores, one 1.0mm diameter steel wire, two 2*0.5mm diameter steel strength member and LSZH sheath. Fiber core can be made of G.652.D or G.657A1, G.657A2 grade fiber which could be chosen by customers. 1.0mm diameter steel wire and two 2*0.4mm diameter steel rods provide superior mechanical strength during outdoor application.
APPLICATION
Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.
Applied in drain system distribution networks of fiber optics. Blow in a cable into protective plastic pipes.
Manufacturing
Watch Our Factory Video
Technical specification
|
Item |
Technology Parameters |
|
Applications |
Outdoor |
|
Product code |
FOC-F-8(SW)+LSZH(B)+2SR-4*657A1-5*2-0.6 |
|
Cable specification |
5.0*2.0 |
|
Connectors |
4*SC/APC |
|
Fiber color |
Natural |
|
Fiber type |
SM, 9/125 (G.652.D, G.657A1, G.657A2) |
|
Sheath color |
Black(white color upon request) |
|
Sheath material |
LSZH |
|
Cable dimension,mm |
5.0(±0.2)*2.0 (±0.2） |
|
Messenger wire |
Steel wire, d=1.0mm |
|
Strength member |
Steel rod, d=0.4mm |
|
Cable wight, kg/km |
Approx. 20 |
|
Min. Bending radius mm |
10(Static) 25 (Dynamic) |
|
Attenuation, dB/km |
≤0.4 at 1310nm, ≤0.3 at 1550nm |
|
Short term tensile, N |
2000 |
|
Crush resistance, N/100mm |
2200 |
|
Operation temperature, ℃ |
-60~+70 |
PRODUCT VIDEO
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY

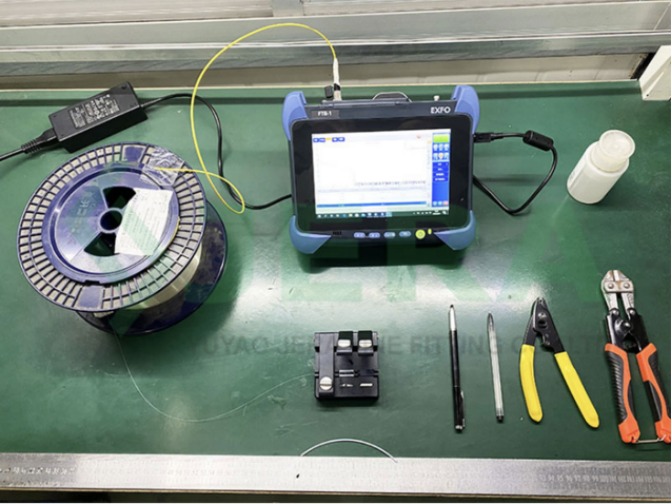

Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
