Fiber heat shrink tube for drop cable splicing RSG-TM-6*60mm

RSG-TM-6*60mm

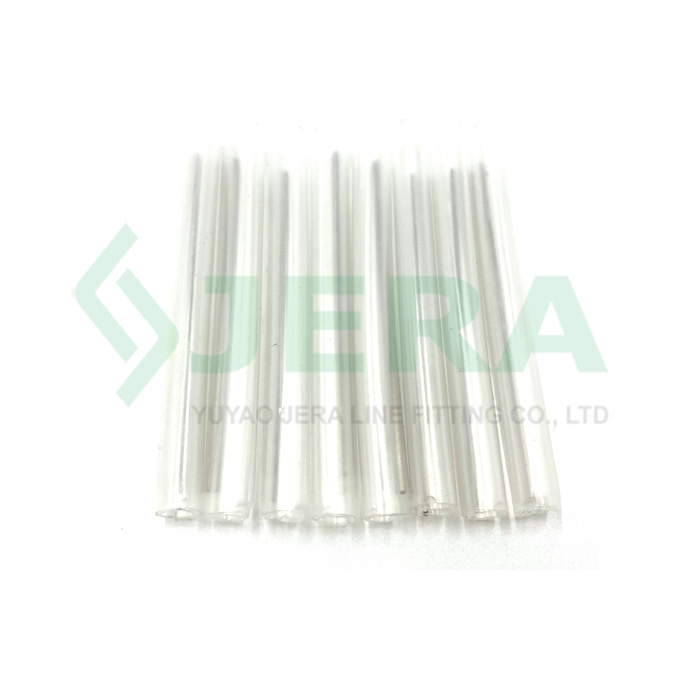

Fiber heat shrink tube for drop cable splicing also called drop cable splice sleeve. The tube can be used directly for protection of drop cable, after its welding. It’s widely used in FTTx line constructions.

Features

DESCRIPTION Specification Test

REVIEW

Key Features

Material: high quality PE, stainless steel
Smooth,deburred stainless steel reinforcing member
Extended liner length prevents contact between the fiber and the backbone
Clear sleeve design, allow easy centering of splice before heating
Sealing structure prevent fiber cable from effect of temperature and humidity
Easy operation, reduce the risk of fiber damage during installation
Operating temperature: -45~ 110℃
Fair price

Fiber heat shrink tube for drop cable splicing also called drop cable splice sleeve. The tube can be used directly for protection of drop cable, after its welding. It’s widely used in FTTx line constructions.

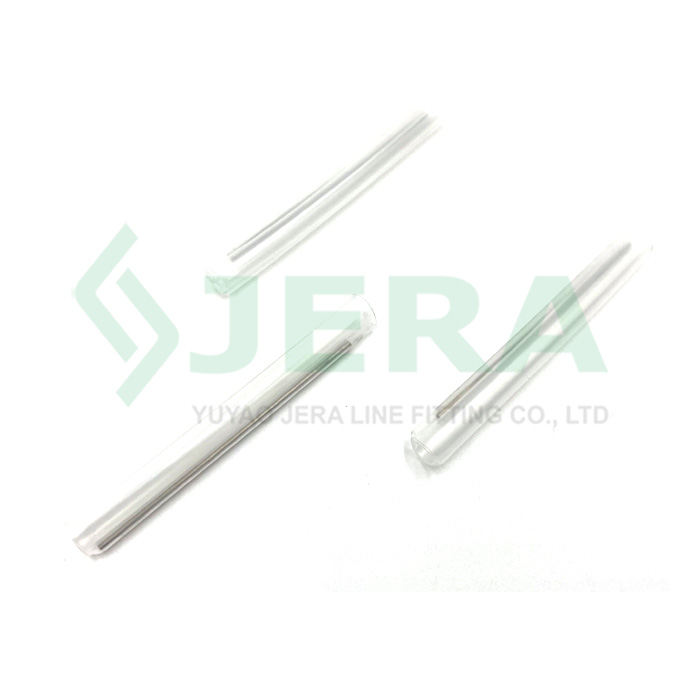

Fusion splice protection sleeve consist of out tube (Shrink tube), inner tube(fiber tube) and strength member(steel rod). Plastic parts is made of high quality PE, and steel rod is made of stainless steel. All these material keep optic transmission properties of optical fiber and improve the protection to optical fiber splices.

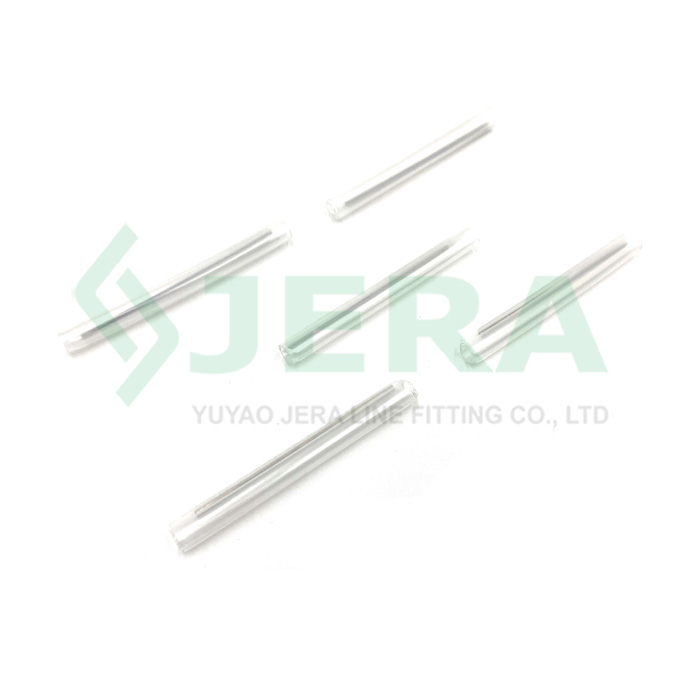

This drop cable heat shrink tube provide a easy way and good protection for fiber splicing. The sealing structure make the splice free from influence of temperature and humidity in various weather condition.

read more

We have an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards.

Jera is operating according ISO9001:2015, we are a direct factory produce fiber optic cables and related accessories. Such as **drop clamps** , fiber optic termination boxes, ADSS tension clamps, suspension clamps, dead end guy grips etc.

We have introduced plenty of engineering know-how, to provide you with the ultimate in confidence when choosing our solution. Welcome to contact us for more information about this drop cable heat shrink tube price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Code	Length, mm	Application cable size	Material	Working Temperature	Shrinking temperature range
RGS-TM-6*60	60	3.0*2.0 or Φ3.0 mm	PE, stainless steel	-45~ 110℃	120 ℃
