Fiber cable clamp FTTH PA-160

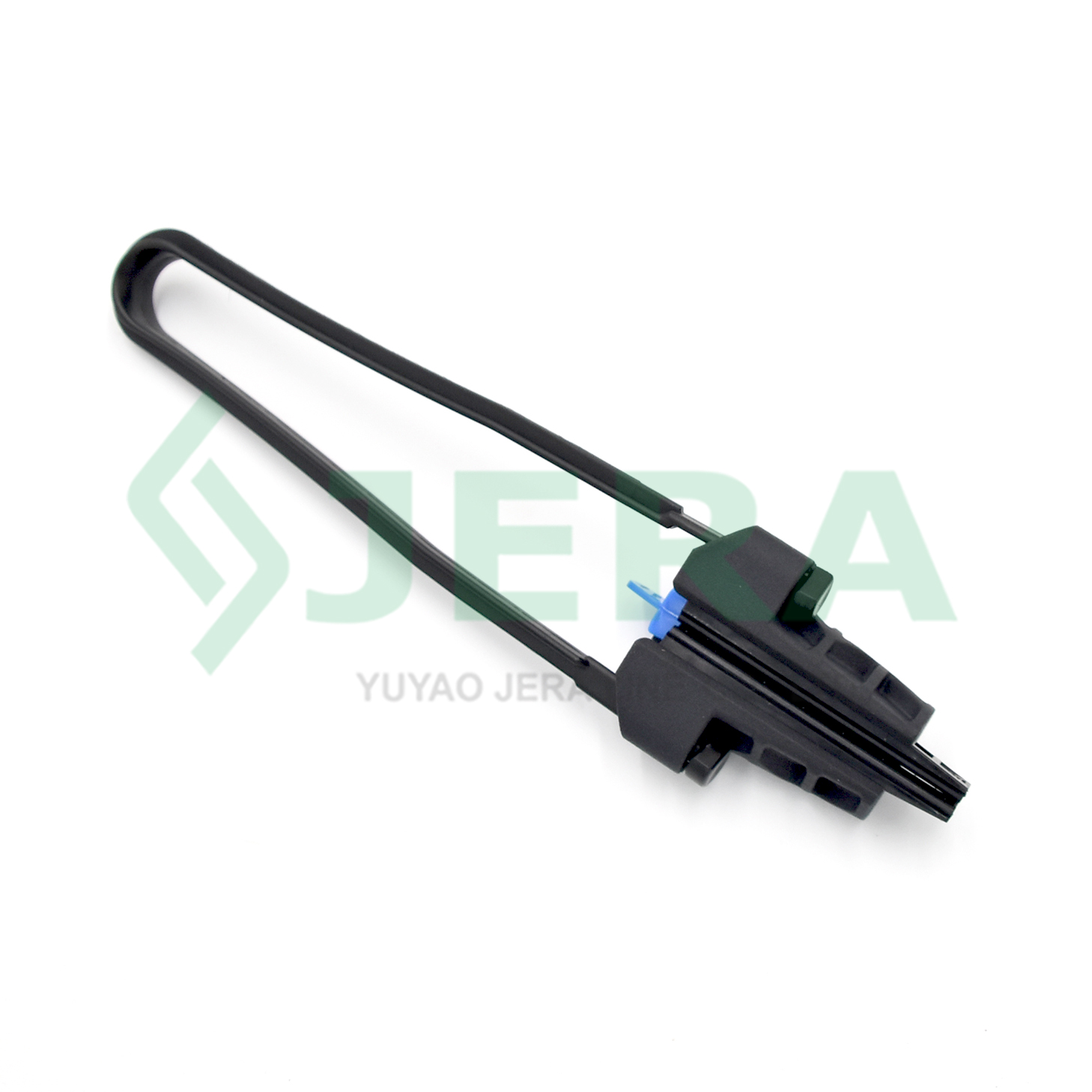

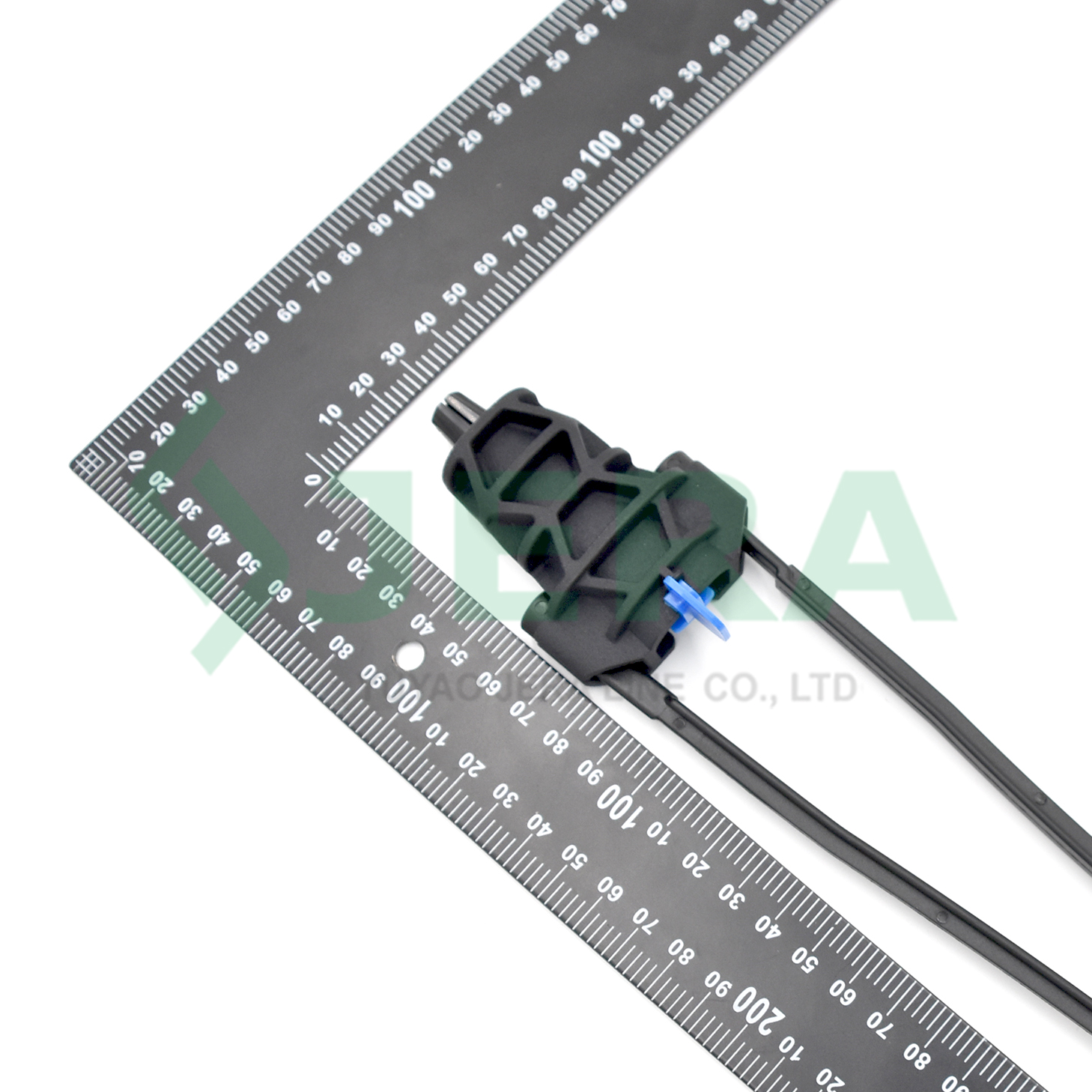

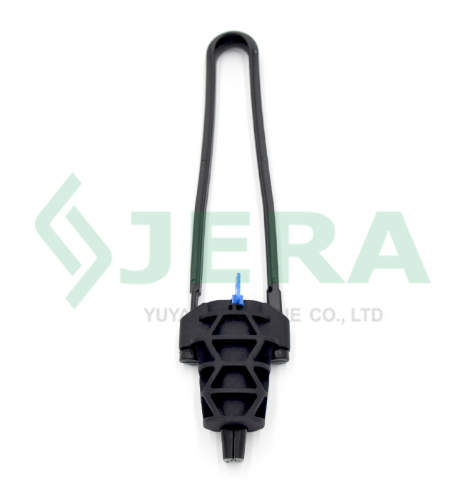

Fiber cable clamp FTTH PA-160 also called ALL plastic Anchor clamp, Is a device used to secure and manage fiber optic cables. This kind of Anchor clamp consists of main body, adjustable wedge and handle. It can connect the insulated Figure 8 cable to the pole or wall.

Features

ALL plastic body
Easy installation requiring no tools
Suits to 3-5 mm diameter Figure 8 cables
UV resistant polymer for long using
Resistant to mechanical traction, able to withstand 0.5 or 1 KN (depend on request) tension
Excellent environment stability
Factory direct sale

DESCRIPTION Specification Test

REVIEW

APPLICATION

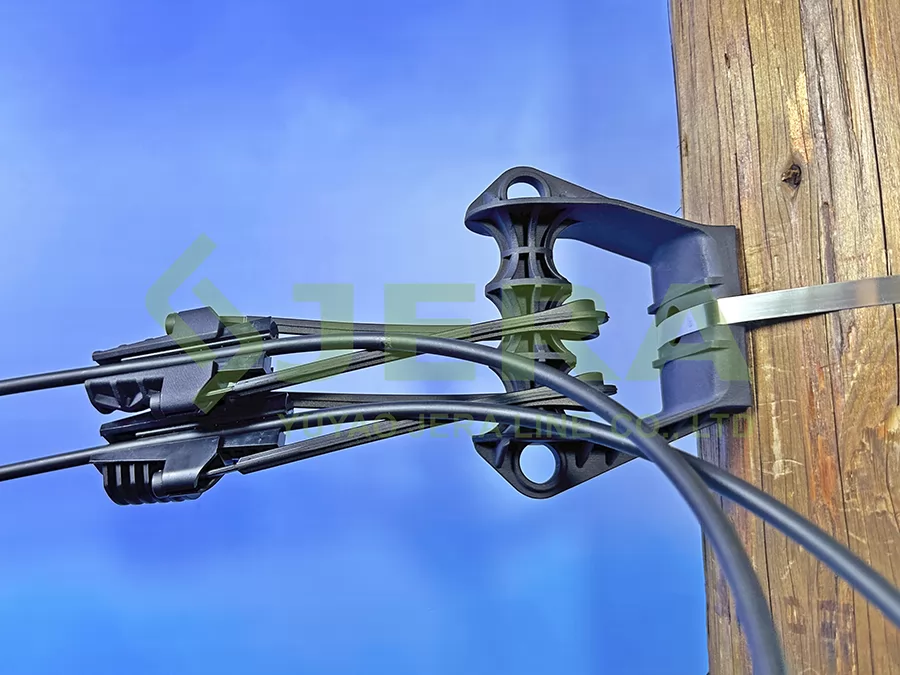

Applied in outdoor FTTH and FTTx network deployments for anchoring and securing 3–5 mm figure-8 fiber optic drop cables. The FTTH fiber cable clamp PA-160 is widely installed on telecommunication poles, wall-mounted brackets, hooks, and other support hardware to provide reliable cable retention and strain relief.

It is suitable for last-mile fiber access networks, enabling cable routing between utility poles, residential buildings, commercial facilities, industrial constructions, and campus communication systems. The clamp effectively withstands wind loads, cable tension, and environmental stresses while preventing damage to the cable jacket during operation.

Manufactured from UV-resistant polymer materials, the PA-160 ensures long-term performance in harsh outdoor conditions, including exposure to sunlight, humidity, rain, and temperature fluctuations. Its lightweight, tool-free design allows fast installation and reduced deployment costs, making it an ideal solution for FTTH drop cable installations in both urban and rural broadband projects.

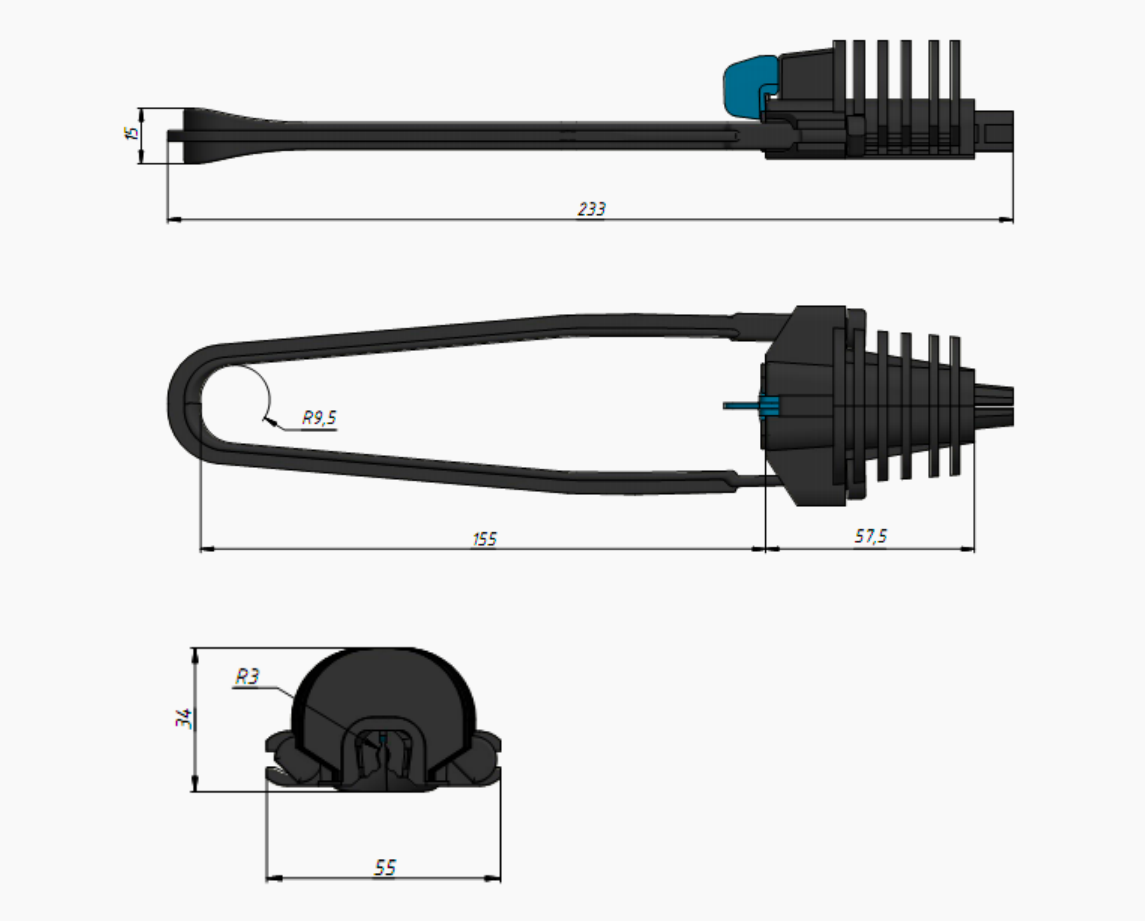

Technical specification

Product code	Cable diameter mm	MBL, KN	Material
PA-160	3-5	0.5 or 1 (depend on request)	UV resistant polymer

TEST

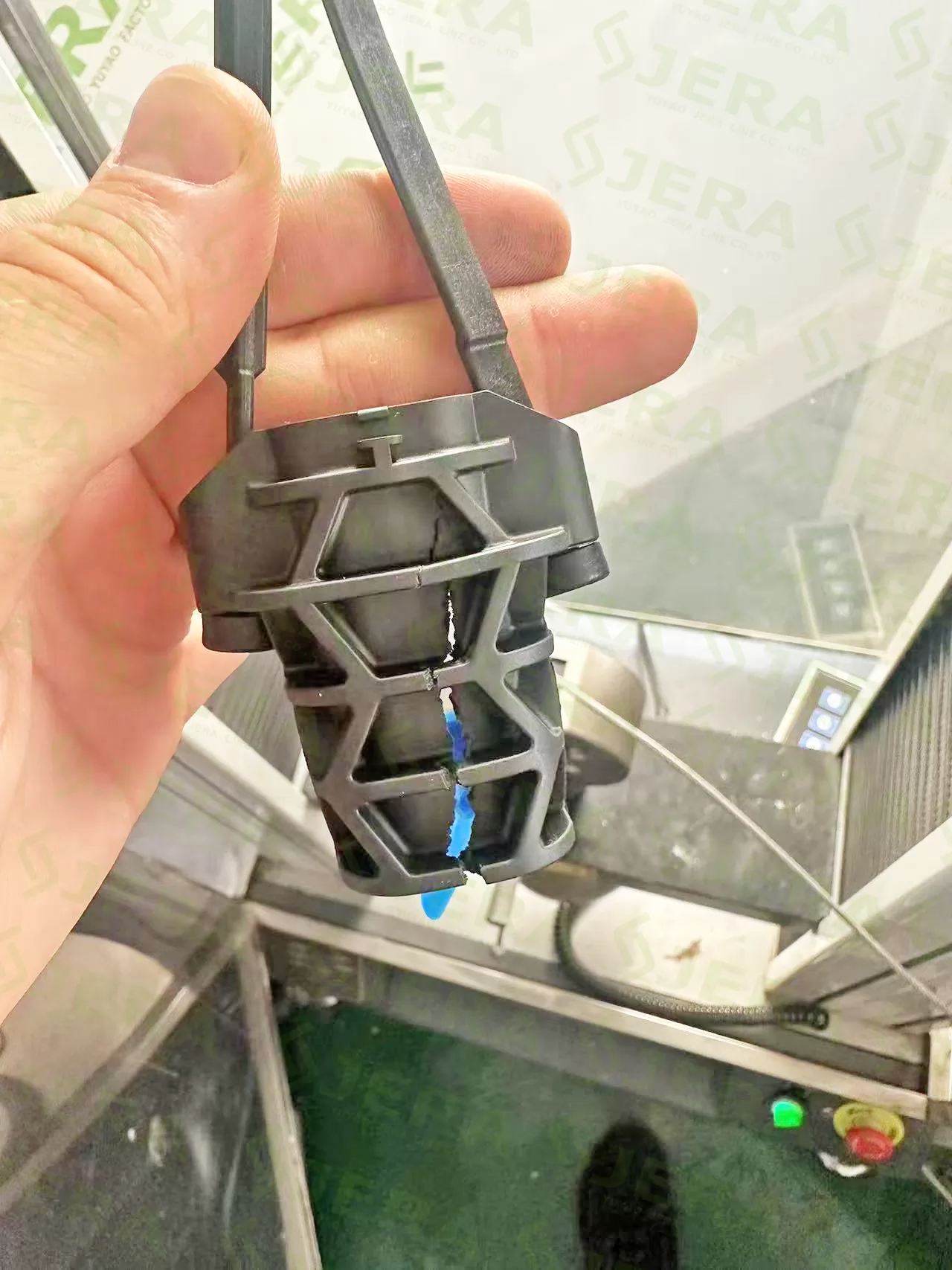

Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.

This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.

Jera proceed this test on below products

-Pole line suspension clamps

-Preformed guy grips

-ADSS strain dead ends

-Stainless steel bands

-FTTH drop clamps

-Strain clamps

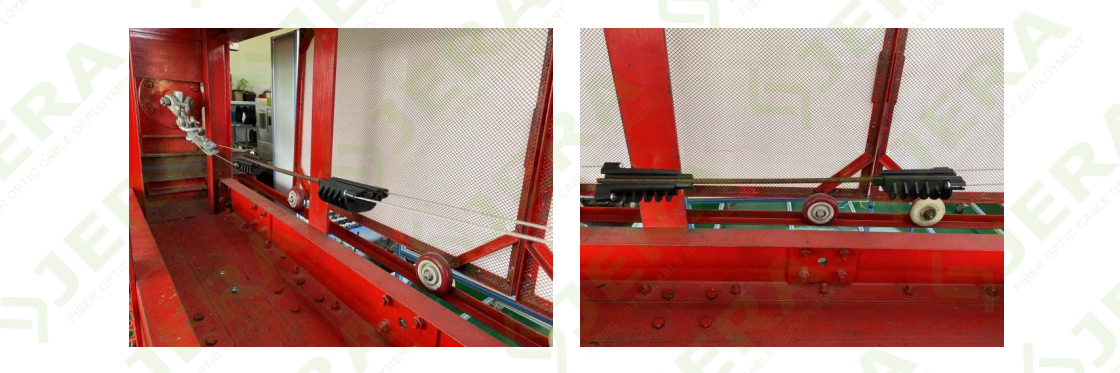

Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.

We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
