Self tightening tie ZDZD
Self tightening tie ZDZD

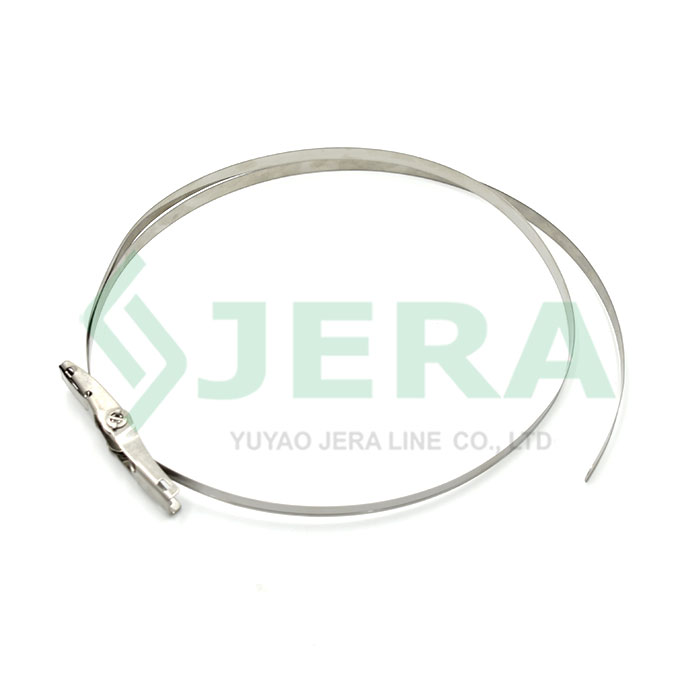

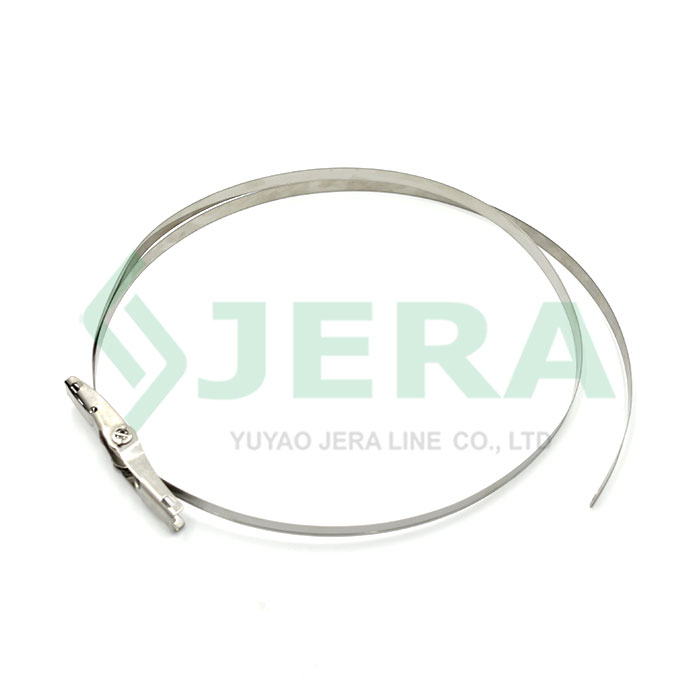

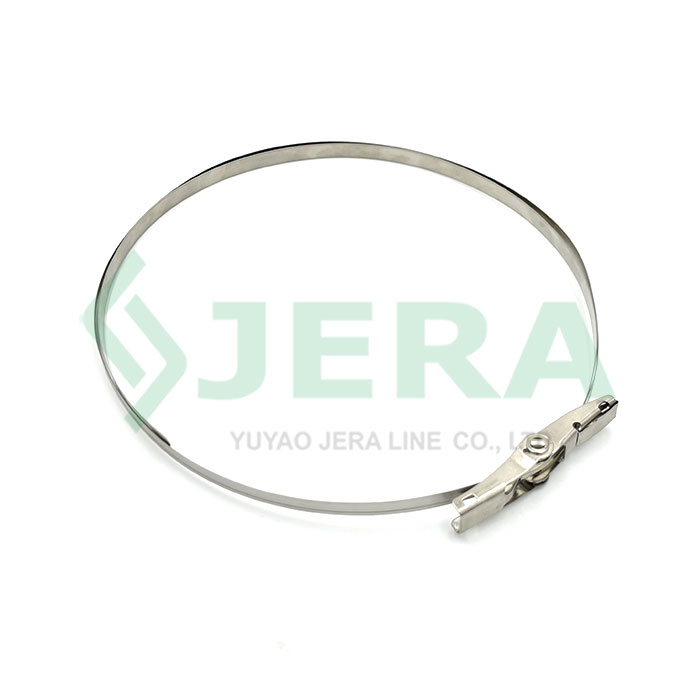

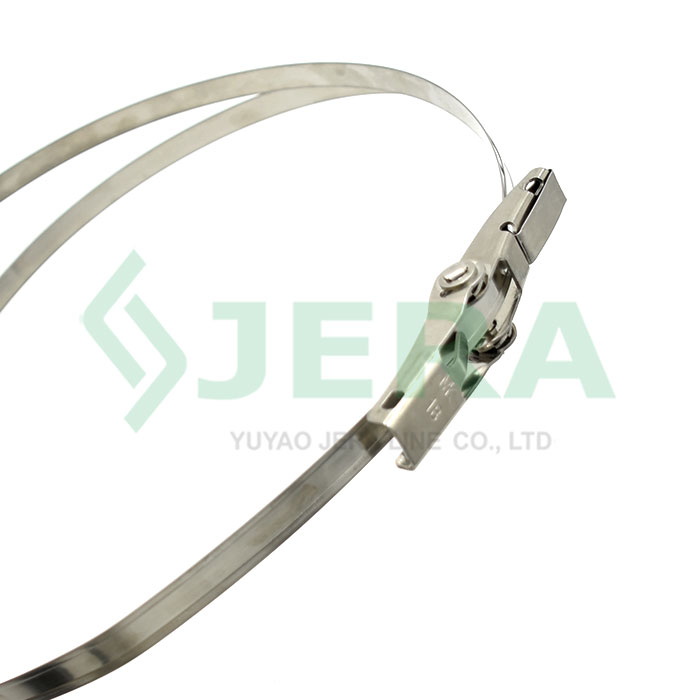

Description:
Self tightening tie ZDZD also called banding tie-locked, is a cost-effective single wrap, preformed, smooth ID clamp. The Stainless steel tie was previously referred to as the Universal Clamp and is not recommended for clamping hose fittings.
- Width: 10 mm
- Thickness: 0.4 mm
- Length: 800 m
- Material grade: 304
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Material: stainless steel AlSl 304.
- Non-magnetic steel tape and locking mechanism.
- Operating temperature:-80′C to +538 °C.
- Installation temperature: against -50 °C
- Improved locking mechanism.
- Reliable fasteners and fixation even in oil environment
- No special tools are required for installation.
SPECIFICATION
The self tightening tie is made by AISI 304. The steel strap is fixed in the form of a lock. Here’s how to use it:
1. Cut the stainless steel tape (SB)10 cm longer than the circumference of the pole to be mounted.
2. Thread the steel strip(SB).Leave the mounting length at least 5 cm.
3. Thread the second (free)section of the tape cut into the mounting hole of the central rotating mechanism. Add stock of at least 1 cm.
4. Rotate the Pivot arm several times until the required tension of the steel tape is created.
5. After creating a sufficient tension of the steel strip must be closed before the closure of the groove in the protrusion.
APPLICATION
Designed for banding and fixing in aggressive environments, high vibration, radiation, humidity and extreme temperature difference. Features For outdoor and indoor installation.
Welcome to consult the JERA LINE sales team at any time for information about steel belt buckles and related tools.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Width, mm |
Thickness, mm |
Length, mm |
Material |
|
ZDZD |
10 |
0.4 |
800 |
C304 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
FAQ
-
1. What area are you in?
We are the factory, located in China busy in production of aerial FTTH solution consist of:
- fiber cable,
- pre-terminated patch cords,
- cable clamps and brackets,
- outdoor and indoor termination boxes, access terminals
We produce a solution for optical distribution network ODN.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We offer very competitive price.
- We produce a solution, with suitable product recommendations.
- We have the stable quality control system.
- After sales product guarantee and support.
- Our products were adjusted to work with each other to operate in a system.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust. -
5. Why you can offer competitive prices?
Because we the direct factory has competitive prices, find more info here: https://www.jera-fiber.com/competitive-price/
-
6. Why can you offer stable quality?
Because we have quality system, find more details https://www.jera-fiber.com/about-us/guarantee-responsibility-and-laboratory/
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee. Our vision is to build a long-term relationship with you. But not one-shot order.
-
8. How can I save logistics cost working with you?
You can decrease up to 5% of your logistics cost working with us.
Save Logistic Cost – Yuyao Jera Line Fitting Co., Ltd. (jera-fiber.com) -
9. What are the main products that you produce?
We produce a solution, for aerial fiber optic cable FTTH/FTTX deployment (cable + clamps + boxes), constantly developing new products.
-
10. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
11. Can you produce OEM orders?
Yes, we can. Also we can customize packaging design, brand naming, etc. upon requirements.
-
12. Can you offer me product’s Customization and R & D?
Yes, we have RnD department, Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
13. What's your MOQ of new customers?
Absence of MOQ criteria for first order.
-
14. Can you provide free samples?
Yes, we provide samples, which will same to the order.
-
15. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
16. Where can I see yours’s products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
17. How to get in touch with you?
-
18. Where can I download your latest catalog
Here you can do it: https://www.jera-fiber.com/about-us/download-catalog-2/
-
19. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends.
