Drop cable steel wire and FRP rods reinforced, 2 fibers
FOC-F8-1,0-Steel-LSZH(BC)+2x0.5-FRP
Description:
Ftth drop cable steel wire and FRP rods reinforced, 2 fibers other called self-support fiber optic cable is designed to used indoor and outdoor, on last mile installation routes to connect final users to FTTH or GPON line. It’s constructed from two fiber cores, reinforced and protected with special material to have good physical properties during applications.
-
Application: Outdoor
- Fiber quantity: 2 fiber
- Dimensions: 5.0*2.0 mm
- Reinforcement: Steel/FRP
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Perfect for indoor and outdoor distribution networks
- High connecting usability, easy access to the fiber core
- Reliability, reinforced by steel strength member
- High flexibility design, fire redundant protect
- Tensile load up to 2000N, crushing load up to 2.2kn/10cm
- Minimum dimension and weight of drop cable
- UV radiation protection
- Competitive price
SPECIFICATION

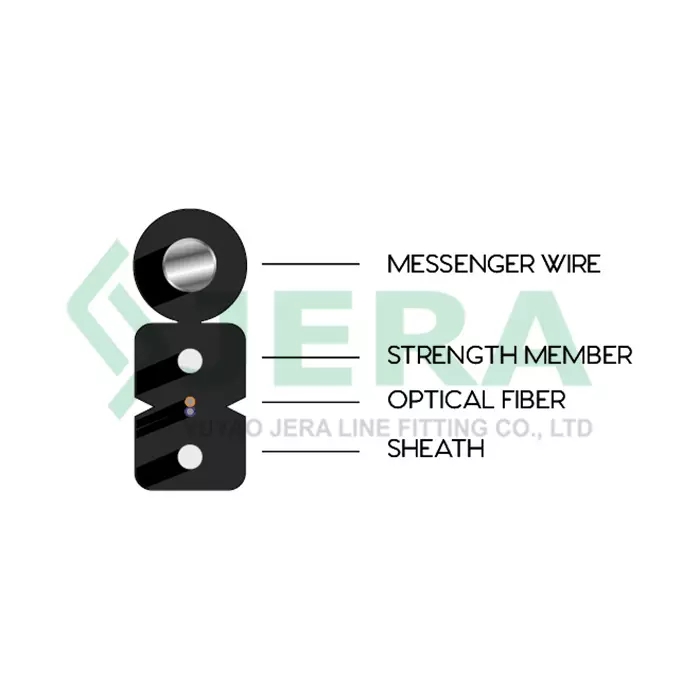

The cable consists of:
- The cable dimensions:
- Width : 5.0 ± 0.2mm
- Height: 2.0±0.2mm
- Fiber quantity is 2 fiber.
- One of 1.0 mm diameter and two of 0.5 mm diameter steel strength member/rod.
- LSZH jacket sheath, UV protected.
Optical fiber of Single mode G.657A1/A2 or G.652D grades of fiber standards.
The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.
Strength members maybe extra protected by galvanization treatment.
LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.
APPLICATION
Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.
Manufacturing
Watch Our Factory Video
Technical specification
|
Item |
Technology Parameters |
|
Applications |
Outdoor |
|
Product code |
FOC-F8-1,0-Steel-LSZH(BC)+2×0,5-FRP-2x657A1-2,0×5,0-1000 m |
|
Cable specification |
5.0*2.0 |
|
Fiber color |
Natural,blue |
|
Fiber type |
SM, 9/125 (G.652.D, G.657A1, G.657A2) |
|
Sheath color |
Black(white color upon request) |
|
Sheath material |
LSZH |
|
Cable dimension,mm |
5.0(±0.2)*2.0 (±0.2） |
|
Messenger wire |
Steel wire, d=1.0mm |
|
Strength member |
FRP rod, d=0.5mm |
|
Cable wight, kg/km |
Approx. 19 |
|
Min. Bending radius mm |
10(Static) 25 (Dynamic) |
|
Attenuation, dB/km |
≤0.4 at 1310nm, ≤0.3 at 1550nm |
|
Short term tensile, N |
600 |
|
Crush resistance, N/100mm |
2200 |
|
Operation temperature, ℃ |
-60~+70 |
PRODUCT VIDEO
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY
Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
