5/8” Stainless Steel Strap

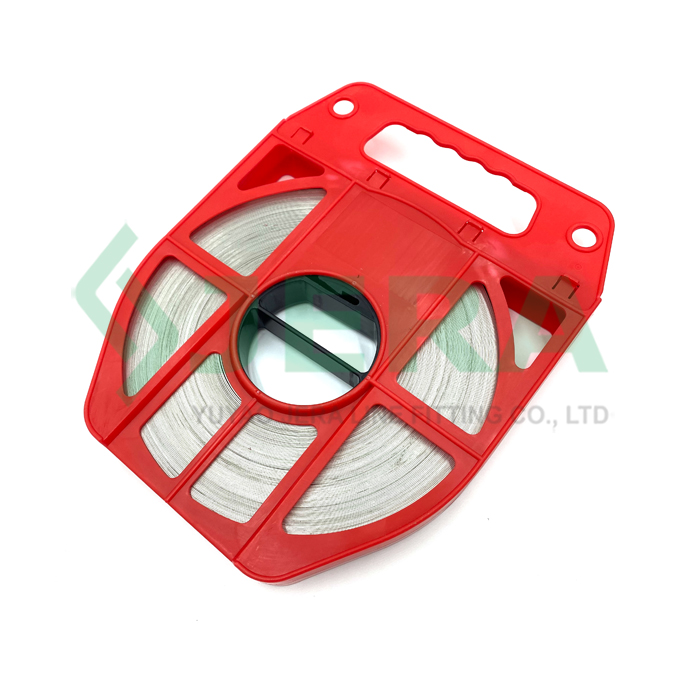

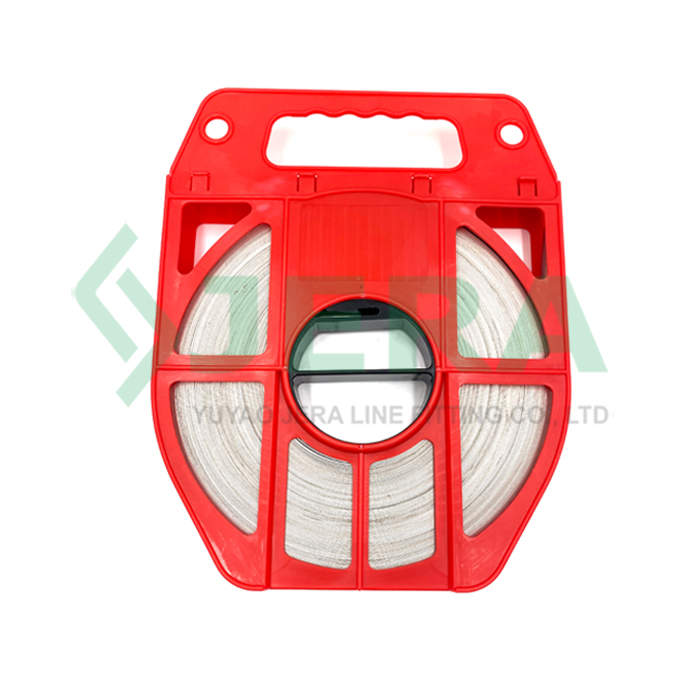

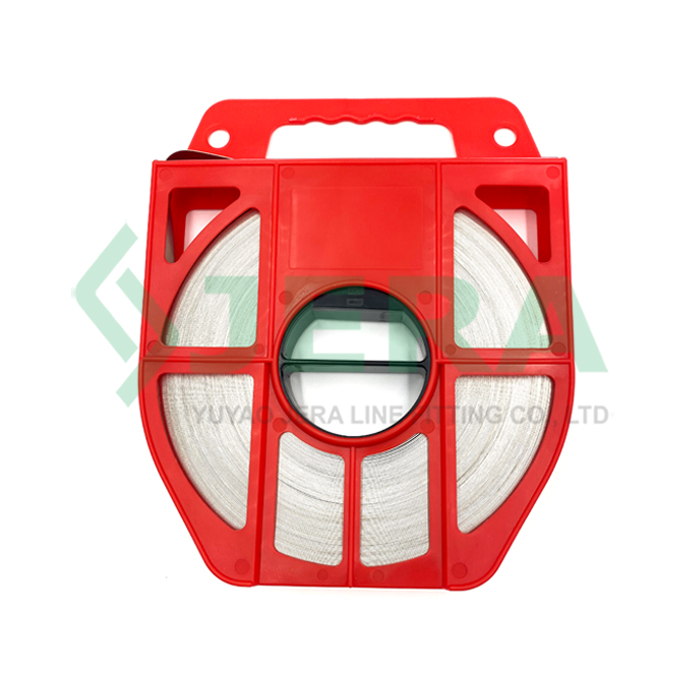

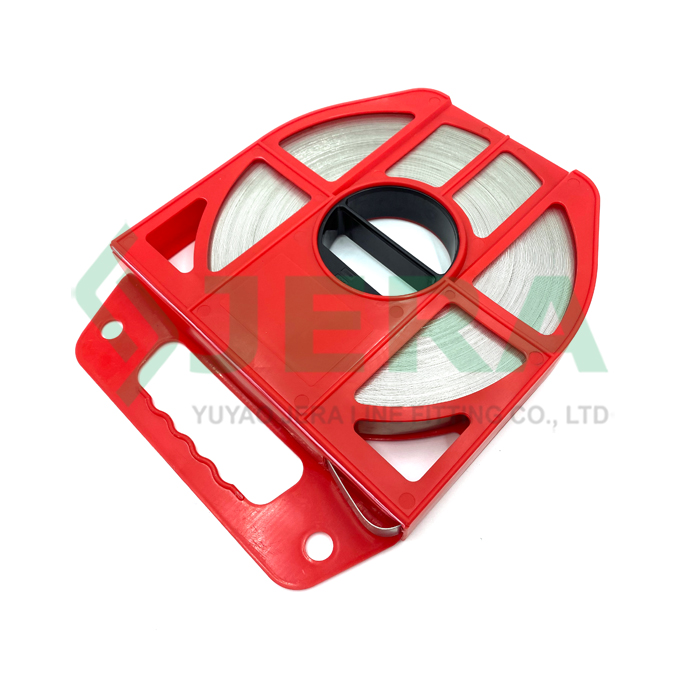

5/8'' Stainless Steel Strap 201

Stainless steel strapping band, other calls stainless steel bands designed for attaching cable clamps, such as suspension clamps, tension clamps and hooks, on dead-end and intermediate routes of main or end use electrical connections.

Features

Width:16 mm 5/8”
Thickness: 0.7 mm-0.028”
Length: 30/50 m
Materials: 201 Stainless steel

DESCRIPTION Specification Test

REVIEW

Application

Our 5/8” 201 stainless steel strap is a versatile fastening solution widely used in fiber optic cabling, utility pole installation, cable routing and general outdoor hardware projects.

With a standard width of 5/8 inch, this metal strap delivers reliable tension and stable binding performance for various cables, brackets and mounting accessories.

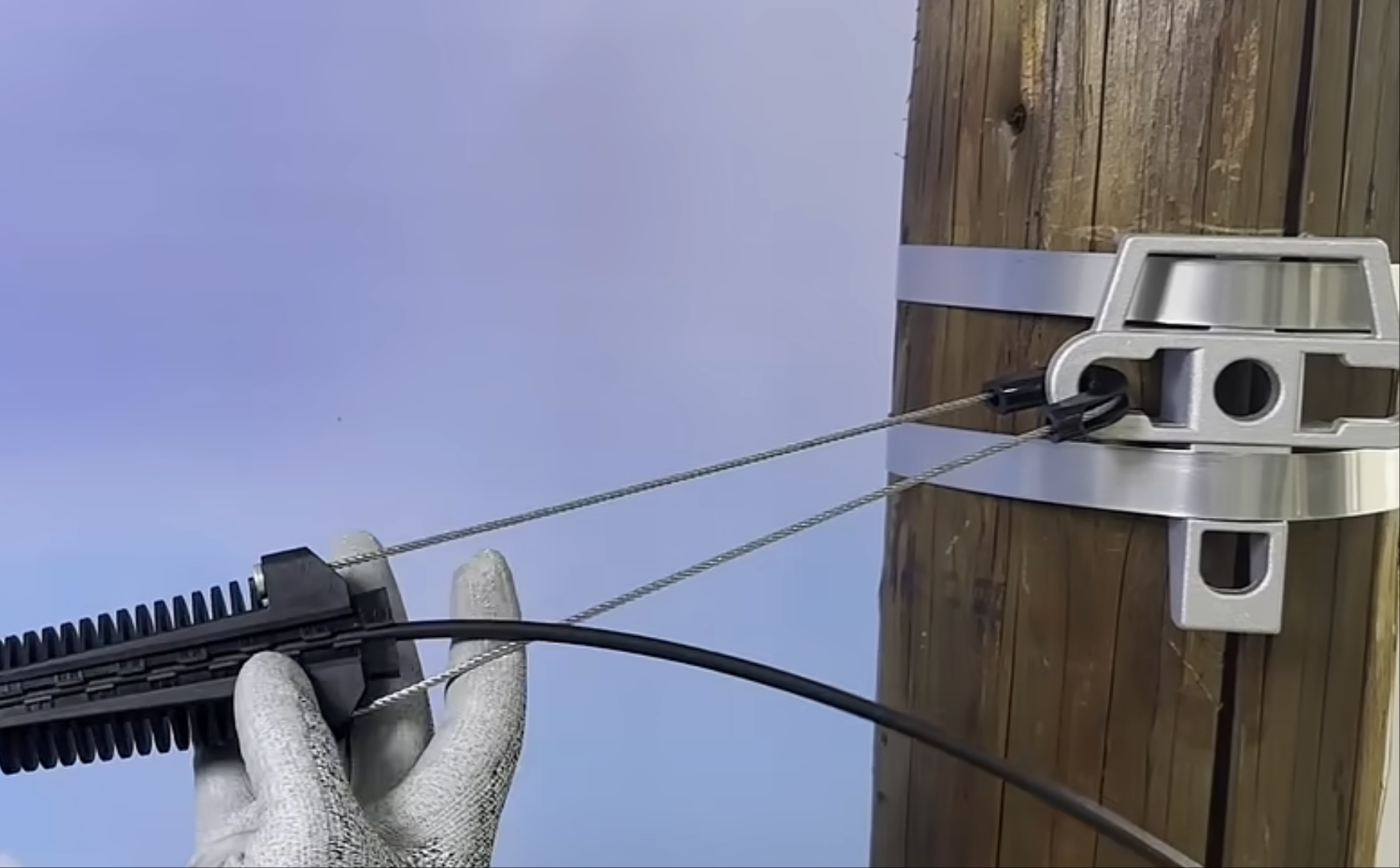

Made from grade 201 stainless steel, it features good rust resistance and decent durability to withstand long-term exposure to wind, rain and UV rays outdoors. It works perfectly for securing optical cables, cable clamps, insulators and other telecom fittings on poles, walls and cross-arms.

Easy to cut, bend and install on site, this stainless steel strap suits both large-scale communication network construction and daily maintenance work.

It is a cost-effective, practical accessory for telecom operators, engineering teams and cable installation contractors worldwide.

Technical specification

Material grade,SUS	201
Width,mm	5/8”-16.0
Thickness,mm	0.028”-0.70
Length for roll, m	30 or 50

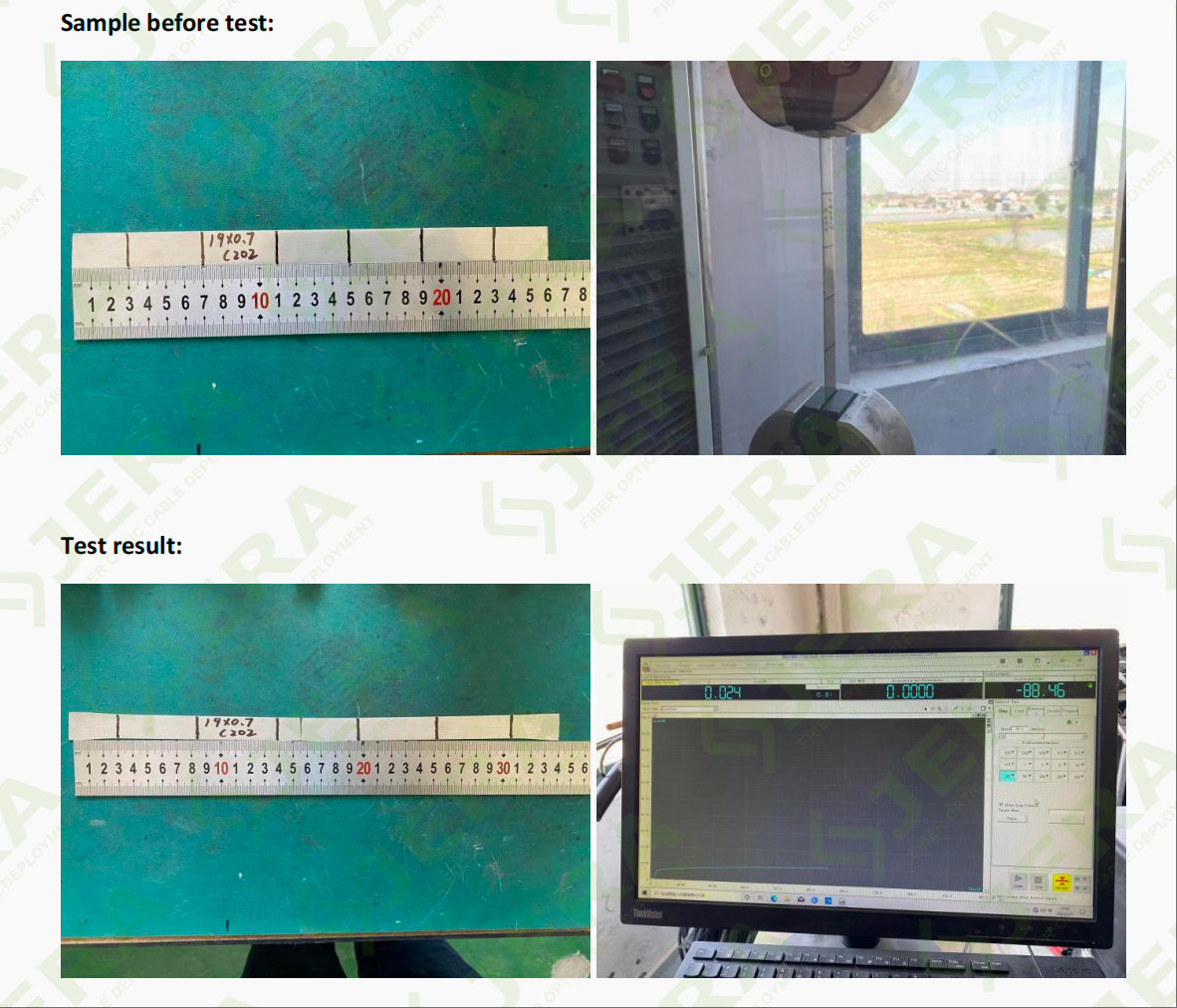

Test

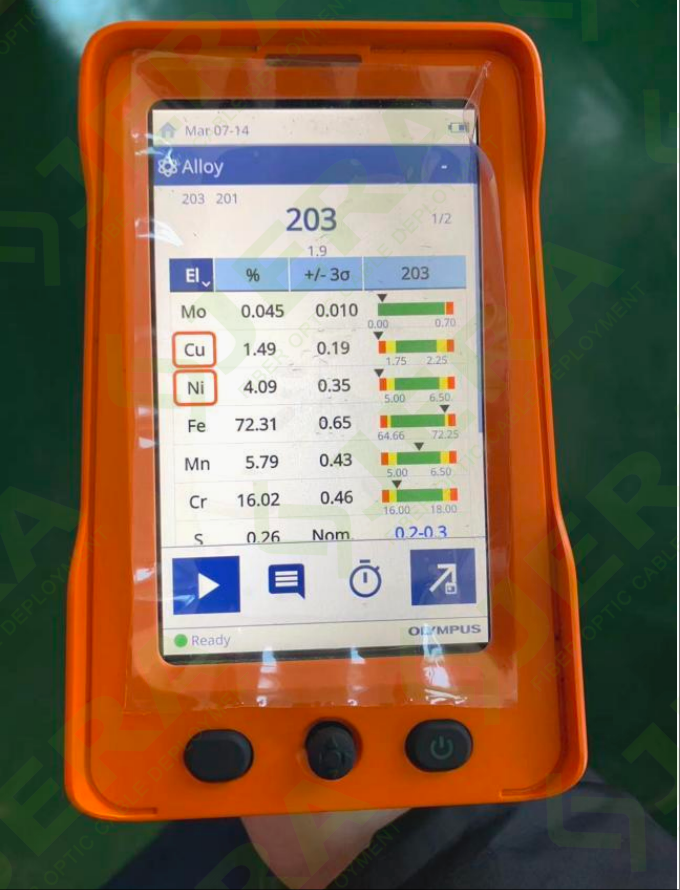

1. Jera's Lab use the XRF machine to check the primary alloying elements of the stainless steel.

These elements are the core of stainless steel properties, with strict minimum/maximum limits to ensure consistency. Especially the Nickel (Ni) content percentage.

Chemical componenttest:
